Wall Mounted Gantry Crane, Advanced Single Leg Gantry Crane 5 Ton

Wall mounted gantry crane for sale. Semi gantry with half wall mounted design & single leg, combined advantages of bridge crane & gantry crane.Check now.

Category: Euro Hoist Crane

Your Trusted Overhead Crane Manufacturer & Supplier

Wall Mounted Gantry Crane, Advanced Single Leg Gantry Crane 5 Ton
Economical Gantry Crane with Half Wall Mounted Design & Single Leg Desgin

A Wall mounted gantry crane is a crane that is designed to work in limited space environments, both indoors and outdoors. It has one leg that supports the bridge while the other end is supported by a runway or support structure. They are commonly used in industrial settings such as manufacturing plants and warehouses, where space is limited. Wall mounted gantry crane s can lift and move heavy loads over short distances, load and unload trucks, move materials around a facility, and assemble and disassemble heavy equipment. They come in various sizes and load capacities and can be customized to meet specific needs. Pendant control or remote control can be used to operate them. They are an efficient solution for heavy lifting tasks in a variety of industrial settings.

Wall mounted gantry crane for sale. Advanced European style gantry crane, semi gantry with half wall mounted design on one side and hale single leg on the other side, combined the advantages of bridge crane and gantry crane. A wall mounted gantry crane is a versatile and efficient solution for heavy lifting tasks in a variety of industrial settings. In this guide, we will cover everything you need to know about Wall mounted gantry crane s, including their design, load capacity, customization options, control methods, and safety features.

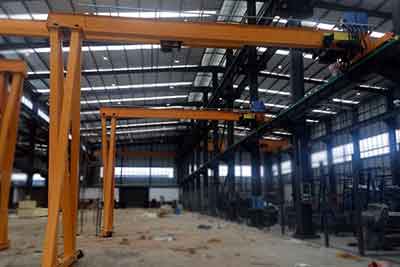

FEM Wall mounted gantry crane with single girder with capacity up to 20 tons

FEM Wall mounted gantry crane with single girder with capacity up to 20 tons

FEM Wall mounted gantry crane with double girder with capacity up to 50 tons, 100 tons,

FEM Wall mounted gantry crane with double girder with capacity up to 50 tons, 100 tons,

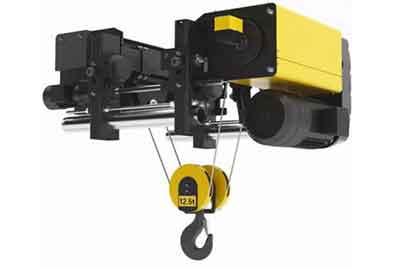

  • Single girder wall mounted gantry cranes with European type rope hoists can handle loads ranging from 500 kg to a maximum of 20 tons, and crane span and lifting height can be customized. Please contact us for more information about monorail semi-gantry crane specifications and gantry crane pricing.
  • The double girder semi-gantry cranes are for material handling with lifting capacities ranging from 5 ton to 50 tons, crane span and lifting height can be processed with customised designs. Please contact us for more information about double girder hoist trolley semi gantry crane specifications and gantry crane pricing.

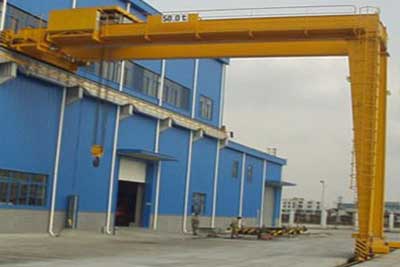

  • Outdoor wall mounted gantry crane s are typically made with materials that can resist corrosion, rust, and UV damage. Additionally, they may be equipped with weather-resistant features such as protective coatings, covers, or seals to prevent water and debris from damaging the crane's components. However, it is important to consult with the manufacturer or a qualified engineer to ensure that the crane is suitable for outdoor use and meets all necessary safety requirements.

European Style Design

Wall mounted gantry crane s come in various designs and sizes. They can be customized to meet specific needs and requirements. The design of a Wall mounted gantry crane  typically consists of a bridge, hoist, trolley, runway, and support structure.

The bridge is the part of the crane that spans the distance between the two legs. The hoist is the lifting component of the crane that is used to lift and move heavy loads. The trolley is the component that moves the hoist along the bridge. The runway is the support structure that holds the crane in place, while the support structure is the part of the crane that supports the bridge.

Wall mounted gantry cranes are also available in single and double girder designs, with fem hoist trolleys and open winch trolleys for material handling both indoors and outdoors.European style gantry crane configurations are very advanced, consisting of Schneider electrical, ABM/Nord / SEW triple gear motor (three in one: motor, gear box, brake), galvanized high strength wire rope, self-adjusted disk brake, hard tooth reducer, programmable lifting limit switch, and other parts and components for your selections.

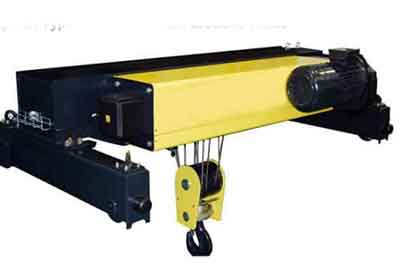

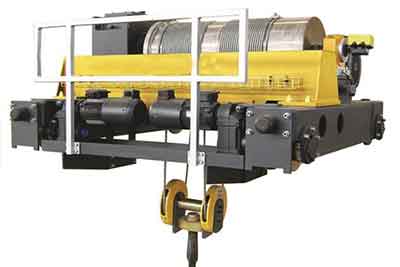

Hoist trolley & open winch trolley

There are various gantry hoist and gantry trolley options for various gantry designs, such as monorail gantry hoists, FEM wire rope hoists of single or double girder hoist trolley, and open winch trolley, among others.  Process gantry hoist cranes and winch cranes are available at good price.

This is a 3,3.2, 5, 6, 10 ton single girder semi beam mobile gantry crane in European style.At the same time, we may adjust the gantry crane to meet your individual needs, such as lifting weight, overall size design, and so on. It is of advanced technology, with a design based on international standards such as FEM (Europe), DIN (Germany), and ISO (International). It has numerous advantages such as high rigidity, low dead weight, low power, and an exceptional structure design, etc. Schneider electricals, ABM/Nord / SEW triple gear motor (three in one: motor, gear box, brake), galvanized high strength wire rope, self-adjusted disk brake, hard teeth reducer, programmed lifting limit switch, and more sophisticated configurations are available.

Advantages of European style wall mounted gantry cranes

Wall mounted gantry crane s offer several advantages over other types of cranes, including:

  • High reliability, safety, and free maintenance rate; a) work duty: FEM2M, M5 b) protection class: IP55 c) insulation class: F d) continuous rate: 60% (for high-performance motors) f) Cooling rate: 30% higher than standard crane f) Overheating protection: 170°C
  • small size, low dead weight, and low headroom
  • Low noise level
  • Energy-saving. The total motor power is significantly lower than in a standard configuration.
  • Please contact us for a tailored solution. .
  • Space-saving design: Wall mounted gantry crane s are mounted to the wall on one side, which means they don't take up less ground space. This makes them ideal for facilities with limited space.Saved money on civil work at the workshop due to the crane's light dead weight and low wheel pressure.
  • Increased safety: Wall mounted gantry crane s are more stable than other types of cranes because they are securely attached to the wall. This reduces the risk of accidents and injuries.
  • Versatility: Wall mounted gantry crane s can be used in a variety of applications, including manufacturing, warehousing, and construction. They can also be used to lift heavy loads in tight spaces.
  • Cost-effective: Wall mounted gantry crane s are often less expensive than other types of cranes because they don't require a separate support structure.

Overall, Wall mounted gantry crane s are a reliable and efficient choice for lifting heavy loads in a variety of settings.

Features of wall mounted semi gantry cranes

European style wall mounted gantry cranes have multiple features that make them perfect for lifting and transferring enormous objects in industrial environments. Some characteristics of European type wall mounted gantry cranes are as follows:

  • Modular design: European type wall mounted gantry cranes are modular in nature, which means they may be readily erected and removed. As a result, they are suitable for usage in places with limited space or where the  lifting crane must be relocated regularly.
  • High load capacity: European style wall mounted gantry cranes have a high load capacity, which means they can easily lift and transfer huge loads.
  • European style customization options :Wall-mounted gantry cranes can be tailored to match unique needs and specifications. They can be built to work in a variety of situations, including dangerous ones.
  • European-style remote control operation :Wall-mounted gantry cranes can be controlled remotely, allowing the operator to control the crane's movement from a safe distance.
  • High-quality components: European-style wall mounted gantry cranes are built with high-quality components, ensuring their durability and dependability. They are designed to survive tough conditions and heavy use.
  • European type safety features: Overload protection, emergency stop buttons, and safety limit switches are all standard features on wall mounted gantry cranes. These factors contribute to the crane's safe and efficient operation.

Wall-mounted gantry cranes are a versatile and cost-effective solution for large lifting works in a number of industrial situations. They are available in a variety of designs, load capabilities, and customizing choices. They are designed with safety measures to ensure safe operation and can be operated utilizing a number of control techniques. When selecting a wall mounted gantry crane, keep the intended application in mind and select a crane with the suitable lifting capacity and safety features.

Industrial applications of single leg wall mounted gantry crane

Semi-gantry cranes and wall-mounted gantry cranes are a type of European standard full gantry cranes that combine the benefits of overhead bridge cranes and gantry cranes, but with greater flexibility than overhead bridge cranes and lower cost than standard regular rail gantry cranes. Semi-gantry cranes are an excellent way to save money and space, especially if you are in the following situations:

  • To improve safety, productivity, and save time, your business requires an effective way to coordinate forklifts to handle large or very long loads.
  • Because your lifting volume is moderate, you do not require the installation of an expensive and permanent overhead crane system.
  • Your company already has overhead cranes, but you need a cost-effective and versatile lifting solution to enhance the existing crane system.
  • The European style semi gantries, with various crane designs, can be utilized for various material handling indoors and outdoors, as well as for specific applications with process crane designs. Semi-gantry cranes of European standard are ideal for material handling in restricted places or with congested machinery.

Comparison of Semi Gantry Crane and Full Gantry Crane

Overhead Bridge Cranes

Overhead Bridge Cranes

  • Bridge crane are typical used for indoor applications but also can be used for outdoor use. The general use bridge crane are installed on the top of workshop building , running on the crane runway  or on freestanding runway, supported by  freestanding columns
  • Compared with gantry crane, the bridge crane can largely free your ground space. Besides, the design and installation of bridge cranes are largely affected by your facility conditions. Contact us to get your customized bridge crane.

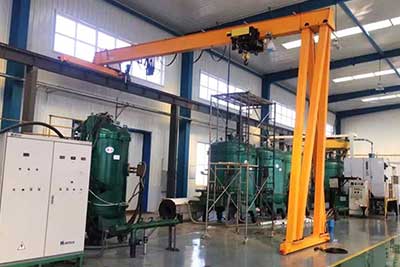

Semi gantry wall mounted crane

Semi gantry wall mounted crane

  • Semi portal crane has only one outrigger run on the ground track, and the other end of the crane is supported on the load-bearing beam of the workshop, which walks on the support track.
  • If the semi gantry crane is used indoors, a Wall mounted gantry crane is more suitable with save space and cost, as it only needs a side column and a runway beam.
Full Gantry Crane

Full Gantry Crane

  • The full-type gantry crane features two side support legs that walk on the ground track.
  • Full gantry cranes are easier to install and dismantle if the crane is used indoors without any columns and runway beams.

5 ton wall mounted gantry crane for sale

Our company is pleased to offer a 5 ton wall mounted gantry crane for sale. This 5 ton gantry crane is suitable for indoor workshop use and has a load capacity of 5 tons . The crane has a span of 12 meters and a height of lift (HOL) of 6 meters.

semi gantry wall mounted crane

semi gantry wall mounted crane

Single leg wall mounted gantry crane

Single leg wall mounted gantry crane

Electric hoist wall mounted gantry crane

Electric hoist wall mounted gantry crane

Main features of 5 ton wall mounted gantry crane  for sale

Because the 5 ton gantry crane is customized, it includes the following features:

  • Customized specification : 5 ton load capacity 12 meter span,Lift height (HOL): 6 meters
  • Control mode: remote control
  • The lifting and traveling functions are adjustable with a Schneider VFD for precise mold exchange. The trackless, rubber-coated ground wheel will not damage the ground. The top crane wheel has a guider roller to ensure straight traveling. The girder is divided into two pieces for container loading.

If you have any need of custom single leg wall mounted gantry crane, please feel free to contact us.

Production and delivery of 5 ton wall mounted gantry cranes

Crane design and engineering, fabrication, surface treatment, assembly, testing, delivery and installation, and maintenance and repair are all available at our facility.  Wall mounted gantry crane production operations often involve the following:

  • Design and engineering: Using computer-aided design (CAD) software, the crane is designed and engineered to fulfill the customer's unique specifications.
  • Fabrication: The crane components, such as the legs, bridge, and hoist trolley, are made of high-quality steel through the use of cutting, bending, and welding operations.
  • Surface treatment: To prevent corrosion, the produced components are treated with surface preparation processes such as sandblasting and painting.
  • Assembly: Using specialized techniques and equipment, the crane components are integrated into a full Wall mounted gantry crane.
  • Testing: The wall mounted crane is tested to ensure that it meets all safety and performance requirements. Load testing, function testing, and electrical testing are all included.

5 ton wall mounted gantry cranes can be made to fulfill high quality requirements and provide reliable performance for a number of applications by following these manufacturing procedures.

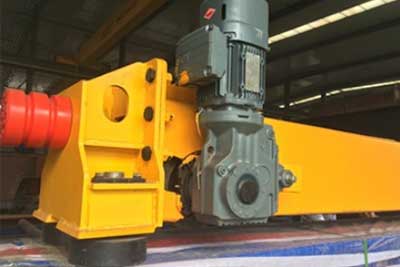

Top end carriage of wall mounted gantry crane

Top end carriage of wall mounted gantry crane

Main girder of the semi gantry crane

Main girder of the semi gantry crane

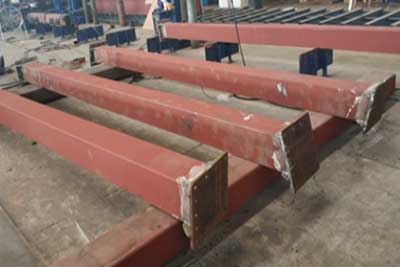

Supporting leg of single leg gantry crane

Supporting leg of single leg gantry crane

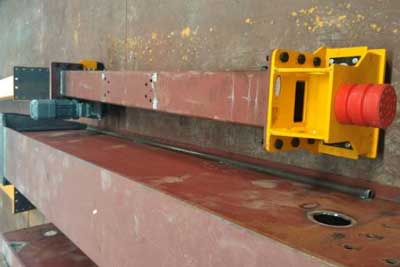

Bottom end carriage / ground beam of half wall mounted gantry crane and half rail travelling gantry crane

Bottom end carriage / ground beam of half wall mounted gantry crane and half rail travelling gantry crane

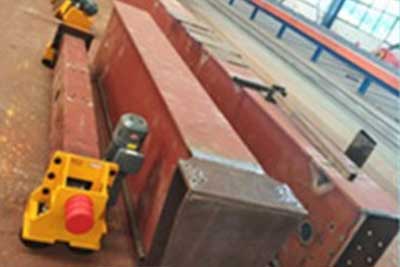

End carriages and main parts of overhead wall mounted gantry crane

End carriages and main parts of overhead wall mounted gantry crane

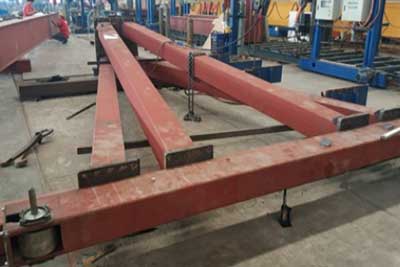

Travelling gantry crane leg assembly

Travelling gantry crane leg assembly

Electric hoist for semi gantry crane

Electric hoist for semi gantry crane

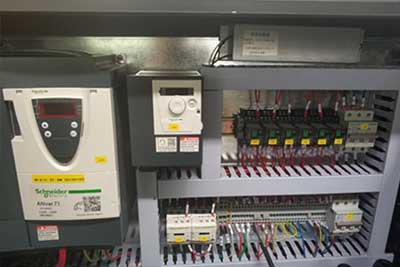

Electrical box

Electrical box

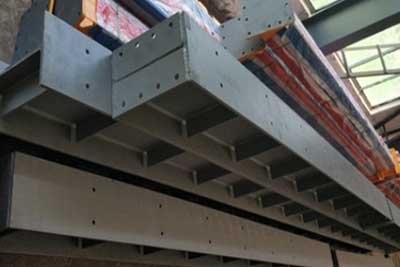

Runway beams

Runway beams

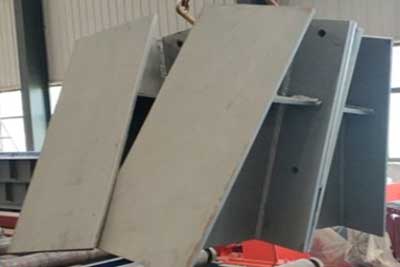

Corbel

Corbel

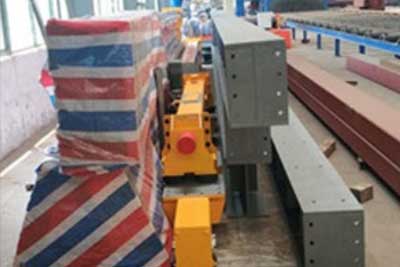

wall mounted gantry crane main parts and components for delivery

wall mounted gantry crane main parts and components for delivery

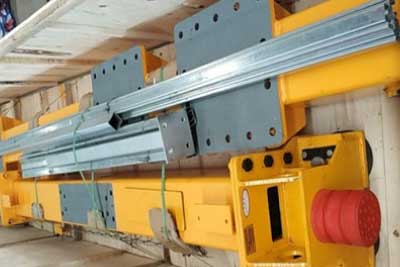

Semi gantry crane parts and components packed by wooden box

Semi gantry crane parts and components packed by wooden box

Our 5 ton Wall mounted gantry crane is a fantastic solution if you need a high-quality, reliable, and efficient wall mounted gantry crane for your indoor workshop.  Contact us today to learn more about our wall-mounted gantry cranes and how they may help your company.

Get your customized wall mounted gantry cranes

To get a customized wall mounted gantry crane , you can contact a reputable manufacturer or supplier of cranes and explain your specific needs. They will work with you to design a single girder gantry crane that meets your requirements.

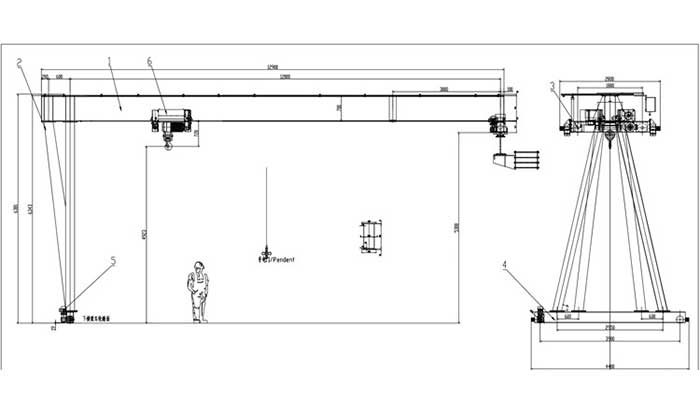

 wall mounted gantry crane drawing

Main parameters needed to get your wall mounted gantry crane quotation

How to select a semi-gantry crane for your application? In order to give you suitable semi gantry crane solution and specific crane price promptly, please  confirm the following with our gantry crane engineer as much as possible:

  • Gantry girder design of semi-gantry crane: Single girder / double girder design?  With one cantilever/ no cantilever?
  • Capacity: ____ ,Span:____, Height of Lift:____,Travelling Length:___
  • Power supply: 3 phase___Voltage___ Hz
  • Operation: Through Pendant/Radio Remote/Cabin Control?
  • Application: Industry type: _____, Indoor/Outdoor: ____. Loads: _______
  • Size of Existing Rail: ___

Factors affecting semi gantry wall mounted cranes

When selecting a single leg wall mounted gantry crane, there are several factors to consider. Some things to keep in mind include:

  • Load capacity: Confirm that the wall mounted crane can support the weight of the loads you need to lift.
  • Height of lift (HOL): Determine the greatest height to which you need to lift loads and check that the crane's HOL is sufficient.
  • Span: Consider the distance between the crane's legs and whether it is wide enough for your needs.
  • Determine how rapidly you need to hoist loads and make sure the crane's lifting speed is enough.
  • Safety features: Look for cranes with anti-collision systems, overload protection, and emergency stop buttons.
  • Power source: Choose a power source for the crane (electricity, fuel, etc.) that is appropriate for your area and demands.

Free consultation of wall mounted gantry crane/ single leg gantry crane is available.Any questions or problem are welcomed.Please just leave a message below and reply will be given within 24 hours. Contact us to get free European style semi gantry crane design drawing and specific gantry crane price.

Contact us to get your customized wall mounted gantry crane design. Contact us now to check what we can to do so save your wall mounted single leg gantry crane  cost.
