Clamshell Bucket Gantry Crane & Orange Peel Bucket Gantry Crane
Single girder / Double Girder Gantry Crane with Clamshell Bucket & Orange Peel Grab Bueket for Sale

Grab bucket gantry crane is a gantry crane usually employed to handle bulk materials such as coal, stone, sand, metal scrap, garbage, etc. It is mainly composed of gantry structure, trolley, lifting mechanism, electronic control and crane grab. The driver's cabin can be equipped which will also travel with the trolley.

Grab bucket gantry crane contains main beam system, crab system, grab system, and power supply system. This type of gantry crane is widely used to load and unload materials and loads in mine, port, factory, workshop, warehouse, and goods yard, etc . There are types of crane grabs for selection based on lifting applications conditions and lifting requirements, such as mechanical grab and electric hydraulic grab.

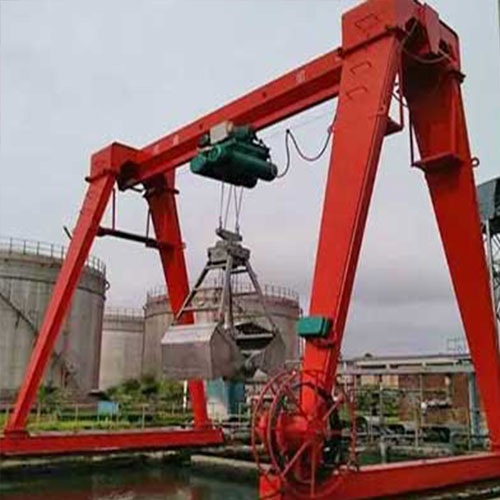

Grab bucket gantry crane bucket

• Product Name: Gantry Crane with Grab Bucket
• Work Duty of Grab bucket Gantry: A6, A7
• Girder Type of Grab bucket Gantry: Box girder or truss girder
• Span of Grab bucket Gantry: 12m ~ 36m
• Lifting Height of Grab bucket Gantry: 16m ~ 30m

Ask for grab bucket crane price

The Basics of Grab Bucket Gantry Cranes

In the bustling world of industrial operations, efficiency is the name of the game. Whether you're overseeing a busy port, a construction site, or a storage yard, the ability to handle materials swiftly and accurately can make all the difference. This is where the mighty Grab Bucket Gantry Cranes step in, revolutionizing the way we move and manage bulk materials. In this comprehensive guide, we're delving into the world of these heavy-duty workhorses – from their definition and significance to their intricate workings and pivotal components.

Defining Grab Bucket Gantry Cranes

A Grab Bucket Gantry Crane is a formidable piece of equipment designed to handle loose bulk materials with finesse and precision. Its standout feature is the ingenious grab bucket mechanism – a specialized attachment resembling a clamshell that opens and closes to grasp materials. This distinctive design allows the crane to efficiently load and unload materials from ships, trucks, and storage areas, streamlining industrial processes.

Importance of Efficient Material Handling

Imagine the scenario: ships waiting to be unloaded, trucks lined up with cargo, and deadlines looming large. In such a scenario, every moment counts, and efficient material handling becomes paramount. Grab Bucket Gantry Cranes excel in optimizing these operations by significantly reducing loading and unloading times. This not only boosts productivity but also minimizes operational costs and enhances the overall supply chain.

Key Components and Working Mechanism

At the heart of a Grab Bucket Gantry Crane lies a meticulously crafted framework. The crane is mounted on a robust gantry structure, composed of vertical columns and horizontal beams, providing the stability needed for its heavy-duty operations. A trolley mechanism equipped with the grab bucket traverses along this structure, positioning the bucket exactly where it's needed.

The grab bucket mechanism itself is a marvel of engineering. Depending on the type of crane, it can be supported by either two or four ropes. These ropes facilitate precise control over the bucket's movement, allowing it to scoop up materials and release them with accuracy. This control is essential when dealing with a variety of bulk materials, from ores and coal to grains and more.

As the crane's hoisting system lifts the loaded grab bucket, the material is transported to its destination – whether it's a ship's cargo hold, a truck bed, or a storage area. Modern control systems grant operators the power to orchestrate these movements with finesse, ensuring smooth and efficient material transfer.

In the ever-evolving landscape of industrial operations, Grab Bucket Gantry Cranes shine as essential tools for streamlining material handling processes. Their ability to swiftly and accurately move bulk materials not only saves time and resources but also lays the foundation for seamless supply chain management.

Stay tuned as we journey deeper into the world of Grab Bucket Gantry Cranes, exploring their various types, applications, features, and the pivotal role they play in industries worldwide. From ship unloaders to rail-mounted giants, these cranes are transforming the way we handle materials, one efficient lift at a time.

Main types of grab bucket gantry cranes

Each type of grab bucket gantry crane based on their design, grab mechanism, and primary application:

Based on Design:

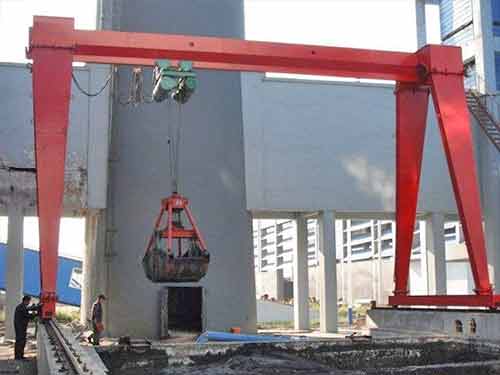

Grab bucket gantry crane with single girder crane design

Single Girder Grab Bucket Gantry Crane:

• Design: This crane features a single horizontal beam (girder) that supports the trolley and grab bucket mechanism. It is characterized by its simplicity and cost-effectiveness.
• Advantages: Generally lighter and more compact, suitable for lower duty cycles and lighter loads.
• Applications: Used in smaller ports, warehouses, construction sites, and other settings where medium-sized bulk materials need to be handled.

Ask for grab bucket crane price

Grab bucket gantry crane with single girder crane design

Double Girder Grab Bucket Gantry Crane:

• Design: This crane has two horizontal beams (girders) that provide increased stability and load-bearing capacity compared to single girder cranes.
• Advantages: Suitable for heavy-duty operations, handling heavier loads, and working in environments with higher demands.
• Applications: Commonly used in larger ports, shipyards, industrial facilities, and other locations where heavy bulk materials require efficient handling.

Ask for grab bucket crane price

Based on Grab Mechanism:

A grab bucketis a device used to pick up bulk materials. Because its grasping and unloading actions are all controlled by the crane driver, it not only avoids auxiliary personnel and manual labor, but it also saves auxiliary time. As a result, it's common in mines, metallurgical plants, ports, stations, and other bulk material warehouses. The disadvantage of crane grab is that it has a higher dead weight.

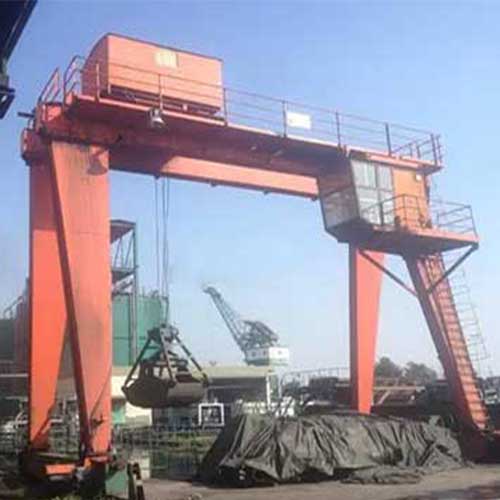

Four-Rope Grab Bucket Gantry Crane:

• Grab Mechanism: Equipped with a grab bucket mechanism supported by four ropes. Offers better control and precision during material handling.
• Advantages: Improved accuracy in material placement and control over the grab bucket's movement.
• Applications: Used in scenarios where precise positioning of materials, such as ores, grains, or minerals, is essential.

Ask for grab bucket crane price

Two-Rope Grab Bucket Gantry Crane:

• Grab Mechanism: Features a grab bucket mechanism supported by two ropes. Provides efficient handling of bulk materials but with slightly less precision compared to four-rope cranes.
• Advantages: Efficient for handling bulk materials with moderate precision requirements.
• Applications: Suitable for scenarios where high precision is not critical, such as loading and unloading of certain types of loose materials.

Ask for grab bucket crane price

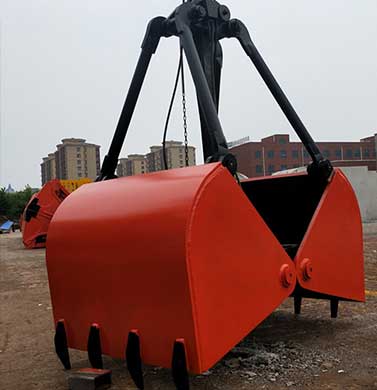

Single rope grab bucket

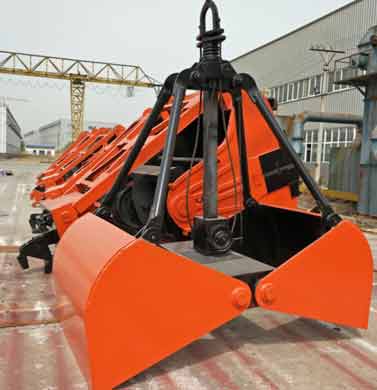

Clamshell bucket grab bucket

Log grab

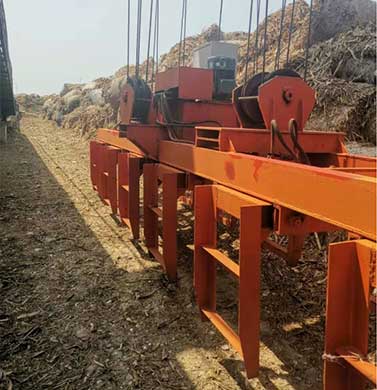

Customized grab bucket for biomass handling

The lifting capacity of the grab bucket gantry crane includes the weight of the grab itself, then the lifting load PQ is:

PQ=PG+PQ1

PG - Load weight

PQ1 - Dead weight of grab

According to the different classification of grabbed materials, the grab buckets can be classified into the following : Timber grabs, ore grabs, coal grabs, grain grabs, sand grabs, etc.

Based on Application:

In the realm of heavy-duty material handling, diversity in applications reigns supreme. From ports to construction sites, each industry demands its own unique set of capabilities. Let's delve into the specific applications of each type of Grab Bucket Gantry Crane, unveiling their prowess in streamlining operations across various sectors.

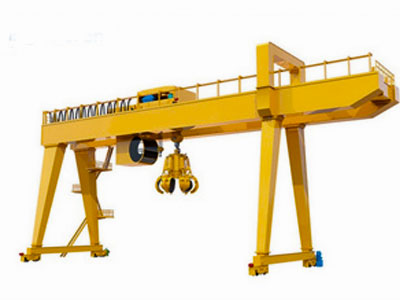

Grab Bucket Gantry Crane: Mastering Efficient Cargo Handling

• Efficient Ship Cargo Unloading: When it comes to swiftly unloading cargo from ships, the Ship Unloader Grab Bucket Gantry Crane shines. Its reach and precision allow for rapid unloading, ensuring vessels spend less time docked and more time en route.
• Handling Coal, Ores, and Grains: Bulk cargo like coal, ores, and grains pose their own set of challenges. This crane's grab bucket mechanism deftly tackles these materials, transferring them from ships to storage or onward transportation with remarkable efficiency.
• Optimizing Port Operations: Ports thrive on efficient operations, and this crane plays a pivotal role in achieving just that. By accelerating the unloading process, it reduces congestion, expedites cargo movement, and optimizes overall port productivity.
• Application: Designed specifically for unloading bulk cargo from ships. Equipped with features to extend over the sides of vessels and efficiently unload materials like coal, ores, grains, and more.
• Advantages: Optimized for ship cargo handling, ensuring swift and efficient unloading from vessels.

Ask for grab bucket crane price

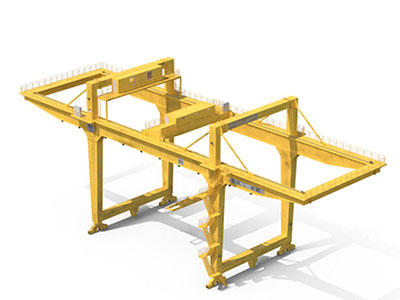

Rail-Mounted Grab Bucket Gantry Crane: Versatility Unleashed

• Versatility in Covering Large Areas: Industries spanning storage yards, construction sites, and more require a crane that can cover vast territories. The Rail-Mounted Grab Bucket Gantry Crane steps up, effortlessly moving along its tracks to handle materials wherever they're needed.
• Outdoor Storage Yards and Industries: Outdoor storage yards, where space is ample and materials are diverse, find a perfect companion in this crane. Its mobility facilitates efficient material handling across expansive open spaces.
• Streamlining Material Movement: Whether it's construction materials, machinery parts, or other bulk items, this crane's ability to traverse distances with ease streamlines material movement, enhancing operational fluidity.
• Application: Moves along a set of rail tracks or a gantry runway, allowing it to cover a larger working area. Commonly used in outdoor storage yards and industrial settings.
• Advantages: Provides flexibility in covering a wide area, suitable for moving materials between different storage locations.

Ask for grab bucket crane price

Rubber-Tired Grab Bucket Gantry Crane: Mobility Redefined

• Mobility for Container Terminals: Container terminals are bustling hubs where speed and adaptability matter most. The Rubber-Tired Grab Bucket Gantry Crane's rubber tires provide the mobility required to navigate stacks of containers efficiently, facilitating seamless container handling.
• Bulk Material Handling Efficiency: It's not just containers that demand attention – bulk materials are equally crucial. This crane's ability to swiftly move between material stacks ensures the efficient loading and unloading of materials like sand, gravel, and more.
• Container Stacking and Sorting: The choreography of container stacking and sorting demands precision and agility. This crane delivers, contributing to organized and systematic container management within terminals.
• Application: Equipped with rubber tires for mobility. Often used in container terminals and storage yards for efficient movement between stacks of containers and bulk material handling.
• Advantages: Mobility and versatility for handling containers and bulk materials across various parts of a terminal or yard.

Ask for grab bucket crane price

As industries continue to evolve, the role of Grab Bucket Gantry Cranes becomes increasingly vital. From optimizing port operations to enhancing bulk material handling, these cranes demonstrate versatility, precision, and mobility across a wide spectrum of applications. As we journey further into the world of grab bucket gantry cranes, we'll uncover the top concerns of users and address their questions, equipping you with the insights you need for your material handling endeavors.

These categorizations provide an overview of the main types of grab bucket gantry cranes based on their design, grab mechanism, and primary application. It's important to note that certain crane models may have features that span multiple categories, as they are designed to accommodate specific operational requirements and industries.

Features and Benefits of Grab Bucket Gantry Cranes: Elevating Efficiency and Performance

In the intricate dance of industrial material handling, precision and efficiency take center stage. Enter the Grab Bucket Gantry Cranes – engineered to not only move bulk materials but to do so with finesse and strategic advantages. Let's explore the remarkable features and benefits that make these cranes indispensable assets in a range of industries.

• 1. Superior Material Handling Efficiency -The heartbeat of any operation is its efficiency. Grab Bucket Gantry Cranes are designed with this in mind, boasting mechanisms that streamline loading, unloading, and transportation of bulk materials. With their specialized grab bucket attachments, these cranes grasp and release materials swiftly, minimizing downtime and optimizing productivity.
• 2. Precise Control and Positioning -In the realm of heavy lifting, precision is non-negotiable. These cranes excel in precise control and positioning, allowing operators to maneuver materials with pinpoint accuracy. Whether it's delicate ores or rugged construction materials, the ability to place them exactly where needed reduces wastage and enhances overall operational finesse.
• 3. Enhanced Safety Measures -Safety is paramount in industrial settings, and Grab Bucket Gantry Cranes step up to the challenge. Equipped with advanced safety features, these cranes ensure secure operations for both operators and the surrounding environment. From anti-sway mechanisms to load monitoring systems, every facet is meticulously designed to prevent accidents and minimize risks.
• 4. Adaptability to Various Materials -No two materials are the same, and these cranes understand that implicitly. Their adaptability to a wide range of materials – from loose grains to heavy ores – sets them apart. The grab bucket mechanism can be tailored to suit the characteristics of the cargo, ensuring optimal handling without compromise.
• 5. Durability for Long-Term Use -Investments in industrial equipment are long-term commitments, and Grab Bucket Gantry Cranes rise to the occasion. Built with durability in mind, these cranes withstand the rigors of daily operations, proving their mettle over years of service. This reliability translates into reduced maintenance costs and uninterrupted workflows.

In the realm of material handling, it's not just about moving materials; it's about orchestrating a seamless and efficient process. Grab Bucket Gantry Cranes emerge as not just tools, but strategic assets that enhance productivity, safety, and precision across diverse industries. Their features and benefits redefine how we approach bulk material handling, making them indispensable companions for modern operations.

Industrial Applications of Grab Bucket Gantry Cranes: Powering Diverse Sectors

In the realm of heavy-duty material handling, adaptability is the cornerstone of success. Grab Bucket Gantry Cranes rise to the occasion, proving their mettle in a wide array of industrial applications, such as, Warehouse, Workshop, Stockyard, Manufacturing Plant, Construction work, Energy, Mining, etc. Let's explore how these cranes play pivotal roles across various sectors, optimizing operations and streamlining processes.

• 1. Ports and Shipyards: Efficient Cargo Handling -Ports and shipyards are bustling hubs of activity, where cargo needs to be swiftly loaded and unloaded to ensure ships maintain their schedules. Grab Bucket Gantry Cranes take center stage in these environments, orchestrating the unloading of bulk materials such as coal, ores, and grains from vessels with remarkable efficiency. By minimizing vessel downtime, they contribute to smoother port operations and bolster the global supply chain.
• 2. Mining and Resource Extraction: Handling Valuable Commodities -In the world of mining and resource extraction, precision is paramount. Grab Bucket Gantry Cranes excel in the delicate handling of minerals and ores, ensuring valuable resources are transferred with utmost care. Whether it's loading materials onto trucks or unloading them for further processing, these cranes streamline operations, enhance productivity, and safeguard valuable commodities.
• 3. Construction Sites: Building with Precision -Construction sites are dynamic landscapes where materials need to be precisely positioned to ensure projects proceed without a hitch. Grab Bucket Gantry Cranes bring their precision and control to these sites, enabling efficient material movement. Whether it's transporting aggregates, concrete, or other construction materials, these cranes contribute to timely project completion and optimized construction processes.
• 4. Storage Yards and Terminals: Managing Materials with Finesse -Storage yards and terminals form the backbone of logistics and distribution networks. Here, the efficient movement of materials is paramount. Grab Bucket Gantry Cranes, especially rail-mounted and rubber-tired variants, navigate expansive yards with ease, ensuring materials are moved to and from storage areas swiftly and accurately. This level of material handling finesse enhances overall operational efficiency.

From the maritime realm of ports to the depths of mining operations, the construction of skyscrapers, and the logistics of storage yards, Grab Bucket Gantry Cranes are versatile workhorses that adapt to the unique demands of each industry. Their presence transforms how industries handle bulk materials, contributing to streamlined processes, enhanced productivity, and the efficient movement of goods across the globe. As we dive deeper into the world of grab bucket gantry cranes, we'll address the top concerns of users, shedding light on questions that guide informed decisions in material handling.

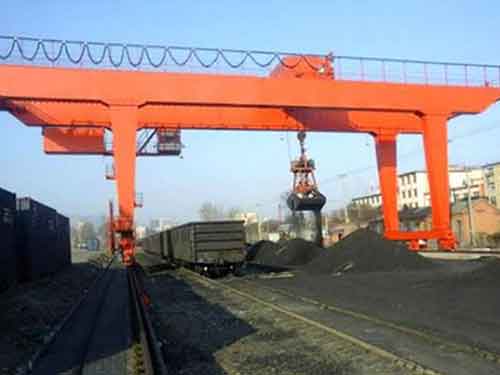

Clamshell grab bucket gantry crane for coal mine handling

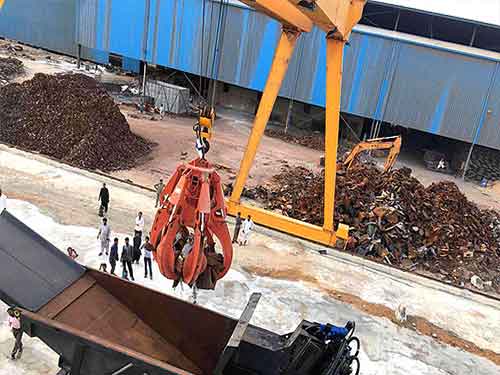

Orange peel grab gantry crane for waste yard

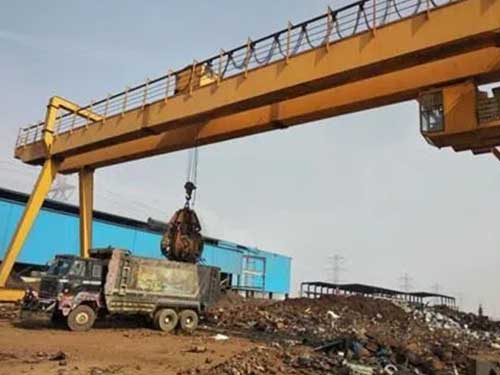

Scrap yard gantry crane with grab bucket

Double girder gantry crane with clamshell bucket for coal mine handling

Addressing User Concerns: Navigating the Queries of Material Handling

In the intricate world of industrial material handling, questions are the compass guiding informed decisions. Grab Bucket Gantry Cranes are no exception, sparking inquiries that shape how these cranes fit into diverse operations. Let's delve into some of the top concerns users encounter and provide clarity through insightful answers.

1. What distinguishes single girder from double girder cranes?

Answer: The key distinction lies in their design. Single girder cranes have one horizontal beam (girder) supporting the trolley and grab bucket, making them suitable for lighter loads and moderate-duty applications. Double girder cranes, on the other hand, boast two horizontal beams, granting them enhanced load-bearing capacity and suitability for heavy-duty operations. Depending on your operational needs and the weight of materials you handle, you can choose between agility and strength.

2. When should I choose a four-rope grab crane for my operation?

Answer: Opt for a four-rope grab crane when precision is paramount. The four-rope mechanism provides superior control over the grab bucket's movement, making it ideal for scenarios where accurate material placement is essential. If your operation involves handling materials with different characteristics and requires delicate maneuvering, such as minerals or grains, a four-rope grab crane ensures your materials are positioned with exceptional accuracy.

3. Can rubber-tired gantry cranes handle heavy loads like containers?

Answer: Absolutely. Rubber-tired gantry cranes (RTGs) are engineered to handle heavy loads, including containers. Their rubber tires provide the necessary mobility to navigate container terminals efficiently. RTGs are designed with heavy-duty operations in mind, enabling them to lift, move, and stack containers with precision. Their adaptability, coupled with robust construction, makes them a reliable choice for container handling even in bustling terminal environments.

4. What safety features are crucial in grab bucket gantry cranes?

Answer: Safety is paramount in industrial operations. Essential safety features in grab bucket gantry cranes include:

• Anti-Sway Mechanisms: These prevent excessive swinging of the load during lifting and positioning.
• Load Monitoring Systems: These provide real-time feedback on the load being lifted, ensuring operators stay within safe operational limits.
• Emergency Stop Systems: Immediate shut-off mechanisms that halt crane operations in case of emergencies.
• Overload Protection: Systems that prevent the crane from lifting loads beyond its capacity, safeguarding both operators and equipment.

These safety features, among others, work in tandem to ensure secure operations and minimize risks in various industrial settings.

As we address these common concerns, we empower you with insights that pave the way for informed decisions. The world of Grab Bucket Gantry Cranes thrives on understanding, adaptability, and excellence, ensuring your material handling endeavors are as smooth and efficient as possible. Stay tuned as we continue to explore the depths of material handling and its impact on diverse industries.

Conclusion: Empowering Your Material Handling Operations

In the world of industrial prowess, where time is of the essence and efficiency reigns supreme, the role of Grab Bucket Gantry Cranes is nothing short of transformational. These engineering marvels have emerged as indispensable allies, redefining how we move, handle, and manage bulk materials. As we conclude this journey through the diverse facets of Grab Bucket Gantry Cranes, let's reflect on the pillars that make them a cornerstone of modern material handling.

• The Power of Efficient Grab Bucket Gantry Cranes -Efficiency is the heartbeat of any operation, and Grab Bucket Gantry Cranes infuse this efficiency into every lift, every movement. Swift loading and unloading, precise positioning, and streamlined material transfer – these are the hallmarks that these cranes bring to the table. With their specialized grab bucket mechanisms and strategic designs, they elevate the speed and accuracy of material handling processes.
• Making Informed Choices for Your Industry -Every industry has its unique demands, and Grab Bucket Gantry Cranes are tailored to meet them. Whether it's the agility of single girder cranes, the strength of double girder cranes, the precision of four-rope mechanisms, or the versatility of rubber-tired and rail-mounted variants – the array of options empowers you to make choices that align with your operational needs.
• Elevating Material Handling Performance -Material handling is a dance of control, efficiency, and safety. Grab Bucket Gantry Cranes are the choreographers of this dance, orchestrating movements that optimize processes, reduce operational costs, and enhance the overall performance of industrial operations. From ports to construction sites, and from mining facilities to storage yards, their impact resonates across a spectrum of industries.

Contact Us: Your Trusted Floor-Mounted Crane Manufacturer and Supplier

As your journey into the realm of material handling continues, know that you're not alone. We're your trusted partners, dedicated to providing quality Grab Bucket Gantry Cranes and electric hoists that meet the rigors of modern industry. Our commitment extends beyond equipment – it's about serving the needs of industries worldwide and equipping you with reliable solutions that elevate your operations.

Thank you for joining us on this exploration of Grab Bucket Gantry Cranes. We're here to support your endeavors, fueling your material handling aspirations and propelling your industry forward. Experience the power of efficiency, the precision of control, and the impact of superior material handling – all embodied in the world of Grab Bucket Gantry Cranes.

Get customized grab bucket gantry crane

To get your customized grab bucket gantry crane, the following parameters are needed:

• Span of grab bucket gantry crane:___?
• Length of cantilever of grab bucket gantry crane:___?
• Lift Height of grab bucket gantry crane:___?
• Lifting speed: variable, frequency control, stepped or stepless speed.
• Crane and trolley travel speed: variable, frequency control, stepped or stepless speed
• Gantry structure: box girder or truss type: lighter, smaller will area, and driver room can be fixed on one side of the legs.
• Control options include cabin control and ground remote control.
• Type of grab: teeth mouth or flat mouth, and peace. The direction of the grab open can be parallel or perpendicular to the main girder.
• Power can be supplied via an overhead contact line, a ground cable reel, or other means.
