Low Headroom Chain Hoist, Super Low Profile Chain Hoist To 50 Ton
500kg -50 ton low headroom chain hoist with FEM standard low profile hoist design of 100-150mm, 200mm, 350-400mm, save your overhead clearance & space.
| Hoist Type | Electric low headroom chain hoist with European style |
| Hoist Capacity | Up to 50 ton |
| Lifting Height | As your request |
| Low Headroom Design | 100-150mm, 200mm, 350-400mm |
Category: Hoist
Your Trusted Electric Chain Hoist Manufacturer & Supplier
Low Headroom Chain Hoist & Low Profile Chain Hoist To 50 Ton
Super Low Profile Hoist Save Your Space & Cost
500kg -50 ton low headroom chain hoist with FEM standard low profile hoist design of 100-150mm, 200mm, 350-400mm, save your overhead clearance & space.
Low headroom chain hoist is a new type electric chain hoist compared with the standard electric chain hoist, to meet higher needs of lifting requirements in a confined working space. The fem style low headroom chain hoists can be grouped in FEM standard low headroom chain hoist, Super low low headroom chain hoist, Double hook European style low headroom chain hoist, and wind power generation industrial used electric chain hoist, and custom designed fem electric chain hoist, etc.
Main specifications of low headroom chain hoist with European style
European style electric low headroom chain hoist with suspension hook design
The main specifications of electric low headroom chain hoist are presented for your reference. And the customized low headroom chain hoists are also available. Feel free to contact us by leaving a message below or contact WhatsApp: + 86 151 3871 1597.
Lifting capacity of FEM low headroom chain hoist
- The max lifting capacity of low headroom chain hoist can be 50 tons, the lifting height of electric chain block is unlimited.
Lifting height of FEM standard low headroom chain hoist
- When the lifting height of low headroom chain hoist < 20m, the pocket of chain is plastic;
- When the lifting height of low headroom chain hoist >20m, the pocket is steel. The pocket of chain is cloth.
Working duty of FEM standard low headroom chain hoist
- Max working grade is M8, continue working for 48 hours.
Headroom of FEM standard low headroom chain hoist
- Low headroom of electric chain hoist can reach 200mm (the distance from i-beam bottom to the hook center)
- Low headroom of electric chain hoist is 350-400mm

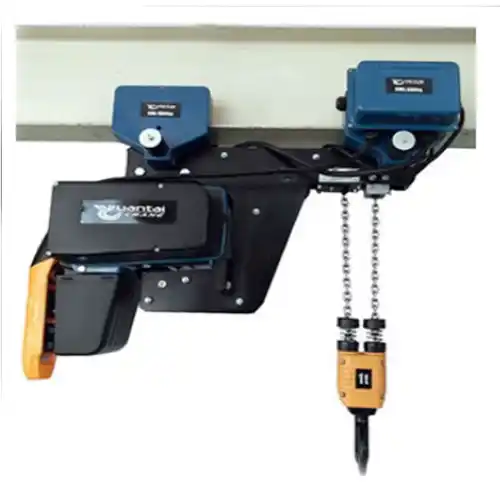

- Super low headroom chain hoist can reach 100-150mm.
Numbers of electric chain hoist hooks of FEM low headroom chain hoist
- Electric low headroom chain hoist with one hoist hook is the most common design for the low headroom chain hoist
- Electric low headroom chain hoist with double hoist hooks can be used to lift synchronously, with mechanical control, zero error.
- Electric low headroom chain hoist with 3 and more than3 hoist hooks designs are also available with our custom low headroom chain hoists.
For your convenience, the major parameters of European standard low headroom chain hoists are shown as above . Please contact us if you require custom designed fem standard low headroom chain hoists. Please fill out the form below with your requirements for European chain hoists, and we will contact you within 24 hours.

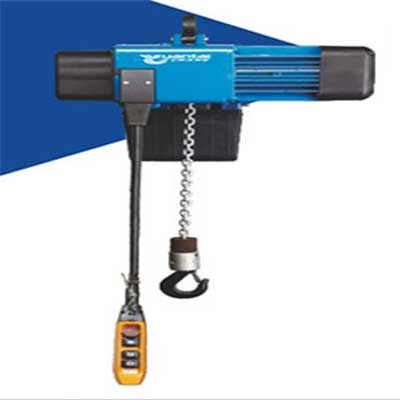

European style electric low headroom chain hoist with suspension hook design

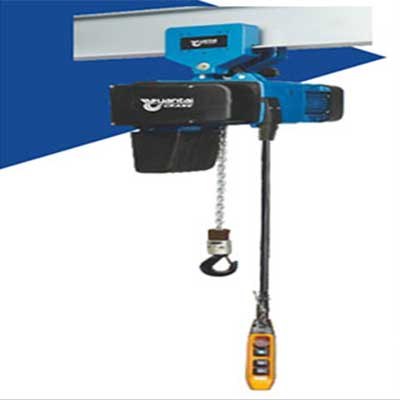

European style electric low headroom chain hoist with manual trolley
FEM Standards for hoist and cranes
FEM standards for hoists and cranes based on one of the European hoist and crane standards, such as DIN STANDARDS (Germany), BSI STANDARDS (United Kingdom), CEN STANDARDS, and so on.
- The FEM (Federation Europeenne de la Manutention) has established material handling and lifting hoist and crane equipment standards. The Federation Europeenne de la Manutention (FEM; www.fem-eur.com) has a number of key ones:
- FEM 1.002 Heavy Lifting Equipment Illustrated Terminology FEM 9.811 Rope and Chain Hoists – General Specifications
- FEM 9.511 Classification of Mechanisms for the Design of Series Hoist and Crane Lifting Equipment
- FEM 9.661 Dimensions and Design of Rope Reeving Components - Rules for the Design of Series Hoist and Crane Lifting Equipment
- FEM 9.683 Hoist and Travel Motor Selection FEM 9.852 Power Driven Series Hoist Mechanisms, Standardized Test Procedure for Classification Verification FEM 9.755 Measures for Achieving Safe Working Periods for Motorized Serial Hoist Units (S.W.P.) FEM 9.751 Power Driven Series Hoist Mechanisms, Safety
- FEM 9.901 Design Rules for Series Lifting Equipment and Cranes Using Series Lifting Equipment

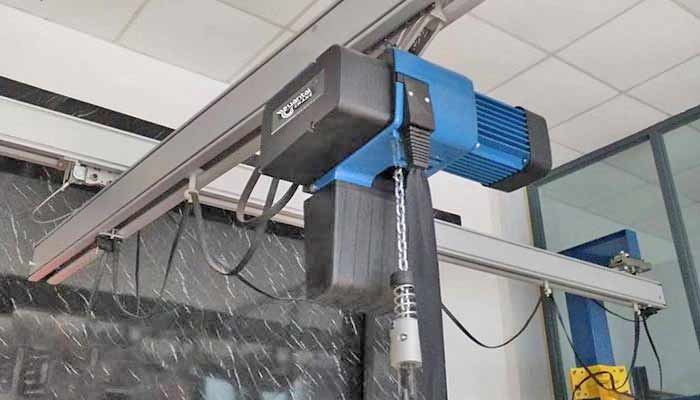

European style electric low headroom chain hoist
Low Headroom Chain Hoist

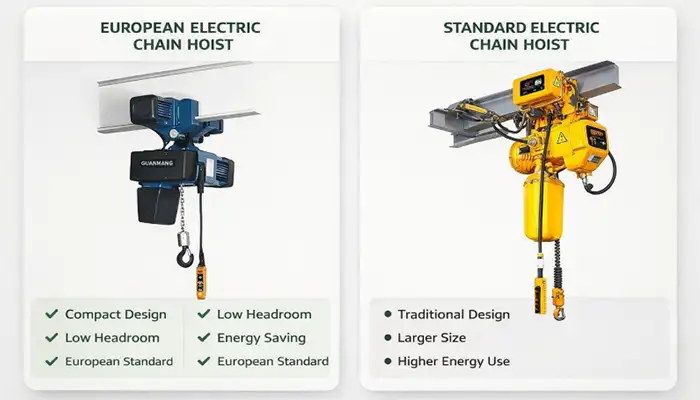

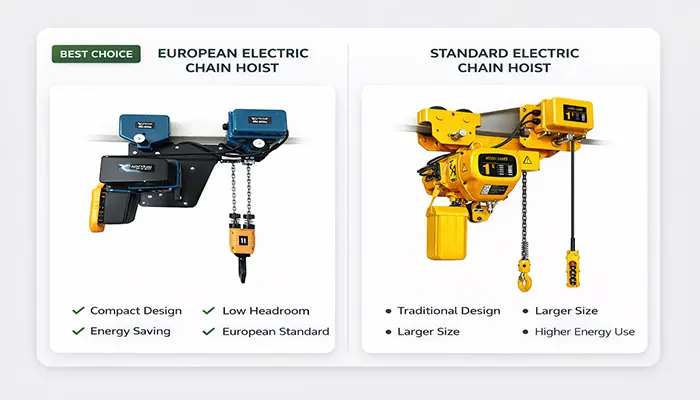

European style v.s. General type
A new form of electric chain hoist is the low headroom hoist. In terms of hoist structure and use, it has numerous benefits over a standard electric chain hoist. The key differences are shown in the table below for your convenience
On design concept of low headroom chain hoist
Design conception of low headroom chain hoistcomes from Europe.
Design conception of general electric chain is from Taiwan, China
Modularization v.s Integreated design
- Modularization - The fem standard electric hoist's motor, reducer, and electric equipment are all separate, allowing the wearing parts, such as the conductive frame, to be easily replaced.
- Integrated design -Wearing parts can't be replaced due to the integrated design, hence the complete mechanism must be replaced.
Configuration of low headroom chain hoist
European style low headroom chain hoist:
- RUD/FEC chain, which is made of titanium alloy and does not require oiling.
- Gear-grinding machining with high precision and a large bite force.
General low headroom chain hoist:
- Chain fall of general low headroom hoist is made of general steel, widely used in condition which has no high requirements of the chain fall .
- Gear of the electric hoist is used in light duty lifting requirement.
Noise during hoisting operation
- European style low headroom chain hoist : Smooth lifting, low noise
- General low headroom chain hoist: Loud noises, lifting and sloshing
Hoisting speed of low headroom chain hoist
- European style low headroom chain hoist: Lift with double speed 4/1 m/min, 8/2 m/min, protecting the motor and ensure safety.
- Lift with single/ double speed
Travelling speed of electric chain hoist
Both of the two types of low headroom hoists can be designed with single or double travelling speed .
Working classof low headroom chain hoist
- European style low headroom chain hoist: Max working grade of fem standard low headroom chain hoist is M8, continue working for 48 hours.
- European style low headroom chain hoist: Working grade of general electric chain hoist is M3 ~ M7.
Lifting capacity of low headroom chain hoist
- The max lifting capacity of the European standard low headroom chain hoist can be 50 tons, the lifting height is unlimited.
- The capacity of the genral use chain hoist is usually up to 35 ton but customized design are available.
Chain pocket of low headroom chain hoist
- When the lifting height of European style low headroom chain hoist is < 20m, the chain pocket is made of plastic. When the lifting height of European type low headroom chain hoist is >20m, the chain pocket is steel.
- The pocket of the general electric chain fall hoist is cloth.
Safety devices of anti-slip chain
- European style low headroom chain hoist adopts the Anti-slip chain: if the static load exceeds 1.25 times the rated lifting capacity, the chain will slip and the hoist will not be able to be lifted, ensuring the hoist's safety
- General tyle low headroom chain hoist is not adopt the anti-slip chain.
Low headroom design
- European style low headroom chain hoist: Low headroom can be as low as 200mm (the distance from i-beam bottom to the hook center) . Super low headroom chain hoist can reach 100-150mm.
- General style low headroom chain hoist: Low headroom is 350-400mm
With double hook design
- The fem style low headroom electric chain hoist's two hooks can raise concurrently, with mechanical control and zero error.
- For the general style low headroom chain hoist, the coordinators are in charge of the two lifting hooks, which must lift both sides at the same time.
How to select the FEM electric chain hoist
The following factors must be considered while choosing a European style low headroom chain hoist.
Base of select European style low headroom chain hoist
- Choose a load spectrum type.
- Compare your average operating time per day value (t) to the table's limits by following the load spectrum to the right, across the table.
- Stop when your estimated value (t) is in the middle of the range.
- To determine your hoist group, duty factor, and maximum starts per hour, move down that same column.
Customized low headroom chain hoist for your applicaiton
How to select the right low headroom chain hoist for your application? How to get the price of the electric chain hoist for your lifting? The following parameters are needed to customized your low headroom chain hoist:
- Load Capacity of low headroom chain hoist = _____ kg
- Hoisting speed of low headroom chain hoist = _____ m/min
- Average hoisting height of low headroom chain hoist= _____ m
- Number of work cycles of low headroom chain hoist = _____ /h
- Daily working time of low headroom chain hoist = _____ h
- Load spectrum of low headroom chain hoist: _____
Free consultation on low headroom chain hoist are available, please leave us a message blow to get your customized european style low headroom chain hoist.
