500kg Jib Cranes for Sale, Custom Design Good Jib Price
Types of Light Weight Jib Cranes 500kg for Sale

Jib crane 500kg for sale. Types of 500kg jib cranes for sale, floor jib cranes, wall mounted jib crane & wall travelling jib crane, articulating jib crane.

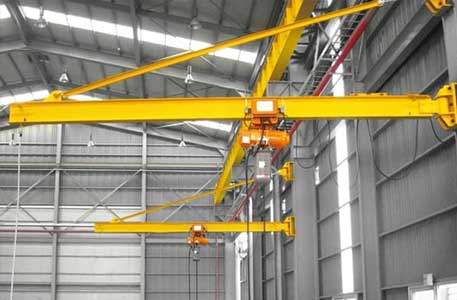

Wall mounted jib crane 500kg

The main advantage of the BXD wall jib crane is that it can be installed directly on the wall, pillar, or equipment. It takes up no ground space and does not necessitate foundation or other civil work. The most important feature of this wall mounted jib crane is that they do not need the supporting columns and floor foundation. Wall jib cranes are commonly used with electric chain hoists and wire rope hoists, and hand hoists. The flange was secured to a wall or wall column or H beam, and the hoist moved back and forth on the arms. The rotation mode can be either electric or manual. The user can select pendant control or remote control as the mode of operation.

Wall Mounted Jib Cranes 500kg

• Load capacity: 0.25ton, 500kg
• Arm Length: 2~6m
• Rotation angle: 180°~270°
• Working class: A3(FEM 1m)
• Voltage: 220~460V 50/60HZ 3PH

Ask for 500kg jib crane price quotation

Application of wall mounted jib crane 500kg

The BX wall mounted jib crane has the advantages of being simple to operate, easy to install and maintain, and taking up no floor space. This type of wall mounted jib crane is commonly used in lifting conditions such as lifting up and down of loads for workshop production lines,etc. If your factory has a wall that can be used or mounted the jibs and the lift working radius is close to the wall or pillar, this model of wall jib crane is the most cost-effective option.

Advantages of 500kg wall mounted jib cranes

• The structure is straightforward, and the cost is low. Furthermore, the 500kg wall mounted jib crane takes up no ground space, allowing the user to make better use of workshop space.
• Installation is simple, as there is no need for foundation or other facilities.
• Rotation can be either manual or electric. Lifting mechanisms with variable matching, such as chain hoists, wire rope hoists, and manual hoists.
• Customers can select high-grade protection, acid-resistant, or explosion-proof designs based on their needs.

Devices and tools for Jib crane security

• Protection against under voltage fault phase and phase deficiency.
• Overload protection.
• Crane travelling limit and lifting height limit.
• ·The emergency stop button.
• The BX wall mounted jib crane eliminates the pillars of the BZ type freestanding floor jib crane, and the arm can be designed as a light, folded type.
• Our company has extensive jib crane design experience in this field. So please tell us about your usage and operational needs. And we will offer you the most cost-effective 500kg jib crane solution.

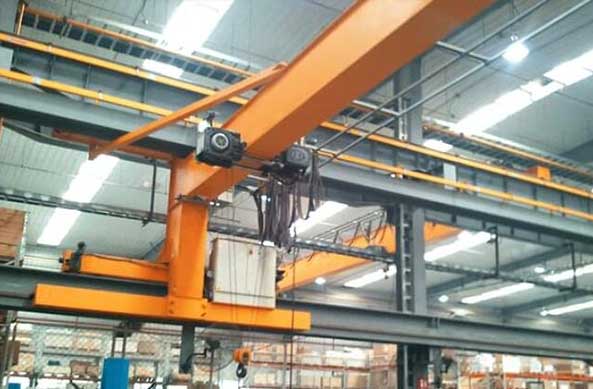

Wall travelling jib crane 500kg

BB wall Jib crane is an extension product of the wall type pillar Jib crane. The lifting capacity is 250kg-5000kg. The BB wall jib crane composed of main girder, end beam, drive device, chain hoist or electric hoist. The speed of crane and trolley is 20m/min, variable controller and frequency control of motor speed. Handle or remote control can be chose. This device is easy to install and maintain, with flexible operation.

Wall Travelling Jib Cranes 500kg

• Load capacity: 0.25 ton, 0.5 ton
• Arm Length: 2~6m
• Crane travelling speed: 0-20m/min
• Car speed: 0-20m/min
• Lifting speed: 0.8-8m/min

Ask for 500kg jib crane price quotation

Application of wall travelling jib crane 500kg

The BB wall travelling jib crane 0.5 ton is ideal for use in a one-sided working area in the workshop. The crane rail and crane track is mounted to the factory walls or building pillars. There are no obstacles on the work area. The BB wall travelling Jib crane is widely used in the machinery, metallurgy, automobile, shipbuilding, glass, paper, chemical, and other industries.

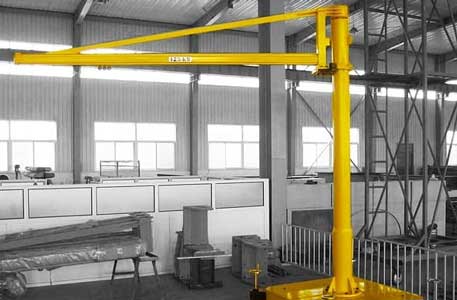

Portable jib crane 500kg

Because of its mobility and widespread application, the 500kg mobile jib crane has become an essential overhead material handling lifting devices for high-efficiency and light material handling in workshops and workstation. The 500kg mobile jib crane can run in any direction to the desired location. The electric jib hoist can move on and along the cantilever, for heavier loads handling.. The electric hoist is used to take off and land the heavy object up and down. The lifting equipment is distinguished by its simple structure, ease of operation, flexibility, large operation space, and broad application range.

500kg Mobile Jib Cranes

• Load capacity: 0.1~0.5 ton
• Lifting height: 3m
• Arm Length: 3m
• Rotation angle: Any angle

Ask for 500kg jib crane price quotation

Characteristics of portable jib crane 500kg

• The structure is light, and the operation and installation are straightforward.
• The fixed Jib crane is constrained by limited space, but mobile jib cranes are not.
• The mobile jib crane can be pushed manually to move freely in a smooth working environment.
• It is compatible with wire rope hoists, chain hoists, and hand pull hoists.
• Please contact our sales of your needs, and we will provide you with the most cost-effective solutions.

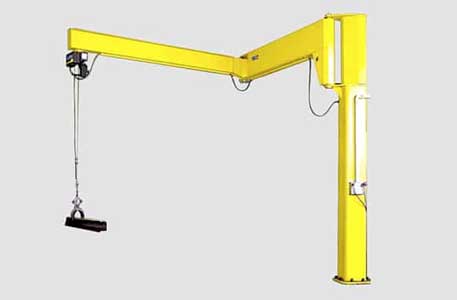

Articulating jib cranes 500kg

The articulating jib crane is characterized by its novel structure, ease of operation, high efficiency, and energy efficiency. When it is operational, press the button to lift the heavy load, then gently push and pull it by hand, bending and rotating the beam to achieve any position in the operation area. It is also compatible with chain hoists and micro-hoists. Flanges and bolts secured to the foundation are acceptable. It can also be easily installed on the walls or plant columns.

Articulating jib cranes 500kg

• Load capacity: 0.1~0.5T
• Radius of rotation: 3~4m
• Lifting height: 2~4m
• Rotation angle: 350°

Ask for 500kg jib crane price quotation

Application of articulating jib crane 500kg

The articulating jib crane is primarily used in factory construction and is suitable for machinery manufacturing, railway, chemical, light industry, and other production and maintenance industries. Especially useful in small spaces with a lot of equipment, short distance hoisting, and frequent production line operation. The use of this product has the potential to increase production efficiency.

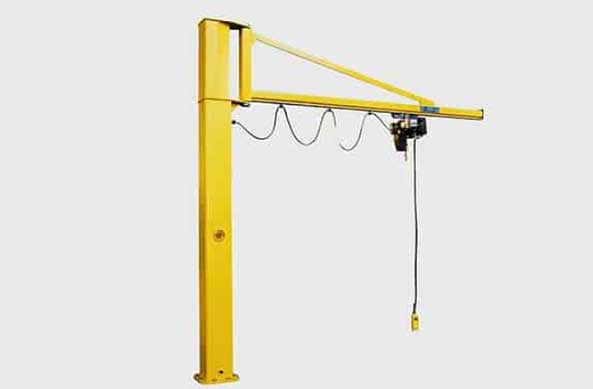

Light duty jib cranes floor mounted jib crane 500kg

Our company developed a new lifting equipment called the floor mounted light duty jib crane, which is based on the fixed pillar jib crane. The light duty Jib crane is made of hollow steel and has a light weight, high strength, good steel property, economy, and durability. The rotating arm is typically controlled manually, but it can be converted to an electric rotation based on the needs of the customer. The structure is light, with a rotating arm formed by cold rolling of Q235 steel plate. Furthermore, the structure size and occupation space are small, which is usually matched with a chain hoist that can meet the lifting requirements quickly and flexibly.

Light Duty Jib Cranes 500kg

• Load capacity: 0.125-2 ton
• Lifting height: 3m
• Radius of rotation: 5m
• Rotation angle: 270°
• Working class: A3（FEM 1m）

Ask for 500kg jib crane price quotation

Application of light duty jib crane 0.5 ton

The light duty jib hoisting equipment is widely used for light loads handling with capacity within 1000kg, such as in the food sector and other processing company to improve material handling efficiency and safety. The hoist speed is 20 m/min while the rotation speed is 0.7 r/min, making manual operation difficult. The light duty jib crane looks more practical and suitable for lifting light loads handling.
