BZ 1t Pillar Jib Crane Drawing Valid Radius 4.4m, Lifting Height 3.5m, ISO A3
1T BZ Pillar Jib Crane: 4.4m radius, 3.5m lift, ISO A3. Ideal for workstations & assembly lines. 270° rotation, dual control. Get a free quote today.
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Jib Crane Drawings
Tags:
Overview:
Engineered and manufactured by Yuantai Crane Machinery, this technical drawing package features a 1 Ton BZ Pillar Jib Crane (Model: BZ1t-5m A3) designed for versatile workstation material handling. Built to ISO A3 light/medium-duty standards, this custom lifting solution offers a 4.4m valid radius (5.0m total beam length), 3.5m lifting height, 4.4m total height, and a 270° rotation angle equipped with a dual-speed electric chain hoist for flexible, precise, and reliable local material handling.
Project & Technical Overview
- Equipment Type: BZ Pillar Jib Crane
- Model Number: BZ1t-5m A3
- Drawing Number: BZ1-5 A3
- Crane Manufacturer: Yuantai Crane Machinery
- Duty Class: ISO A3
- Control Method: Pendant control & Remote control
- Lifting Mechanism: Dual-Speed Electric Chain Hoist (Chain Diameter Φ7.1mm)
- Key Dimensions: Total Beam Length 5.0m, Valid Radius 4.4m, Total Height 4.4m, Lifting Height 3.5m

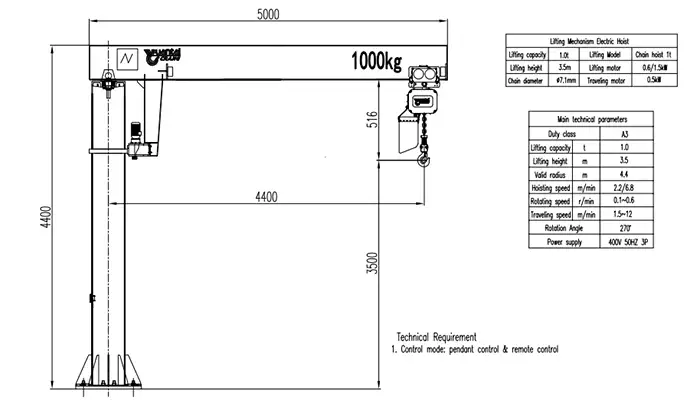

- PDF Drawing:1 Ton Pillar Jib Crane Total Beam Length 5.0m, Valid Radius 4.4m, Total Height 4.4m, Lifting Height 3.5m
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | ISO A3 |
| Lifting Capacity | 1.0 t (1000 kg) |
| Lifting Height | 3.5 m |
| Valid Radius | 4.4 m |
| Hoisting Speed | 2.2 / 6.8 m/min (Dual Speed) |
| Rotating Speed | 0.1 ~ 0.6 r/min (VFD Variable Speed) |
| Traveling Speed | 1.5 ~ 12 m/min (VFD Variable Speed) |
| Rotation Angle | 270° |
| Power Supply | 400V / 50Hz / 3P |
| Total Beam Length | 5000 mm |
| Total Height | 4400 mm |
| Hoist Headroom / Clearance | 516 mm |
| Total Crane Weight | 1.7 t (approx.) |
Lifting Mechanism & Motor Parameters
| Component / Parameter | Specification |
|---|---|
| Lifting Mechanism | Electric Chain Hoist |
| Lifting Model | Chain Hoist 1t |
| Chain Diameter | Φ 7.1 mm |
| Lifting Motor Power | 0.6 / 1.5 kW (Dual Speed Motor) |
| Traveling Motor Power | 0.5 kW |
Technical Requirement
Note:
- Control Mode: Pendant control & remote control.
- The drawing and technical data shown above are for reference only. For particular projects or customized dimensions, please contact us for a free consultation.
- Depending on complex site conditions or specialized customization engineering, a design fee/price may apply. Contact the Yuantai Crane engineering team for detailed technical proposals.
- Unauthorized use, copying, or manufacturing based on this drawing without formal authorization from Yuantai Crane Machinery is strictly prohibited. Yuantai Crane assumes no liability or legal responsibility for any consequences arising from unauthorized usage.
Frequently Asked Questions on the Drawing
1. What is the difference between the 4.4m valid radius and the 5.0m total beam length?
The 5.0m total beam length is the physical length of the jib arm, while the 4.4m valid radius is the actual working reach from the pillar center to the hoist hook. The remaining 0.6m accounts for the pillar and trolley clearance, so your effective lifting area is based on the 4.4m radius.
2. What is the maximum lifting height of this 1T pillar jib crane?
The lifting height is 3.5m, with a total crane height of 4.4m and an ultra-compact hoist headroom/clearance of only 516mm—making it ideal for workshops with limited vertical space while still offering practical lifting capability.
3. What power supply does this jib crane require?
This unit is designed for 400V / 50Hz / 3-phase power. It can be fully customized to 380V, 415V, 440V, or 60Hz to match your site's power standard on request.
4. What control options are available for operating the crane?
This model comes with both pendant control and wireless radio remote control, giving operators flexible and precise handling from a safe distance. The 270° rotation with VFD variable speed (0.1~0.6 r/min) and dual-speed electric chain hoist (2.2/6.8 m/min) ensure smooth and accurate positioning.
5. What is the duty class of this jib crane and what does it mean?
This crane is built to ISO A3 light/medium-duty standards, meaning it is designed for moderate-frequency lifting operations—ideal for workstations, assembly lines, machine tool loading/unloading, and maintenance bays.
6. Can this jib crane be customized for my workshop?
Yes. Capacity, valid radius, lifting height, rotation angle, motor power, control method, and foundation specs can all be tailored. Yuantai provides a free CAD layout drawing and quote within 24 hours.
How to Get Your Customized Yuantai Jib Crane
This drawing serves as a standard technical reference. Since every workshop layout and lifting requirement is unique, Yuantai Crane customizes every system to fit your exact building specifications.
| Process Step | Details |
|---|---|
| Step 1: Share Your Site Parameters | Provide us with your required capacity, valid radius / arm length, lifting height, rotation angle, and power supply. |
| Step 2: Free CAD Drawing & Proposal | Our engineering team will design a tailored general layout drawing and precise technical proposal for free. |
| Step 3: Commercial & Technical Confirmation | We fine-tune the motor power, rotation speed, control methods, and foundation specs based on your operational environment. |
| Step 4: Manufacturing & Worldwide Delivery | Your crane will be manufactured under strict quality control, with full FAT inspection and delivery to your site. |
Need a Customized Drawing & Quote for Your Plant?
Send us your workshop dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Pillar Jib Crane Solution
Yuantai Cranes provides customized BZ-Series of pillar jib crane solutions for factories, workshops, warehouses, assembly lines, and general industrial material handling. Each jib crane is configured according to the required capacity, valid radius, lifting height, rotation angle, duty class, building conditions, and operating environment.
Typical Technical Specifications:
- Capacity: 0.5–10 ton (This Model: 1.0 t)
- Valid Radius / Arm Length: 3–12 m (This Model: 4.4 m / 5.0 m total beam)
- Lifting Height: Customized according to application (This Model: 3.5 m / 4.4 m total height)
- Rotation Angle: 180° / 270° / 360° (This Model: 270°)
- Duty Class: ISO A3–A5 (This Model: ISO A3)
- Hoist Type: Electric Chain Hoist / Electric Wire Rope Hoist (This Model: Dual Speed Electric Chain Hoist 1t, Φ7.1mm chain)
- Hoisting Speed: 2.2 / 6.8 m/min
- Rotating Speed: 0.1 ~ 0.6 r/min (VFD Variable Speed)
- Traveling Speed: 1.5 ~ 12 m/min (VFD Variable Speed)
- Control Method: Pendant Control / Radio Remote (This Model: Pendant Control & Remote Control)
- Power Supply: 380/400/415V, 50/60Hz, 3Ph (This Model: 400V 50Hz 3P)
- Lifting Motor Power: 0.6 / 1.5 kW
- Traveling Motor Power: 0.5 kW
- Lifting Attachments: Hook / C Hook / Magnetic / Grab / Spreader / Customized
- Applications: Workstations, assembly lines, machine tool loading/unloading, maintenance bays, and fabrication workshops
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete pillar jib crane projects.
Engineering Support & Workshop Adaptability
Need an efficient local lifting solution for a dedicated workstation, assembly line, or machine tool loading area without depending on building wall columns or overhead bridge cranes? This technical drawing illustrates how Yuantai Crane customizes self-standing pillar-mounted jib cranes to deliver flexible 270° coverage for plant operations.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| No existing wall columns or overhead crane rails Ideal for leased facilities, open floor space, or localized assembly workstations needing independent lifting. | Self-standing heavy-duty pillar base design fixed directly to the concrete foundation with anchor bolts, providing flexible 270° rotation coverage. | 4.4m Total Height / 4.4m Valid Radius pillar jib design (Model: BZ1t-5m A3) |
| Compact vertical clearance & dual-speed precision Requiring maximum hook travel and low headroom within confined workshop bays. | Integrated compact dual-speed electric chain hoist with ultra-short 516mm headroom design for stable and accurate local material handling. | Lifting height: 3.5m with an ultra-compact 516mm hoist headroom clearance |
| Smooth VFD-controlled material transfer Handling delicate goods and loading workpieces with variable speed control. | Inverter-controlled rotation and traveling motor delivering smooth 0.1~0.6 r/min rotation speed and 1.5~12 m/min trolley speed for smooth startup and stopping. | Rotation Angle: 270° | VFD Rotating Speed: 0.1~0.6 r/min | VFD Trolley Speed: 1.5~12 m/min |
| Safe & effortless dual-control operation Allowing operators to maintain safe distance and optimal view during precision positioning. | Dual control configuration providing both wired pendant control and wireless radio remote control. | Pendant control & wireless remote control with 0.6/1.5kW lifting & 0.5kW traveling motors |
How to Evaluate If This Solution Fits Your Facility
- Height Check: Ensure your workshop clear height under the ceiling/truss is greater than 4.6 meters (equipment total height: 4.4m, allowing proper top clearance).
- Radius & Coverage Check: The effective working radius is 4.4 meters with a 5.0m total beam length, providing 270° rotation coverage for workstation operations.
- Foundation Requirement: Requires a reinforced concrete foundation slab or dedicated bolt-embedded foundation pad capable of supporting 1.0t safe working load and dynamic rotation moment.
- Power Supply Compatibility: Pre-configured for 400V / 50Hz / 3P power input (can be 100% customized to 380V, 415V, 440V, or 60Hz per your site power standard).
