2 Ton Mobile Gantry Crane, Light & Economical for Subway Material Handling
2000kg Mobile Gantry Crane vs. 2000kg Portable Jib Crane

2000kg mobile gantry crane vs. 2 ton portable Jib crane. Economical gantry crane meets material handling needs for subway construction. T The  2 ton Mobile Gantry Crane with 7 width， 3 + 3m lifting height( 3 meter above ground the ground and 3 meter underground) , 2000kg electric chain hoist  are designed for subway construction in Mauritius.

2000kg Mobile Gantry Crane for economical material handling in subway construction site

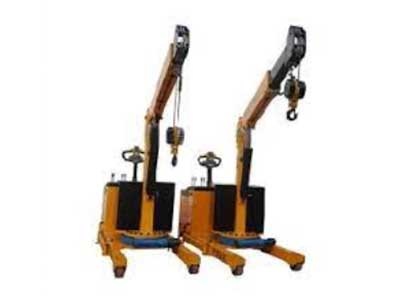

At very beginning, the 2000kg jib crane as shown in the below picture is what client looking for.Even though the one is not our product,we also would like to offer our help since we have plenty of experience for material handling equipment at subway construction site.

' We have requirement of below type of Crane for Mauritius subway project. Do you manufacture these types of cranes?"

Based on the features of the 2000kg jib crane required by client, the 2000kg portable jib cranes are suggested.

"Adventurous spirits who are always eager to explore and embrace new chances and experiences " . The client was very happy to know the 2000kg portable jib crane solution and their price accordingly. With their help, the detailed specifications of the portable jib cranes are confirmed quickly.

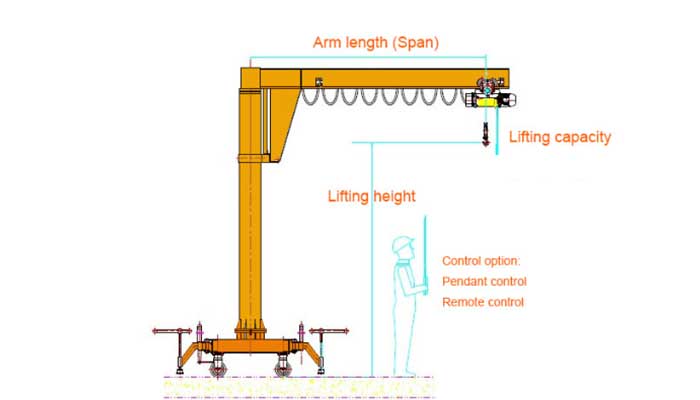

Confirmation of mobile jib crane parameters

Based on the communications, the main specification of the mobile jib cranes are confirmed as following for your reference:

• Lifting capacity: 2000kgs
• Arm length: __ 3__ m
• Lifting height: _ 3___ m
• Power supply you have:  400V 3 Phase

Customized hoist and crane solution is always the best and cost-effective solution for your particular application. We can provide custom material handling solution. If you have any need, please feel free to contact us.

Portable crane design changed with your requirements and needs

Hi Rashant Neal,

Hope you are doing well and happy New year!
Pls confirm the jib crane type of this new inquiry:

Lifting capacity:4-5t
Lifting height:?m 3 m. Please check the attached pic for more clarity.
Arm length:max. length up-to 6 meters
Arm need rotated(360°? 270°？ 180°？) or fixed type? 360°
Crane type: mobile Jib Crane or Pillar Mounted Jib Crane?Movable Crane
We will update the quotation and drawing for you.
Before updating quotation and drawing for us, please confirm that with these parameters you have Crane available with you.
After your confirmation, for the Crane availability with the mentioned parameters, I will just take up with the Client and will update you to send quotation and drawing accordingly.

If any issues or problem, we can have a team meeting for a better understanding.

As for the new inquiry, the arm length,also refers to the travelling length of the electric hoist,  is 7 meters. As mentioned above ground, the maximum arm length of the 2000kg portable jib crane is 3 meter. And the arm length can be longer when the the lifting capacity lowered such as, 1 ton or 500kg. As for this situation, the 2000kg mobile jib crane with 7 meters arm length is not practical. However, based on the particular lifting requirement and conditions, the 2000kg Mobile Gantry Cranes are suggested to the client, which not only meet client's needs functionally and finally.

Comparison of portable jib cranes on wheels  & Mobile Gantry Cranes

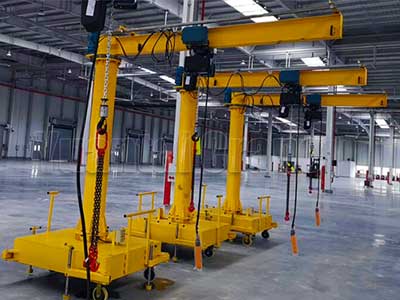

Mobile Jib Crane Main Specifications

• Jib capacity:0.25kg up to 2000kg
• Jib arm rotation: up to 360°
• Jib span: 1-3m
• Lifting height:1-3m
• Working duty； A3
• power supply:220-480V 3Phase 50/60Hz Crane travelling: manual or electrical.

Ask for Crane Price Quotation

Mobile Gantry Crane Main Specifications

• Gantry Capacity: 0.5~20t
• Span: 1~12m
• Lifting Height: 1~12m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A3, A4
• Ambient Temperature: -25~40℃
• Crane travelling : manual or electrical. Motorized travelling mobile gantry crane can travelling unload loading.

Ask for Crane Price Quotation

Here are some comparisons between portable jib cranes and Mobile Gantry Cranes:

• Weight Capacity: Mobile Gantry Cranes have a higher weight capacity compared to portable jib cranes. Gantry cranes can lift heavier loads, while jib cranes are used for lighter loads.
• Coverage Area: Portable jib cranes have a circular coverage area around the mast, while Mobile Gantry Cranes have a linear coverage area along the beam. Jib cranes are suitable for lifting materials in a specific area, while gantry cranes can cover a larger area.
• Structures: Portable jib cranes consist of a vertical mast and a horizontal boom, while Mobile Gantry Cranes consist of two uprights and a horizontal beam. Gantry cranes have a wider base compared to jib cranes, which makes them more stable.
• Mobility: Both jib cranes and gantry cranes are designed to be easily moved and set up in various locations. However, jib cranes are generally smaller and more lightweight, which makes them easier to move around.
• Applications: Jib cranes are commonly used for lighter lifting applications in workshops, warehouses, and loading docks, while gantry cranes are used for heavier lifting applications in construction sites, manufacturing facilities, and warehouses.
• Cost: Portable jib cranes are generally more affordable than Mobile Gantry Cranes due to their smaller size and weight capacity. Gantry cranes are more expensive because they can lift heavier loads and cover a larger area.

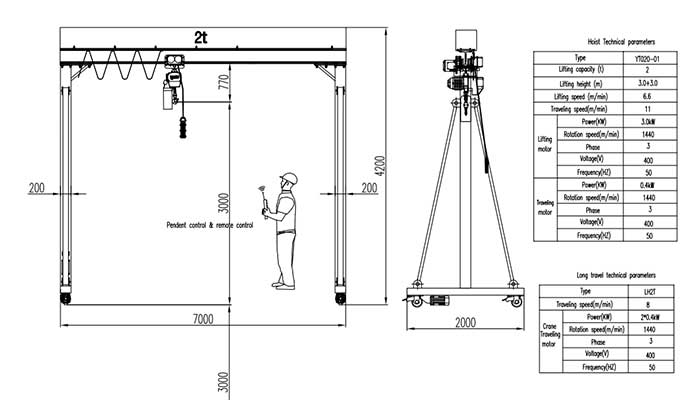

Crane drawing updated with new requirements

Main specification of  Mobile Gantry Crane for subway application

• Capacity : 2000kg
• Crane span: 7 meters
• Lifting height: 3+ 3m ( 3 meter above ground the ground + 3 meters underground )
• Lifting speed: 6.6 m/min
• Travelling speed: 11
• Gantry travelling: electric motorized travelling

Production of 2000kg mobile gantry cranes

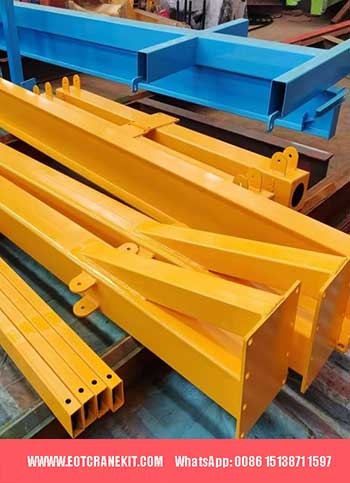

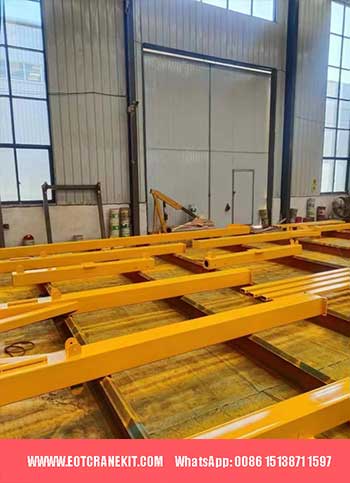

Steel structure, main girder and supporting leg of the 2000kg mobile gantry crane for material handling at subway construction site

2 ton mobile gantry finished painting

Electric chain hoist 2 ton for the electric travelling mobile gantry crane for sale

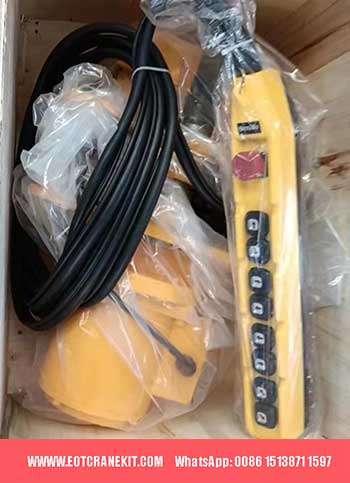

Pendent control for electric travelling mobile gantry crane 2 ton

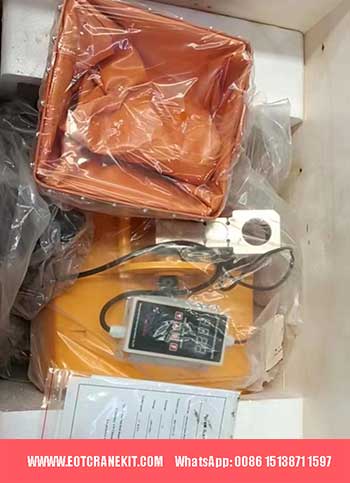

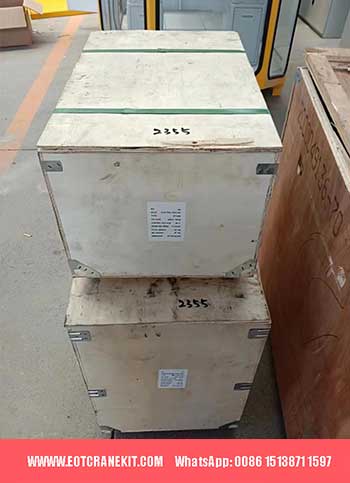

Main parts and components packed into boxes for safe transportation

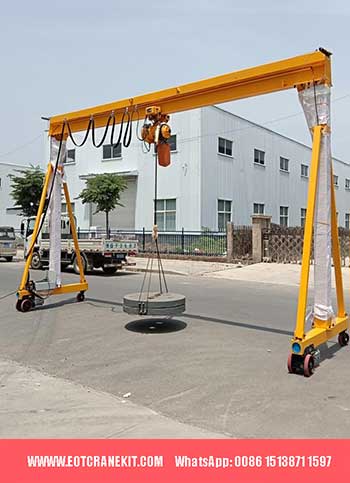

Testing beflore deliver

Features of 2000kg Mobile Gantry Crane - 3 +3 m lifting height

As for the 2000kg Mobile Gantry Cranes, one of the most signification features is the typical application conditions where the lifting operations concerns the underground operations.

For the lifting height will largely affect the gantry crane design and gantry hoist design. For   the above ground ground height and underground height will all together will affect the lifting height of lifting crane hoist, and the lifting height will defines the length of wire rope , and eventually affect the weight of the crane hoist, and then it will affect the design of the Mobile Gantry Crane height and supporting loads.  Therefore it is important to confirm the actually lifting height of lifting cranes.

How to confirm the lifting height when your material handling involving above ground and underground operations?

When material handling involves both above ground and underground operations, it is important to confirm the lifting height to ensure safety and avoid accidents. Here are some steps to confirm the lifting height:

• Measure the distance: The first step is to measure the distance between the above ground and underground areas. This can be done using a measuring tape or other measuring tools.
• Determine the maximum lifting height: Once the distance is measured, you can determine the maximum lifting height required for the job. This will depend on the height of the above ground area, the depth of the underground area, and any other factors that may affect the lifting height.
• Check for obstructions: Before lifting any materials, it is important to check for any obstructions that may interfere with the lifting process. This includes overhead power lines, tree branches, and other obstacles that may be in the way.
• Use proper lifting equipment: When lifting materials between above ground and underground areas, it is important to use proper lifting equipment such as cranes, hoists, and slings. This will help to ensure that the materials are lifted safely and securely.
• Follow safety guidelines: It is important to follow all safety guidelines and regulations when working with lifting equipment. This includes wearing appropriate personal protective equipment (PPE), following safe work practices, and ensuring that all equipment is properly maintained and inspected before use.

By following these steps, you can confirm the lifting height and ensure that your material handling operations involving above ground and underground areas are conducted safely and efficiently.

Types of gantry cranes used in the subway construction sites

There are several types of gantry cranes that are commonly used in subway construction sites. Here are some of the most common types:

• Rubber-tired gantry cranes (RTGs): RTGs are mobile gantry cranes that are mounted on rubber tires. They are commonly used in subway construction sites because they can be easily moved around the job site and do not require a permanent foundation. RTGs are ideal for lifting heavy loads to moderate heights.
• Rail-mounted gantry cranes (RMGs): RMGs are gantry cranes that are mounted on rails. They are commonly used in subway construction sites because they can be easily moved along the rail system and can lift heavy loads to great heights. RMGs are ideal for lifting large precast concrete segments, steel beams, and other heavy materials.
• Portable gantry cranes: Portable gantry cranes are lightweight and easy to move, making them ideal for smaller subway construction sites or for use in areas with limited space. They can be used to lift and move loads vertically or horizontally, and are available in a variety of weight capacities and configurations.
• Container gantry cranes: Container gantry cranes are a type of gantry crane that is specifically designed for lifting shipping containers. They are commonly used in subway construction sites where large amounts of materials or equipment need to be moved quickly and efficiently.
• Semi-gantry cranes: Semi-gantry cranes are a type of gantry crane that is supported by one leg and a runway system. They are commonly used in subway construction sites where space is limited, and can be easily moved along the runway system to lift and move loads.

By using the appropriate type of gantry crane for the job, workers can ensure that material handling and lifting operations in subway construction sites are conducted safely and efficiently.
