Case Study: 5 Ton Movable Gantry Crane and Main Crane Kits for Sale in Trinidad and Tobago
This case study focuses on the 5 ton movable gantry crane, specifically examining its main components and the essential crane kits available for sale in Trinidad and Tobago. The goal is to provide a clear and detailed understanding of the crane's design, functionality, and the key parts involved. This will help potential buyers assess whether this type of crane meets their industrial needs and requirements.
Overview of the 5 ton Movable Gantry Crane and Its Components
The 5 ton movable gantry crane is a versatile and robust piece of equipment designed for lifting and moving heavy loads in various industrial settings. Key features include:
Capacity: 5 tons, allowing it to handle substantial loads.
Span: 4 meters, providing adequate coverage for most applications.
Lifting Height: 6.5 meters, suitable for lifting loads to significant heights.
Power Supply: 440V, 60Hz, 3-phase, ensuring efficient operation.
This crane includes several critical components such as the main beam, columns, ground beams, and diagonal braces, each contributing to the crane's stability and functionality. Additionally, various spare parts, including screws, hoists, and motors, are essential for the crane's operation and maintenance.
Importance for Potential Buyers in Trinidad and Tobago
For businesses in Trinidad and Tobago, understanding the specifications and components of this crane is crucial for several reasons:
Performance Suitability: The crane's specifications should align with the local industrial requirements, ensuring it can handle the specific loads and tasks it will face.
Operational Efficiency: Knowledge of the crane's parts and their functions helps in optimizing its performance and ensuring reliable operations.
Maintenance and Support: Familiarity with the components and spare parts aids in effective maintenance planning and troubleshooting, reducing downtime and operational disruptions.
By providing a detailed examination of these aspects, this case study aims to help potential buyers make informed decisions about purchasing and implementing the 5 ton movable gantry crane in their operations.
Specifications of 5 Ton Movable Gantry Crane
Crane Type
Movable Gantry Crane: This type of crane is designed to be mobile, allowing for flexibility in moving and positioning across various work areas. It is ideal for tasks that require frequent relocation or coverage over a wide are
Key Specifications
Crane Capacity: 5 Tons. The crane can safely lift and move loads up to 5 tons, making it suitable for handling medium to heavy materials and equipment.
Crane Span: 4 meters. This is the horizontal distance between the crane's support legs, providing ample coverage for a range of industrial applications and ensuring it can handle tasks within this span.
Crane Lifting Height: 6.5 meters. The crane can lift loads up to 6.5 meters high, accommodating tasks that require significant vertical reach.
Power Supply: 440V, 60Hz, 3-phase. The crane operates on a three-phase power supply of 440 volts and 60 Hertz. This configuration ensures reliable and efficient operation, suitable for various industrial power standards.
Project Location
Trinidad and Tobago:
The crane is specifically available for projects in Trinidad and Tobago. This region's industrial sectors will benefit from the crane's versatility and capacity, addressing local needs for moving and lifting heavy loads in different work environments.
Main Parts and Components
Main Steel Structure
Main Beam:The main beam is the central horizontal component of the gantry crane. It supports the load and serves as the primary lifting element. Positioned across the span, it carries the hoist and other lifting mechanisms.Quantity: 1 piece
Column:The columns are vertical support structures that hold up the main beam and the entire gantry system. They are crucial for maintaining the crane's stability and ensuring that it can safely support the lifting loads.Quantity: 2 pieces
Ground Beam:The ground beams are horizontal beams situated at the base of the crane. They provide additional support and stability by distributing the load evenly across the crane's legs and the ground.Quantity: 2 pieces
Diagonal Brace:Diagonal braces are used to reinforce the crane's structure, ensuring it remains stable and rigid. They connect the main beam to the columns and ground beams, providing resistance against forces that could cause the crane to sway or collapse.Quantity: 4 pieces
Main steel structure of 5 ton gantry crane with mobile and movable gantry crane design for sale Trinidad and Tobago

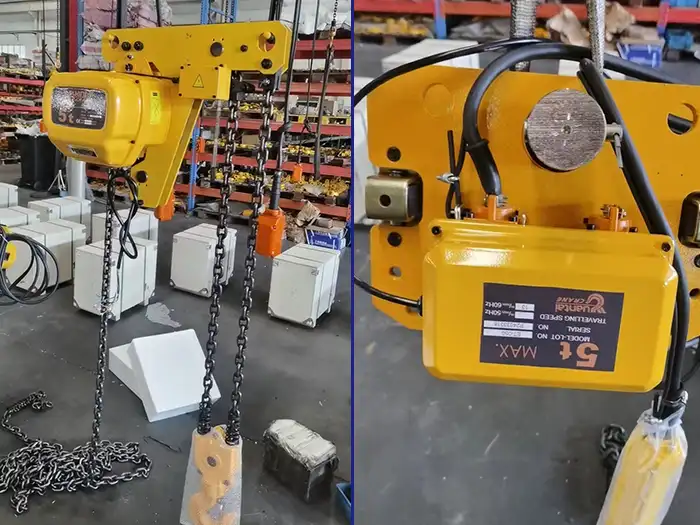

Low headroom electric chain hoist with low headroom design for the mobile gantry crane

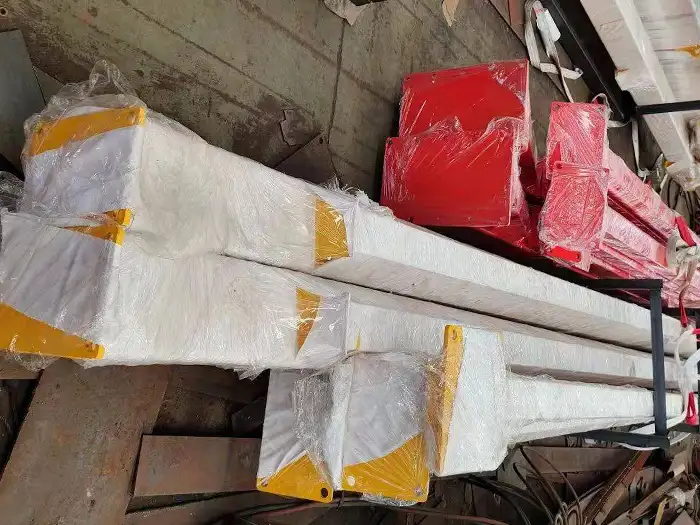

Movable gantry crane main parts and components for sale

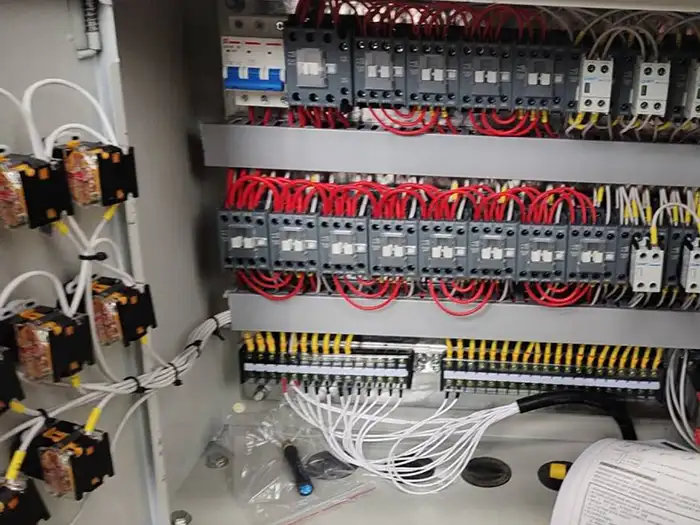

Electrical box of the 5 ton gantry crane with rolling castor
Main Spare Parts
Accessories:A wooden box containing various miscellaneous items needed for assembly and maintenance.Quantity: 1 box
Screws (20mm):These are essential fastening components used to secure different parts of the crane together.Quantity: 60 pieces
Big Car Reducer Screw (12mm x 100mm):Screws specifically designed for the reducer components of the crane's running gear.Quantity: 16 pieces
Screws (12mm):General-purpose screws used for various fastening needs in the crane assembly.Quantity: 8 pieces
Screws (8mm):Smaller screws used in areas where finer adjustments and secure fastening are required.Quantity: 16 pieces
Angle Iron (40cm):Reinforcement brackets used to strengthen the crane's structural joints and connections.Quantity: 2 pieces
Bumper (Red):Safety bumpers designed to protect the crane and its surroundings from impacts.Quantity: 2 pieces
End Cap (Black):Caps used to cover the ends of structural components, protecting them from damage and ensuring safety.Quantity: 4 pieces
Marking Wire (4):Wire used for marking and measurement during the installation and maintenance of the crane.Quantity: 1 piece
Electric Hoist with Chain (5t):The hoisting mechanism responsible for lifting and lowering loads. It includes a chain suitable for handling up to 5 tons.Quantity: 1 unit
Electric Hoist Running Car (5t):The running car for the electric hoist, allowing it to move along the beam and facilitate load handling.Quantity: 1 unit
Rotating Motor:Motor that powers the rotating functions of the crane, enabling movement and positioning of the load.Quantity: 4 units
Distribution Box (including remote control):The electrical control box that manages the crane's power supply and includes a remote control for convenient operation.Quantity: 1 unit
Electric Wire:Wires used to connect various electrical components to the distribution box, ensuring proper electrical connections.Quantity: 4 rolls
Travel Motor:Motor that drives the crane's travel functions, enabling movement across its operational areQuantity: 4 units
5 Ton Movable Gantry Crane & Kits in Trinidad and Tobago
Installation and Setup
Assembly Process
Preparation and Site Assessment
Preparation: Ensure that the installation site is level and capable of supporting the crane's load. Verify that all necessary tools and equipment are available.
Site Assessment: Conduct a thorough inspection of the site in Trinidad and Tobago to address any geographical or environmental factors that could affect installation.
Assembly of Main Steel Structure
Main Beam Installation: Position and secure the main beam horizontally using the provided bolts and supports. Ensure alignment with the columns.
Column Erection: Place and anchor the vertical columns to the ground beams. Check that they are plumb and properly aligned with the main beam.
Ground Beam Placement: Install the ground beams at the base of the columns to provide additional stability. Secure them firmly in place.
Diagonal Brace Attachment: Attach the diagonal braces between the main beam, columns, and ground beams. These braces provide critical structural support and stability.
Component Installation
Hoist and Running Car: Install the electric hoist and running car onto the main beam. Ensure proper alignment and secure mounting.
Rotating Motor and Travel Motors: Mount and connect the rotating motor and travel motors to their respective positions. Verify their integration with the crane's control systems.
Electrical Connections
Wiring: Connect the electrical wires to the distribution box. Ensure all connections are secure and comply with local electrical codes.
Distribution Box: Install the distribution box and connect it to the crane's power supply. Test the remote control functionality.
Final Checks and Safety Measures
Inspection: Conduct a thorough inspection of all components and connections to ensure correct assembly.
Safety Checks: Verify that all safety features, including bumpers and end caps, are properly installed and functioning.
Testing and Calibration
Testing Crane Functionality
Initial Power-On: Power up the crane and check all electrical systems for proper operation. Ensure the distribution box and remote control are functioning correctly.
Operational Testing: Perform test runs to check the hoist's lifting and lowering capabilities. Verify that the crane's travel and rotating functions operate smoothly and without issues.
Load Testing: Conduct a load test using the maximum capacity of 5 tons. Monitor the crane for any signs of strain or malfunction during the test.
Calibration Requirements
Hoist Calibration: Adjust the electric hoist settings to ensure accurate load handling and lifting height. Check for any inconsistencies in the hoist's performance.
Travel and Rotating Motors: Calibrate the travel and rotating motors to ensure precise movement and positioning. Adjust settings as needed for optimal performance.
Safety and Performance Checks: Ensure that all safety features are properly calibrated and functioning. Verify that the crane operates within the specified parameters for load capacity and span.
By following these detailed steps for assembly, installation, and testing, you can ensure that the 5 ton movable gantry crane is set up correctly and performs reliably in its operational environment in Trinidad and Tobago.
Performance Evaluation
Operational Efficiency
Assessment of Crane Performance
Component Integration: Evaluate how well the crane's components, including the main beam, columns, ground beams, and diagonal braces, work together to provide stability and efficiency. Proper alignment and installation of these parts are crucial for smooth operation.
Hoist and Running Car Functionality: Assess the performance of the electric hoist and running car. Check for smooth operation during lifting and lowering cycles, and ensure that the hoist effectively handles loads up to 5 tons without any mechanical issues.
Motor Performance: Evaluate the efficiency of the rotating and travel motors. Verify that they provide adequate power and control for the crane's movement, ensuring minimal energy consumption and optimal performance.
Energy Consumption and Operational Costs
Power Usage: Monitor the crane's power consumption to assess energy efficiency. Compare this with industry standards to ensure that the crane operates cost-effectively.
Maintenance Requirements: Evaluate the frequency and cost of maintenance activities. A well-maintained crane with low operational costs contributes to overall efficiency.
Load Handling and Flexibility
Load Handling Performance
Capacity Utilization: Test the crane's performance with varying loads up to its 5 ton capacity. Assess its ability to lift, move, and lower loads smoothly without strain or instability.
Accuracy and Precision: Evaluate the crane's precision in load positioning and movement. Ensure that it meets the required accuracy for tasks such as aligning materials or equipment.
Flexibility in Different Scenarios
Operational Versatility: Assess how well the crane adapts to different types of tasks and environments. For example, test its performance in handling diverse materials and objects in various configurations.
Mobility and Adjustments: Evaluate the crane's ability to move across its operational area and adapt to different work settings. Ensure that the movable features of the crane function effectively in various industrial scenarios.
Local Adaptation
Suitability for Trinidad and Tobago
Environmental Conditions: Evaluate the crane's performance in the specific environmental conditions of Trinidad and Tobago, such as humidity, temperature, and local weather patterns. Ensure that the crane's materials and design can withstand these conditions without degradation.
Industrial Needs: Assess how well the crane meets the industrial requirements specific to Trinidad and Tobago. Consider factors such as the types of materials handled, typical load sizes, and operational demands in local industries.
Compliance with Local Standards
Regulatory Requirements: Verify that the crane complies with local safety and operational regulations in Trinidad and Tobago. Ensure that all components and systems meet the relevant standards and guidelines.
Cultural and Operational Fit: Consider any cultural or operational preferences in Trinidad and Tobago that may influence crane usage. Adapt the crane's features or operation as needed to align with local practices and requirements.
By thoroughly evaluating the crane's operational efficiency, load handling capabilities, and suitability for local conditions, you can ensure that the 5 ton movable gantry crane delivers optimal performance and meets the specific needs of industrial applications in Trinidad and Tobago.
Benefits and Advantages
Advantages of Main Components
Main Beam
Performance: The main beam is designed for robust load-bearing and high structural integrity. Its horizontal placement ensures that the load is evenly distributed, enhancing the crane's stability during operation.
Reliability: Constructed from high-strength materials, the main beam provides long-term durability and minimal maintenance requirements, ensuring reliable performance under heavy loads.
Columns
Performance: The vertical columns support the entire structure, providing essential stability and resistance to vertical loads. Their design ensures that the crane remains upright and balanced during operation.
Reliability: Made from reinforced steel, the columns are engineered to withstand significant stress and environmental factors, ensuring long-term reliability and reduced risk of structural failure.
Ground Beams
Performance: Ground beams distribute the weight of the crane evenly across the base, reducing ground pressure and increasing stability. This design helps prevent shifting or tipping during operation.
Reliability: With their strong, reinforced construction, ground beams provide consistent support and durability, contributing to the overall stability of the crane.
Diagonal Braces
Performance: Diagonal braces enhance the crane's rigidity and resistance to lateral forces. They prevent swaying and maintain structural alignment, which is crucial for precise load handling.
Reliability: These braces are designed to handle dynamic loads and environmental stresses, ensuring that the crane remains stable and operational over time.
Cost-effectiveness
Initial Investment
Comparison: While the initial cost of purchasing and installing a 5 ton movable gantry crane may be significant, it is important to compare this with the long-term operational benefits and savings.
Value: Investing in a high-quality crane with robust components ensures fewer breakdowns and lower repair costs, making it a cost-effective choice in the long run.
Long-Term Benefits
Reduced Maintenance Costs: A crane built with high-quality components and materials will have lower maintenance needs and fewer repairs, leading to reduced operational costs.
Increased Productivity: Reliable and efficient crane operation contributes to higher productivity and reduced downtime, ultimately improving overall operational efficiency and profitability.
Longevity: Investing in durable and well-constructed cranes ensures a longer service life, providing better value for money over its operational lifespan.
Maintenance and Support
Ease of Maintenance
Design Features: The crane's design incorporates accessible maintenance points and straightforward assembly procedures, making regular upkeep easier and less time-consuming.
Component Durability: High-quality components and materials used in the crane's construction require less frequent maintenance and are less prone to wear and tear.
Availability of Spare Parts
Local Support: Spare parts for the 5 ton movable gantry crane are readily available, ensuring that any necessary replacements or repairs can be conducted promptly.
Supplier Network: Establishing relationships with local suppliers and service providers in Trinidad and Tobago ensures timely support and minimizes downtime for repairs.
By understanding the advantages of the crane's main components, evaluating the cost-effectiveness of the investment, and considering the ease of maintenance and support, potential buyers can make informed decisions about the benefits and value of the 5 ton movable gantry crane.
Customer Feedback
Performance and Reliability
Positive Feedback: Customers have praised the crane for its robust performance and reliability. Users report that the crane consistently meets its 5 ton lifting capacity and operates smoothly without frequent breakdowns. The strong construction of the main beam and columns has been noted for providing stability and confidence during operations.
Reliability: Many users have highlighted the durability of the crane's components, such as the electric hoist and travel motors, which contribute to its dependable performance in various industrial environments.
Ease of Use and Maintenance
User Experience: Operators appreciate the crane's user-friendly controls and straightforward maintenance procedures. The design facilitates easy access to critical components, making routine maintenance tasks less cumbersome.
Maintenance Feedback: Users have reported that the crane requires minimal maintenance due to its high-quality components and design. Availability of spare parts locally has also been positively received, ensuring quick and efficient repairs when needed.
Overall Satisfaction
Feedback Summary: Overall, customers in Trinidad and Tobago express high satisfaction with the 5 ton movable gantry crane. The combination of its reliable performance, ease of use, and cost-effectiveness makes it a valuable asset in various industrial applications.
Recommendations: Users often recommend the crane for its durability and efficiency, emphasizing its suitability for diverse operational needs in both industrial and construction settings.
By analyzing real-world applications and gathering customer feedback, this case study provides valuable insights into the practical benefits and performance of the 5 ton movable gantry crane in Trinidad and Tobago.
Conclusion
Summary of Key Findings
Main Components and Their Functions
Main Beam: Serves as the central horizontal support, crucial for bearing and distributing the load evenly across the crane. Its robust design ensures stability and effective load management.
Columns: Provide vertical support and structural stability, enabling the crane to withstand significant vertical loads and maintain balance during operation.
Ground Beams: Act as the base support, distributing weight evenly and enhancing stability by minimizing ground pressure and preventing tipping.
Diagonal Braces: Add rigidity and resistance to lateral forces, ensuring the crane's structural integrity and minimizing sway or movement during operation.
Main Spare Parts
Electric Hoist and Running Car: Essential for lifting and moving loads, these components ensure smooth operation and reliable performance.
Motors and Distribution Box: Provide the necessary power for crane movements and control, enhancing operational efficiency and flexibility.
Other Parts (Screws, Bumpers, End Caps): Support various functions, from assembly to safety and protection, contributing to the crane's overall reliability and ease of maintenance.
Overall Benefits
Operational Efficiency: The crane's design and components work harmoniously to provide stable and efficient performance, handling loads up to 5 tons with minimal downtime.
Cost-effectiveness: Investing in a high-quality crane ensures long-term savings through reduced maintenance costs, increased productivity, and durability.
Maintenance and Support: The crane's ease of maintenance and availability of spare parts in Trinidad and Tobago contribute to its cost-effectiveness and operational reliability.
Recommendations
For Potential Buyers
Assess Requirements: Before purchasing, carefully evaluate your specific operational needs, including load capacities, workspace dimensions, and power supply requirements. Ensure the 5 ton movable gantry crane aligns with these needs to maximize efficiency.
Consider Local Conditions: Take into account the environmental conditions and industrial requirements in Trinidad and Tobago. Ensure the crane's design can withstand local weather and operational conditions.
Evaluate Costs: Consider both the initial investment and long-term benefits. A well-constructed crane may have a higher upfront cost but will offer significant savings through durability, reduced maintenance, and operational efficiency.
Based on Case Study Findings
Choose Reliable Components: Opt for cranes with high-quality components, such as robust beams, reliable hoists, and durable motors. These elements are crucial for achieving optimal performance and longevity.
Leverage Local Support: Utilize the availability of local spare parts and maintenance services to ensure timely support and minimize downtime.
Review Customer Feedback: Pay attention to user experiences and feedback to understand the crane's performance in real-world applications. This can provide valuable insights into its reliability and suitability for your needs.
By following these recommendations and considering the key findings from the case study, potential buyers can make informed decisions and select a 5 ton movable gantry crane that meets their operational requirements and delivers long-term value.
