Workshop Overhead Crane, Types of Workshop Overhead Bridge Cranes

Workshop overhead crane for sale. Types of workshop overhead bridge cranes for different workshops. Custom workshop bridge cranes, cost-effective price.

Crane type Workshop overhead crane
Crane capacity 0.5 ton -100 ton
Lifting Height As your request
Crane Span As customer requirement
Note Custom workshop cranes are available.

Category: Overhead Crane for Your Use

Your Trusted Overhead Travelling Crane Manufacturer & Supplier

Workshop Overhead Crane & Workshop Bridge Cranes for Sale
Types of Workshop Overhead Bridge Cranes for Different Workshops

Workshop overhead crane for sale. Types of workshop overhead bridge cranes for different workshops. Custom workshop bridge cranes, cost-effective price.

A workshop overhead crane crane is a type of indoor overhead crane used for efficient material handling in workshop applicationssuch as the garage, pole barn, workshop, and man cave, and others,etc. The Shop crane can assist in material handling with higher efficiency and safety, increasing work effectiveness and productivity.

A workshop overhead crane is made up of two parallel steel runways that are used to guide a steel bridge crane travellingon your job site. It is reliable andflexible to many different types of workshops. Furthermore, depending on your specific workshop conditions and liftingneeds, we can provide a custom workshop overhead crane for your application.

Workshop Bridge Cranes are commonly used in various manufacturing workshops in various industrial applications.

  • Aircraft Manufacturing
  • Car Manufacturer
  • Chemical Production
  • Coal Collection
  • Put Up
  • Cement Plant
  • Glass Factory
  • Brick Factory
  • Concrete Plant
  • Food And Drink
  • Metal Processing
  • Machine-Made
  • Metal Ore Mining
  • Power Plant
  • Energy Plant
  • Paper Mill
  • Railway
  • Rubber Plastic
  • Shipyard
  • Waste Disposal
  • Fertilizer Plant
  • Wood Handling

Types of workshops overhead cranes

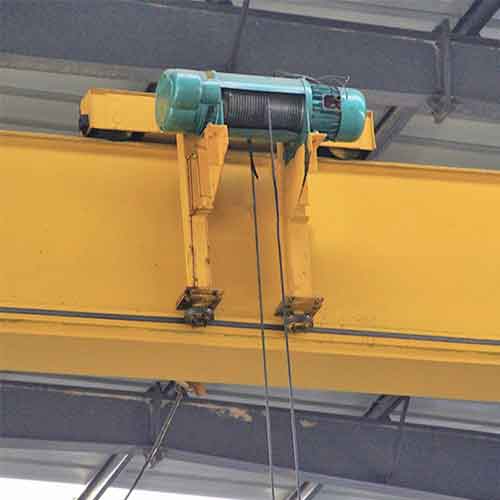

Single girder design workshop overhead crane

Single girder design workshop overhead crane

The single girder crane is made up of a single beam bridge girder supported by end trucks. It is an excellent choice for light to moderate lifting requirements. Because of the simple cranestructure design, easy and quick installation, and lower freight expenses, small workshop overhead cranes are much less expensive than double girder cranes.

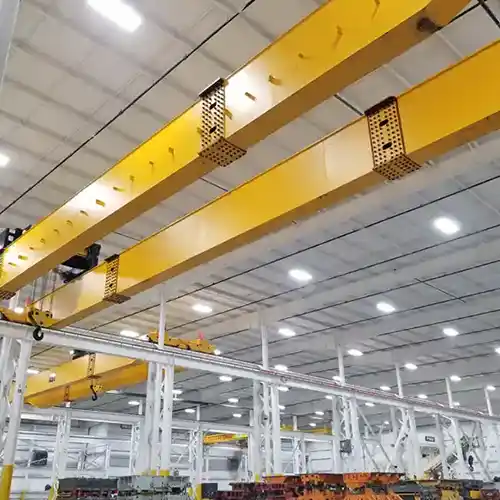

Double girder design workshop overhead crane

Double girder design workshop overhead crane

A double girder workshopoverhead cranecan handle heavy-duty or used in workshops withfrequent lifting tasks. It can lift and move objects at a faster and with alarger capacity. And also, due to the hoist and trolley run on top of the bridge girders, the double girder crane has a higher lifting height. That's to say, the double girder crane designs offers materiel handling solution with morecapacity, larger span, and higher hook height. More about single girder vs. Double girder overhead cranes.

Underhung or under running workshop crane

Underhung or under running workshop crane

Underhung overhead cranes, also known as suspension cranes, are typically designed for light loads handling with the bridge cranemounted on the ceiling structure or roof structure. Due to the mounting types, the underhung crane is typically available in a single girder configuration. Because the bridge girder and hoist are hung beneath the runways, this type of crane can increase the utilization of your facility space but has a lower hook height than the top running cranesystem. More on top running and underhung crane overhead crane.

Low headroom workshop overhead crane

Low headroom workshop overhead crane

The electric hoist is positioned at one side of the girder on the low headroom overhead crane's specific structure, increasing the lifting space of the hook and reducing the required building height and construction costs.

Explosion proof workshop overhead crane

Explosion proof workshop overhead crane

We design and produce high-quality, reasonably priced explosion proof overheadcranes for reliable lifting operations. The crane is appropriate for harsh working environments like chemical plants, coal mines, and factories with flammable or explosive materials. Our overhead cranes can be specifically designed and built to match your specific requirements.

What Are The Advantages Of Workshop Overhead Crane?

The workshop lifting crane represents a new generation of lifting equipment that offers the following benefits:

Perfect for various material handling- workshop bridge crane is lighted weight, and compact sized. It is the preferred model for a variety of materials handling due to its reliable performance and ease of operation.

  • Cost savings -With the above benefits, the overhead crane can reduce the plant and other pre-project investment, while lighting, heating, and other facilities can save some money.
  • Reliableperformance,lowermaintenancecosts-Overheadbridgecraneperformanceisreliableanddurable,sotheproductinlateuserequiresthelowestadditionalcost.
  • And also, its total installed power (energy consumption) has decreased, saving the user money as well.

Why to select us as your workshop bridge crane manufacturer and supplier?

To win the international shop crane market, we go above and beyond in providing high-quality workshop cranes and workshop crane services. How you can benefit from our workshop overhead crane?

  • We care for your workshopcrane throughout its working life and provide overall overheadcrane services for your crane safety. Our bridge crane service includes crane design, installation, crane operator training, and crane inspection, etc.
  • The unbeatable advantage is the competitive shop crane price.
  • We are committed to lowering shop crane prices in order to reduce your purchasing costs while ensuring cranecrane quality.
  • A customized shop crane fits your application environment perfectly. Taking your building and working conditions, as well as your lifting requirements, into account, the engineering team will design a shop crane that is best suited for your facility.

Advanced Overhead Crane Design

  • Optimized Height - Crane machine height is 20% -25% lower than traditional cranes.
  • Much lighter dead weight - Dead weight reduced by20% -30%.
  • The Maximum Wheel Pressure - The maximum wheel pressure has been reduced by 15% -20%.
  • Size - Because the limit size is small, the workshop crane operating area is increased.
  • Structure - A lightweight structure reduces the cost of plant construction.

Higher Safety Performance in Your Workshops

  • Overload limiter monitoring system - The overload limiter is installed in the safety monitoring system, which also shows the load resin in real time on the display screen to alert the operator to avoid overload.
  • Automatic inspection system - The controller will do a self-test prior to operation, checking for the level of the power supply voltage, the absence of any necessary safety protection devices, and the condition of the button zero.
  • German steel wire rope imports - Our crane equipment employs German steel wire rope imports with a breaking strength of at least 2160 N/mm2 and a safety factor of at least 5.
  • Extreme reliability - imported from Germany gear motor with robust tooth surfaces that increase carrying capacity and good shell sealing that prevents oil leaking.
  • Electrical components - Schneider, Siemens, and other well-known international brands are the primary electrical components utilized, and the electronic control box has a protection rating of at least IP54.
  • Wheel - Mn alloy steel is used to forge the wheel. Better wear resistance, anti-fatigue, and a lengthy service life. (It may also select a domestic configuration based on customer needs.) Low energy usage, no maintenance required.

Overhead Bridge Crane Designs for Different Types of Workshops

With customized designs, our overhead cranes can be used ina variety of workshops, including those that are single-story and multi-story, standard and non-standard, and made of light steel or heavy steel,etc.

Concrete Build Workshops

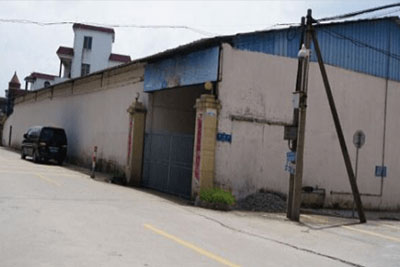

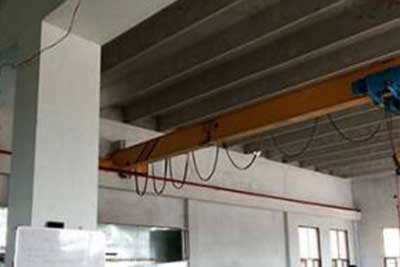

Simple workshop

Simple workshop

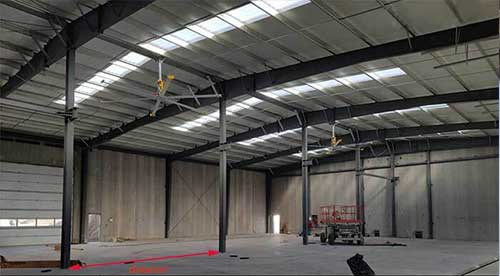

Standard factory buildings

Standard factory buildings

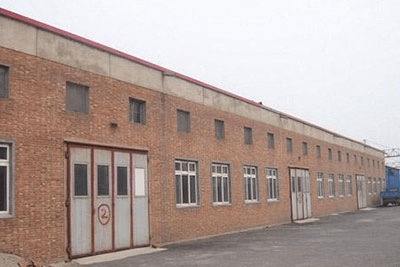

Reinforced concrete structure of standard factory building

Reinforced concrete structure of standard factory building

  • Simple workshop: Typically, it is a workshop with a straightforward layout, a modest construction cost, and a short lifespan.
  • Standard industrial workshop facilitycan be categorized into four groups based on their structural types: brick-wood structure, brick-concrete structure, reinforced concrete structure, and steel structure.
  • Reinforced concrete structure of standard factory workshop building:The main load-bearing components of a typical manufacturing workshopsare all reinforced concrete constructions, including the beams, slabs, and columns. Large public structures, industrial buildings, and high-rise residential buildings are the principal uses for this sort of structure.

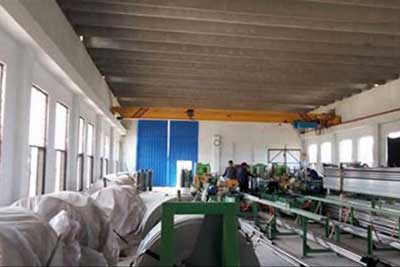

10 ton workshop overhead crane for concrete workshop

10 ton workshop overhead crane for steel mill workshop

10 ton workshop overhead crane for steel mill workshop

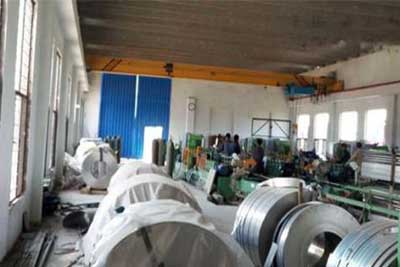

10 ton overhead crane for conceret workshop of steel factory

10 ton overhead crane for conceret workshop of steel factory

10 ton workshop crane for concerete workshop of steel factory

10 ton workshop crane for concerete workshop of steel factory

Steel Structure Workshops

In a steel structure workshop, the main load-bearing components are typically made of steel. Steel structure components can also be supported by brick walls, such as steel pillars, steel beams, steel structure foundations, steel roof trusses , and steel roof.Due to the Numerous steel construction workshops have constructedas a result of the rise in steel output. The steel workshops can be divided intolight and heavy steel structure workshops. Steel structures workshops can beused in both civil and industrial applications.

The steel structure workshop has the following characteristics:

  • The steel structure has a big span, great strength, and low weight.
  • Steel structure buildings require little time to develop, which lowers investment expenses.
  • The steel structure offers excellent corrosion and fire resistance.
  • Recycling is pollution-free and the steel structure building is portable.

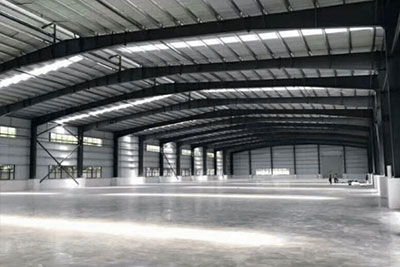

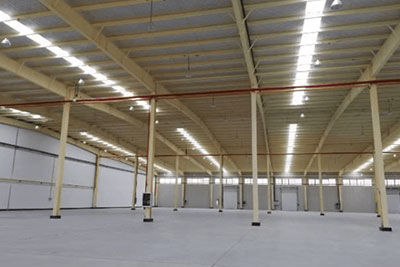

Single-storey factory building

Single-storey factory building

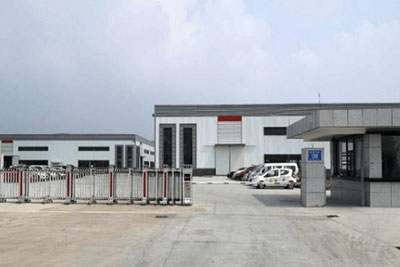

Multi-storey factory building

Multi-storey factory building

Warehouse workshop

Warehouse workshop

  • A single-story factory building: This type of structure has the advantages of forming a tall use space, easily accommodating production process flow requirements, providing convenient internal transportation organization, allowing for the placement of heavier production equipment and products, and realizing industrialization of factory building components and on-site construction mechanization. As a result, single-story workshops are frequently employed in industrial structures in the metallurgy, machinery, motor, chemical, and textile industries.
  • Multi-story factory structure: The requirements of the manufacturing process and the number of floors should be taken into consideration when choosing a factory structure. Second, it's important to take into account the base's natural surroundings as well as the availability of building materials, local installation and construction circumstances, and the manufacturing capacity of structural components.
  • The "industrial storage land" includes the warehouse workshop. Industrial storage land includes property used for dedicated trains, wharfs, and roadways as well as land used for production workshops, warehouses, and ancillary facilities of industrial and mining firms. The land should be categorized as water and other land, with the exception of open-pit mine land. It can't just be boiled down to "industrial land plus storage land." General storage land and logistical development property are two other categories of storage land.

How to get custom overhead crane for your workshop?

What do you have Steel structure workshop or concrete column workshop?

Workshops can be constructed using concrete columns and steel beams. The majority are now constructed using steel structures. Wecan provide you with a custom-designed workshop crane, regardless of how your workshop is constructed.

Is it an existing workshop or workshop under-construction?

As workshops, it is important to take the general conditions of the workshop into consideration. . Generally, it have two different conditions:

  • Workshops under construction. It has the chance to Take crane design and installation into consideration together with the workshop design.
  • Existing workshops: Design workshop overhead travelling crane for the existing workshop.

Why design a crane before workshop construction?

When construct a workshop, crane installation must be planned ahead of time. Because concrete columns or steel columnscan be used not only as workshop supporting columns, but also as supporting columns for the brackets of the workshop overhead crane. That is to say, it is recommendable to consider workshop crane installation at the beginning of workshop design.

Problems may confronted to install bridge cranes in existing concrete workshops

We have served many clients who have a concrete column made workshop, but they did not consider crane installation during the construction stage, which will result in much higher costs and difficulty in installing cranes someday.

Solutions: Steel Columns for overhead crane installation in existing workshop

What can you do if your workshop has already been constructed?

The solution for an existing concrete workshop is to construct steel columns alongside the concrete ones; as a result, the workshop overhead crane should be developed in accordance with the column distance and also offer a solution for the runway beam.

If your steel structure workshop has already been completed, you must consult with your structure design engineers to confirm crane capacity, wheel load, and weight to guarantee the steel structure can sustain the desired overhead crane.

With our extensive expertise and knowledge, we can always find a solution for your workshop.

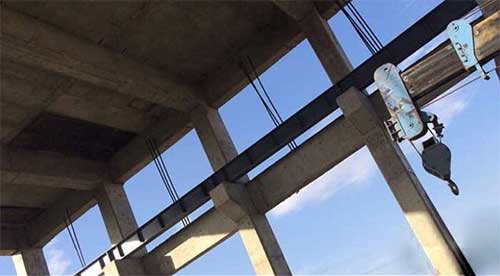

5 ton workshop overhead crane for existing steel workshop

5 ton workshop overhead crane for existing steel workshop

Based on the layout of the workshop,and after confirmation with the workshop structure designing engineer, we confirmed the max crane capacity and weight the shed can support and steel columns distance, travelling length, etc. Finally, the 5ton single girder overhead crane with European style design was recommended.


20 ton workshop overhead crane

20 ton workshop overhead crane

In addition, we successfully served one projectin which we provided a steel bracket solution and installed it on concrete columns for a Jordan client, regardless of cost or difficulty.

Overhead crane installation into workshops

Parameters needed to custom overhead cranes for your workshops

If you are interested in our workshop gantry crane, please complete the contact form or send us an email with the required crane information to quote specificcrane price.

1. Determining Workshop Crane Capacity

It is critical to determine the maximum weight that the workshop cranes can lift to ensure crane safety.

The overheadworkshop cranes which are used for handling loads gobeyond their design capacities can be hazardous to your workers and increase the stress and maintenance requirements of workshop cranes and building superstructures.

It is necessary to ensure that your workshop cranes can lift enough weight for your current and future work requriement and needs.

2. Determining Lifting Height of Overhead Workshop Cranes

The lift height is the distance from the floor to the saddle of the hook at its highestposition.

Lift height is an important specification or parameterin any project because it ensures that there is enough room to lift or lift and reposition the load.

3. Calculating Span of a Workshop Crane

The span of a workshop crane is defined as its width across the bay, or the measured center-to-center distance between the runway beams.

It is significant because it determines how much material is needed to construct the bridge girders and has a significant impact on the cost of the workshop cranes.

4. Verify Workshop Cranes' Power Supply Voltage.

The voltage requirements depend on where you are.

5. Confirm Load Condition and Below Hook Devices.

What you are lifting will decide the type of crane attachmentyou have, such as a hook, grapple, electromagnet, C-hook, or double hook system.

6. Identify Your Usage Environment.

There is more to consider if the workshop cranes are installed outside. In addition to taking wind and weather into consideration, the design must include covers to safeguard the hoist and motor when not in use. Furthermore, if the environment is unique, such as explosion-proof, special overhead cranes are required.

If the workshop overhead crane is unable to meet your lifting needs, there are numerous other types of material handling cranes available, including gantry cranes, and jib cranes, and process cranes, etc. Please contact us if you need a customized workshop overheadcrane.

6.3 ton overhead crane kit for sale Philippines, complete single girder top running overhead crane system, low headroom design for workshop indoor use.


Free consultation to Confirm Parameters & Specifications and Get

Latest Crane Price & Crane Rate.

  • Types of overhead cranes : _______?
  • Optional: Overhead travelling crane, goliath gantry crane,Slewing jib crane, Single girder or double girder crane,small portable crane or kbk crane, etc.
  • Capacity of overhead crane: _______?
  • Optional: 0.25ton, 0.5 ton, 1 ton, 2 ton, 3ton, 5 ton, 10 ton,15ton, 20ton, 25 ton, 30ton,35ton, up to 550ton, etc.
  • Crane span & lifting height : _______?
  • Crane travelling length : _____?
  • Control of overhead crane:_______?
  • Optional: pendant/ remote/cabin control
  • Voltage supply of overhead crane:_____?
  • Eg,: 380V50/60HZ,3Phase or others,etc.
  • Application/usage of crane:_______?
  • Eg,: Steel mill, ,injection mold, cement,stone, concrete,granite, general manufacturing, etc.
  • Just leave a message via the contact form and our hoist and crane engineer will contact you with in 24working hours.
