YT-MGO 10t Double Girder Gantry Crane Drawing - MGO10-27 A5
Yuantai Cranes YT-MGO 10t European Double Girder Gantry Crane Drawing (Span 27m, Lifting Height 9m, M5/FEM 2m, Full VFD Hoisting, 210m Travel Length, P43 Rail, 2 Units)
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Single Girder Gantry Crane
Tags: 10TonGantryCraneDrawing
Overview: 10 Ton YT-MGO Double Girder Gantry Crane for Long-Runway Yard Operations
This technical drawing package details a wide-span 10-ton European-style double girder gantry crane system (Model: YT-MGO10t-27m A5) engineered by Yuantai Cranes. Designed for heavy outdoor material handling across an extensive 210-meter runway length, the system features a wide 27m span and a 9m lifting height. Built to M5 (FEM 2m) duty standards, it includes full-frequency VFD stepless control on hoisting and travel motions, a motorized cable reel power supply, dual remote and pendant operation, and heavy end trucks matching P43 steel rails.
Who is this double girder gantry crane for? Ideal for:
- Long-runway storage yards requiring 210m travel distance
- Heavy outdoor material handling operations
- Wide-span yard layouts requiring 27m coverage
- Facilities with existing P43 rail infrastructure
- Operations requiring full VFD stepless control on all motions
- Multi-shift yard operations requiring M5/FEM 2m duty rating
- Fleet deployments requiring 2 or more gantry crane units
Project & Technical Overview
- Equipment Type: YT-MGO European Double Girder Gantry Crane
- Alternative Names: Outdoor gantry crane, wide-span gantry crane, heavy-duty gantry crane, European style gantry
- Model Number: YT-MGO10t-27m A5

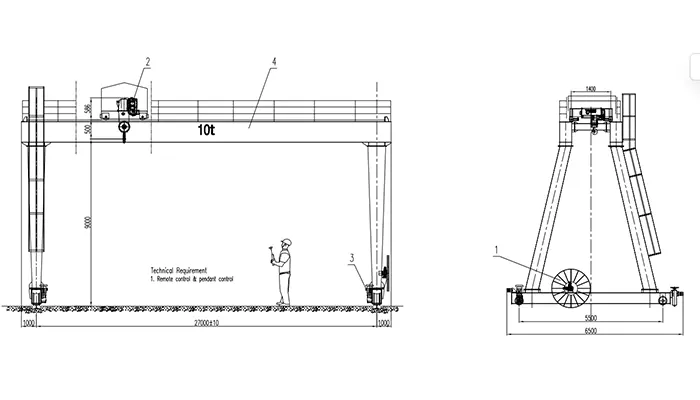

- Drawing PDF: YT-MGO 10t Double Girder Gantry Crane Drawing 27m Span (VFD Hoisting, P43 Rail, 210m Travel)
- Crane Manufacturer: Yuantai Cranes
- Duty Class: M5 (FEM 2m) Heavy Duty
- Lifting Capacity: 10.0 t
- Span: 27.0 m
- Lifting Height: 9.0 m
- Designated Rail: P43 Rail Section
- Runway Travel Distance: 210 m
- Control Method: Wireless Remote Control & Independent Pendant Control
- Special Configuration: Long-runway yard operations (210m travel length), full variable frequency drives (VFD) on hoisting, heavy-duty P43 rail matching, dual-unit fleet deployment
- Quantity: 2 units
Buyer Note: This double girder gantry crane is specifically designed for long-runway yard operations with 210m travel distance. The 27m span, P43 rail compatibility, and full VFD control make it ideal for heavy outdoor material handling across extensive storage yards.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | M5 (FEM 2m) Heavy Duty |
| Rated Lifting Capacity | 10.0 t |
| Span (S) | 27.0 m (27000 ± 10 mm) |
| Lifting Height (H) | 9.0 m |
| Designated Runway Rail | P43 Rail Section |
| Trolley Track Gauge | 1.4 m (1400 mm) |
| Max. Wheel Load | Gantry Travel: 153.5 kN / Trolley Travel: 44.2 kN |
| Main Power Supply | 380V / 3P / 50Hz |
| Runway Travel Distance | 210 m |
| Gantry Wheelbase / Overall Base Width | 5500 mm (Wheelbase) / 6500 mm (Overall End Truck) |
| Total Crane Weight | 31.5 t |
| Quantity | 2 units |
Drive Speeds & Motor Ratings
| Component / Motor Drive | Specification |
|---|---|
| Hoisting Speed | 0.8 ~ 5.0 m/min (Stepless VFD) |
| Hoisting Motor | 9.5 kW |
| Trolley Travel Speed | 2.0 ~ 20 m/min (Stepless VFD) |
| Trolley Motors | 2 × 0.75 kW |
| Gantry Travel Speed | 2.0 ~ 20 m/min (Stepless VFD) |
| Gantry Motors | 2 × 3.0 kW |
| Control Method | Wireless Remote Control & Independent Pendant Control |
System Weight & Duty Rating
| Component | Weight |
|---|---|
| Total Crane Weight | 31.5 t |
| Working Duty Class | M5 (FEM 2m) |
Technical Requirement
Engineering Notice:
- Full VFD Stepless Control: Variable frequency drives on the 9.5 kW hoisting mechanism (0.8–5.0 m/min) and travel motions eliminate shock loads during heavy pick-and-place cycles across the 27m span.
- Heavy-Duty P43 Rail Compatibility: Heavy-duty 5500mm wheelbase end trucks paired with 2 × 3.0 kW travel drives designed for heavy P43 rail sections.
- Long-Runway Power Supply: Motorized cable reel system sized for continuous travel along the 210-meter runway length.
- Dual Control System: Equipped with both ergonomic wireless remote control and backup pendant station for safe operator positioning.
- The dimensional data and layout drawings provided above serve as general technical references. Wide-span outdoor gantry cranes require foundation load checks and rail alignment verification.
- For specific ground conditions, non-standard rail gauges, or custom power feeding systems over long runways, Yuantai Cranes provides tailored engineering drawings and structural evaluations.
- All drawing content is protected. Unauthorized copying or manufacturing based on this drawing without prior written permission from Yuantai Cranes is strictly prohibited.
Key Facts About YT-MGO 10t Double Girder Gantry Crane (27m, A5)
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for long-runway yard operations.
1. What is this double girder gantry crane and what is it designed for?
This is a YT-MGO 10 Ton Double Girder Gantry Crane with a 27m span and 9m lifting height, designed for long-runway yard operations with 210m travel distance. It features a wide-span double girder design with full VFD stepless control on hoisting and travel motions, making it ideal for heavy outdoor material handling across extensive storage yards.
Ideal applications: long-runway storage yards, heavy outdoor material handling, wide-span yard layouts, and facilities with existing P43 rail infrastructure.
Alternative names for this crane: outdoor gantry crane, wide-span gantry crane, heavy-duty gantry crane, European style gantry.
2. What does "YT-MGO10t-27m" mean in the model number?
- YT-MGO = Yuantai European-style double girder gantry crane series
- 10t = Single lifting capacity: 10-ton hoist
- 27m = Span (distance between runway rail centers) of 27 meters
The lifting height is 9 meters. The crane features a double girder design with full VFD stepless control on hoisting (0.8-5.0 m/min) and travel motions (2-20 m/min).
Duty class: M5 (FEM 2m). Power: 380V / 3P / 50Hz. Runway length: 210 m. Rail: P43.
3. What are the key lifting specifications?
| Rated Lifting Capacity | 10.0 t |
| Span (S) | 27.0 m |
| Lifting Height (H) | 9.0 m |
| Designated Rail | P43 Rail Section |
| Trolley Track Gauge | 1.4 m |
| Hoisting Speed | 0.8 ~ 5.0 m/min (Stepless VFD) |
| Trolley Travel Speed | 2.0 ~ 20 m/min (Stepless VFD) |
| Gantry Travel Speed | 2.0 ~ 20 m/min (Stepless VFD) |
| Max. Wheel Load | Gantry: 153.5 kN / Trolley: 44.2 kN |
| Runway Travel Distance | 210 m |
| Gantry Wheelbase | 5500 mm |
| Overall Base Width | 6500 mm |
| Duty Class | M5 (FEM 2m) |
| Total Weight | 31.5 t |
| Quantity | 2 units |
Buyer Tip: If your span or lifting height requirements differ, Yuantai can customize the girder length and lifting height to suit your specific yard layout.
4. What is the duty class M5 / FEM 2m and what does it mean for my application?
The duty class is M5 / FEM 2m, which means:
- Heavy duty cycle — suitable for regular daily use
- Rated for up to 2,000–4,000 hours of operation per year
- Ideal for long-runway storage yards and outdoor material handling operations
- Perfectly matched to the demanding nature of regular heavy outdoor lifting
What does this mean for you? If your yard operates multiple shifts per day with regular lifting, M5/FEM 2m is the right duty class. For continuous round-the-clock operations, consider M6/FEM 3m or higher.
Duty class comparison: M3 = light duty (occasional use), M4 = medium duty (regular intermittent), M5 = heavy duty (regular daily), M6 = extra heavy duty (continuous), M7 = severe duty (round-the-clock).
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 380V / 3-Phase / 50Hz
- Hoisting Motor: 9.5 kW (VFD)
- Trolley Motors: 2 × 0.75 kW
- Gantry Motors: 2 × 3.0 kW
- Main Power: Motorized cable reel supply
Control Modes:
- Wireless remote control — ergonomic operation for flexible positioning
- Independent pendant control — backup wired control with safety voltage
Buyer Note: Pre-configured for 380V/50Hz 3-phase power. If your facility uses a different voltage (e.g., 400V, 415V, 440V, or 60Hz), please inform us during inquiry for customization.
6. Why is this crane suitable for long-runway yard operations?
- 10t capacity — handles heavy outdoor loads
- 27m span — covers wide yard layouts and storage areas
- 9m lifting height — practical vertical reach for outdoor material handling
- 210m runway travel — covers extensive storage yards with long travel distance
- Full VFD stepless control — precision positioning on hoisting and travel motions
- P43 rail compatibility — heavy-duty rail system for high wheel loads (153.5 kN)
- M5 / FEM 2m rating — suitable for regular daily heavy-duty outdoor use
- Dual control system — wireless remote and pendant backup for flexible operation
- 380V 50Hz compatibility — factory-built for international industrial grids
- Motorized cable reel — continuous power supply for long runway operations
Why buyers choose this model: It offers the perfect combination of wide-span coverage, long-runway travel, full VFD precision control, and heavy-duty rating for extensive outdoor storage yards where reliable 10-ton lifting with 210m travel is essential.
How to Get Your Customized Double Girder Gantry Crane
Outdoor wide-span gantry cranes must balance wind resistance, long-distance power feeding, and heavy wheel load dispersion. We customize each system to match your yard layout.
| Process Step | Details |
|---|---|
| Step 1: Submit Yard Parameters | Provide required span, lifting height, total runway travel length, and site power supply data. |
| Step 2: GA Drawing Preparation | Yuantai engineers prepare a custom General Arrangement (GA) drawing within 24 hours for clearance and rail checking. |
| Step 3: Technical Fine-Tuning | Adjust cable reel capacity, anti-sway features, and wheel load limits based on civil engineering specifications. |
| Step 4: Manufacturing & Delivery | Equipment is built under strict QA protocols, pre-assembled, and shipped to your project site. |
Need a Customized Drawing & Quote for Your Yard?
Send us your yard dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Double Girder Gantry Crane Solution
Yuantai Cranes provides customized YT-MGO Series of double girder gantry crane solutions for long-runway storage yards, heavy outdoor material handling, and wide-span yard layouts. Each crane is configured according to the required capacity, span, lifting height, runway length, duty class, control requirements, and operating environment.
Typical Technical Specifications:
- Capacity: 1–50 ton (This Model: 10.0 t)
- Span: 5–40 m (This Model: 27.0 m)
- Lifting Height: Customized according to application (This Model: 9.0 m)
- Runway Length: Customized (This Model: 210 m)
- Duty Class: M3–M7 / FEM 1Bm–3m (This Model: M5 / FEM 2m)
- Hoist Type: European Electric Wire Rope Hoist (This Model: Single 10t Hoist, Full VFD)
- Speeds: Full VFD stepless control on all motions
- Control Method: Wireless Remote Control & Independent Pendant Control
- Power Supply: 220/380/400/415/440/575V, 50/60Hz, 3Ph (This Model: 380V 50Hz 3P)
- Rail Type: P43 (Designated) or Customized
- Applications: Long-runway storage yards, heavy outdoor material handling, and wide-span yard layouts
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete gantry crane projects.
Engineering Support & Yard Adaptability
Deploying a 27-meter span gantry crane over a 210-meter runway requires precise motion control and reliable power distribution. This technical layout shows how Yuantai Cranes addresses wide-span deflection, heavy wheel loads, and smooth positioning through full VFD control and heavy-duty structural design.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Precise load positioning across a wide 27m span Requires smooth control to avoid shock loads during heavy pick-and-place cycles. | Full VFD stepless control on the 9.5 kW hoisting mechanism (0.8–5.0 m/min) eliminates shock loads during heavy pick-and-place cycles. | 27m span, 9.5 kW VFD hoisting motor, M5 duty class |
| Reliable long-distance travel over a 210m runway Requires heavy-duty end trucks and reliable power supply over long distances. | Heavy-duty 5500mm wheelbase end trucks paired with 2 × 3.0 kW travel drives designed for heavy P43 rail sections. | P43 rail profile, 153.5 kN max wheel load, 2 × 3.0 kW travel motors |
| Dual operation modes for yard efficiency Operators need flexibility between remote and pendant control. | Equipped with both ergonomic wireless remote control and backup pendant station for safe operator positioning. | Remote control & pendant control, 380V / 3P / 50Hz |
| High wheel load runway requirements Requires heavy-duty rail system for continuous outdoor operation. | Designed for P43 heavy-duty crane rails with 153.5 kN max gantry wheel load. | Rail: P43 (Designated) | Max Gantry Wheel Load: 153.5 kN |
How to Evaluate If This Solution Fits Your Yard
- Civil Foundation Load: Ground beam structures must support a heavy maximum wheel load of 153.5 kN on P43 steel rails.
- Runway Power Feed: Motorized cable reel system must be sized for continuous travel along the 210-meter runway length.
- Overall Clearance: End carriages require a total track base width of 6500 mm (5500 mm wheel axle distance); ensure minimum 1000 mm lateral side clearances.
- Power Supply & Duty Cycle: Configured for 380V / 3P / 50Hz under M5 / FEM 2m heavy-duty classification.
- Duty Cycle Check: M5 / FEM 2m is suitable for regular daily multi-shift outdoor operations.
Unsure If This Layout Fits Your Yard?
Send us your site dimensions (Span, Runway Travel Length, and Required Hook Height). Yuantai technical consultants will provide a FREE custom CAD layout drawing and proposal within 24 hours.
