Overview: 10 Ton YT-MGO Double Girder Gantry Crane with Dual Cantilevers for Precast Concrete Yards

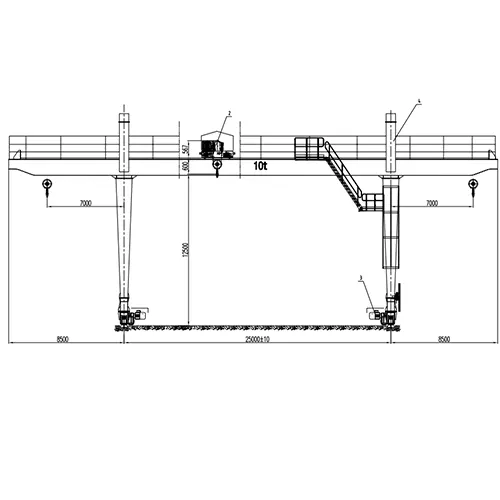

This technical drawing package details a 10-ton European-style double girder gantry crane system with dual cantilevers (Model: YT-MGO10t-25m A5) engineered by Yuantai Cranes for precast concrete element yard operations. Operating across a 65-meter runway length, the crane features a 25m main span, dual 8.5m overhang cantilevers (7.0m effective hook outreach), and a 12.5m lifting height. Built to M5 (FEM 2m) heavy-duty standards, it includes dual independent pendant and wireless remote control, motorized cable reel power supply, and end carriages designed for P43 steel rails.
Who is this cantilever gantry crane for? Ideal for:
- Precast concrete element yards requiring side loading
- Facilities requiring direct truck loading outside runway rails
- Multi-tier concrete panel stacking operations
- Facilities with existing P43 rail infrastructure
- Operations requiring extended cantilever outreach (7.0m effective per side)
- Multi-shift precast concrete operations requiring M5/FEM 2m duty rating
- Yards requiring seamless load transfer between casting bay and truck loading zones
Common search terms for this crane: 10 ton gantry crane, cantilever gantry crane, double girder gantry crane, 25m span gantry crane, dual cantilever crane, precast concrete crane, M5 duty gantry crane, P43 rail gantry crane, side loading gantry crane, European style gantry crane.
Project & Technical Overview
- Equipment Type: YT-MGO European Double Girder Gantry Crane with Dual Cantilevers
- Alternative Names: Cantilever gantry crane, precast concrete crane, side loading gantry crane
- Model Number: YT-MGO10t-25m A5

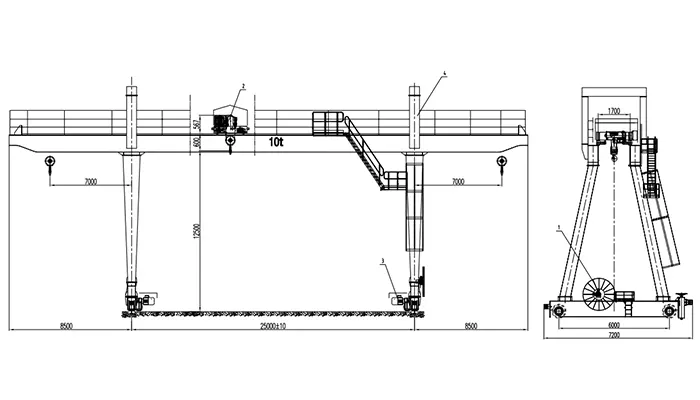

- Drawing PDF: YT-MGO 10t Double Girder Gantry Crane Drawing 25m Span with Dual 8.5m Cantilevers (12.5m Lift)
- Crane Manufacturer: Yuantai Cranes
- Duty Class: M5 (FEM 2m) Heavy Duty
- Lifting Capacity: 10.0 t
- Main Span: 25.0 m
- Cantilever Overhang: 8.5 m / 8.5 m (7.0m Effective Hook Coverage per side)
- Lifting Height: 12.5 m
- Designated Rail: P43 Rail Section
- Runway Travel Distance: 65 m
- Control Method: Wireless Remote Control & Independent Pendant Station
- Special Configuration: Outdoor precast concrete slab and panel manufacturing yard, 65m runway travel, extended side loading via dual 8.5m cantilevers, total dead weight of 43.6t, matched to P43 steel rails
- Quantity: 1 unit
Buyer Note: This cantilever gantry crane is specifically designed for precast concrete yard operations requiring side loading. The dual 8.5m cantilevers provide 7.0m of effective hook overhang beyond each rail line, allowing trucks to load without entering the main travel bay.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | M5 (FEM 2m) Heavy Duty |
| Rated Lifting Capacity | 10.0 t |
| Main Span (S) | 25.0 m (25000 ± 10 mm) |
| Left / Right Cantilever Overhang | 8.5 m / 8.5 m (7.0m Effective Hook Coverage per side) |
| Lifting Height (H) | 12.5 m |
| Designated Runway Rail | P43 Rail Section |
| Trolley Track Gauge | 1.7 m (1700 mm) / Square Bar 40×40 Rail |
| Max. Wheel Load | Gantry Travel: 208.3 kN |
| Main Power Supply | 380V / 3P / 50Hz |
| Runway Travel Distance | 65 m |
| Gantry Wheelbase / Overall Base Width | 6000 mm (Wheelbase) / 7200 mm (Overall End Truck) |
| Total Crane Weight | 43.6 t |
| Quantity | 1 unit |
Drive Speeds & Motor Ratings
| Component / Motor Drive | Specification |
|---|---|
| Hoisting Speed | 0.8 / 5.0 m/min (Dual Speed) |
| Hoisting Motor | 1.5 / 9.5 kW |
| Trolley Travel Speed | 2.0 ~ 20.0 m/min (Stepless VFD) |
| Trolley Motors | 2 × 0.75 kW |
| Gantry Travel Speed | 2.0 ~ 20.0 m/min (Stepless VFD) |
| Gantry Motors | 2 × 3.0 kW |
| Control Method | Wireless Remote Control & Independent Pendant Station |
System Weight & Duty Rating
| Component | Weight |
|---|---|
| Total Crane Weight | 43.6 t |
| Working Duty Class | M5 (FEM 2m) |
Technical Requirement
Engineering Notice:
- Dual Cantilever Configuration: Extended 8.5m cantilevers provide 7.0m of effective hook overhang beyond each rail line, allowing trucks to load without entering the main travel bay.
- High Hook Clearance for Stacking: Generous 12.5m lifting height enables multi-tier stacking of heavy concrete panels and clear passage over stock piles.
- High Wheel Load Stability: Heavy-duty 6000mm wheelbase end carriages paired with 2 × 3.0 kW long-travel drives accommodate a maximum wheel load of 208.3 kN on P43 rails.
- Dual Control System: Equipped with both wireless remote control and independent pendant station for safe operator positioning.
- The dimensional data and layout drawings provided above serve as general technical references. Cantilever gantry cranes require foundation load verification for overturning moments during side loading.
- For specific ground conditions, custom cantilever lengths, or non-standard power feeding configurations, Yuantai Cranes provides tailored engineering drawings and structural evaluations.
- All drawing content is protected. Unauthorized copying or manufacturing based on this drawing without prior written permission from Yuantai Cranes is strictly prohibited.
Key Facts About YT-MGO 10t Cantilever Gantry Crane (25m, A5)
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for precast concrete yard operations with side loading.
1. What is this cantilever gantry crane and what is it designed for?
This is a YT-MGO 10 Ton Double Girder Gantry Crane with Dual Cantilevers featuring a 25m main span, dual 8.5m overhang cantilevers (7.0m effective hook outreach), and 12.5m lifting height. It is designed for precast concrete yard operations requiring side loading, allowing trucks to load outside the runway rails without entering the main travel bay.
Ideal applications: precast concrete element yards, direct truck loading outside runway rails, multi-tier concrete panel stacking, and facilities with existing P43 rail infrastructure.
Alternative names for this crane: cantilever gantry crane, precast concrete crane, side loading gantry crane, European style gantry.
2. What does "YT-MGO10t-25m" mean in the model number?
- YT-MGO = Yuantai European-style double girder gantry crane series
- 10t = Single lifting capacity: 10-ton hoist
- 25m = Main span (distance between runway rail centers) of 25 meters
The lifting height is 12.5 meters. The crane features dual 8.5m cantilevers with 7.0m effective hook coverage per side, providing extended reach beyond the main span.
Duty class: M5 (FEM 2m). Power: 380V / 3P / 50Hz. Runway length: 65 m. Rail: P43.
3. What are the key lifting specifications?
| Rated Lifting Capacity | 10.0 t |
| Main Span (S) | 25.0 m |
| Left Cantilever Overhang | 8.5 m (7.0m effective) |
| Right Cantilever Overhang | 8.5 m (7.0m effective) |
| Lifting Height (H) | 12.5 m |
| Designated Rail | P43 Rail Section |
| Trolley Track Gauge | 1.7 m / Square Bar 40×40 |
| Hoisting Speed | 0.8 / 5.0 m/min (Dual Speed) |
| Trolley Travel Speed | 2.0 ~ 20 m/min (Stepless VFD) |
| Gantry Travel Speed | 2.0 ~ 20 m/min (Stepless VFD) |
| Max. Wheel Load | Gantry: 208.3 kN |
| Runway Travel Distance | 65 m |
| Gantry Wheelbase | 6000 mm |
| Overall Base Width | 7200 mm |
| Duty Class | M5 (FEM 2m) |
| Total Weight | 43.6 t |
Buyer Tip: If your span or cantilever requirements differ, Yuantai can customize the girder length and cantilever overhang to suit your specific precast concrete yard layout.
4. What is the duty class M5 / FEM 2m and what does it mean for my application?
The duty class is M5 / FEM 2m, which means:
- Heavy duty cycle — suitable for regular daily use
- Rated for up to 2,000–4,000 hours of operation per year
- Ideal for precast concrete yards and outdoor material handling operations
- Perfectly matched to the demanding nature of regular heavy outdoor lifting with side loading
What does this mean for you? If your yard operates multiple shifts per day with regular lifting, M5/FEM 2m is the right duty class. For continuous round-the-clock operations, consider M6/FEM 3m or higher.
Duty class comparison: M3 = light duty (occasional use), M4 = medium duty (regular intermittent), M5 = heavy duty (regular daily), M6 = extra heavy duty (continuous), M7 = severe duty (round-the-clock).
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 380V / 3-Phase / 50Hz
- Hoisting Motor: 1.5 / 9.5 kW (Dual Speed)
- Trolley Motors: 2 × 0.75 kW
- Gantry Motors: 2 × 3.0 kW
- Main Power: Motorized cable reel supply
Control Modes:
- Wireless remote control — ergonomic operation for flexible positioning
- Independent pendant station — backup wired control with safety voltage
Buyer Note: Pre-configured for 380V/50Hz 3-phase power. If your facility uses a different voltage (e.g., 400V, 415V, 440V, or 60Hz), please inform us during inquiry for customization.
6. Why is this crane suitable for precast concrete yard operations with side loading?
- 10t capacity — handles heavy precast concrete elements
- 25m main span — covers wide casting bays
- Dual 8.5m cantilevers — provides 7.0m effective hook overhang beyond each rail line
- 12.5m lifting height — enables multi-tier stacking of heavy concrete panels
- Direct truck loading — trucks load outside the runway rails without entering the main travel bay
- Heavy-duty P43 rail compatibility — 208.3 kN max wheel load for high stability
- M5 / FEM 2m rating — suitable for regular daily heavy-duty outdoor use
- Dual control system — wireless remote and pendant backup for flexible operation
- 380V 50Hz compatibility — factory-built for international industrial grids
- Motorized cable reel — continuous power supply for yard operations
Why buyers choose this model: It offers the perfect combination of dual cantilever side loading, high hook clearance for stacking, and heavy-duty rating for precast concrete yards where direct truck loading outside the runway rails is essential for efficient logistical routing.
How to Get Your Customized Cantilever Gantry Crane
Extended cantilever gantry cranes require careful structural analysis to handle off-center loads outside the rail tracks. We customize each system to match your yard layout.
| Process Step | Details |
|---|---|
| Step 1: Submit Yard Parameters | Provide yard length, track span, required cantilever outreach, lifting height, and panel dimensions. |
| Step 2: GA Drawing Preparation | Yuantai engineers prepare a custom General Arrangement (GA) drawing within 24 hours for clearance and rail load checking. |
| Step 3: Technical Fine-Tuning | Refine cantilever deflection limits, wheel load calculations, and control systems based on civil engineering specifications. |
| Step 4: Manufacturing & Delivery | Equipment is manufactured under strict QA standards, factory pre-assembled, and dispatched to your project site. |
Need a Customized Drawing & Quote for Your Yard?
Send us your yard dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Cantilever Gantry Crane Solution
Yuantai Cranes provides customized YT-MGO Series of cantilever gantry crane solutions for precast concrete yards, direct truck loading operations, and multi-tier stacking facilities. Each crane is configured according to the required capacity, main span, cantilever length, lifting height, runway length, duty class, control requirements, and operating environment.
Typical Technical Specifications:
- Capacity: 1–50 ton (This Model: 10.0 t)
- Main Span: 5–40 m (This Model: 25.0 m)
- Cantilever Length: Customized (This Model: 8.5 m per side / 7.0 m effective)
- Lifting Height: Customized according to application (This Model: 12.5 m)
- Runway Length: Customized (This Model: 65 m)
- Duty Class: M3–M7 / FEM 1Bm–3m (This Model: M5 / FEM 2m)
- Hoist Type: European Electric Wire Rope Hoist (This Model: Single 10t Hoist, Dual Speed)
- Speeds: Dual-speed lifting, VFD stepless travel control
- Control Method: Wireless Remote Control & Independent Pendant Station
- Power Supply: 220/380/400/415/440/575V, 50/60Hz, 3Ph (This Model: 380V 50Hz 3P)
- Rail Type: P43 (Designated) or Customized
- Applications: Precast concrete yards, direct truck loading, and multi-tier stacking operations
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete gantry crane projects.
Engineering Support & Yard Adaptability
Precast concrete yards require seamless load transfer between the main casting bay (within the crane span) and truck loading zones located outside the rail tracks. This technical layout illustrates how Yuantai Cranes achieves efficient logistical routing using dual 8.5m extended cantilevers.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Direct loading of concrete slabs onto flatbed trucks outside the runway rails Trucks cannot enter the main travel bay for loading. | Extended 8.5m cantilevers provide 7.0m of effective hook overhang beyond each rail line, allowing trucks to load without entering the main travel bay. | 8.5m cantilevers, 7.0m effective hook outreach, 25m span |
| High hook clearance for stacking precast elements Requires tall structure for multi-tier stacking. | Generous 12.5m lifting height enables multi-tier stacking of heavy concrete panels and clear passage over stock piles. | 12.5m lifting height, 10t capacity |
| High wheel load stability under max cantilever moment Requires heavy-duty end carriages for off-center loads. | Heavy-duty 6000mm wheelbase end carriages paired with 2 × 3.0 kW long-travel drives accommodate a maximum wheel load of 208.3 kN on P43 rails. | 208.3 kN max wheel load, P43 rail, 43.6t crane weight |
| Dual operation modes for yard efficiency Operators need flexibility between remote and pendant control. | Equipped with both wireless remote control and independent pendant station for safe operator positioning. | Remote control & pendant control, 380V / 3P / 50Hz |
How to Evaluate If This Solution Fits Your Yard
- Civil Foundation Load: Runway foundation and ground beams must support a maximum wheel load of 208.3 kN on P43 steel rails.
- Power Supply Line: Motorized cable reel requires a dedicated 380V / 3P / 50Hz power connection point along the 65m travel length.
- Cantilever Side Clearances: Ensure an unobstructed lateral clearance zone of at least 8.5m beyond each rail center line to accommodate trolley travel.
- End Carriage Footprint: Gantry end trucks feature a 6000 mm wheelbase and an overall base width of 7200 mm; maintain adequate end-stop buffer clearances.
- Duty Cycle Check: M5 / FEM 2m is suitable for regular daily multi-shift precast concrete yard operations.
Unsure If This Layout Fits Your Yard?
Send us your site dimensions (Span, Cantilever Lengths, and Required Hook Height). Yuantai technical consultants will provide a FREE custom CAD layout drawing and proposal within 24 hours.
