Remote control overhead crane

Remote control overhead crane refers to the crane operated by a wireless remote control system to conduct the movement of the crane and the hoist. The remote control system enables the crane operator to maintain good visibility while keeping a safe distance from the load. Additionally, only one operator is required to complete the task due to the simple opeation of the remote control. Our remote operated overhead crane is available in a variety of configurations, including single girder, double girder, top running, and underhung system. The standard designed and processed remote control crane can perfectly meet your specific facility requirements and operational needs.

Overview of remote control bridge crane

  • Main design : Single girder or double girder, Top running or underhung
  • Control mode: remote control
  • Crane working environment: general use indoor application and hazardous application with dust, high heat, explosive, etc.
  • Applications: heavy machine shops, warehouses, steel mills, chemical plants, paper mills, maintenance and assembly shops, etc.
  • Customized overhead cranes are available based on your needs
  • Optional variable frequency speed


Single girder remote control overhead crane parameters:

  • Load capacity: 1-25t
  • Span: 7.5-31.5m
  • Lifting height: 6-30m
  • Work duty: A3, A4


Double girder remote crane overhead crane parameters:

  • Load capacity: 5-100 ton
  • Span: 10.5-31.5m
  • Lifting height: 6-24m
  • Work duty: A3-A7

Remote Control Gantry Crane

Remote control gantry crane for outdoor application. T There are many various types ofgantry crane available for sale, including container gantry cranes, mobile gantry cranes, Aframe gantry cranes, and U frame gantry crane,depending on the needs of the clients. Please contact us as soon as you can if you are interested in our products.

Overview of remote control gantry crane

  • Main design: Single girder or double girder, box girder or truss girder, A frame & U frame, rubber tyrped & rail mounted
  • Control mode: remote control
  • Crane working environment: indoor & outdoor application, etc.
  • Applications: for the loading and unloading operations of outdoor cargo yards, material yards and bulk cargoes. Customized remote operated gantry cranes are available according to your needs
  • Optional variable frequency speed

MH single girder gantry crane main parameters

  • Lifting capacity: 3-20t
  • Span length: 8-35m
  • Lifting height: 6-18m
  • Working class: A3 、A4
  • Customized service

MG Double Girder Gantry Crane 5 Ton Parameters

  • Lifting capacity: 5-500t
  • Span length: 18-35m
  • Lifting height: 6-18m
  • Working class: A3-A7
  • Customized service

Why to adopt the remote control crane?

  • 1.One of the most significant benefits of remote operationis the ehanced operation safetybecause the operator may operatethe crane while keeping a safe distance from the load. The crane operator can move around to have a better perspective of the load and its surroundings and to make sure the path is clear.
  • 2. The operator will be released from the confines of the cabin or pendant control wires thanks to remote control.
  • 3. The remote operatedcrane is very simple to use and has low operating costs.
  • 4.An overhead crane with remote control can enhance working conditions and is perfect for high-risk applications.

How the remote control operate crane?

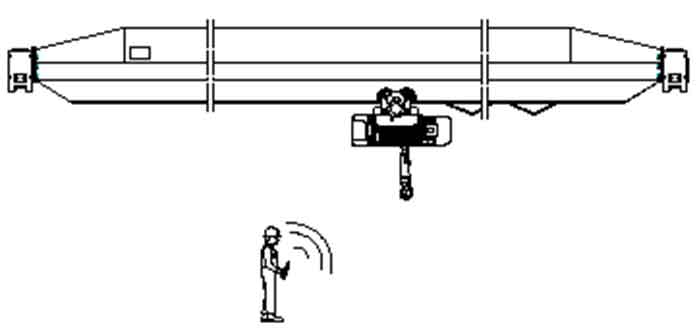

An overhead crane remote control uses a radio transmitter and receiver to regulate movement in three directions: hoist lifting/vertical lifting, crosstravelling operation, and crane longtravelling operation.

  • Crane travelling operation/ Long travelling : control the long travelling of the overhead crane & gantry craneto move along crane rail or crane trackback and forth .
  • Vertical hoisting : control the vertical movement of hookto carry load up and down.
  • Hoist travelling / cross travelling: control the horizontal movement of crane hookalong the bridge girder.

What are the safety requirements for wireless remote control crane?

  • A remote operatedcrane should include a variety of safety features, including a travel limit switch, emergency stop button, and zero position and short circuit protection. All joysticks must be at zero before operation if the remote control makes use of a non-automatic reset joystick.
  • A main contractor or an air circuit breaker with loss of voltage should be included with any crane that uses a wireless remote control to turn off the crane's main power.
  • A clear remote indicator showing that theoverhead crane is being handled by a remote control should be included.
  • When operating a crane with both a remote control and a driver's cab, the two should be interlocked. A transfer switch must be installed at the driver's cab entrance.
  • Relays and contactors that operate in both forward and reverse directions should be electrically connected. The radio remote control system should be resistant to co-frequency interference.
  • Ensure that the receiver housing and intermediate relay box are securely connected to the crane steel structure.
  • An emergency stop function, including active and passive emergency stops, should be included in wireless remote controls. The driver issues an emergency stop instruction through the transmitter to cut off the main power supply to the crane and stop the crane's various mechanisms. When the receiver fails to detect normal signals or fails after a certain period of time, it can cut off the power to the channel and stop the crane mechanism from operating.

Operation of remote control crane

When the operation environmental condition doesn't allow the operator to push the suspension pendent crane control, or cabin control is not possible, then the remote control are adopted.

Remote control

Remote control

  • On–site command signal
  • Command signal applicable personnel: crane driver, lifting operation command personnel, lifting operation department personnel.

Crane lifting command signal types :

  • arm signal-Use palm, fingers and arms of different position to command crane operation.
  • The main points of arm signal: Forward signals-refers to the crane to the commander, Backward signals-refers to the crane leave controllers. The before, after, left and right, in command language, are based on location of the driver.
  • Semaphore signals-Command in red and green flags on both sides, is mainly used in the outdoor homework mobile crane.
  • Audible signal-Cooperate with hand signals or semaphore signals command with the whistle, microphone, or ring, etc.

Commander requirement:

The command signal must be clear and accurate. The commander should look at the overhead crane driver. the commander's position should be reasonable, the eot crane operator can see clearly, and also keep a safe distance with suspended load.

Driver's requirements.

If the command signal is unclear, a referral signal should be given, followed by a two-word statement with ringtones; if the commanding officer sends the incorrect command signal, the driver has the right to refuse to comply; and drivers who receive an emergency stop signal are required to stop immediately.

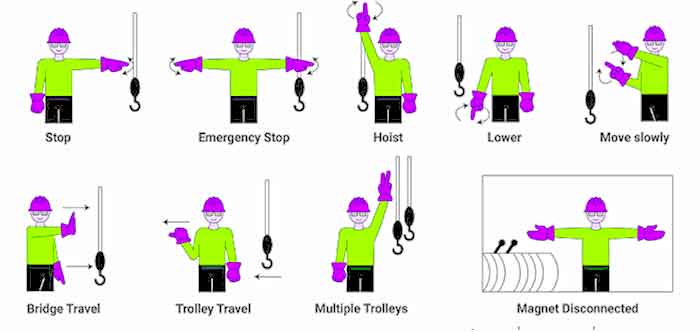

Common hand signal.

common hand signal for remote crane operation

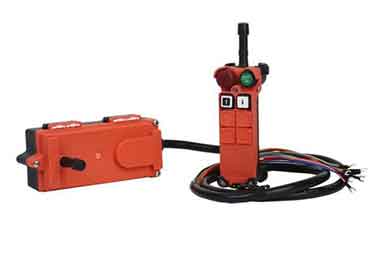

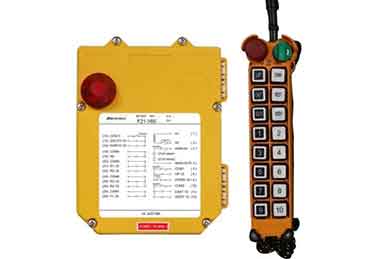

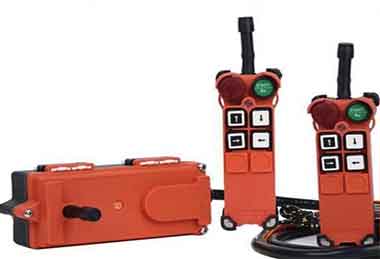

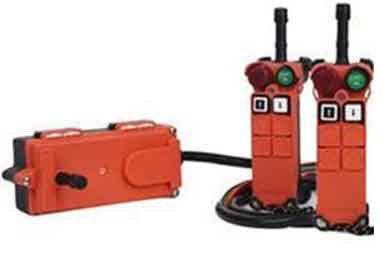

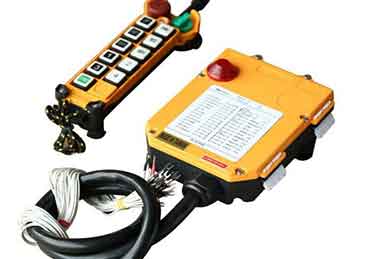

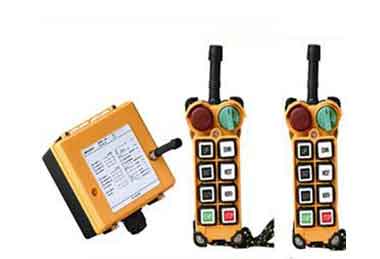

F21-2S Industrial radio remote control

F21-2S

F21-2S-2TX

SPECIFICATION:

Application

Hoist, winches, lifts, doors and other industrial
machine

Frequency

310.0325~331.165Mhz, 433mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

2

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

2 Single speed push button +1 start button+1
emergency stop button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

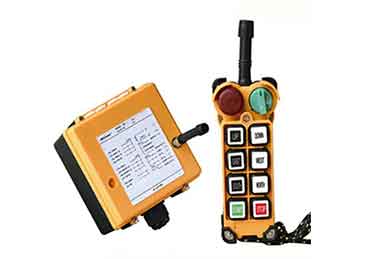

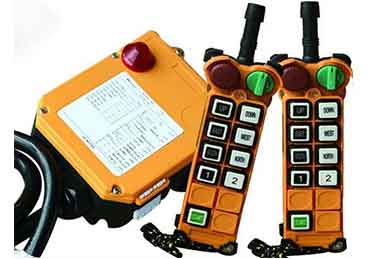

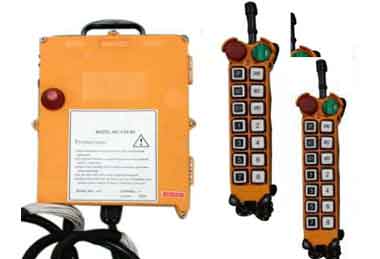

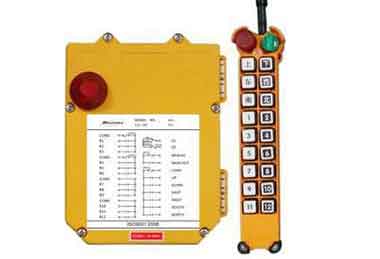

F21-2D Industrial radio remote control

F21-2D

F21-2D-2TX

SPECIFICATION:

Application

Hoist, winches, lifts, doors and other industrial
machine

Frequency

310.0325~331.165Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

4

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

2 Double speed push button+1 start button+1
emergency stop button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

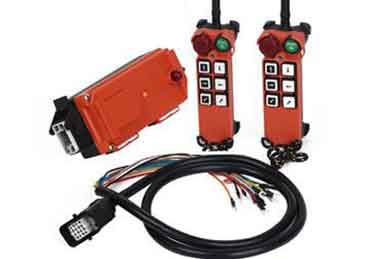

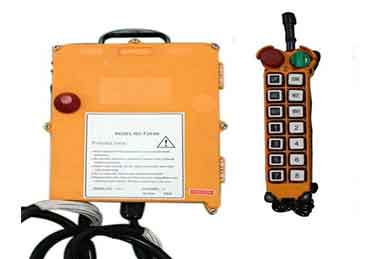

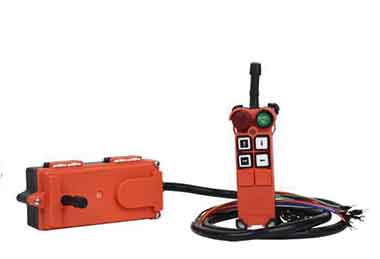

F21-4S Industrial radio remote control

F21-4S

F21-4S-2TX

SPECIFICATION:

Application

Hoist, winches, lifts, doors and other inustrial
machine

Frequency

310.0325~331.165Mhz, 433mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

4

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

4 Single speed push button +1 start button+1
emergency stop button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

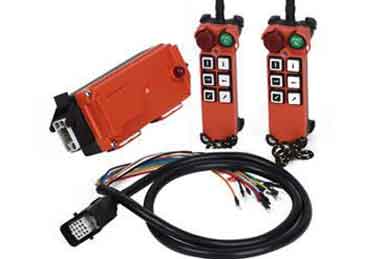

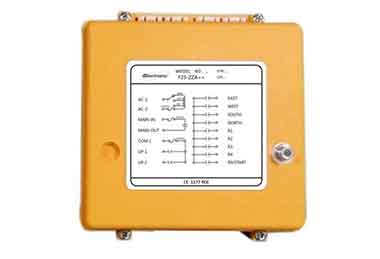

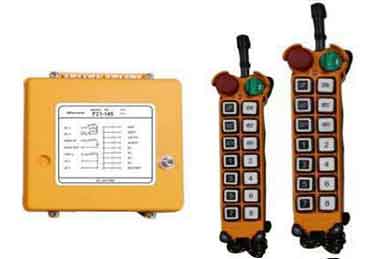

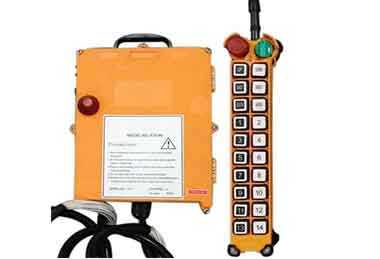

C-E1Q

C-E1Q-2TX

SPECIFICATION:

Application

Hoist, winches, lifts, doors and other industrial
machine.

Frequency

310.0325~331.165Mhz, 425.5925-446.725MHz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

6

Control distance

Up to 200m

Certificates

CE, FCC, ISO9001:2008

Number of push button

6 Single speed push button +1 start button+1
emergency stop button.

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

4 AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

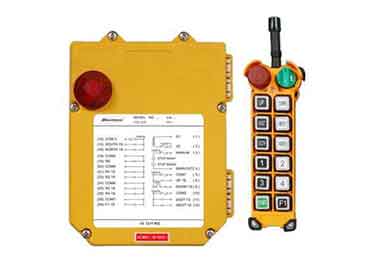

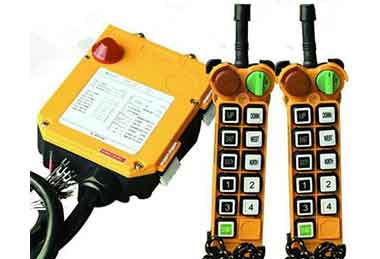

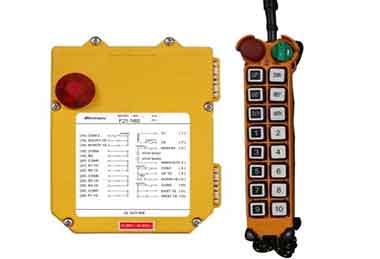

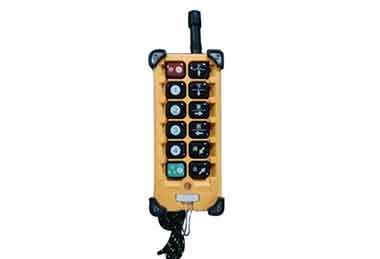

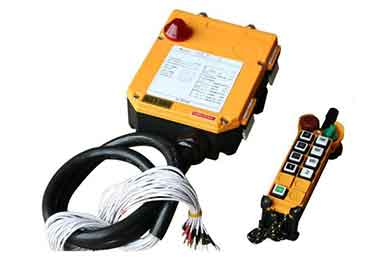

F21-6D

F21-6D-2TX

SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine.

Frequency

310.0325~331.165Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

10

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

6 Double speed push button+1start+1stop + 1
emergency stop button+ 1 rotary switch button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

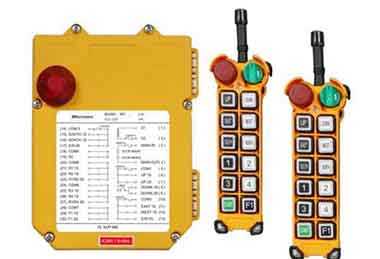

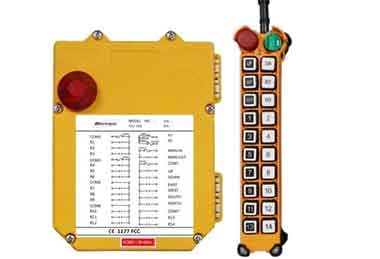

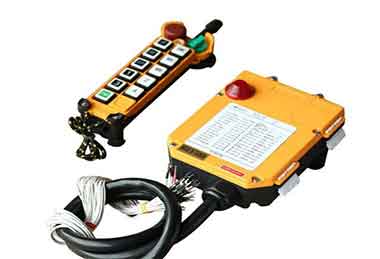

F24-6D Industrial radio remote control

F24-6D

F24-6D-2TX

SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine.

Frequency

310.0325~331.165Mhz;425.5925-446.7725Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

10

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

6 Double speed push button+1 start button+1
Emergency stop button+1 Rotary switch button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

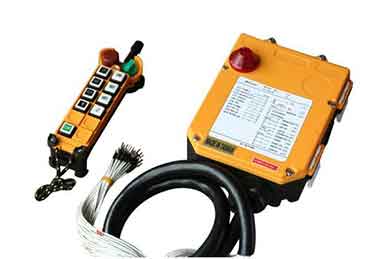

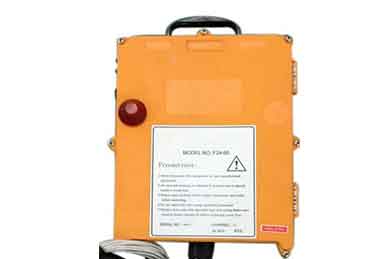

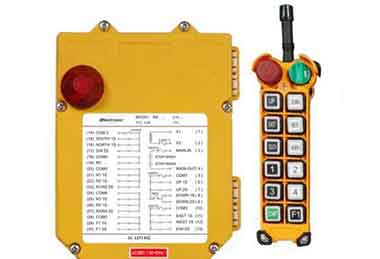

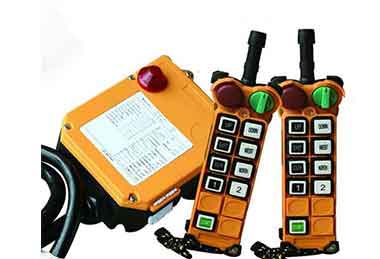

F24-8S Industrial radio remote control

F24-8S

F24-8S-2TX

SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine.

Frequency

310.0325~331.165Mhz;425.5925-446.7725Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

8

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:208

Number of push button

8 Single speed push button +1 start+1 Emergency
stop button+1 Rotary switch button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

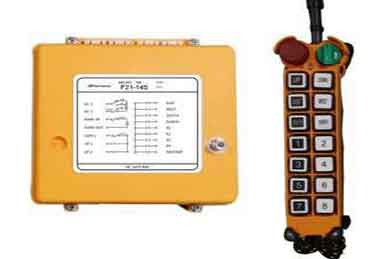

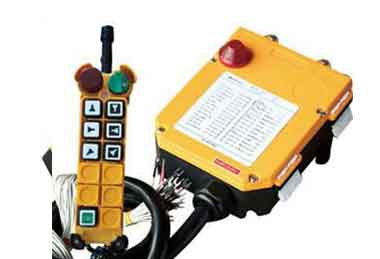

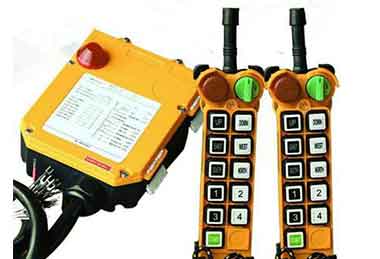

F24-8D Industrial radio remote control

F24-8D

F24-8D-2TX

SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine.

Frequency

310.0325~331.165Mhz;425.5925-446.7725Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

13

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

8 Double speed push button+1 start +1 Emergency
stop button+1 Rotary switch button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

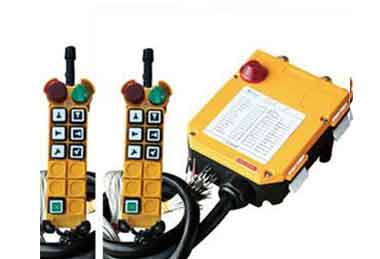

F24-10S Industrial radio remote control

F24-10S

F24-10S-2TX

SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine.

Frequency

310.0325~331.165Mhz;425.5925-446.7725Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

10

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

10 Single speed push button+1 start+1 Emergency
stop button+1 Rotary switch button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

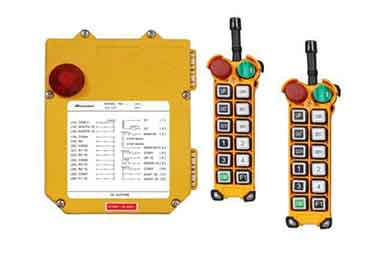

F24-10D Industrial radio remote control

F24-10D

F24-10D-2TX

SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine

Frequency

310.0325~331.165Mhz;425.5925-446.7725Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

16

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

10 Double speed push button + 1 start + 1
Emergency stop button + 1 Rotary switch button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Material

glass fiber


F24-12S Industrial radio remote control

F24-12S

F24-12S-2TX

SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine.

Frequency

310.0325~331.165Mhz;425.5925-446.7725Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

11

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

11 Single speed push button + 1 start+1
Emergency stop button+1 Rotary switch button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

F24-12D

F24-12D-2TX


SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine.

Frequency

310.0325~331.165Mhz;425.5925-446.7725Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

18

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

11 Double speed push button +1 start+1
Emergency stop button+1 Rotary switch button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

F21-14S

F21-14S-2TX


SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine.

Frequency

310.0325~331.165Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

14

Control distance

Up to 100m

Certificates

CE, FCC, ISO

Number of push button

14 Single speed push button+1 Emergency stop
button+1 Rotary switch button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/ DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

F21-14D

F21-14D-2TX

SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine.

Frequency

310.0325~331.165Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

28

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

14 Double speed push button+1 Emergency stop
button+1 Rotary switch button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

F21-16s-2TX

F21-16S

SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine.

Frequency

310.0325~331.165Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

16

Control distance

Up to 100m

Certificates

CE, FCC, ISO

Number of push button

16 Single speed push button +1 Emergency stop
button+1 Rotary switch button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

F21-16D

F21-16D-2TX

SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine.

Frequency

310.0325~331.165Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

32

Control distance

Up to 100m

Certificates

CE, FCC, ISO

Number of push button

16 Double speed push button+1 Emergency stop
button+1 Rotary switch button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

F21-18S

F21-18S-2TX

SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine.

Frequency

310.0325~331.165Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

18

Control distance

Up to 100m

Certificates

CE, FCC, ISO

Number of push button

18 Single speed push button+1 Emergency stop
button+1 Rotary switch button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/12v or DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

F21-18D

F21-18D-2TX

SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine

Frequency

310.0325~331.165Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

36

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

18 Double speed push button+1 Emergency stop
button+1 Rotary switch button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

F21-20S-2TX

F21-20S


SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine

Frequency

310.0325~331.165Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

20

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

20 Single speed push button +1 Emergency stop
button+1 Rotary switch button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

F21-20D Industrial radio remote control

F21-20D

F21-20D-2TX

SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine.

Frequency

310.0325~331.165Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

40

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

20 Double speed push button+1 Emergency stop
button+1 Rotary switch button

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

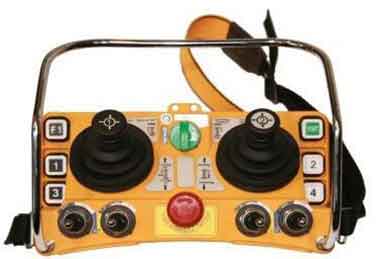

F24-60-TX

F24-60-RX

SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine.

Frequency

310.0325~331.165Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

40

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

Dual speed joystick

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

4AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

F23-A++---TX

F23-A++---RX

SPECIFICATION:

Application

Overhead cranes, hoist ,chain hoist and other
industrial machine.

Frequency

310.0325~331.165Mhz

Frequency generation:

Crystal (plug in)

Channel

80

Channel Spacing

0.2675MHz

Control motions

8

Control distance

Up to 100m

Certificates

CE, FCC, ISO9001:2008

Number of push button

8 Single speed push button+1 START+1 STOP

Unique code

Over 4.3billon unique ID codes .

Working temperature

-35°C ~ +80°C

Enclosure protection class

IP65

Transmitter power

AA-size batteries

Receiver power

AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V

Output capacity

Full sealed relay output with 5 amperes

Warranty

1 year

Material

glass fiber

Article by Bella ,who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
