Single girder hoist crane, European standard overhead hoist crane, Small overhead crane
European single girder overhead cranes, compact FEM hoist crane design, small & light overhead hoist crane.Good price overhead travelling crane 1-stop service.
| Crane Type | Single girder hoist crane of European style |
| Crane Capacity | 3 ton, 5 ton, 8 ton, 10 ton, 12.5 ton, 16 ton and 20 ton |
| Crane Span | 7.5 m to 28.5 m |
| Lifting Height | 6m to 18m |
| Working Class | A5 |
| Application | Material handling, lifting, positioning, assembly, maintenance, loading/unloading, |
| Certifications | CE / ISO / SGS / Other third-party inspection |
| Customization | Customized material handling cranes solutions available for indoor, outdoor, hazardous, corrosive, cleanroom, and heavy-duty industrial applications. |
Category: Overhead Crane
Tags: Europanstylecrane,eurocrane
Your Trusted Overhead Travelling Crane Manufacturer & Supplier
European Style FEM Standard Overhead Hoist Crane
Single Girder Hoist Crane,Small Overhead Crane, Low Headroom Bridge Crane Design
European single girder overhead cranes, compact FEM hoist crane design, small & light overhead hoist crane.Good price overhead travelling crane 1-stop service.

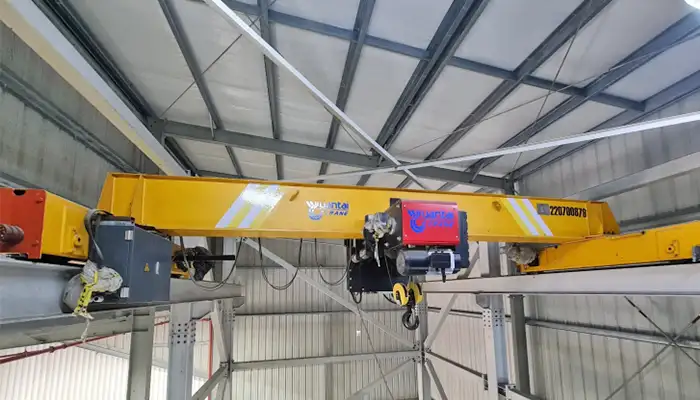

European type single girder overhead hoist crane
European type hoist cranes with single girder overhead crane configuration, adopted with various types of electric fem hoists, design with advanced crane concept and technology, manufactured with international standards, i.e. DIN, FEM and ISO. European hoist single girder overhead crane as a specially designed overhead travelling bridge cranes have the advantages of compact design, tight volume, light weighted, high rigidity, and durable quality, etc. The single girder European hoist crane system can offer large space for your production and save your crane cost and investment.
HD series European standard electric hoist single girder overhead cranes is designed with the feature of maximum rigidity for a minimum crane deadweight, which makes the load on the travelling crane runway to a minimum. In this way, it makes the single girder European hoist crane a cost-effective design for the plant and an optimal solution for light duty material handling for your workshop.

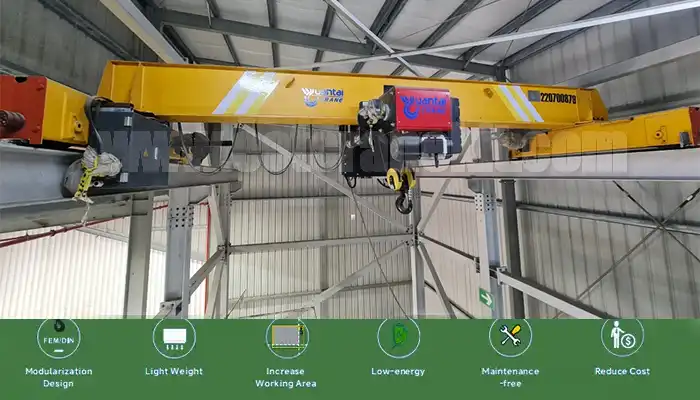

Parameters of European single girder overhead crane
HD series European single girder overhead travelling hoist crane is our newly updated hoist crane design for workshops with low or limited headroom or clearance but with larger lifting height requirements. The European single girder overhead crane adopts the advanced crane technology in according to the international standards: DIN (Germany), FEM (Europe), and CE,ISO (International)，working class A5.
The main parameters of the European type single girder hoist crane are as follow:
- Type of Overhead Travelling Crane: HD European hoist crane with single girder overhand crane configuration
- Lifting Capacity of Single Girder Hoist Crane :3.2 ton to20 ton ( 5 ton, 8 ton, 10 ton, 12.5 ton, 16 ton and 20 ton)
- Span of European hoist crane :7.5 m to 28.5 m
- Lifting Height of overhead hoist crane :6m to 18m
- Working Class of European overhead crane :A5
- Ambient Temperature of European crane :-20℃ to 40℃
- European style top running single girder bridge crane specification table.

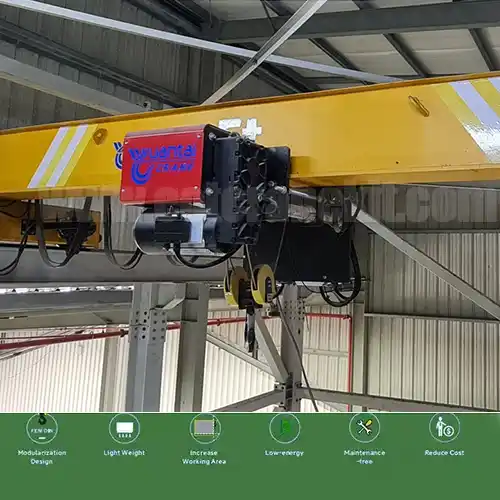

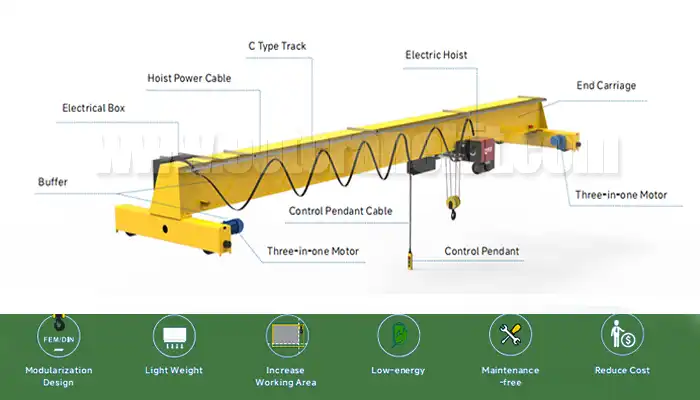

Crane parts and componenets and electric hoist
- Design and production is based on FEM hoist standards.
- With optimizing low headroom crane design, the lifting height of the overhead travelling bridge crane can be higher due to the minimized crane height under the same plant height.
- With optimizing crane design and low wheel pressure , the European hoist single girder travelling crane can achieve greater lifting capacity under the same strength of the workshop.
- Crane girders of the European hoist crane made of computer - optimized box sections.
- Torsionally rigid end carriages for the single girder overhead crane, with, welded box-section girder design.
- Adjustable wheel group is adopted on the single girder hoist crane, to prevent the crane rail from gnawing.
- Three-In-One mechanism is adopted with frequency conversion makes the European standard electric hoist single girder overhead crane reduce the noise to the best.
Electric overhead crane hoist Options
NR Low Headroom Electric Hoist
Designed for low headroom applications, this electric hoist maximizes the available lifting height and increases the working area beneath the crane. It is ideal for single girder crane hoists and overhead hoists, offering a capacity range of 3–20 tons while ensuring compact, efficient operation.
NRS Standard Headroom Electric Hoist
With a modular design and an independent running trolley, this hoist is recommended for lifting capacities of 16 tons and above or where curved tracks are required. It provides reliable performance for overhead cranes, bridge crane hoists, and single girder cranes, making it suitable for a wide range of industrial lifting applications.
BNR Explosion-Proof Electric Hoist
Specially built for flammable and explosive environments, the BNR hoist offers excellent explosion-proof performance. It serves as the main lifting mechanism for explosion-proof bridge cranes, gantry cranes, jib cranes, and overhead cranes, and can be used as a wire rope hoist or monorail hoist. This design ensures maximum lifting height and safe operation in hazardous conditions.
Safety measures of different levels are equipped based on the working duty and conditions including limiters on overloading, height Stroke photoelectric and other security measures. And the recording black box can be adopted based on requirements of customer's.
Personalized configuration
- Optimum integration into existing and new buildings.
- Control pendant suspended for separate travel on the crane girder with display for installation monitoring.
- Radio control with display and proportional push buttons possible (optional).
- Optional radio control with power and signal transmission via energy chain system.
Applications of European single girder overhead hoist crane
European type single girder overhead hoist crane is widely applied in different workstations and workshops of general manufacturing, machinery, metallurgy, , petroleum, petrochemical, ports, railways, civil aviation, electricity, food processing , paper , building materials, electronics, etc.
The fem single girder overhead crane with special designed or selected electric hoists also can be used for handling and assembly of large scale parts with high precision, etc.
Advantages of European Electric Hoist Overhead Crane
Electric hoist overhead crane has the following advantages:
- Optimized European hoist crane design makes the single girder overhead crane small and compact in volume with, light dead weight,
- Small wheel load pressure makes the European single girder hoist crane compacted in size, saving your workshop space and offering higher lifting,
- The driving capacity of European single girder hoist crane can high up to 20 ton and double lifting speed is available for the single girder design.
- Frequency control of the hoist trolley and crane is available which is more functional and convenient.
- The travelling of the European single girder hoist crane is rather smooth and stable, offering precise assembling of the large mechanical parts, and etc.
Comparison between LD and HD single girder overhead crane
The comparison of the China hoist crane & European crane is presented for your reference to know the features of each type to get the best value electric hoist single girder overhead crane solutions for your workshops.
HD single girder hoist crane with European overhead crane style- affordable advanced overhead cranes, with tailored smart features, save your space and lower power consumption

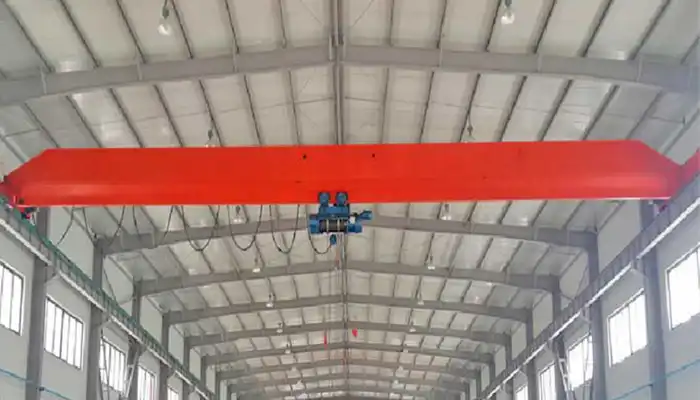

LD single girder hoist crane with Chinese overhead crane style, cheaper overhead hoist solution save your crane cost
Crane design & Appearance
- HD single girder hoist crane: Modular design originated from Europe (motor, reducer, electrics separated, easy to maintain)
- LD single girder hoist crane: Integrated design (Hard to maintain)
Main parameters of Single Girder Hoist Crane
- HD European single girder overhead hoist crane:Lifting capacity; 1ton - 16 ton, Lifting Height: 6m to 18m, Span Length:7.5 m to 28.5 m, Working Class: A5,, Ambient Temperature:-20℃ to 40℃
- LD Single Girder Electric Hoist Overhead Crane：Lifting Capacity:1t-20t, Lifting Height: 6m-30m, Span Length: 7.5m-28.5m,,Working Class:A3, A4, Ambient Temperature: -20℃-40℃
Note: The specifications of standard single girder overhead cranes of each type is represented for your reference and custom need, please feel free to contact us.
On crane hoists
- LD single girder hoist crane is the China traditional electric hoist overhead crane with single girder overhead crane configuration equipped with CD1 or MD1 wire rope hoist as the lifting system.
- HD single girder hoist crane is the single girder overhead crane designed base on European standards, equiped with European standard FEM wire rope hoists. European type hoist is more advanced and has a higher lifting heigh

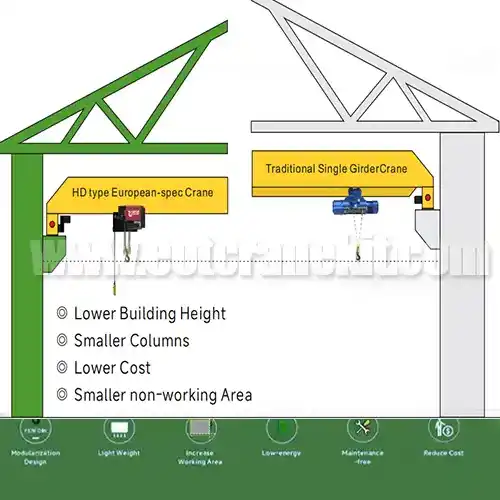

Specifics on Low Headroom Hoist
Low headroom hoists offer several advantageous features and specifications:
- Capacities Available These hoists are typically compatible with cranes ranging from 1 ton to 20 tons, making them versatile for various lifting applications. The wide range of capacities ensures that industries can select the appropriate hoist for their specific load requirements, whether it's for light-duty tasks or heavier material handling.
- Energy Efficiency Many low headroom hoists are equipped with variable frequency drives (VFDs) that allow for adjustable speed control and energy efficiency. VFDs enable smooth acceleration and deceleration during lifting operations, reducing energy consumption and minimizing wear and tear on the equipment. This feature not only contributes to lower operational costs but also promotes sustainable practices within the facility.
- Noise Reduction Technologies Low headroom hoists often incorporate noise reduction technologies, such as vibration dampening materials and optimized gear systems, to minimize operational noise. This consideration is essential in environments where noise levels can impact employee comfort and productivity. By employing quieter hoists, companies can create a more conducive working atmosphere.
- Maintenance-Free Components Many low headroom hoists are designed with maintenance-free components, such as sealed bearings and self-lubricating materials. This reduces the need for regular maintenance checks and servicing, allowing operators to focus on their core tasks without frequent interruptions. By minimizing maintenance requirements, businesses can enhance productivity and reduce downtime.
Maintenance
- HDsingle girder hoist crane: Maintenance free, no need to add oil 3~5 years
- LD single girder hoist crane: Gear box, wire rope needs to add oil every year. Will need to a period of downtime for maintenance.
Noise
- HD single girder hoist crane: Little noise, environmental-friendly during operation
- LD single girder hoist crane: Louder noise in warehouse
On Crane price
HD & LD hoist single girder overhead cranes with same specifications may differ with each other in terms of crane price. The hd European standard electric hoist single girder overhead crane price is higher than that of the China type single girder overhead hoist crane but it maybe more economical for the whole project and in long term scheme.
Why to select European standard single girder overhead crane?
Trough the above comparing, the European style electric hoist single girder overhead crane the following advantages:
- Firstly, European hoist single girder overhead crane could offering more effective working space than China single girder hoist crane with same crane specifications does.
- Also, European single girder hoist overhead crane requires smaller workplace and offering larger lifting height
- Thirdly, the wheel pressure of European hoist crane is much smaller than that of the China traditional hoist crane because of light dead weight.
- Lastly and most importantly, European hoist crane is an cost-effective material handling solutions because it may save a substantial amount of money on initial workshop construction investment, heating fee, air conditioning fee and other maintenance fee in a long term run.
All in all,Due to the advanced crane designing concepts, European style electric hoist single girder overhead crane has the features of compact and small dimension, light dead weight, minimum limiting distance from hook to wall, lower headroom and higher lifting height, etc. For light duty material handling with capacity within 20 tons, European standard single girder overhead crane with fem hoist will be a good and economical solution for your workshop in a long run.
Europeans tyle single girder overhead crane projects
We understand that every industry and workspace is unique, which is why we offer a range of customization options to ensure that your crane is tailored to your specific requirements.
Our single girder bridge cranes are designed to provide reliable and efficient lifting and moving solutions for a variety of industries, including manufacturing, construction, mining, transportation, and logistics. With a customizable crane, you can optimize your workspace and improve your workflow.

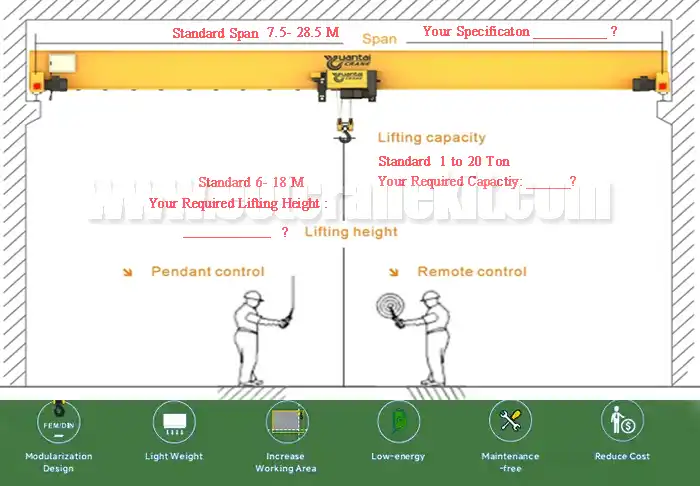

We offer a range of customization options, including:
- Capacity: Our single girder bridge cranes can be customized to lift and move loads of varying weights and sizes. Whether you need to move heavy machinery or smaller components, we can design a crane to meet your needs.
- Span: The span of the crane can be customized to fit the dimensions of your workspace. Whether you have a large facility or a smaller workspace, we can design a crane to fit your requirements.
- Height: The height of the crane can be customized to fit the height of your facility. This ensures that you can optimize your vertical space and make the most of your workspace.
- Controls: We offer a range of control options, including pendant and radio remote controls, to ensure that you have the right control system for your specific needs.
- Safety features: Safety is our top priority, which is why we offer a range of safety features such as overload protection, emergency stop buttons, and warning lights.
With our customizable single girder bridge cranes, you can optimize your workspace and improve your workflow. Our team of experts will work with you to design a crane that fits your specific requirements, ensuring that you have the right lifting and moving solution for your business.
Contact us today to learn more about our customizable single girder bridge cranes and how they can benefit your business.
1.5 Ton Overhead Hoist Crane for Low Headroom Workshop Maldives
Single girder hoist crane designed for low headroom or space contained workshop or facility. Check 1.5 Ton low headroom overhead crane project installed in Maldives
5 Ton Single GirderEot Crane for Shipbuilding Maldives
Single girder electric wire rope hoist overhead crane 5 ton installed and testing for Malidives shipbuilding workshops. Check low headroom 5 ton single girder overhead crane video now.
5 Ton Single Girder Overhead Crane Installation Feedback
5 ton electric hoist overhead crane for sale. 5 ton single girder top running crane, remote control crane tailored for your warehouse. 5 ton warehouse crane feedback.
6.3 Ton + 6.3 Ton Double Hoists Crane for Harvester Manufacturer
Single girder top running overhead crane with 6.3 ton + 6.3 ton electric wire rope hoists for Harvester Manufacturer in Australia. Check crane feedback now.
7 Ton Single Girder Electric Hoist for Sale Brazil, Remote Control Hoist
7 ton electric overhead electric hoist for sale Brazil, Remote control electric hoist for freestanding overhead Crane. Custom 7 ton electric wire rope hoist for sale.
Single Girder Top Running Overhead Crane 10 Ton Installation in Bangladesh
Single Girder Top Running Overhead Crane 10 Ton Installation in Bangladesh. Check 10 ton top running crane installation, testing & commissioning video.
Single Girder Top Running Overhead Crane 10 Ton Commissioning
Single girder overhead crane 10 ton for sale Mali. Check 10 ton overhead crane installation, commissioning & testing video. Overhead crane for your selection.
Most important questions from buyers before purchasing European style single girder overhead cranes with low headroom hoists. Covering crane selection, workshop conditions, lifting height, capacity, quotation requirements, and Yuantai project experience. A low headroom hoist crane is mainly chosen when the workshop height is limited but the customer needs a higher hook lifting position. Then we decide whether a low headroom design is necessary. The key question is not only "How many tons do you lift?" Before quotation, Yuantai usually requests: A wrong assumption at the beginning can affect the whole crane design. Typical capacity range: Common project applications: However, capacity alone does not determine the crane design. It depends on the workshop structure and crane configuration. For existing workshops, this difference can decide whether the crane is practical or not. The minimum information: For low headroom cranes, the most important information is: Usually, yes. For a low workshop, paying slightly more for the correct design can avoid expensive rebuilding later. The most common mistakes are: Another common mistake: Yes, but the building structure must be checked. A common project situation: European Style Single Girder Overhead Crane with Low Headroom Hoist FAQs | Buyer Questions & Yuantai Solutions
Why should I choose a low headroom hoist single girder crane instead of a standard EOT crane?
Many customers first compare crane prices. But in actual projects, the bigger cost is sometimes the lost lifting height.
A standard hoist may fit the building, but the hook cannot reach the required position.
Yuantai checks the actual building condition first:How do I know if a low headroom crane is suitable for my workshop?
It is:
"How much usable lifting height do you need?"
A low headroom crane is usually suitable when:What capacity and working conditions can a European style single girder crane handle?
A 10-ton crane used 5 times per day and a 10-ton crane working every minute require different components and working classes.
Yuantai selects the hoist, motor, brake, and structure according to the working condition.How much higher can a low headroom hoist lift compared with a normal hoist?
The purpose of the low headroom hoist is to reduce the space occupied by the hoist trolley.
The saved height can be used for:What information do I need to provide to get the correct crane quotation?
Workshop height and required hook height.
Without this information, different suppliers may quote completely different designs and prices.Is a European style low headroom crane more expensive than a traditional single girder crane?
The low headroom hoist has a more compact structure and requires a different trolley design.
However, the comparison should not only be based on purchase price.
The customer should consider:What are the common mistakes buyers make when purchasing a low headroom crane?
Choosing capacity only.
Customers often say:
"I need a 10-ton crane."
But they do not confirm:
Copying another factory's crane design.
Two factories may have the same capacity but completely different requirements.
Yuantai designs according to the actual application.Can a low headroom crane be installed in my existing factory?
Important points:
The customer has an old workshop and wants to add a crane.
The building looks strong, but the runway cannot support crane loads.
Checking before production avoids installation problems later.
