Top Running Freestanding Bridge Crane
Single Girder & Double Girder Freestanding Bridge Crane Design

Freestanding bridge crane for sale.1-5 ton single girder & 5 ton - 25 ton double girder top running freestanding bridge crane design. Get freestanding crane design now.

Top Running Crane Freestanding Bridge Crane systems are the workhorses of the overhead crane world. Day in and day out, they handle heavy loads consistently and reliably.The Top Running bridge crane design affords maximum hook height. Because of their high supporting force, the top running freestanding crane are widely used. With the featured workstation runway structure, the single girder top running freestanding cranes are easy to be installed due to no bracing being needed as well as only having four support columns. Due to its modular construction, the runway can be expanded and the relocation process made simpler. Pre-engineering enables the costs to stay lower than those of comparable alternatives.

Your Trusted Overhead Travelling Crane Manufacturer & Supplier

Top running free standing overhead crane with single girder design

  • Capacities of freestanding crane : up to 5 tons
  • Bridge Span Lengths, overall: up to 39' standard
  • Runway Spans of freestanding bridge crane : up to 50'
  • Height of freestanding bridge crane : Customization
  • The preferred freestanding crane system for moving light to moderate loads within a work area.
  • Converts existing manufacturing and warehouse space into profitable production areas
  • Perfect for buildings made of metal, precast, wood, or that are rented or leased.
1 ton single girder top running freestanding bridge crane

Details of freestanding bridge crane design - top running single girder

The structure of stand-alone freestanding workstation bridge cranes is header-braced across the ends. A rigid moment connection connects the header and runway beams to the top of the column. As a result, header-bracing eliminates the need for knee and other braces, keeping the workstation free of obstruction and allowing for maximum use of the work area. Header-bracing also eliminates the need to brace the crane structure to the building structure, allowing the workstation to be located in the most desirable location.

The bridge on a top running freestanding crane rides on the structure's very top, providing maximum hook height. In many cases, the additional hoist hook height gained by the unique momentary connection and top running design ranges from 10 to 24 inches.

Features of single girder freestanding bridge crane

  • Available in capacities ranging from 1 to 5 tons.
  • Runway lengths of up to 50 feet are available.
  • The single girder freestanding crane systems are not typically expandable
  • Spans of up to 39 feet are possible.
  • Additional capacities, runway lengths, and spans can be requested.

On Installation of single girder crane design

  • Easy installation, bolt-together construction, only four columns, no bracing, and only a few man hours to assemble.
  • Easy assembly with no special requirement to the professional welders.
  • Support columns bolt directly to a reinforced concrete slab 6 inches thick.
  • Design is modular to allow for easy relocation.
  • Pre-engineered for simple and fast delivery.

Short lead-time and worry free services after delivery

  • Typically ships in 3 to 4 weeks and includes: runway electrification, an assembly manual, hardware, and anchor bolts.
  • Stainless steel food grade and other non-corrosive stainless systems are available.
  • Each system comes with complete CAD drawings.
  • Runway systems built to specific requirements.

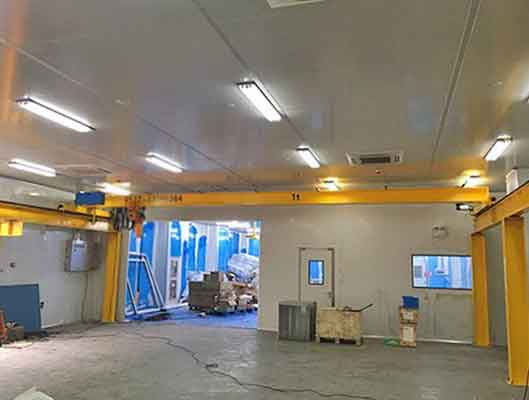

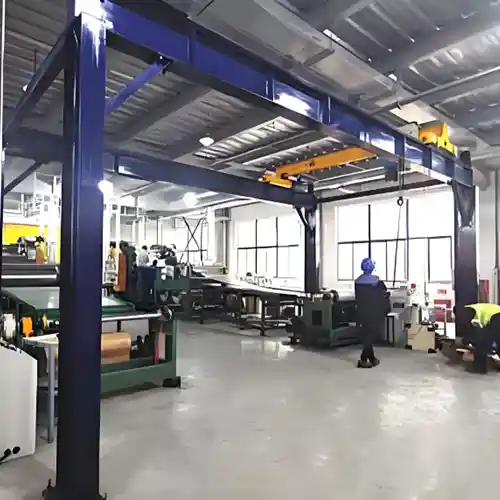

1 ton freestanding bridge crane for indoor use - Freestanding crane series

1 ton freestanding bridge crane for indoor use - Freestanding crane series

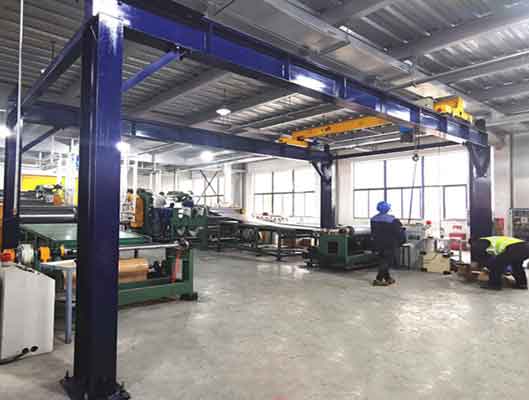

Top running freestanding bridge crane for indoor use - Freestanding crane series

Top running  freestanding bridge crane for indoor use - Freestanding crane series

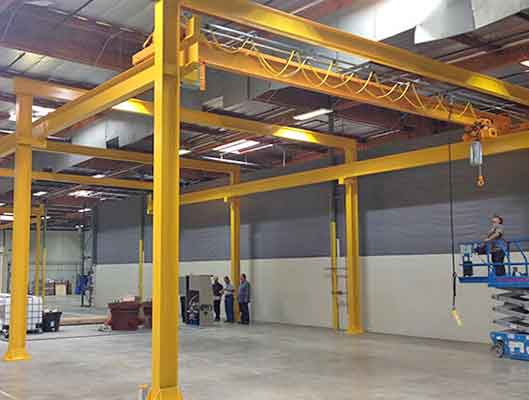

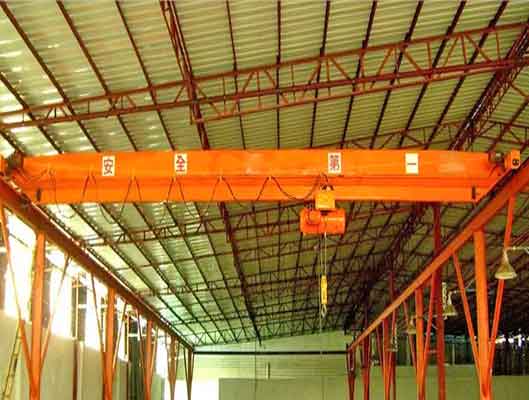

Top running single girder freestanding bridge crane - Freestanding crane series

Top running single girder freestanding bridge crane  - Freestanding crane series

Application of single girder top running freestanding bridge cranes

The freestanding crane with top running single girder bridge crane designs are popular to be used in applications such as , Assemblies, Machining centers, Mold change outs, Die repair, Plasma and burn tables,Stocking laser tables, battery swaps, test cells, grinding booths, cleaning booths, etc.

Multiple Cranes Sharing the Same Runway

Add a second or third overhead bridge crane to a runway to increase production space. This allows you to improve productivity while also manipulating loads that may require more than one pick point. Adding a second bridge crane can sometimes increase overall system capacity by distributing the weight of a heavy load between the two cranes. Optional load summing devices can be used when using multiple industrial cranes on the same runway. To avoid overloading the runway, these devices can estimate the weight of the load on each crane.

Your Trusted Overhead Travelling Crane Manufacturer & Supplier

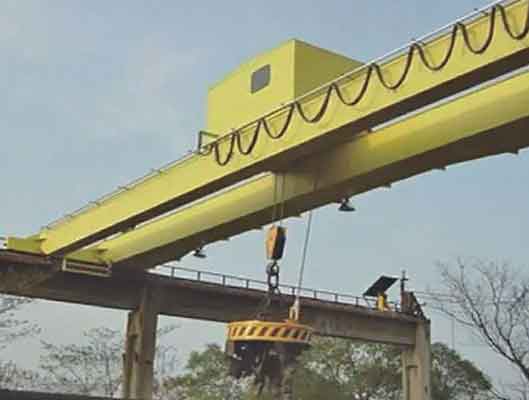

Double girder top running freestanding overhead crane

Freestanding Top Running Double Girder Overhead Crane can withstand lateral and longitudinal forces without assistance. Braces to other support structures are simply not required. The freestanding design brings versatility: the freestanding crane system is equally efficient and versatile for indoor and outdoor uses.

  • Capacities of double girder freestanding crane : up to 25 tons (standard)
  • Bridge Span Lengths, overall: up to 100'+
  • Runway length of freestanding crane : unlimited
  • Height of freestanding bridge crane : customizable
  • The bridge crane travels on rails attached to the top of the runway beams, maximizing hook height.
  • Freestanding bridge crane runways can also handle higher capacities than underhung models.

Details of freestanding bridge crane design - top running double girder

When maximum hook height is required, freestanding industrial crane systems are ideal. Because the system lacks a brace, at least 6′′ of concrete is required to mount it to the floor. Because freestanding bridge crane structures do not require support headers across the top of the system, the overhead crane can ride on the very top of the structure, providing maximum hook height. In many cases, the extra hook height provided by double girder top running crane design can range from 10 to 24 inches.

Features of double girder top running freestanding bridge cranes

  • Capacity typically ranges from 1 to 25 tons and above.
  • Spans of up to 100 feet and longer are available.
  • Runway lengths are unlimited.
  • Supports structures are designed to be mounted directly to a 6 inch concrete slab or reinforced concrete footers.
  • Freestanding bridge cranes can be equipped with hand gear, push type, electric, and pneumatic hoists, etc.
  • Many configurations have already been pre-engineered for quick delivery.

On the delivery of top running double girder freestanding bridge cranes

  • Ships that include: runway electrification
  • ·hardware
  • assembly instructions
  • When foundations are not required, anchor bolts are provided.
  • Overhead crane CAD drawings are included.
  • There is food grade and non-corrosive bridge crane equipment available.

Applications of freestanding bridge crane with double girder top running crane design

The double girder freestanding bridge cranes are widely used in application, such as, concrete product manufacturing, steel yards, foundry magnet crane applications, leased warehouse or parking lot space conversion, precast mold changes, plasma cutting centers, laser tables, tool and die maintenance, plastic injection mold handling, general material handling, concrete product manufacturing,etc.

Tailored freestanding overhead cranes are available for your particular application environment at indoors and outdoors.

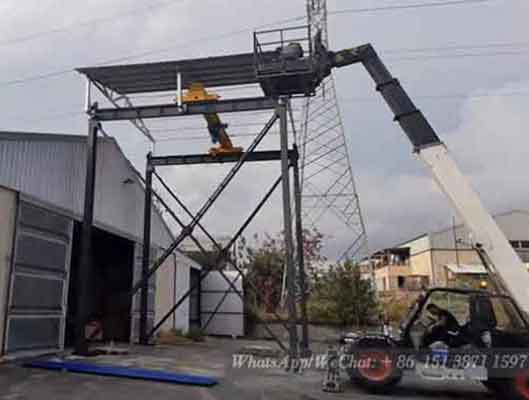

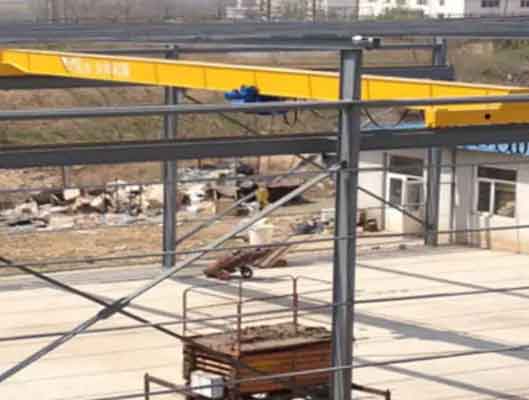

Freestanding bridge crane with single girder low headroom design for outdoor use

Freestanding bridge crane with single girder low headroom design for outdoor use

Overhead bridge cranes used outdoors

What should you take into account when using your overhead crane outside? You must consider the location and extreme weather when designing an overhead bridge crane for outdoor use. Sunlight, heat, cold, precipitation, wind, lightning, and a variety of other factors can all constitute extreme weather. When using an overhead crane outside, regardless of the weather, there are many factors to take into account. The design considerations for your upcoming outdoor overhead crane project will be highlighted in this post.

The weather can affect overhead bridge cranes used outdoors, so it's crucial to know how much time will be spent exposed to the elements. An overhead travelling crane can be stored inside a building or not, and it can be used outdoors 100% of the time or less, depending on your final project plan. Different design considerations apply to cranes that are only used and stored outdoors as opposed to cranes that might also be used indoors or outdoors.

Wind Force

A wind force calculation must be done as you collaborate with your crane manufacturer or dealer to design a crane for outdoor use. You need to take into account the type of weather that passes through your area depending on where you are geographically located. An overhead crane operating in innerland, far from the coast, may have a different wind force calculation than one designed for outdoor use near the coast in a hurricane zone.

The overhead crane's movement, both with and without a load, is influenced by wind. Larger travel drives are typically required for overhead travelling cranes used outdoors to combat wind forces. Wind locks are needed for heavy installations to keep the electric overhead crane in place in strong winds. It is essential to design the eot crane to accommodate the local wind conditions.

Parts and compoennts protection covers

When a crane is used outside without a building cover, covers that are made to fit over the hoist, hoist motor, end truck motors, and electrical panel are essential. These parts can have a longer service life and additional protection from the elements if they are shielded from rain, snow, and sunlight.

Furthermore, we all know that electronics and water don't get along. Temperature and moisture can both affect electrical components on a electric overhead travelling crane. It is critical that these components continue to function safely in the presence of these elements. When crane components, such as hoist and end truck motors, are designed for outdoor use, they include features such as drain holes, special insulation, and special bearings and seals.

Other electrical components, such as festooning, should use outdoor-specific cable. Festooning cable made of rubber rather than PVC may have properties that make it suitable for outdoor use. Electrical components must meet different specifications depending on where you live.

Crane steel and metal structures

The effects of temperature on steel and electrical components can be dramatic. Typically, as the temperature drops, steel becomes more fragile. Fortunately, by altering the components of steel, manufacturers can create products that can be used in cold climates. Make sure the crane manufacturer and dealer are aware that the overhead crane will be used outdoors when you request a quote for one so that materials can be used as efficiently as possible.

It is essential to factor additional considerations into the final design whenever an overhead crane will be used outdoors. The overhead crane's performance may be impacted by the wind, sun, high and low temperatures, rain, snow, and other precipitation. When you work with an expert crane manufacturer or crane dealer, these and many other factors are taken into account. Click to learn more on How the Weather Affect Your Overhead Crane or contact us by leaving a message down blow.

6.3 ton overhead crane kit for sale Philippines, complete single girder top running overhead crane system, low headroom design for workshop indoor use.


Free consultation to Confirm Parameters & Specifications and Get

Latest Crane Price & Crane Rate.

  • Types of overhead cranes : _______?
  • Optional: Overhead travelling crane, goliath gantry crane,Slewing jib crane, Single girder or double girder crane,small portable crane or kbk crane, etc.
  • Capacity of overhead crane: _______?
  • Optional: 0.25ton, 0.5 ton, 1 ton, 2 ton, 3ton, 5 ton, 10 ton,15ton, 20ton, 25 ton, 30ton,35ton, up to 550ton, etc.
  • Crane span & lifting height : _______?
  • Crane travelling length : _____?
  • Control of overhead crane:_______?
  • Optional: pendant/ remote/cabin control
  • Voltage supply of overhead crane:_____?
  • Eg,: 380V50/60HZ,3Phase or others,etc.
  • Application/usage of crane:_______?
  • Eg,: Steel mill, ,injection mold, cement,stone, concrete,granite, general manufacturing, etc.
  • Just leave a message via the contact form and our hoist and crane engineer will contact you with in 24working hours.
