2 Ton Free Standing Bridge Crane for Outdoor Use Cyprus
Free standing bridge crane 2 ton for sale Cyprus. Single girder overhead crane 2 ton with free standing crane systems for outdoor use. Check freestanding crane now.
| Crane Type | 2 Ton Freestanding Bridge Crane for Workshop Material Handling, Single Girder Overhead Crane with Freestanding Structure, Power Supply: 220V–380V/50Hz/3Ph, ISO A3–A5 / FEM 1Am–2m |
| Crane Capacity | 2 Ton (Common: 1 Ton, 2 Ton, 3 Ton, 5 Ton) |
| Span Length | 6 m (Customized: 5–25 m) |
| Lifting Height | 7.9 m (Customized: 3–15 m) |
| Coverage Area Type | Coverage Type: Rectangular Working Area Coverage. Installed with independent freestanding steel structures without requiring existing building runway beams. |
| Application | Used in workshops, assembly areas, maintenance stations, machinery plants and production facilities for equipment lifting, workstation handling and general material transfer. |
| Certifications | CE / ISO / SGS / Other third-party inspection |
| Customization | Options include single girder freestanding overhead crane, independent steel support structure, electric chain hoist, wire rope hoist, low headroom design, VFD control, radio remote control and customized freestanding crane systems. |
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Freestanding Bridge Crane
Tags: 2ton,overheadcraneforsale,freestandingcrane
Your Trusted Overhead Crane Manufacturer & Supplier
2 Ton Free Standing Bridge Crane for Outdoor Use Cyprus
Single Girder Overhead Crane with Freestanding Crane System
Free standing bridge crane 2 ton for sale Cyprus. Single girder overhead crane 2 ton with free standing crane systems for outdoor use. Check freestanding crane now.
2 Ton Freestannding Bridge Crane for Sale
- Main bridge crane configuration: single girder overhead crane with free standing structure
- Main specifications: 2 ton capacity, 6 m span, lifting height 7.9 m
- Crane control: remote control + pendent control
- Date of Placing Oder：2020.6.22
- Date of Delivery ：2020.8.21
- Way of Transportation： By shipping, 1*40GP
- Way of Payment：Prepayment, 5000USD,
- Destination country： Cyprus
- Destination port：FOB, Qingdao
- First Contact：2020.6
- Application：outdoor use
- Customer industry: Trading company
2 ton free standing bridge cranes - single girder overhead crane systems
2 ton overhead crane main specifications & general requirements
Crane type | Single girder overhead crane, with freestanding crane system |
Model | LH |
Working Class | A3 |
Capacity | 2 ton |
Span length (m) | 6 M |
Lifting Height（M） | 7.9 m |
Crane control | Remote control + ground control, |
Voltage | 380v,50hz,3p |
Color | Standard |
Quantity | 1 |
Customized features of 2 ton free standing bridge crane for sale Cyprus
- 2 ton LD overhead crane is designed freestanding crane structure. The main girder of the freestanding bridge crane is H beam, equipped with electric hoists.
- The steel structure of the free standing bridge is made of Q345B, and the bottom layer is coated with anti-corrosion paint;
- The customer's running length is small, so try to make it as short as possible when designing and producing the end beam of the bridge machine;
- Steel structures such as columns and rail-bearing beams are made of Q345B, and the bottom layer is coated with anti-corrosion paint;
- The quotation includes anchor bolts and connecting bolts, and the foundation drawing needs to be provided;
- Please refer to the technical drawing to design the bridge crane and ceiling structure;
Main parts and components of 2 ton freestanding bridge crane requirements and specifications
- Power supply of freestanding crane - seamless busbar, 6 mm2,running length 6M, 1 current collector
- Crane Track-P15 rail with travelling length of 6M, and the total length of the track is 12M. The pressuring plates is 40 pieces, and the clamping plates is 2 pairs
- Column - HN346*174*6*9,53kg/m, 4 columns, each 8M
- Rail-bearing beam - HN346*174*6*9,46kg/m, the running length is 6M, and the total length of the rail-bearing beam is 12M
- Diagonal support - 0.5T
- Rainproof roof - the height of the four side panels is 1M, refer to the drawing
Customs declaration information registration
- The actual Chinese and English name of the goods: single girder overhead crane
- Chinese and English name of cargo declaration: single girder overhead crane
- Inland transportation cost from factory to port: 700 USD
- Port charges: 700 USD
Gallary of 2 ton free standing bridge crane for sale Cyprus

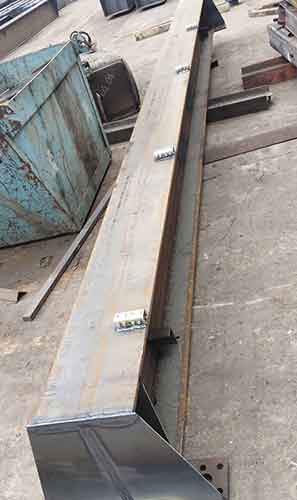

Main girder of free standing bridge crane 2 ton for sale Cyprus
Painted main girder of 2 ton free standing bridge crane for sale Cyprus

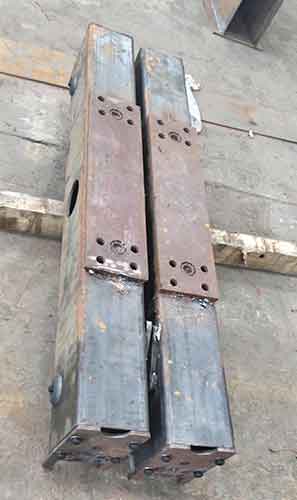

End carriages of freestanding crane for sale Cyprus
End carriages of free standing bridge crane sale Cyprus
Freestanding bridge crane supporting columns

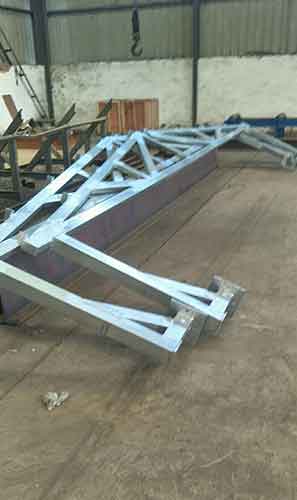

Roof steel structure for Cyprus 2 ton free standing bridge crane
Steel frame of 2 ton free standing overhead crane
