Single rope grab, two petal clamshell grab bucket for general bulk material handling & underwater material handling, remote control single rope grab.

Rope grabs are a type of lifting spreader with a wide range of designs, which are engineeringed and fabricated for mass material handling. The rope grabs can be grouped into single rope grabs & double rope grab, which can be used with grab bucket overhead crane  and grab bucket gantry crane for general material handling and underwater applications.

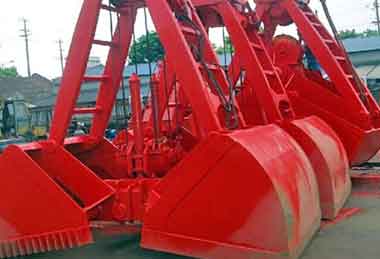

Single rope crane grab

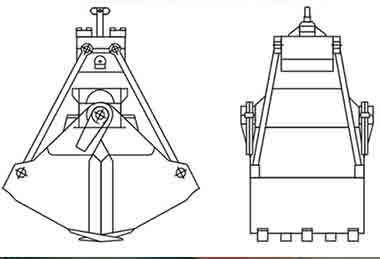

Single rope grab drawing

What exactly is a single rope clamshell grab bucket? A single-rope grab is a type of crane grab that is typically made up of a hanging beam/ring, wire rope, sliding slide bar, upper bearing beam, slide frame group, lower riding beam, brace bar, bucket portion, and so on. To finish the unloading process, single rope grabs rely mostly on the interaction of the grab's sliding blocks, bumps, grooves, and thimble.

Single rope grab can be used to handle bulk material with grab bucket cranes, and the complete clamshell grab crane is simple to use and disassemble. It is suitable for submerged works and can be used to stack and dump large quantities of materials.

Applications of single rope clamshell grab bucket

The single-rope grab is easy to use, disassemble, and hang. They are primarily appropriate for underwater and ground operations, for grabbing and stacking bulk materials such as chemicals, fertilizer, grain, coal, coke, iron ore, sand, particle construction materials, and mashed rocks, etc.

The single rope grabs can be used with types of cranes, including overhead cranes, gantry cranes, and tower cranes, ship cranes, truck cranes, and others, etc. They are are commonly used in port yards, steel plants, power plants, ships, and garage treatment facilities.

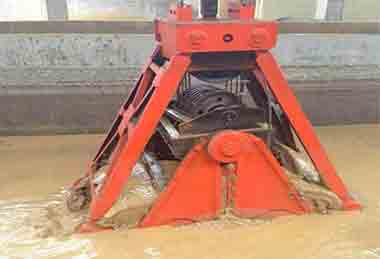

Single rope clamshell grab bucket for underwater use

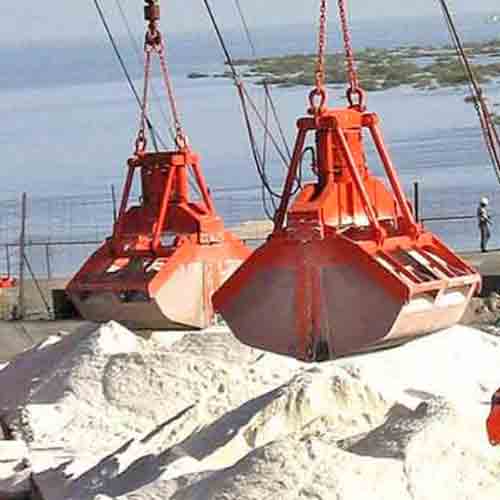

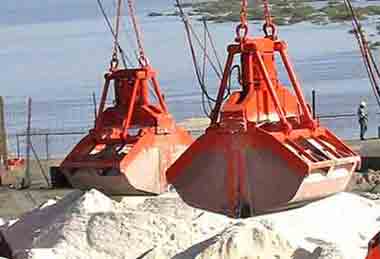

Single rope grab bucket for bulk material handling

This single rope grasp bucket is simple to use and may be used to grab bulk materials both underwater and on the ground.

Features of single rope double petal crane grab

• Volume: 2CBM-40CBM, Lift Capacity: 5ton- 64ton
• Designed for powder and granular bulk materials handling.
• The single rope crane grab adapts Single twisted axis bucket.
• The overall structure of the single rope crane grab is light and durable, with a high grasping ratio, strong closing force, and a high material loading rate.
• Add on features of dust covers and cutting-edge sealing parts are available to meet environmental requirements such as marine environments and other unique operating conditions.

Remote controlled single rope clamshell grab bucket

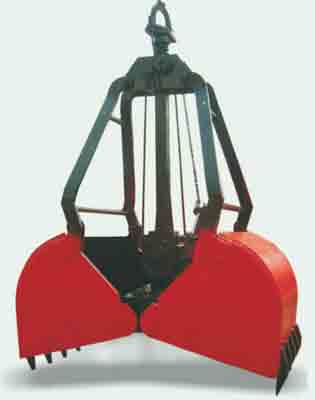

Remote control clamshell grab bucket

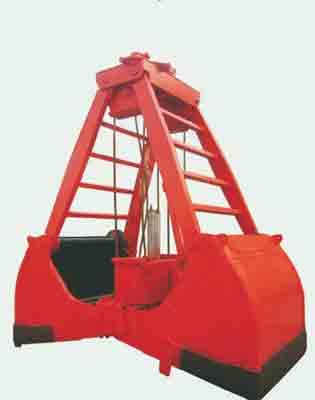

Remote controlled single rope grab

Radio Control Crane Grab, which is most typically utilized at ports. They are most normally linked with ship gear cranes. Radio control single rope grabs come with a choice of options to meet your specific material handling needs.

• With a single point hook, it is intended for ships' gear or overhead cranes.
• Simple "hook-on" design requires no cable to be reeved.
• The unit comes complete with a transmitter and a battery charger and is ready to use.
• Modern devices protect from outside radio interference.
• Hydraulic hoses are reduced with a one-piece manifold.
• A simple hydraulic system eliminates the need for motors and pumps.
• A manual rope pull backup is included.
• Quick cycle times with a smooth opening motion.
• The unit can be partially opened in mid-air to fill hoppers, trucks, and other containers of varying sizes.

Single Rope Grab Bucket Technical Specifications

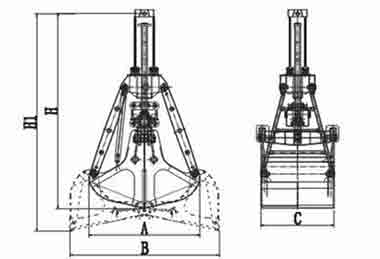

Clamshell grab bucket drawing

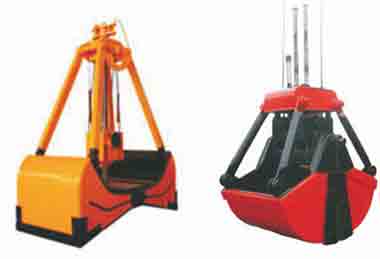

Single rope crane grab

Main components of single rope clamshell bucket

This single rope clamshell grab is suitable for cranes with only one lifting drum (single hook). With a new open and close mechanism, this crane grab can load and unload materials flexibly, and it is easy to suspend or remove with the crane hook. It is widely used to grab and transfer materials in underwater or ground operations.

1. Lifting beam 2. Wire rope 3. Slide bar 4. Upper beam 5. Pulley frame 6. Lower beam , 7. Support beam 8. Grab bucket

Note: this kind of grab bucket could open in the air, its opening is controlled by manual or remote control.

Work flow of single rope grab:

• Begin by opening the single rope grab and laying it on the loads or material that needs to grab. The slip block falls due to gravity, and the convex block is jammed into an angle of roughly 30° by the thimble.
• Lift the wire rope, the entire slide block goes up along the guide rail, and after a short distance, the convex block contacts with the groove (the convex block rotates at a slight angle again), causing the entire lower beam to move up, completing the grab closing and grabbing.
• Release the wire rope when unloading. At this point, the bottom of the clamshell grab bucket makes its first contact with the supporting surface. The sliding block lowers due to gravity, and the bump is pushed horizontally by the thimble (the grab is not opened).
• When the steel wire rope is lifted, the sliding block moves higher, the cam is blocked by the groove, which is situated on both sides of the guide rail, and the sliding seat is separated from the lower bolster and moves upward toward the upper bolster. The bucket flap opens and discharges due to the weight.

The grab is placed on the material with its open state in the air after unloading. To finish the gripping process, the slide block detaches, and the cam is forced into an angle of around 30° by the thimble.

Related orange peel grab bucket

About crane grab,there are also double rope grab, electro hydraulic grab, mechanical grab, timber grab, ore grab, coal grab, grain grab, sand grab, etc. Contact us to get more grab details for your applications.
