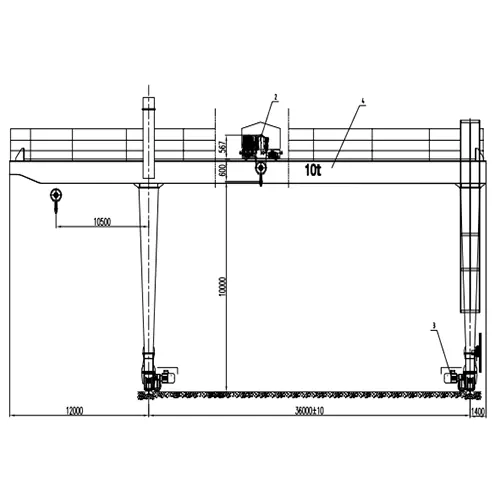

10t Double Girder Gantry Crane Drawing - MGO 10-36 A6
Yuantai Cranes YT-MGO 10t European Double Girder Gantry Crane Drawing (Span 36m, Left Cantilever 12m, Lifting Height 10m, M6/FEM 3m Heavy Duty, -20°C to +40°C, Steel Structure Yard)
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Single Girder Gantry Crane
Tags: 10TonOverheadCraneDrawing
Overview: 10 Ton YT-MGO Double Girder Gantry Crane with 36m Span and 12m Left Cantilever for Steel Structure Yards
This technical drawing package details a 10-ton European-style double girder gantry crane system with a left cantilever (Model: YT-MGO10t-36m A6) engineered by Yuantai Cranes for steel structure fabrication yards. Operating across a wide span configuration, the crane features a 36m main span, a 12m left overhang cantilever (10.5m effective hook outreach), and a 10m lifting height. Built to heavy-duty M6 (FEM 3m) standards and rated for ambient temperatures from -20°C to +40°C, it includes wireless remote control, motorized cable reel power supply, and end carriages designed for P43 steel rails.
Who is this cantilever gantry crane for? Ideal for:
- Steel structure fabrication yards requiring extended side handling
- Facilities requiring direct handling outside the runway rails
- Heavy-duty M6 cycle operations in extreme ambient temperatures
- Facilities with existing P43 rail infrastructure
- Operations requiring 10.5m effective hook outreach beyond left rail line
- Large-span steel fabrication with truck loading zones outside the main bay
- Projects requiring customer self-fabricated steel structure components
Common search terms for this crane: 10 ton gantry crane, cantilever gantry crane, double girder gantry crane, 36m span gantry crane, left cantilever crane, steel structure gantry crane, M6 duty gantry crane, P43 rail gantry crane, heavy-duty gantry crane, European style gantry crane.
Project & Technical Overview
- Equipment Type: YT-MGO European Double Girder Gantry Crane with Left Cantilever
- Alternative Names: Cantilever gantry crane, steel structure gantry crane, heavy-duty cantilever crane
- Model Number: YT-MGO10t-36m A6

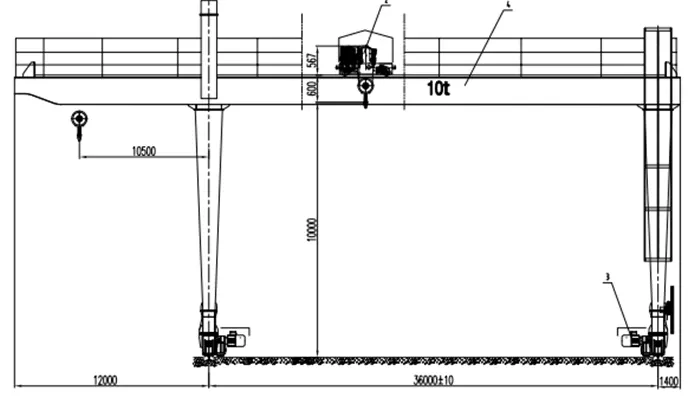

- Drawing PDF: YT-MGO 10t Double Girder Gantry Crane Drawing 36m Span with 12m Left Cantilever (A6 Duty)
- Crane Manufacturer: Yuantai Cranes
- Duty Class: M6 (FEM 3m) Heavy Duty
- Lifting Capacity: 10.0 t
- Main Span: 36.0 m
- Left Cantilever Overhang: 12.0 m (10.5m Effective Hook Coverage)
- Lifting Height: 10.0 m
- Designated Rail: P43 Rail Section
- Ambient Temperature Range: -20°C to +40°C
- Control Method: Wireless Remote Control
- Special Configuration: Heavy steel structure manufacturing yard, customer self-fabricated steel components (main girder, rigid/flexible legs, end trucks/saddles, platforms, walkways, trolley frame), operating temperature -20°C to +40°C, total dead weight of 61.8t, matched to P43 steel rails
- Quantity: 1 unit
Buyer Note: This cantilever gantry crane is specifically designed for steel structure fabrication yard operations. The extended 12m left cantilever provides 10.5m of effective hook overhang beyond the rail line, allowing loading trucks and assembly stations to operate smoothly outside the main travel bay.
Main Technical Parameters
| Technical Parameter | Specification |
|---|---|
| Duty Class | M6 (FEM 3m) Heavy Duty |
| Rated Lifting Capacity | 10.0 t |
| Main Span (S) | 36.0 m (36000 ± 10 mm) |
| Left Cantilever Overhang | 12.0 m (10.5m Effective Hook Coverage) |
| Lifting Height (H) | 10.0 m |
| Designated Runway Rail | P43 Rail Section |
| Trolley Track Gauge | 1.7 m (1700 mm) / Square Bar 40×40 Rail |
| Max. Wheel Load | Gantry Travel: 265 kN |
| Main Power Supply | 380V / 3P / 50Hz |
| Ambient Temperature Range | -20°C to +40°C |
| Gantry Wheelbase / Overall Base Width | 6000 mm (Wheelbase) / 7200 mm (Overall End Truck) |
| Total Crane Weight | 61.8 t |
| Quantity | 1 unit |
Drive Speeds & Motor Ratings
| Component / Motor Drive | Specification |
|---|---|
| Hoisting Speed | 0.7 ~ 4.0 m/min |
| Hoisting Motor | 9.5 kW |
| Trolley Travel Speed | 2.0 ~ 20.0 m/min |
| Trolley Motors | 2 × 0.75 kW |
| Gantry Travel Speed | 2.0 ~ 20.0 m/min |
| Gantry Motors | 2 × 5.5 kW |
| Control Method | Wireless Remote Control |
System Weight & Duty Rating
| Component | Weight |
|---|---|
| Total Crane Weight | 61.8 t |
| Working Duty Class | M6 (FEM 3m) |
Technical Requirement
Engineering Notice:
- Left Cantilever Configuration: Extended 12m left cantilever provides 10.5m of effective hook overhang beyond the rail line, allowing loading trucks and assembly stations to operate smoothly outside the main travel bay.
- Heavy-Duty M6 Cycle Operation: Engineered to M6 duty class with robust electrical and mechanical components rated for operating environments from -20°C to +40°C.
- High Wheel Load Stability: Heavy-duty 6000mm wheelbase end carriages paired with 2 × 5.5 kW long-travel drives accommodate a maximum wheel load of 265 kN on P43 rails.
- Customer Self-Fabricated Components: For customer self-fabricated steel structure components (main girder, rigid and flexible legs, saddles, platforms, walkways, and trolley frames), Yuantai Cranes provides complete interface connection details and structural evaluation guidelines.
- Wireless Remote Control: Ergonomic wireless remote control allows operators to navigate safely away from stacked materials and blind spots.
- The dimensional data and layout drawings provided above serve as general technical references. Heavy-duty cantilever gantry cranes require precise foundation load verification for overturning moments during side loading.
- All drawing content is protected. Unauthorized copying or manufacturing based on this drawing without prior written permission from Yuantai Cranes is strictly prohibited.
Key Facts About YT-MGO 10t Cantilever Gantry Crane (36m, A6)
The six most valuable FAQs for buyers — covering what this crane is, how to read its model number, its key lifting specifications, duty class, power & control options, and why it is ideal for steel structure yard operations with extended side handling.
1. What is this cantilever gantry crane and what is it designed for?
This is a YT-MGO 10 Ton Double Girder Gantry Crane with Left Cantilever featuring a 36m main span, 12m left cantilever (10.5m effective hook outreach), and 10m lifting height. It is designed for steel structure fabrication yard operations, allowing loading trucks and assembly stations to operate smoothly outside the main travel bay.
Ideal applications: steel structure fabrication yards, direct handling outside the runway rails, heavy-duty M6 cycle operations, and facilities with existing P43 rail infrastructure.
Alternative names for this crane: cantilever gantry crane, steel structure gantry crane, heavy-duty cantilever crane, European style gantry.
2. What does "YT-MGO10t-36m" mean in the model number?
- YT-MGO = Yuantai European-style double girder gantry crane series
- 10t = Single lifting capacity: 10-ton hoist
- 36m = Main span (distance between runway rail centers) of 36 meters
The lifting height is 10 meters. The crane features a 12m left cantilever with 10.5m effective hook coverage, providing extended reach beyond the main span.
Duty class: M6 (FEM 3m). Power: 380V / 3P / 50Hz. Temperature range: -20°C to +40°C. Rail: P43.
3. What are the key lifting specifications?
| Rated Lifting Capacity | 10.0 t |
| Main Span (S) | 36.0 m |
| Left Cantilever Overhang | 12.0 m (10.5m effective) |
| Lifting Height (H) | 10.0 m |
| Designated Rail | P43 Rail Section |
| Trolley Track Gauge | 1.7 m / Square Bar 40×40 |
| Hoisting Speed | 0.7 ~ 4.0 m/min |
| Trolley Travel Speed | 2.0 ~ 20 m/min |
| Gantry Travel Speed | 2.0 ~ 20 m/min |
| Max. Wheel Load | Gantry: 265 kN |
| Ambient Temperature Range | -20°C to +40°C |
| Gantry Wheelbase | 6000 mm |
| Overall Base Width | 7200 mm |
| Duty Class | M6 (FEM 3m) |
| Total Weight | 61.8 t |
Buyer Tip: If your span or cantilever requirements differ, Yuantai can customize the girder length and cantilever overhang to suit your specific steel structure yard layout.
4. What is the duty class M6 / FEM 3m and what does it mean for my application?
The duty class is M6 / FEM 3m, which means:
- Extra heavy duty cycle — suitable for continuous intensive use
- Rated for up to 4,000–8,000+ hours of operation per year
- Ideal for steel structure fabrication yards and heavy-duty material handling operations
- Perfectly matched to the demanding nature of continuous heavy outdoor lifting with side loading
What does this mean for you? If your yard operates multiple shifts with high-frequency heavy lifting, M6/FEM 3m is the right duty class. For lighter operations, consider M5/FEM 2m or lower.
Duty class comparison: M3 = light duty (occasional use), M4 = medium duty (regular intermittent), M5 = heavy duty (regular daily), M6 = extra heavy duty (continuous), M7 = severe duty (round-the-clock).
5. What power supply and control options does this crane require?
Power Supply:
- Crane: 380V / 3-Phase / 50Hz
- Hoisting Motor: 9.5 kW
- Trolley Motors: 2 × 0.75 kW
- Gantry Motors: 2 × 5.5 kW
- Main Power: Motorized cable reel supply
Control Modes:
- Wireless remote control — ergonomic operation for flexible positioning away from blind spots
Buyer Note: Pre-configured for 380V/50Hz 3-phase power. If your facility uses a different voltage (e.g., 400V, 415V, 440V, or 60Hz), please inform us during inquiry for customization.
6. Why is this crane suitable for steel structure yard operations with extended side handling?
- 10t capacity — handles heavy steel assemblies
- 36m main span — covers wide steel fabrication bays
- 12m left cantilever — provides 10.5m effective hook overhang beyond the left rail line
- 10m lifting height — practical vertical reach for steel structure assembly
- Direct handling outside rails — loading trucks and assembly stations operate smoothly outside the main travel bay
- Heavy-duty M6/FEM 3m rating — suitable for continuous intensive steel fabrication operations
- Wide temperature range — rated for -20°C to +40°C operations
- P43 rail compatibility — heavy-duty rail system for high wheel loads (265 kN)
- Wireless remote control — improved visual clearance in crowded yards
- Customer self-fabrication support — complete interface connection details provided for customer-built steel components
Why buyers choose this model: It offers the perfect combination of wide main span coverage, extended left cantilever side handling, and heavy-duty M6 rating for steel structure yards where direct handling outside the runway rails is essential for efficient logistical routing and intensive fabrication operations.
How to Get Your Customized Cantilever Gantry Crane
Large-span cantilever gantry cranes require careful structural analysis to handle off-center loads outside the rail tracks. We customize each system to match your yard layout and fabrication capabilities.
| Process Step | Details |
|---|---|
| Step 1: Submit Yard Parameters | Provide yard length, track span, required cantilever outreach, lifting height, and component fabrication specifications. |
| Step 2: GA Drawing Preparation | Yuantai engineers prepare a custom General Arrangement (GA) drawing within 24 hours for clearance, interface connections, and rail load checking. |
| Step 3: Technical Fine-Tuning | Refine structural connection details for customer-fabricated parts, wheel load calculations, and control systems based on site specifications. |
| Step 4: Manufacturing & Delivery | Proprietary components are manufactured under strict QA standards, pre-assembled, and dispatched to your project site alongside fabrication blueprints. |
Need a Customized Drawing & Quote for Your Yard?
Send us your yard dimensions today. Yuantai technical consultants will provide a free CAD drawing and tailored price quote within 24 hours.
Yuantai Cantilever Gantry Crane Solution
Yuantai Cranes provides customized YT-MGO Series of cantilever gantry crane solutions for steel structure fabrication yards, direct handling outside runway rails, and heavy-duty M6 cycle operations. Each crane is configured according to the required capacity, main span, cantilever length, lifting height, duty class, control requirements, and operating environment.
Typical Technical Specifications:
- Capacity: 1–50 ton (This Model: 10.0 t)
- Main Span: 5–40 m (This Model: 36.0 m)
- Cantilever Length: Customized (This Model: 12.0 m left / 10.5 m effective)
- Lifting Height: Customized according to application (This Model: 10.0 m)
- Duty Class: M3–M7 / FEM 1Bm–3m (This Model: M6 / FEM 3m)
- Hoist Type: European Electric Wire Rope Hoist (This Model: Single 10t Hoist)
- Speeds: Hoisting 0.7–4.0 m/min, travel 2–20 m/min
- Control Method: Wireless Remote Control
- Power Supply: 220/380/400/415/440/575V, 50/60Hz, 3Ph (This Model: 380V 50Hz 3P)
- Rail Type: P43 (Designated) or Customized
- Operating Temperature: -20°C to +40°C (This Model)
- Applications: Steel structure fabrication yards, direct handling outside runway rails, and heavy-duty M6 cycle operations
Yuantai provides engineering, manufacturing, inspection and testing, delivery, installation and after-sales support for complete gantry crane projects.
Engineering Support & Yard Adaptability
Steel structure fabrication yards require extensive coverage and clear staging areas outside the main rail tracks for handling bulky beams and assemblies. This technical layout illustrates how Yuantai Cranes achieves efficient material flow using a 12m left cantilever combined with a 36m main span.
| Customer Challenge & Working Condition | Yuantai Customized Engineering Solution | Reference Parameters (Based on Drawing) |
|---|---|---|
| Direct handling of steel assemblies outside the runway rails Trucks and assembly stations cannot enter the main travel bay. | Extended 12m left cantilever provides 10.5m of effective hook overhang beyond the rail line, allowing loading trucks and assembly stations to operate smoothly outside the main travel bay. | 12m left cantilever, 10.5m effective hook outreach, 36m span |
| Heavy-duty M6 cycle operation in extreme ambient temperatures Requires robust components for temperature variations. | Engineered to M6 duty class with robust electrical and mechanical components rated for operating environments from -20°C to +40°C. | M6 duty class, -20°C to +40°C operating range |
| High wheel load stability under max cantilever moment Requires heavy-duty end carriages for high wheel loads. | Heavy-duty 6000mm wheelbase end carriages paired with 2 × 5.5 kW long-travel drives accommodate a maximum wheel load of 265 kN on P43 rails. | 265 kN max wheel load, P43 rail, 61.8t crane weight |
| Customer self-fabricated steel structure components Requires interface connection details for locally fabricated parts. | Complete interface connection details and structural evaluation guidelines provided for main girder, rigid/flexible legs, saddles, platforms, walkways, and trolley frames. | Interface details for customer-fabricated components |
How to Evaluate If This Solution Fits Your Yard
- Civil Foundation Load: Runway foundation and ground beams must support a maximum wheel load of 265 kN on P43 steel rails.
- Power Supply Line: Motorized cable reel requires a dedicated 380V / 3P / 50Hz power connection point along the runway.
- Cantilever Side Clearances: Ensure an unobstructed lateral clearance zone of at least 12m beyond the left rail center line to accommodate trolley travel.
- End Carriage Footprint: Gantry end trucks feature a 6000 mm wheelbase and an overall base width of 7200 mm; maintain adequate end-stop buffer clearances.
- Duty Cycle Check: M6 / FEM 3m is suitable for continuous intensive multi-shift steel fabrication operations.
Unsure If This Layout Fits Your Yard?
Send us your site dimensions (Span, Cantilever Lengths, and Required Hook Height). Yuantai technical consultants will provide a FREE custom CAD layout drawing and proposal within 24 hours.
