1–3 Ton Wall Travelling Jib Crane for Metal Processing and Manufacturing

It is suitable when material handling is frequent between nearby stations such as welding, CNC machining, and assembly. This capacity range is commonly used for steel cylinders, shafts, pipes, and fabricated components. Basically, it fits most daily workshop lifting tasks.

Yes. It is widely used for cylindrical metal workpieces such as pipes, shafts, rollers, and hydraulic cylinders. With proper lifting attachments like clamps, slings, or V-block cradles, it ensures stable and safe handling. The key is using the right fixture for the shape.

It reduces waiting time between processes by enabling direct transfer from one station to another. Operators do not need forklifts or shared overhead cranes. Lift → move → place → next station, very direct flow. This improves productivity and reduces handling delays.

It depends on total lifted load, including the workpiece and lifting tools.

• 1 ton: light components, tooling, small parts
• 2 ton: standard welding and machining production
• 3 ton: heavy components or future capacity margin

In practice, it is better to leave a safety margin instead of working at full limit.

• Electric chain hoist: suitable for 1–2 ton, short height, compact workshops
• Electric wire rope hoist: suitable for 2–3 ton, higher lifting height, heavier loads

Chain hoists are simpler; wire rope hoists are more stable for heavy-duty work.

Common attachments include pipe hooks, lifting clamps, C-hooks, V-block cradles, soft slings, and spreader beams. Selection depends on size, weight, and surface condition. Wrong attachment often causes instability even if crane capacity is enough.

It depends on structural strength. The wall, columns, brackets, and runway beam must be evaluated for load capacity and moment forces. If the structure is not sufficient, a steel support frame may be required. This step is always checked before installation.

Key inputs include load capacity, workpiece details, lifting height, jib length, travel distance, workshop layout, power supply, and working conditions. A simple layout sketch is usually enough for initial design. Clear layout helps faster and more accurate quotation.

A wall travelling jib crane is suitable when production teams experience frequent handling delays, unsafe manual lifting, or congestion around welding and machining stations.

Typical Material Handling Problems

• Workers manually lifting or guiding heavy steel parts
• Forklifts entering narrow welding or machining areas
• Shared overhead cranes causing waiting time between production steps
• Cylindrical metal workpieces rolling, swinging, or shifting during transfer
• Damage to precision-machined shafts, rollers, or cylinders
• Limited floor space for a freestanding jib crane
• Repetitive lifting between production stations along one workshop wall
• Slow loading and unloading of CNC machines, lathes, drilling machines, and welding fixtures

Practical Decision Question

If your factory needs to move 1 ton, 2 ton, or 3 ton metal workpieces repeatedly along one side of the workshop, a wall travelling jib crane may provide a more efficient alternative to manual handling, forklifts, or a larger overhead bridge crane.

If your factory needs to move 1 ton, 2 ton, or 3 ton metal workpieces repeatedly along one side of the workshop, a wall travelling jib crane may provide a more efficient alternative to manual handling, forklifts, or a larger overhead bridge crane.

A wall travelling jib crane for welding workshop applications is usually installed directly along welding lines or fabrication bays. The goal is not long-distance transport. It is short, repeat lifting between nearby stations.

Typical movement is simple and repetitive: rack → welding station → welding positioner → next bench.

Common stations served include:

• Manual welding stations
• Robotic welding cells
• Pipe welding stations
• Welding rotators and pipe positioners
• Fabrication benches for structural steel
• Assembly fixtures for pre-weld alignment

In many workshops, workers used to push, drag, or manually reposition heavy steel parts. That method is slow, not stable, and honestly quite tiring.

With a wall mounted travelling jib crane, the operator can lift the part, move along the runway beam, rotate the jib arm, and place it directly into the welding fixture. No extra pushing. Less physical strain. More controlled handling. Much easier, you feel it immediately on the floor.

Another practical point: welding areas are often tight. Space is limited. A floor-mounted crane would block movement paths. Here, the wall travelling jib crane design keeps the floor open, so welding, grinding, and inspection can continue without interference.

In machining workshops, a wall mounted jib crane for CNC machine loading and unloading is often installed near lathes, milling machines, drilling machines, and grinding equipment.

The reason is simple. CNC machines do not only need lifting—they need accurate positioning into chucks, fixtures, or machine tables. It’s not just “lift and drop,” it’s “place it exactly right.”

Typical equipment served includes:

• CNC machining centers
• CNC lathes and turning machines
• Milling machines
• Drilling machines
• Grinding machines
• Cutting machines
• Press brake machines
• Metal bending equipment
• Surface treatment and finishing machines

Here the key requirement is stability. The crane must move smoothly, without sudden start or stop. That is why many setups use VFD controlled wall travelling jib crane systems or slow-speed hoists.

In industrial operation, the handling sequence is usually like this:

Lift the workpiece → travel along wall → align with machine opening → rotate jib → lower slowly into fixture.

That last step is the most important. If the load swings or drops too quickly, it can damage the machine chuck or scratch the machined surface. Operators usually slow down instinctively here—because they know there is no room for mistake.

So for CNC applications, the crane is not just about capacity (1 ton, 2 ton, or 3 ton wall travelling jib crane). It is industrially about controlled motion, positioning accuracy, and surface protection.

A wall travelling jib crane for assembly line support is commonly used after machining and welding, where parts need final handling, inspection, or packing before dispatch.

Typical operations include:

• Mechanical assembly of metal components
• Quality inspection and measurement stations
• Final testing areas for hydraulic or mechanical parts
• Surface coating preparation and handling zones
• Packaging and dispatch preparation areas

At this stage, most parts are finished or semi-finished. That means surface condition becomes critical. Scratches, dents, or pressure marks are not acceptable anymore.

So operators typically use:

• Soft slings for coated or polished parts
• Protective sleeves on lifting chains or hooks
• Custom padded lifting hooks for sensitive surfaces
• Balanced lifting beams for stable orientation

In packaging areas, speed also matters. The crane helps reduce waiting time between inspection and packing, especially when multiple components move in sequence through the same line.

The layout is usually practical: inspection table on one side, storage or packing zone on the other side of the wall line. The wall travelling jib crane system connects these points directly, without blocking walking paths or forklift lanes.

In industrial factory use, the performance of a 1–3 ton wall travelling jib crane in metal manufacturing applications depends on three very practical decisions:

• Correct matching of lifting attachment with cylindrical or irregular workpieces
• Proper selection between electric chain hoist and wire rope hoist based on duty cycle and lifting height
• Clear planning of wall travel length and workstation spacing along the production line layout

If these three points are aligned, the crane runs smoothly in daily operation and becomes part of the production rhythm. If not, even a well-designed crane can feel limited in industrial use.

In industrial metal processing and manufacturing operations, the value of a 1–3 ton wall travelling jib crane system is not just lifting power. It is how it changes the movement inside the workshop.

Without this system, you often see:

• Forklifts moving in and out of welding and machining zones
• Operators waiting for overhead crane availability
• Cylindrical parts being pushed or slightly rolled into position (not ideal)
• Small delays between welding → machining → inspection steps

And honestly, it adds up during a full shift.

With a wall mounted travelling jib crane system, the flow becomes more direct:

• Material stays close to the production line
• Each workstation gets quick access to lifting
• Movement between welding, CNC, and inspection becomes smooth and predictable
• Less waiting, fewer interruptions
• Floor space stays open for operators and carts

Or simply put—things move when they should move, not when a crane becomes available.

In industrial workshop use, performance depends a lot on how the system is operated, not only how it is installed. A few practical points matter here:

• The lifting attachment for cylindrical workpieces must match the job. If not, the load may roll or tilt slightly during movement
• Smooth movement is important; many setups use VFD controlled wall travelling jib crane systems to avoid sudden starts and stops
• Operator position matters for safety—wireless remote control is often used so the operator can stand where visibility is better
• Station spacing should match the wall travel distance, otherwise the crane feels "short" in reach
• Heavy cylinders need slower hoisting speed for proper alignment (no rush here, industrially)

A properly used system feels almost routine:

Lift → travel → rotate → lower → done.

Repeat that cycle all day. That's the industrial working rhythm of a wall travelling jib crane in metal production lines.

A 1 ton wall travelling jib crane for light-duty metal handling applications is suitable for smaller and frequent lifting tasks inside compact workshops or maintenance zones.

Typical applications include:

• Small steel pipes and tubes
• Light steel shafts
• Tooling, dies, and fixtures
• Small fabricated metal components
• Light-duty CNC machine loading and unloading
• General handling tasks generally below around 800 kg

This type is often used in smaller fabrication shops or support areas. Simple work, quick movement, no heavy lifting stress.

It is also common in repair zones where operators just need a reliable lifting point nearby.

A 2 ton wall travelling jib crane for medium-duty production line material handling is one of the most commonly used configurations in metal fabrication, welding, and machining workshops.

Typical applications include:

• Medium-sized steel cylinders
• Welding assemblies and structural components
• Metal rollers and conveyor rollers
• Machined shafts and mechanical parts
• Regular production-line transfer between welding, CNC, and inspection stations

Workpieces are generally below 1.6–1.8 tons including lifting tools and attachments.

In industrial factory use, this is often called the "daily working crane". Not too small, not oversized—just right for most jobs.

It can handle repetitive lifting cycles throughout the day without overloading risk.

A 3 ton wall travelling jib crane for heavy-duty metal manufacturing applications is used when loads are larger, heavier, or when production may expand in the future.

Typical applications include:

• Heavy steel rollers
• Large fabricated metal structures
• Hydraulic cylinders used in industrial systems
• Heavy shafts and rotating components
• Frequent lifting in continuous production lines
• Workshops planning for future higher-capacity products

This type is also chosen when users want a safety buffer. In industrial practice, people often say: "don't design only for today."

It provides more stability during handling, especially for long or uneven cylindrical loads.

In industrial wall travelling jib crane selection for metal processing workshops, capacity should never be too close to the actual working load.

A few practical points that matter in daily use:

• Always include lifting fixture weight, not just the workpiece weight
• Consider future product size and weight changes
• Check lifting frequency per hour, not just single lift capacity
• Leave enough safety margin for industrial production variation
• Avoid long-term operation at full rated load

To be honest, cranes are used many times a day, not just once. So a small buffer makes everything smoother.

A properly selected 1–3 ton wall travelling jib crane system will feel stable, predictable, and easy to operate in long-term industrial use.

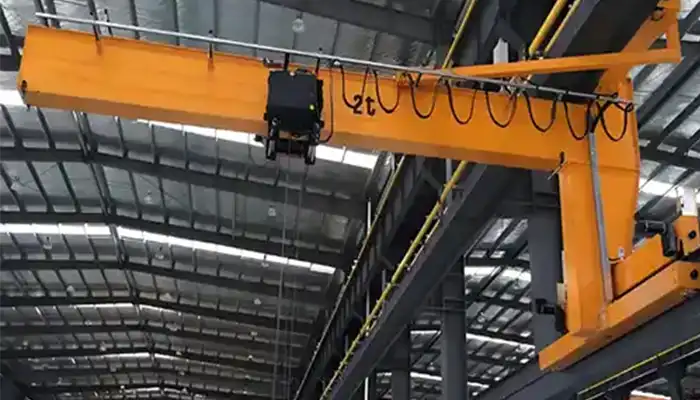

An electric wire rope hoist wall travelling jib crane system is more commonly used in heavier and more continuous industrial environments. It is designed for stability, longer lifting height, and heavier duty cycles.

It is suitable for:

• 2 ton and 3 ton lifting capacity
• Higher lifting height requirements
• Longer duty cycles in production lines
• Heavier metal components such as shafts, rollers, and cylinders
• More stable lifting for large or long workpieces
• Continuous metal manufacturing environments

In industrial operation, wire rope hoists feel more stable during lifting. Especially when handling long steel cylinders or heavier fabricated parts—you can feel the movement is smoother, less "jerky."

This makes it a better fit for CNC + welding integrated production lines, where positioning accuracy matters more.

In industrial wall mounted jib crane system design and workshop application, the final hoist selection should not be based only on tonnage. Several practical factors should be checked before final decision:

• Required lifting height inside the workshop layout
• Lifting speed needed to match production rhythm
• Duty classification (how many lifts per hour or per shift)
• Available headroom under building structure
• Type and shape of workpieces (pipes, shafts, rollers, cylinders)
• Required positioning accuracy during loading into machines
• Frequency of repeated lifting between stations

In simple terms, it's not only about "can it lift this load", but also about "can it lift it smoothly, repeatedly, and without delay during industrial production".

A properly matched hoist makes the wall travelling jib crane system feel stable, predictable, and easy to operate over long-term industrial use.

In industrial workshop use, attachments are not "one-size-fits-all." They are selected based on shape, surface condition, and handling requirement. You can't industrially treat a polished shaft the same way as a raw steel pipe.

For example:

• A steel pipe usually needs stable gripping to prevent rolling during travel
• A machined shaft requires soft contact to avoid surface damage
• A roller or coil needs balanced support to prevent tilting
• A hydraulic cylinder often needs protection against scratches on sealing surfaces

So in practice, operators often switch between different lifting tools depending on the job of the day. It's a normal part of workshop operation.

For polished, coated, painted, or precision-machined workpieces, lifting tools must prevent scratches, dents, and surface damage. This is especially important in CNC machining workshops and hydraulic component production lines, where surface quality is part of the final product requirement.

In simple words: if the surface matters, the lifting method must be gentle and controlled.

A wall mounted jib crane for CNC machine loading and unloading requires more precision than speed. The focus is not only lifting, but controlled positioning into machine fixtures, chucks, or tables.

Recommended configuration:

• Low-headroom electric hoist
• Slow-speed lifting function for fine positioning
• Smooth VFD trolley travel system
• Pendant control for precise operator control
• Upper and lower lifting limit switches
• Protective slings or soft lifting fixtures for machined surfaces
• Compact jib arm design for limited machine clearance

In practice, CNC loading is very sensitive work. Even a small swing can cause misalignment or surface damage, so smooth movement industrially matters.

Operators usually prefer pendant control here because it allows very fine adjustment when placing the workpiece into the machine.

A wall travelling jib crane system for long production line applications is used where multiple stations are arranged along a long wall—such as welding, machining, inspection, and assembly zones in sequence.

Recommended configuration:

• Wall-mounted runway beam covering multiple workstations
• Long wall travelling distance design
• Electric travelling carriage system
• Electric hoist trolley travel
• End travel limit switches for safety control
• Reliable and stable power supply system
• Multiple cranes for separate work zones when several operators work at the same time
• Customized jib arm length based on actual machine and workstation layout

In industrial factories, this kind of setup supports continuous flow. One operator at welding, another at machining, another at inspection—no waiting in between.

Limit switches and power stability are important here because the crane is running more frequently and covering longer distances.

In industrial wall travelling jib crane design for metal manufacturing plants, the configuration should always match the production rhythm, not just technical specifications. If the layout is right, everything flows naturally on the floor. If not, even a good crane feels "not enough."

• Required lifting capacity: 1 ton, 2 ton, or 3 ton
• Maximum workpiece weight
• Lifting attachment weight (clamps, slings, fixtures, etc.)

• Workpiece photos or drawings
• Diameter and length of parts
• Type of material (if available)

• Required lifting height
• Jib arm length
• Required jib rotation angle
• Wall travelling distance

• Workshop layout drawing
• Building column spacing
• Wall or column structural drawings
• Existing runway beam information (if available)

• Location of welding stations
• Location of CNC machines
• Location of storage racks
• Location of doors and passages
• Location of production equipment and work zones

• Available power supply (voltage, frequency, phase)
• Control method (pendant control, wireless remote control, or both)

• Working hours per day
• Lifting frequency per hour

Operating environment:

• Indoor
• Outdoor
• Dusty environment
• High temperature area
• Corrosive environment
• Hazardous industrial conditions

A simple workshop sketch with basic dimensions is already enough to start the initial design and quotation for a wall travelling jib crane system. No need for perfect engineering drawings at the beginning—clear layout is enough to move forward.

From industrial factory experience, each method works—but not in the same situation. Forklifts are flexible, but they move through traffic paths. Overhead cranes are powerful, but they are shared resources. Gantry cranes are mobile, but they need floor space.

The wall travelling jib crane for metal fabrication and machining lines sits in a different position. It is fixed to the building but still covers multiple stations along the wall. So operators often say: "it's always there when you need it."

This makes it especially useful for repetitive tasks like welding transfer, CNC loading, and cylindrical part handling.

In practical selection, the goal is not to replace all equipment, but to reduce unnecessary movement and waiting time.

A well-planned wall travelling jib crane system helps create a more direct material flow—lifting, moving, and placing parts exactly where they are needed, without interrupting other operations on the shop floor.
