10 Ton Portable Gantry Crane Assembly & Testing | Custom Mobile Gantry Crane Video
Short Video Description
This video shows the complete assembly and factory testing of a 10 ton portable gantry crane equipped with a CD/MD electric wire rope hoist. From steel structure installation to hoist commissioning and final operation testing, every step is completed before shipment to ensure reliable performance, smooth lifting, and safe operation. The small gantry crane is designed for flexible material handling in workshops, warehouses, maintenance areas, and industrial facilities where mobility and easy installation are required.
Screenshorts of the Video on the Portable Gantry Cranes for Your reference

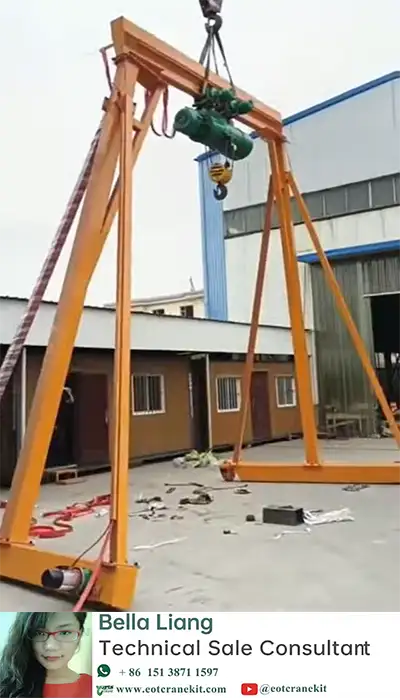

10 ton portable gantry crane installation or assembly

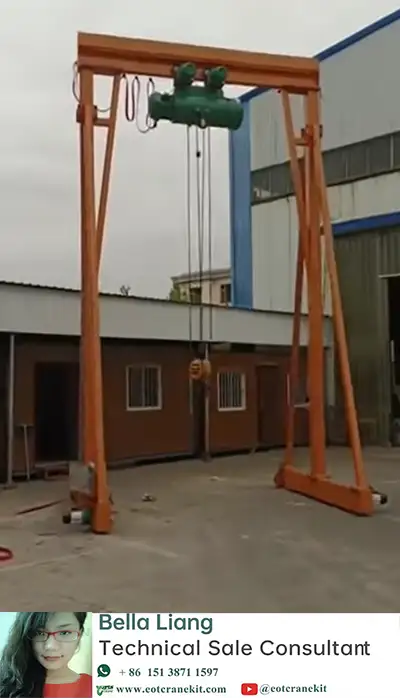

Electric motorized roller travelling gantry cranes
Product Featured in This Video
The portable gantry crane shown in this video is manufactured by Yuantai Cranes and configured with a 10 ton CD/MD electric wire rope hoist. The video demonstrates the complete assembly process, structural installation, hoist commissioning, and operational testing before delivery. Designed for flexible lifting applications, this portable gantry crane provides a practical solution for workshops, maintenance facilities, warehouses, and manufacturing plants where equipment must be moved between different workstations. Its modular structure enables quick assembly, convenient relocation, and dependable lifting performance while reducing installation costs compared with fixed overhead crane systems.
10 Ton Portable Gantry Crane Specifications
| Item | Specification |
|---|---|
| Manufacturer | Yuantai Cranes |
| Brand | Yuantai Cranes |
| Product | Portable Gantry Crane |
| Lifting Capacity | 10 Ton |
| Hoist Type | CD/MD Electric Wire Rope Hoist |
| Hoist Brand | Yuantai Cranes |
| Lifting Speed | 7/0.7 m/min (Double Speed) |
| Span | Custom Designed |
| Lifting Height | Custom Designed |
| Traveling Method | Motorized Travelling Type |
| Control Method | Remotor Control |
| Power Supply | 380V / 50Hz / 3 Phase |
| Main Girder | Welded Box Beam |
| Leg Type | A-Frame Portable Gantry |
| Wheel Type | Heavy-Duty Swivel Casters |
| Surface Finish | Industrial Primer and Yellow Topcoat |
| Duty Class | ISO A3 |
| Application | Workshop Material Handling and Equipment Maintenance |
