Freestanding Jib Crane with Vacuum Lifter for Steel Sheet Handling
Short Video Description
This video features a freestanding jib crane manufactured by Yuantai Cranes, equipped with a vacuum lifter for handling thin steel plates. The demonstration shows smooth lifting, rotation, positioning, and placement of sheet metal without causing scratches or deformation. This lifting solution improves safety, reduces manual handling, and increases productivity in sheet metal fabrication, laser cutting, CNC processing, and steel manufacturing workshops.

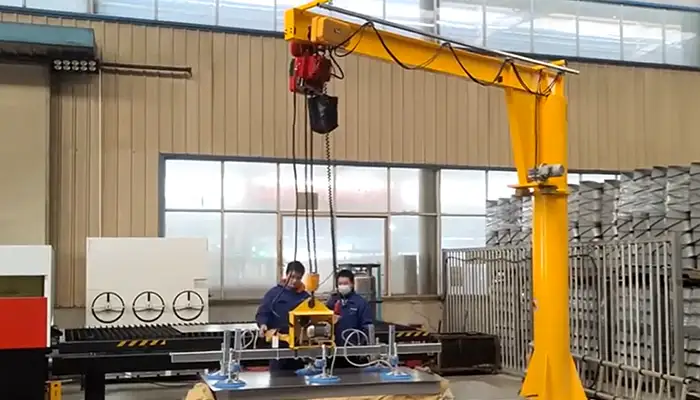

screenshot of the video on freestanding jib crane with vacum lifter for steel sheet handling
Main Specifications of the Freestanding Jib Crane Featured in This Video
| Item | Specification |
|---|---|
| Manufacturer | Yuantai Cranes |
| Brand | Yuantai Cranes |
| Product | Freestanding Jib Crane |
| Lifting Capacity | 500 kg |
| Lifting Device | Vacuum Lifter for Thin Steel Plates |
| Jib Type | Freestanding Cantilever Jib Crane |
| Working Radius | 3 m |
| Lifting Height | 3 m |
| Rotation | 360° Manual Rotation |
| Hoist Type | Electric Chain Hoist |
| Vacuum System | Electric Vacuum Pump |
| Suction Pad Type | Multi-Pad Vacuum Suction Cups |
| Applicable Material | Carbon Steel Plate, Stainless Steel Plate, Aluminum Sheet |
| Steel Plate Thickness | Thin Sheet Metal |
| Control Method | Pendant Control |
| Power Supply | 380V / 50Hz / 3 Phase |
| Installation | Anchor Bolt Mounted Foundation |
| Application | Sheet Metal Handling, Laser Cutting, CNC Machines, Fabrication Workshops |
Frequently Asked Questions
1. What is a freestanding jib crane with a vacuum lifter?
A freestanding jib crane with a vacuum lifter is a material handling system designed to lift, rotate, and position thin steel plates using vacuum suction instead of hooks or clamps. It helps prevent surface damage while improving handling efficiency.
2. What materials can the vacuum lifter handle?
The system is suitable for handling:
- Carbon steel sheets
- Stainless steel sheets
- Aluminum sheets
- Galvanized steel plates
- Other flat, non-porous metal sheets
3. Why use a vacuum lifter instead of hooks or magnets?
A vacuum lifter offers several advantages:
- Prevents scratches and dents
- Reduces sheet deformation
- Provides stable lifting of thin plates
- Allows accurate positioning
- Improves operator safety
4. What industries use this lifting solution?
Freestanding jib cranes with vacuum lifters are widely used in:
- Sheet metal fabrication
- Laser cutting workshops
- CNC machining centers
- Steel service centers
- Automotive manufacturing
- Home appliance production
- Metal processing plants
5. What lifting capacities are available?
Yuantai Cranes manufactures freestanding jib cranes with capacities ranging from 500 kg to 16 tons. Vacuum lifting systems are customized according to the plate size, weight, and material.
6. Can the jib crane and vacuum lifter be customized?
Yes. Yuantai Cranes can customize the complete lifting solution, including:
- Jib crane capacity
- Working radius
- Lifting height
- Rotation type (manual or electric)
- Vacuum lifter capacity
- Suction pad configuration
- Control system
- Power supply
- Installation dimensions
7. Is the vacuum lifter safe if power is interrupted?
Yes. The vacuum lifting system is equipped with safety features such as vacuum pressure monitoring, audible and visual alarms, and a vacuum reserve system that maintains holding force during temporary power loss, allowing the operator to lower the load safely.
8. Can this system handle large thin steel plates?
Yes. The vacuum lifter can be designed with multiple suction pads and adjustable lifting frames to safely handle large-format sheet metal while minimizing bending and improving load stability.
9. Why choose Yuantai Cranes for jib crane solutions?
Yuantai Cranes designs and manufactures complete jib crane systems for industrial material handling. The company provides engineering support, customized vacuum lifting solutions, manufacturing, factory testing, installation guidance, and after-sales service for customers worldwide.
