Elecrtric Rubber Tyred Gantry Crane with A-Frame Double Girder Goliath Crane Design

Overview of Rubber Tyred Gantry Crane A Frame Design

The Rubber Tyred (Rubber-Tyred Gantry) Crane with an A-Frame Double Girder Goliath Design is engineered for heavy-duty lifting and transport tasks across various industries. This versatile crane combines mobility, strength, and flexibility, making it an ideal solution for applications such as container handling in ports, industrial manufacturing sites, construction, and logistics operations.

One of the standout features of this Rubber Tyred crane is its rubber-tyred mobility. Unlike traditional rail-mounted cranes, the rubber tyres allow for smooth and flexible movement across different surfaces without the need for fixed tracks. This capability is particularly valuable in environments like container terminals or shipyards, where the crane needs to move across a large area.

The A-frame double girder design adds significant stability and strength to the crane, allowing it to lift and transport heavy loads with ease. The double girder structure provides enhanced load-bearing capacity, while the A-frame structure supports the crane's overall framework, ensuring it remains sturdy during operation. This design is ideal for managing heavy loads in demanding environments, minimizing wear and tear, and extending the crane's operational life.

Whether used for container loading and unloading, heavy equipment handling, or moving materials across large industrial sites, this Rubber Tyred gantry crane offers reliable performance and flexibility to meet the challenges of modern industries.

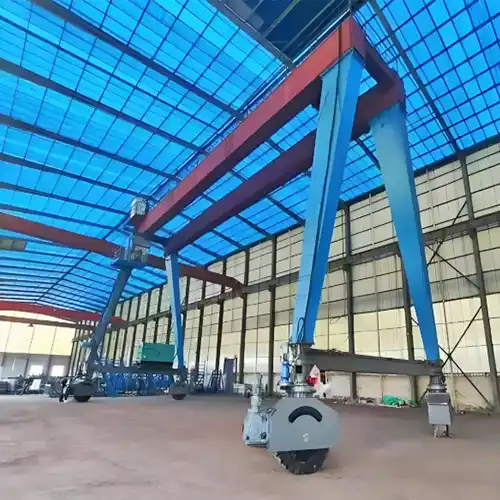

double girder gantry goliath crane with rubber tyred wheels for indoor workshop and warehouse material handling

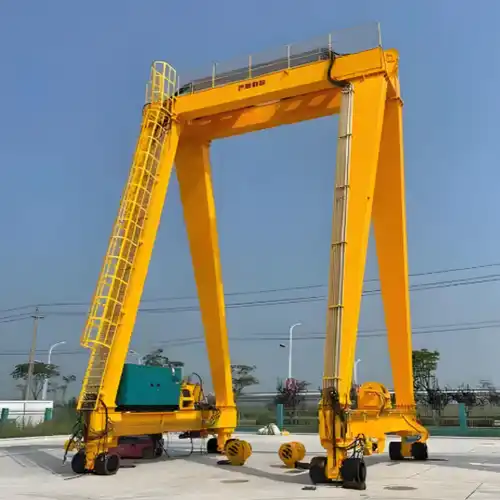

rubber tyred gantry crane double girder design for outdoor material handling

Technical Specifications of MG Rubber Tyred Goliath Gantry Crane

• Lifting Capacity: The Rubber Tyred crane has a versatile lifting capacity, ranging from 10 tons to 100 tons, which can be customized based on the specific needs of your project. Whether you need a smaller capacity for light-duty tasks or a heavy-duty crane for large-scale operations, the lifting capacity can be tailored accordingly.
• Lifting Height: The crane's lifting height is adjustable, ranging from 8 meters to 30 meters. This flexibility allows it to handle a variety of load sizes and reach heights suitable for different industrial tasks, including container stacking or lifting heavy equipment in construction sites.
• Span Range: The span of the crane can be adjusted between 5 meters to 30 meters, allowing it to cover a wide area. This adaptability ensures the crane can meet the demands of various operations, from smaller storage areas to expansive ports and industrial facilities.
• Travel Speeds: The Rubber Tyred crane provides adjustable travel speeds. The crane travel speed ranges from 6 meters per minute to 40 meters per minute, while the trolley travel options allow for customized movement speeds. These variable speeds allow for both fast, efficient transport and slow, controlled maneuvers for precise positioning.
• Power Supply: This crane operates on a three-phase AC 380V, 50Hz power supply, but the system can be adjusted based on regional requirements. This ensures compatibility with electrical systems in various locations, allowing for easy integration into your existing infrastructure.
• Work Duty: The Rubber Tyred crane is designed for A3 to M5 duty classes, making it suitable for a range of medium to heavy-duty applications. Whether used in ports, construction sites, or industrial plants, it is capable of handling demanding tasks with reliability and efficiency.
• Slope Capability: The crane can operate on slopes of up to ±5%, making it versatile enough for use in areas with uneven terrain, such as construction sites or rugged port environments, without sacrificing performance or safety.

Key Features

• A-Frame Double Girder Design: The A-frame double girder configuration provides exceptional stability and load-bearing capacity, ensuring the crane can safely handle heavy and oversized loads. This design enhances the crane's structural strength, enabling it to withstand the demands of tough industrial environments, such as ports and construction sites.
• Rubber-Tyred Mobility: The crane's rubber tyres offer the flexibility to move without being confined to fixed tracks. This mobility allows the crane to easily navigate around large areas, increasing operational efficiency and flexibility, particularly in environments where space is limited or track installation is impractical.
• Heavy-Duty Capacity: With a lifting capacity that can handle heavy containers and other industrial loads, this crane is designed to meet the most demanding material handling tasks. Whether lifting large containers in a port terminal or moving heavy machinery in an industrial plant, this Rubber Tyred gantry crane provides the strength needed for high-capacity operations.
• Wireless and Cabin Controls: The crane comes equipped with user-friendly wireless remote control and optional cabin controls, enabling safe and precise operation from a distance. This allows operators to maintain full control while staying clear of any potential hazards, ensuring a safer working environment.
• Adjustable Speeds: The crane offers adjustable lifting and traveling speeds, which can be tailored to the specific needs of each operation. Whether you require slow, careful movements for precise handling or faster speeds for high-efficiency transport, the Rubber Tyred crane can adjust to meet those needs, improving productivity while ensuring safety and accuracy.

Applications of Rubber Tyred Cranes

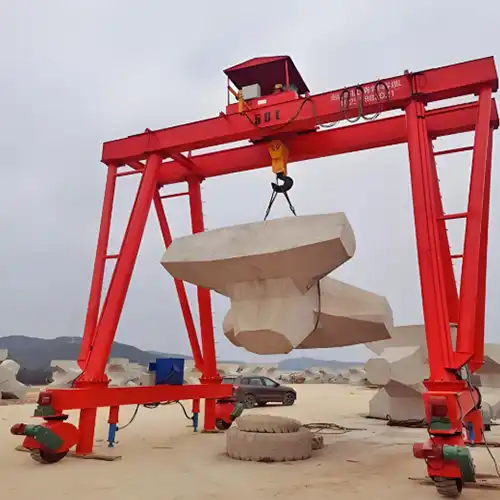

Construction Sites

Rubber Tyred cranes play a critical role in large-scale construction projects by providing unmatched mobility and heavy-lifting capabilities:

• Efficient Material Handling: Perfect for transporting steel beams, concrete panels, scaffolding, and heavy machinery across expansive construction areas.
• Adaptability to Terrain: Designed to move seamlessly across uneven or unfinished surfaces without requiring fixed tracks.
• Improved Workflow: Reduces the need for additional equipment by enabling efficient lifting and movement of materials to various sections of the site.

Their ability to move freely and handle high loads makes them indispensable for projects involving tall structures or wide areas, such as bridges and high-rise buildings.

Industrial Plants

Rubber Tyred cranes are a reliable choice for operations in industrial manufacturing plants due to their heavy-duty performance and flexibility:

• Lifting Heavy Machinery and Components: Ideal for moving industrial equipment, such as turbines, presses, and large assemblies.
• Reaching Challenging Areas: The crane's adjustable span and lifting height allow access to areas that are difficult to reach with fixed cranes.
• Versatility Across Industries: Useful in various sectors, including automotive, steel fabrication, and power plants, to handle heavy parts and materials efficiently.

These cranes ensure safe and efficient workflows, enhancing productivity in complex industrial environments.

Shipyards and Logistics Operations

Rubber Tyred cranes are indispensable in shipyards and logistics hubs where mobility and heavy lifting are key:

• Ship Loading and Unloading: They handle large cargo containers, heavy equipment, and ship components with precision.
• Material Movement Across the Yard: Capable of transporting goods across shipyards or ports without the need for fixed rail systems, enabling smooth operations in dynamic environments.
• High Traffic Handling: Designed to operate effectively in congested spaces, offering high maneuverability and reduced downtime during loading and unloading cycles.

Their ability to function efficiently in tight spaces and high-traffic zones ensures consistent performance in demanding logistical and marine environments.Rubber Tyred cranes provide unmatched mobility, flexibility, and heavy-lifting capabilities, making them a valuable asset across construction sites, industrial plants, and shipyard operations. Their versatility ensures they adapt seamlessly to the unique demands of each industry, improving efficiency and productivity.

Advantages of the A-Frame Double Girder Design

• Enhanced Stability: The A-frame design significantly improves the crane's stability, making it ideal for handling heavy and challenging lifts. The robust structure reduces sway and ensures safe operation even under high load conditions, providing a secure foundation for the crane's lifting and traveling tasks.
• Increased Load Capacity: The double girder configuration enhances the crane's overall strength and lifting power. This design allows the crane to lift heavier loads more efficiently, making it suitable for industrial environments where high capacity and reliable performance are essential.
• Flexible Operation: Thanks to the rubber tyres, the Rubber Tyred crane can move easily across a wide variety of environments. Unlike fixed rail systems, the rubber-tyred design offers mobility across unprepared surfaces, allowing the crane to operate in different areas, from ports to construction sites, without the need for complex infrastructure.
• Improved Durability: The A-frame double girder design is built to handle heavy-duty use in tough environments. Whether exposed to harsh weather, heavy workloads, or challenging terrain, this design ensures long-lasting durability, reducing maintenance costs and enhancing the crane's lifespan.
• Customizable Design: The crane's design is highly adaptable, allowing for custom adjustments to capacity, span, and height. Whether for specialized projects or unique operational needs, the flexibility of the design ensures that the crane can be tailored to meet specific requirements, providing the perfect solution for various lifting tasks.

Customization Options for Rubber Tyred Cranes

Lifting Capacity

The Rubber Tyred Crane can be tailored to meet your exact weight requirements. Whether you need to lift light or heavy loads, customization options include:

• Small to heavy lifting: Handle loads ranging from smaller weights up to over 100 tons.
• Adaptability: Ensure the crane is designed to perfectly suit your operational needs.

Span and Lifting Height

Adjust the crane's dimensions to fit your workspace and lifting requirements. Key features include:

• Customizable span: Adjust the width to suit confined or wide operational spaces.
• Flexible lifting height: Accommodate low or high-lifting tasks to ensure seamless integration into your worksite.

Power Supply and Safety Features

Enhance performance and safety with tailored power and protective systems, including:

• Power compatibility: Match the crane's power system to your local electrical standards.
• Safety upgrades: Equip with anti-explosion systems for hazardous environments to ensure worker safety and meet safety regulations.

Protective Coatings for Harsh Environments

For marine or industrial applications, specialized coatings ensure long-lasting performance:

• Anti-corrosion protection: Safeguard the crane from saltwater, humidity, and chemicals.
• Reduced maintenance: Extend operational life while minimizing upkeep costs in corrosive environments.

Operation and Safety Features of Rubber Tyred Cranes

Wireless Remote Control

Enhance safety and precision with a wireless remote control system, which allows operators to:

• Operate from a safe distance: Reduce the risk of accidents by keeping operators out of harm's way.
• Improve visibility: Manage crane operations with a clear view of the load and surroundings.
• Enhance precision: Perform tasks accurately and efficiently, even in complex operations.

Cabin Control Options

For those who prefer on-board operation, the crane is equipped with user-friendly operator cabins:

• Comfortable design: Ergonomic cabins provide a comfortable working environment, even during long shifts.
• Intuitive controls: Comprehensive control systems make it easy to manage all crane functions confidently.
• Enhanced safety: Ensures operators remain protected while maintaining full control of operations.

Overload Protection

Prevent accidents and damage with built-in overload protection sensors:

• Capacity monitoring: Automatically detects when the crane approaches or exceeds its lifting capacity.
• Accident prevention: Ensures safe operation by keeping loads within the crane's designed limits.
• Equipment protection: Safeguards the crane, the load, and the work environment from potential damage.

Emergency Stop Mechanism

Quick response in emergencies is critical, and the emergency stop system provides:

• Instant halting: Stops the crane immediately to prevent further movement during emergencies.
• Risk reduction: Minimizes the chances of injury, damage, or accidents in unforeseen situations.
• Job site safety: Contributes to a safer work environment by enabling rapid intervention.

Limit Switches

Ensure precise and safe crane operation with limit switches that:

• Define boundaries: Prevent the crane from traveling beyond its designated operational range.
• Accident prevention: Reduce risks caused by over-traveling or collision with structures.
• Protect equipment: Safeguard the crane and surrounding environment from unnecessary damage.

Hydraulic Support System

Improve stability and extend tire life with a hydraulic support system:

• Weight distribution: Reduces tire pressure by evenly distributing the load, enhancing stability.
• Safe heavy lifting: Ensures safe operations even on uneven or soft surfaces.
• Durability: Minimizes tire wear and tear, extending their lifespan and maintaining optimal performance.

Maintenance and Support for Rubber Tyred Cranes

Scheduled Maintenance

Regular maintenance is key to keeping your crane in top condition. Our scheduled maintenance program includes:

• Routine inspections: Regularly check the hydraulic system, lifting mechanisms, and structural integrity to detect potential issues early.
• Preventative care: Address minor problems before they escalate into costly repairs or operational downtime.
• Longevity and safety: Extend the crane's lifespan and maintain safe working conditions by ensuring all components operate efficiently.

Benefits of scheduled maintenance include:

• Smoother crane operations.
• Reduced risk of unexpected breakdowns.
• Lower long-term maintenance costs.

After-Sales Support

Our commitment to your success doesn't end at delivery. With our after-sales support, you'll benefit from:

• Quick access to spare parts: Keep your crane running with fast availability of replacement components.
• Technical assistance: Get expert help for troubleshooting and resolving operational issues.
• Prompt service: Ensure repairs and part replacements are handled quickly to minimize downtime.

Whether it's answering your questions or addressing specific concerns, our dedicated after-sales team is here to ensure your crane operates efficiently.

Tailored Service Plans

To minimize downtime and maintain peak performance, we offer customized service plans that include:

• Regular inspections: Scheduled checks to ensure all systems are functioning optimally.
• Preventive maintenance: Proactive care to prevent major issues and extend the crane's operational life.
• Emergency services: Immediate support for urgent repairs or technical issues.

Benefits of service plans:

• Reduced downtime: Ensure your crane is always ready for use.
• Cost predictability: Avoid unexpected repair expenses with planned services.
• Peace of mind: Focus on your operations knowing your crane is professionally maintained.

Our maintenance and support services are designed to ensure reliability, safety, and long-term efficiency for your crane.

Why Choose Us

Expertise in Crane Manufacturing

We bring decades of experience in designing and manufacturing gantry cranes, establishing ourselves as trusted industry leaders. Our expertise includes:

• Innovative designs: Solutions tailored for projects of all sizes, from small-scale operations to complex industrial applications.
• Reliable engineering: Decades of knowledge in creating efficient, high-performing cranes that meet and exceed industry standards.
• Attention to detail: A skilled team ensures every crane is crafted with precision and functionality for seamless operation.

Quality Materials for Durability

We prioritize the use of premium materials to ensure long-lasting performance and safety:

• High-strength frames: Designed to withstand heavy loads and maintain structural integrity over time.
• Robust lifting components: Built to handle rigorous use in demanding environments.
• Commitment to safety: Every part is engineered with durability and reliability to meet the highest safety standards.

Our materials ensure the cranes maintain peak performance, even in heavy-duty or challenging operational conditions.

Competitive Pricing for Value

We believe in providing affordable, high-quality solutions to meet your budgetary needs:

• Cost-effective equipment: Premium cranes at prices that deliver excellent value for money.
• No compromises on quality: Despite our competitive pricing, we maintain the highest standards of performance and reliability.

Our pricing ensures you get top-notch equipment without stretching your financial limits.

Customizable Solutions to Fit Your Needs

We recognize that every operation is unique, which is why we offer fully customizable crane designs:

• Tailored lifting capacities: Cranes designed to handle specific loads, whether light or heavy-duty.
• Flexible spans and heights: Adjustments to suit your workspace dimensions and lifting requirements.
• Specialized functionality: Custom features to meet the demands of unique or complex projects.

Our collaborative approach ensures the crane is perfectly aligned with your operational needs, enhancing productivity and efficiency.

By choosing us, you partner with a team that prioritizes expertise, quality, affordability, and tailored solutions to support your success.

Contact Us for a Quote

To receive a detailed quote for your A-Frame Double Girder Electric Rubber Tyred Gantry Goliath Crane, please provide the following information:

• Lifting Capacity: Specify the weight range the crane needs to handle.
• Span and Height Preferences: Indicate the desired span and lifting height to meet your project's space and lifting requirements.
• Power Supply: Share your power supply preferences (e.g., voltage, frequency) and any specific requirements, such as explosion-proof or special power systems.
• Application Type: Let us know the intended application (e.g., container handling, construction sites, industrial plants).
• Customization Requests: If you need any specific features or modifications (e.g., anti-corrosion coatings, customized controls), please provide details.

Once we receive your information, we will promptly provide you with a comprehensive quote tailored to your needs. Our team is here to ensure that your rubber tyred gantry crane meets your project's specifications and delivers optimal performance.Contact us to check what we can do to save your double girder electric trubber tyred goliath gantry crane.
