Rubber Tyred A-Frame Single Girder Goliath Crane 1 to 20 ton

Rubber Tyred Single Girder Goliath Crane - A Frame Design

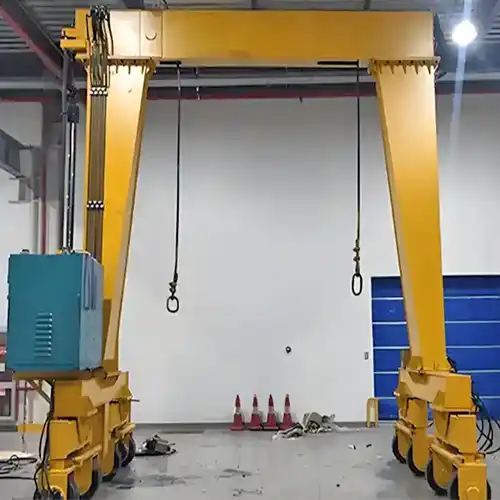

Single girder gantry crane with rubber tyred wheel and a frame gantry crane, designed for 1-20 ton loads with excellent performance and adaptability. The RTG Gantry Crane with A-Frame Single Girder Goliath Crane Design is a highly efficient and robust lifting solution designed to handle heavy loads with ease and precision. This crane features a single girder structure supported by a strong A-frame, ensuring maximum stability and safety during operation. It is widely used in various industries where heavy materials and equipment need to be moved, making it an essential tool in construction, manufacturing, logistics, and other heavy-duty applications.

Key Features and Advantages

• Lifting Capacity: The crane offers flexible lifting capacities ranging from 1 to 20 tons, with the option for customization based on specific needs. This ensures it can handle a wide range of materials and heavy loads, making it suitable for both small and large projects.
• Efficient Design: The single girder A-frame design provides a lightweight yet durable structure, reducing the overall weight of the crane without compromising its strength. This design also helps to minimize maintenance needs, making it cost-effective in the long run.
• Mobility and Flexibility: The RTG crane comes with either rubber tires or track-based movement systems, allowing for easy maneuverability in various environments such as construction yards, warehouses, and manufacturing plants. This flexibility ensures the crane can adapt to different site conditions and operational needs.
• Hydraulic Drive System: A fully hydraulic system powers both the lifting and traveling functions, providing smooth, reliable performance. This system reduces ground pressure and minimizes damage during heavy-load movements, ensuring safe operation even under tough conditions.

Ideal Applications

• Construction: The RTG Gantry Crane is perfect for handling heavy materials such as steel beams, concrete sections, and large construction equipment. It is commonly used in both building and infrastructure projects where heavy lifting and precise material transport are required.
• Steel Manufacturing: In steel mills and factories, the crane is used to transport large steel billets, slabs, and other heavy materials between production areas. Its design ensures safe and efficient handling of these materials in busy industrial environments.
• Logistics and Warehousing: The crane is a key tool in logistics centers, helping to move large containers, pallets, and goods in and out of storage areas. Its versatility and ease of movement make it ideal for managing the flow of materials in large warehouses or distribution centers.
• Heavy-Duty Lifting: Whether it's moving prefabricated structures, large machinery, or other industrial components, the RTG Gantry Crane provides the necessary support for lifting, transporting, and positioning heavy loads across different sectors.

In these industries, the RTG Gantry Crane proves to be a reliable and effective solution, increasing productivity while maintaining safety and reducing operational costs.

European style rubber tyred gantry crane single girder A frame design with euro-type low headroom wire rope hoist

Economical rubber tyred gantry crane single girder A frame design with cd/md wire rope hoist

Rubber Tyred Gantry Crane Single Girder A-Frame Design with European Style vs Economical Style

Why It Matters:

• Low Headroom Hoist Design: This crane is perfect for operations where headroom is a critical factor, offering an elevated lifting height without compromising the crane's footprint. Ideal for space-constrained areas, it allows more containers to be stacked higher, boosting storage efficiency.
• Economical CD/MD Hoist Design: The CD/MD wire rope hoist is a cost-effective and versatile solution, capable of handling a wide range of containers and loads. While it doesn't have the compact advantage of low headroom, its flexibility and reliability make it a solid choice for general container handling in environments with less restrictive height limitations.

Each design suits specific needs, and choosing between them largely depends on space constraints, lifting height requirements, and budget. If maximizing container stacking height is key, the low headroom design provides greater value. For more general operations with broader lifting needs, the economical CD/MD wire rope hoist provides reliability at a lower cost.

Product Specifications A frame Rubber Tyred Goliath Gantry Crane

General Model Information:

• Model: RTG Gantry Crane - A-Frame Single Girder Design
• Type: Single Girder Goliath Crane Design (RTG)

Lifting Capacities: 1T, 2T, 3T, 5T, 10T, 15T, 20T. Range of capacities (customizable to suit client needs)

Span Range: Typically between 8m to 20m (customizable)

Lifting Height: Adjustable lifting height ranging from 6m to 30m

Customization Options:

• Tailored lifting capacities, span, and height
• Optional components such as tracks, collector rails, and safety features
• Adaptability for specific environments (weather-resistant coatings, explosion-proof features)

Adaptability for Specific Environments

• Weather-Resistant Coatings: The crane can be outfitted with special coatings to protect against environmental factors like moisture, extreme temperatures, and corrosive elements, making it ideal for outdoor or harsh weather conditions.
• Explosion-Proof Features: For use in hazardous environments such as chemical plants or oil refineries, the crane can be equipped with explosion-proof components to ensure safety and compliance with industry standards.

These specifications make the RTG Gantry Crane a highly versatile and adaptable solution for a wide range of industrial applications, ensuring both performance and safety.

Design Features of Rubber Tyred Single Girder Goliath Gantry Crane A Frame

Frame & Structure

• A-Frame Structure for Enhanced Stability and Durability: The RTG Gantry Crane is built with a robust A-frame structure that provides excellent stability and long-lasting durability. This design ensures that the crane remains steady and secure even when handling heavy loads in challenging conditions. The A-frame allows for a wide base of support, minimizing the risk of tipping during operation, particularly when navigating through tight spaces or handling large loads.
• Single Girder Design for Efficient Operation and Reduced Weight: The crane features a single girder design, which reduces its overall weight without compromising its strength. This efficient structure ensures smoother operation, lower maintenance requirements, and better fuel or energy efficiency. The lightweight design also makes it easier to move and set up, saving time and costs on installations and relocations.

Mobility

Rubber-Tyre or Rail-Based Mobility: Depending on the specific needs of the client, the RTG Gantry Crane can be equipped with either rubber tyres or rail-based movement systems.

• Rubber-Tyre Mobility: Ideal for environments where flexibility and quick maneuverability are essential, such as in construction yards, ports, or manufacturing sites. The rubber tyres allow the crane to move freely across various surfaces, including uneven or compacted ground.
• Rail-Based Mobility: For more permanent installations or larger-scale operations, rail-based mobility provides precise, guided movement along fixed tracks. This ensures the crane remains stable and consistent while moving heavy loads over longer distances.
• High Flexibility for Maneuvering in Varied Environments: The RTG Gantry Crane is designed to adapt to various operational environments. Whether operating in a busy construction site, an industrial factory, or a materials yard, the crane's mobility system offers high flexibility, enabling it to navigate tight spaces and obstacles with ease.

Control System

• Advanced Control Systems for Precise Movement: The RTG Gantry Crane is equipped with an advanced control system that enables precise movement and positioning of loads. This allows operators to lift, move, and place materials with high accuracy, even in complex and confined spaces.
• Integration with Safety and Monitoring Systems: The crane is integrated with comprehensive safety and monitoring systems, ensuring optimal operation and preventing accidents. Features such as load monitoring, emergency stop systems, and overload protection are included to safeguard both the equipment and the personnel operating it. The control system also helps maintain performance, making adjustments as needed to ensure smooth and safe operation at all times.

These design features ensure that the RTG Gantry Crane delivers high performance, reliability, and safety, making it a top choice for industrial applications across a variety of sectors.

Operating Modes

Flexible Operational Modes

• Straight-Line Movement: The RTG Gantry Crane can move in a straight line along its travel path, which is ideal for tasks such as transporting materials over a set distance, such as moving loads across factory floors or across storage yards. This mode ensures straightforward, stable movement when handling lighter or standard loads.
• Diagonal Movement: For more complex operations, the crane can be configured to move diagonally, allowing it to access areas that are not directly aligned with its standard path. This feature is particularly useful in tight spaces or when needing to move materials in a confined yard, construction site, or warehouse.
• Lateral Movement: Lateral movement enables the crane to travel sideways, offering even more flexibility in material handling tasks. This mode is essential when the crane needs to move a load across different sections of a worksite or storage area, especially in areas with narrow aisles or obstacles.
• In-Place Rotation: The RTG Gantry Crane also has the ability to rotate in place, allowing the crane to reposition a load without needing to move its wheels or tracks. This feature enhances operational efficiency, particularly for rotating large items or when performing intricate movements like stacking or aligning materials.

These operational modes make the RTG Gantry Crane extremely versatile, enabling it to perform a wide range of tasks, from lifting and transporting to rotating and precise placement of materials. Whether moving across open spaces or navigating tighter, more complex areas, this crane can adapt to different worksite requirements.

Heavy Load Handling

• Optimized Design for Handling Large and Heavy Materials: The RTG Gantry Crane's robust frame, hydraulic systems, and advanced control mechanisms are specifically designed to handle large and heavy loads. It's perfect for industries like steel manufacturing, construction, and heavy-duty material handling, where the safe lifting and transporting of oversized components or materials are critical. The crane maintains stability and safety, even when carrying large loads at high speeds or across long distances.
• Reduced Ground Pressure During Heavy-Load Turns for Safety and Equipment Longevity: When navigating heavy loads, particularly during turns or sharp maneuvers, the RTG Gantry Crane's design reduces the ground pressure exerted by its wheels or tracks. This not only helps prevent damage to the ground surface but also extends the lifespan of both the crane and the supporting infrastructure, such as tracks or tires. The reduction of ground pressure during heavy-load turns ensures a safer operating environment and minimizes wear and tear on the crane's components.

These operational modes and features make the RTG Gantry Crane an excellent choice for heavy-duty lifting and transport tasks across various industries. The ability to handle large loads while maintaining stability and efficiency ensures that operations are completed quickly, safely, and effectively.

Applications

Construction

• Handling of Steel Beams, Precast Concrete, and Large Building Materials: The RTG Gantry Crane is designed to lift and transport heavy materials commonly found on construction sites, such as steel beams, precast concrete panels, and large construction components. Its ability to handle such heavy loads makes it invaluable for building structures, bridges, and other large-scale construction projects. The crane's versatility in both moving and rotating these materials ensures smooth, efficient workflow in construction operations.
• Effective in Construction Sites with Variable Terrain and Minimal Infrastructure: Construction sites are often challenging environments with uneven terrain and limited infrastructure. The RTG Gantry Crane, with its rubber-tyre or rail-based mobility, can easily navigate such surfaces, making it ideal for sites where traditional cranes may struggle. Its flexibility allows for optimal placement and material handling even in difficult conditions, improving productivity and reducing downtime.

Logistics & Warehousing

• Movement of Goods, Cargo, and Equipment within Large Storage Areas or Yards: In logistics and warehousing operations, the RTG Gantry Crane plays a crucial role in the efficient movement of goods, cargo, and equipment within expansive storage areas or yards. Whether it's loading and unloading goods from storage or moving items from one location to another within the yard, the crane's ability to travel long distances while maintaining maneuverability and load handling ensures fast and reliable operations.
• Ideal for Large-Scale Logistics and Distribution Centers Requiring Flexible Crane Solutions: The RTG Gantry Crane is well-suited for large-scale logistics and distribution centers that require a flexible and adaptable crane solution. Its ability to handle diverse materials, ranging from light loads to heavy machinery, combined with its versatile operational modes, makes it an ideal choice for complex warehouse tasks, such as sorting, stacking, and transporting materials across different zones.

Manufacturing

• Handling of Heavy Machinery, Steel Components, and Prefabricated Parts in Manufacturing Plants: In manufacturing environments, the RTG Gantry Crane is invaluable for the safe handling of heavy machinery, steel components, and prefabricated parts. Whether used for moving components within a production line or transporting materials from one section of the facility to another, the crane's powerful lifting capabilities ensure smooth operations, preventing delays caused by manual handling or limited equipment.
• Supports Both Indoor and Outdoor Operations: The versatility of the RTG Gantry Crane makes it suitable for both indoor and outdoor operations within manufacturing plants. Outdoors, it can be used for large-scale handling of steel sections, construction materials, and heavy machinery, while indoors, it excels in factories and assembly plants, where it can be utilized to move components, machinery, and products along production lines or in between processing stations.

Port & Harbor Operations

• For the Loading, Unloading, and Transport of Containers and Heavy Cargo: In port and harbor environments, the RTG Gantry Crane is a vital tool for loading and unloading containers, bulk cargo, and other heavy materials. Its powerful lifting capacity and ability to maneuver in tight spaces make it an excellent choice for ports where efficiency and speed are critical. The crane's flexibility in handling containers of various sizes and its ability to operate in confined areas allows it to streamline operations and improve turnaround times at busy port facilities.

Whether it's in construction, logistics, manufacturing, or port operations, the RTG Gantry Crane offers robust, reliable, and flexible solutions to meet the diverse material handling needs across these industries.

Customization & Ordering

Tailored Designs

• Lifting Capacity, Span, and Height Customization: The RTG Gantry Crane is highly customizable to suit a wide range of operational requirements. Whether you need a crane for light material handling or heavy-duty lifting, the lifting capacity can be tailored to meet your specific needs, ranging from small loads of 1 ton to large loads of 20 tons or more. The span (width between the crane's supports) and lifting height (distance the crane can lift from the ground) can also be adjusted to accommodate different workspace layouts or material handling needs.
• Specialized Features for Unique Applications: To ensure your RTG Gantry Crane meets all operational demands, additional features can be customized, such as explosion-proof systems for hazardous environments, corrosion-resistant coatings for outdoor use or marine environments, and weather-resistant components for cranes operating in extreme conditions. Whether your project is located in coastal areas, chemical processing plants, or construction sites with high dust or moisture levels, we can provide solutions to keep your crane working reliably.
• Environmental Adaptability: Our cranes are designed with adaptability in mind, offering specialized features to meet the demands of specific operating environments. Whether your crane needs to withstand high humidity, extreme temperatures, or chemical exposure, we can design and build the perfect RTG Gantry Crane to ensure maximum performance and durability in your unique conditions.

Ordering Process

• Contact for Quotes and Consultations: To begin the ordering process, simply contact our sales team via email or phone for a personalized consultation. Our experts will guide you through the selection of the ideal crane specifications based on your project requirements. They will also provide insights into the crane's features and customization options to ensure you receive the best solution for your needs.

Specify Your Requirements: When placing your order, it is important to specify the following details to ensure that the crane meets your precise needs:

• Lifting Capacity: Indicate the required lifting capacity based on the materials and loads to be handled.
• Span and Height: Define the span between the crane's supports and the lifting height based on your workspace or production line.
• Additional Features: Let us know if you require any additional features, such as explosion-proof systems, corrosion-resistant coatings, or other specialized components for your environment.

How to Order

• Request for Quotation (RFQ): To place an order or request a quotation, complete the RFQ form provided on our website or reach out directly via email or phone. Be sure to include all necessary details, such as the required lifting capacity, span, height, and any special features you may need. Our team will promptly review your request and provide you with a detailed quote, along with delivery times and payment options.
• Consultation and Finalization: After submitting your RFQ, our technical team will review your specifications and contact you to discuss any further details. We will work with you to finalize the design, ensuring that all requirements are met and that the crane is tailored to your operational needs. Once the design is approved, we will begin the manufacturing process and coordinate the installation or delivery as per your timeline.

Our flexible and customer-focused ordering process ensures that you get the exact crane solution you need, designed for both immediate and long-term operational success.

Pricing & Contact Information

Pricing

Pricing Range & Custom Quotes: The pricing for the RTG Gantry Crane varies based on customization requirements, such as lifting capacity, span, height, and additional features. Standard models typically start at a base price, but customization can influence the final cost. For example, higher lifting capacities or specialized features, such as corrosion-resistant coatings, explosion-proof systems, or extreme environmental adaptations, will impact the price.

• Base Price Range: For standard cranes, prices generally range from [Insert estimated price range based on market and model specifications], but we strongly recommend reaching out for a tailored quote based on your specific needs.
• Customizable Features: Optional components, such as specialized tracks, safety systems, or specific coatings, will be factored into the final price based on your project specifications. Our team will work with you to ensure the crane meets all operational and safety requirements within your budget.

Contact Information

Email and Phone for Inquiries: If you have any questions about our RTG Gantry Cranes, or if you'd like more detailed pricing information or support, please contact us directly:

• Contact person：Bella Liang
• Phone/ WhatsApp: + 86 151 3871 1597.

Order Support & Technical Assistance: Our support team is available to assist with any queries regarding product specifications, technical details, or the ordering process. If you're looking for a more personalized experience, feel free to reach out, and we will guide you through every step of your purchase.

Online Contact Forms & Support Chat: For quick responses, you can also use our online contact form on the website or access our live support chat feature for immediate assistance. We aim to respond to all inquiries promptly, ensuring a seamless experience whether you're requesting a quote or need help with product features.

Our dedicated team is here to support you with expert consultations, accurate quotations, and assistance every step of the way in selecting, customizing, and ordering your RTG Gantry Crane.
