Lifting Electromagnets and Lifting Magnets for Steel Industry Cranes

Lifting electromagnet & lifting magnets for cranes are vital below-the-hook devices, equipped on industrial overhead cranes & industrial gantry cranes for material handling in steel processing plant, metal scrapyard, foundries, coil and pipe distributors, shipyards, loading docks, warehouses, and other application where steel load lifting & transportation required. Customized lifting electromagnets are available for loading and unloading steel scrap, plate, pipe, rebar,slab, billet & ingot, and other metals, etc.

Various lifting electromagnets for your industrial cranes

Various types of lifting electromagnets are available for types of overhead travelling cranes to meet your diverse material handling requirements with the features of versatile, compact,and easy to operate, etc.

Main types of lifting electromagnet offering

• Lifting electromagnet with the shape of Circular, Square, and Rectangular are available with the diameters from 500 mm up to 3000 mm;
• Normal temperatures magnet & High temperature electromagnet: for normal loads handling & hot metal handling with surface temperature of up to 700°C;
• Lifting electromagnets for types of industrial cranes: indoor overhead crane & outdoor gantry cranes,used under any climatic condition.
• Lifting magnets for types of loads handling including steel scrap, slab, billet & ingot, steel coil, plate, pipe, rebar, wire roll, etc.

Round/ Circle lifting magnet, Square magnet , Rectangular magnet & magnet beam

• Round electromagnet- Round /Circular lifting electromagnet is widely adopted for loading & unloading cast ingots, steel balls and various types of steel scraps and other metal scraps, etc.
• Rectangular magnet- Rectangular lifting electromagnets are for handling steel billet, l ingot, block, bloom & round, profiled steel, etc.
• Oval electromagnet - Oval lifting electromagnet helps the handling of steel scraps at narrow trunk-shaped container efficiently, etc.

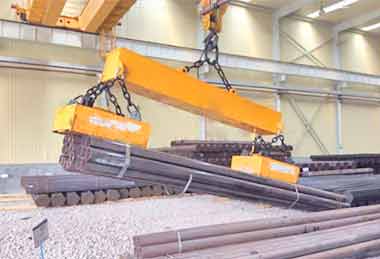

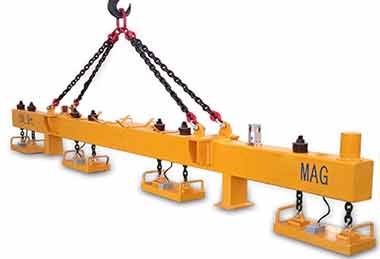

• Lifting magnet beam- Electromagnetic beam are mainly used for long and larger object handling such as un-bundled steel pipe, steel plate, steel bars,steel tubes, billets or bundled double-layer billets, steel pipe, large-sized ingots,steel plates and screw-thread steel, etc

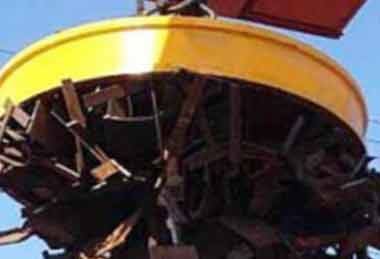

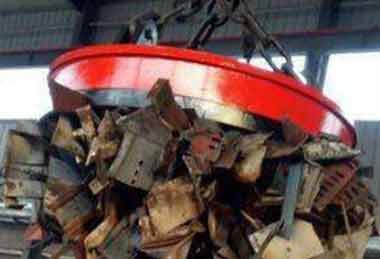

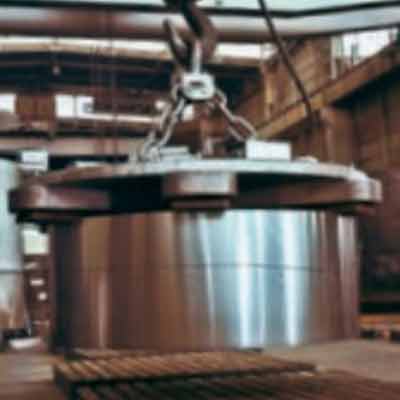

Round /Circular lifting electromagnet

Oval lifting electromagnet

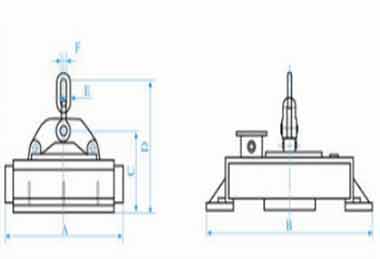

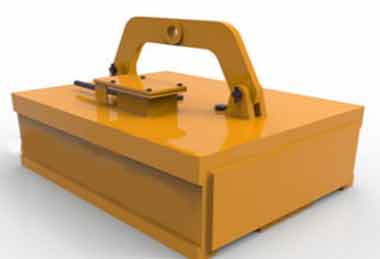

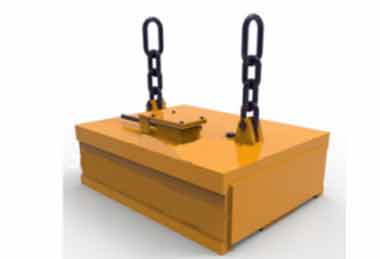

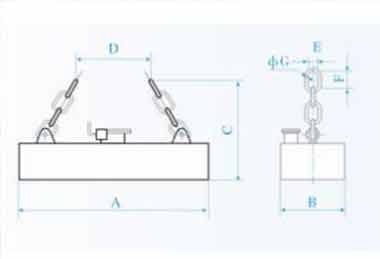

Rectangular lifting electromagnet

Electromagnetic beam

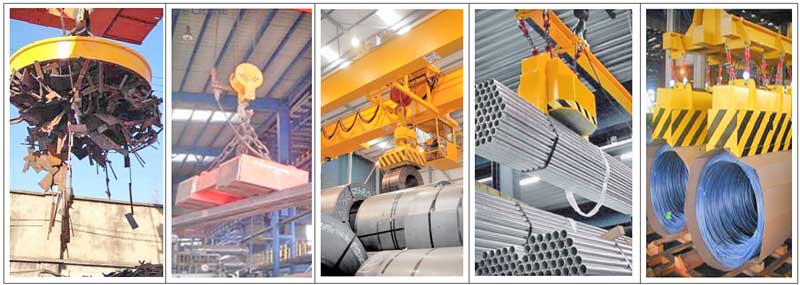

Various lifting magnetic for cranes, flexible magnetic industrial cranes solutions for diverse loads handling

Lifting electromagnet & lifting magnets for cranes are vital below-the-hook devices, equipped on industrial overhead cranes & industrial gantry cranes for material handling in steel processing plant, metal scrapyard, foundries, coil and pipe distributors, shipyards, loading docks, warehouses, and other application where steel load lifting & transportation required. Customized lifting electromagnets are available for loading and unloading steel scrap, plate, pipe, rebar,slab, billet & ingot, and other metals, etc.

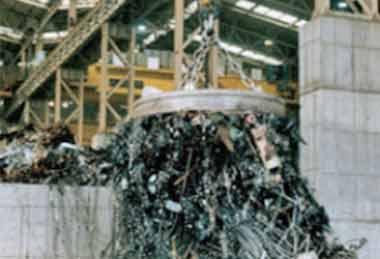

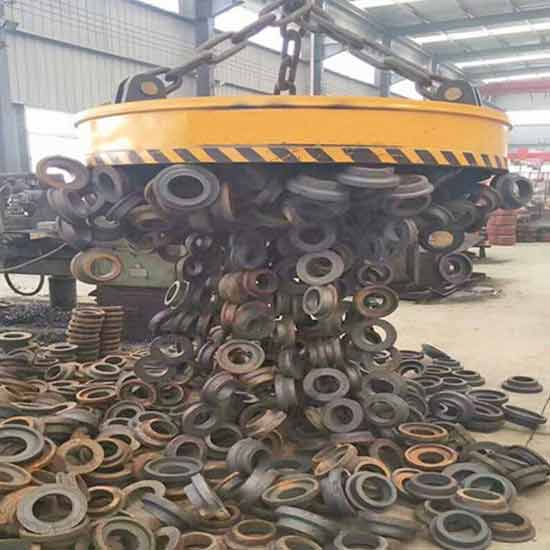

Round Lifting Electromagnet for Steel Scraps handling

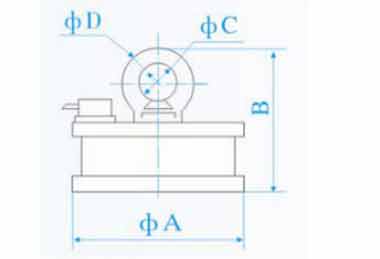

MW5 Series Round Lifting Electromagnet for cranes

MW5 series lifting electromagnets with overhead travelling cranes are usually for handling cast ingot, steel ball, pig iron,steel chip, steel scraps, return scraps, cropping,and baling scraps, etc., in foundry plants and iron powder in coal washeries. The round lifting electromagnet can remove large size of iron initially during the process of slag disposal.

Round / circular lifting magnets for cranes for steel scrap handling

Round / circular lifting magnets for cranes for metal handling

Round / circular lifting magnets for cranes for iron scrap handling

For the handling of different types of steel scraps , the scrap magnets and scrap yard magnets are grouped into heavy duty scrap magnet, medium duty scrap magnet, small duty scrap magnet , aggregate duty scrap magnet , and light duty scrap magnet, based on the figure, size, weight and bulk density. Based on your specific requirements, the most suitable lifting electromagnet will be processed for your applications with the best operation performance.

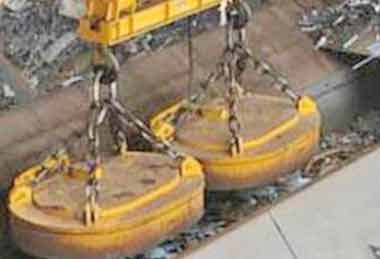

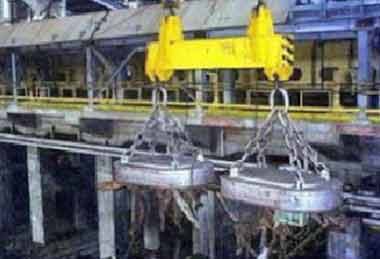

MW61 Series Oval Lifting Electromagnet for cranes

MW61 series lifting electromagnet are called oval lifting electromagnet due to the special half-round structure, which are used on the industrial material handling cranes for steel scraps handling at narrow trunk-shaped container. Tailored lifting electromagnet with specific chute dimensions are available to meet different requirements in various steel mills. The following pictures are just for your reference. Contact us if you need an oval lifting electromagnet for your industrial material handling cranes.

Crane oval lifting magnet with beam spreader for overhead crane and gantry crane

Crane oval lifting magnet with beam spreader for overhead crane and gantry crane

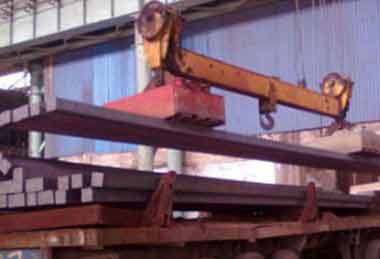

Lifting Electromagnet for Steel Billet, Girder Billet and Steel Slab

MW22 Series Lifting Electromagnet for Cranes

The lifting electromagnet are designed with the shape of rectangle which can be used exclusively or with multiple units equipped on a beam spreader which are widely used for loading and unloading of billet, steel ingot, bloom etc., and also can be used for handling round steel, profiled steel, etc. Processed crane with individualized lifting magnets are the optimal solutions for your specific steel mill material handling.

Square lifting electromagnet for handling steel billet, girder billet, steel slab, round billet and profile steel,etc.

Square lifting electromagnet for handling steel billet, girder billet, steel slab, round billet and profile steel,etc.

Square lifting electromagnet for handling steel billet, girder billet, steel slab, round billet and profile steel,etc.

Square lifting electromagnet for handling steel billet, girder billet, steel slab, round billet and profile steel,etc.

MW42 Series Lifting Electromagnet for Cranes

MW42 series super force lifting electromagnets generate powerful magnetic force, widely used for lifting & moving billets, girder beam and track beam, etc. Due to the super magnetic force, the lifting magnetic crane are also used for handling round billet and profile steel, etc.

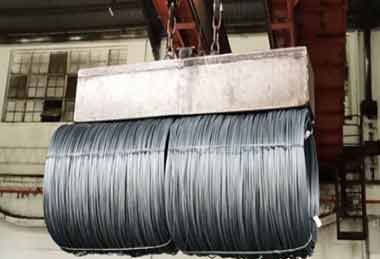

Lifting Electromagnet for High Speed Wire &Coiled Bar

MW19 Series lifting electromagnet for steel mill cranes

MW19 series lifting electromagnet is very helpful for handing coiled bar with various diameters due to the features of light self-weight and reasonable structure. The lifting magnets for cranes can be used with single unit or with multiple units based on the your specific applications. The selection of the right lifting electromagnet is largely defined by the length of coiled bar. Contact us to get the right crane electromagnet for your overhead travelling cranes.

Crane lifting electromagnet for rolled wire

Crane lifting electromagnet for rolled wire

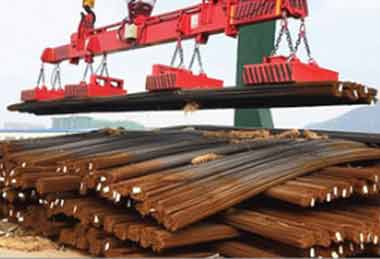

Crane Lifting Electromagnet for Bundled Rebar and Profiled Steel

MW38 Series Lifting Electromagnet for Cranes

MW38 series lifting electromagnet are used for handling steel bar , flat iron and angle iron unpacked or in simple pack with the feature of good heat dispersion and penetration ability which can penetrate air gap through multiple layers due to the unique magnetic circuit. Usually, the lifting electromagnet are used with multiple units, equipped on handing beam with 2 or 4 contacting points which can solve the problem of deflection during the operation of round steel and thread steel. And also this series of lifting electromagnets have the normal temperature and high temperature type.

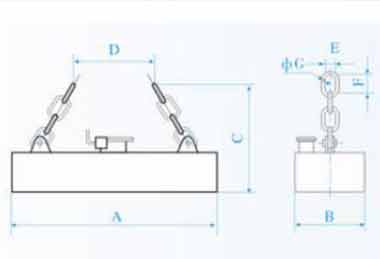

Industrial magnets drawing

Industrial magnets for steel rebar, thread steel and other long steel products handling

Industrial magnets for steel rebar, thread steel and other long steel products handling

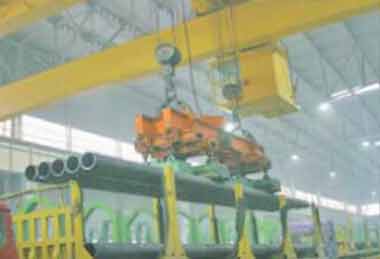

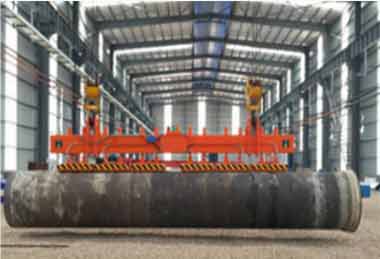

Crane Lifting Electromagnet for Pipe Billet and Steel Pipe

MW35 Series Lifting Electromagnet for Cranes

MW35 series lifting electromagnet are used for lifting and moving round billet and steel pipe, square billet, steel ingot, cogged ingot and profiled steel, with specially designed magnetic circuit and deep penetration magnetism.

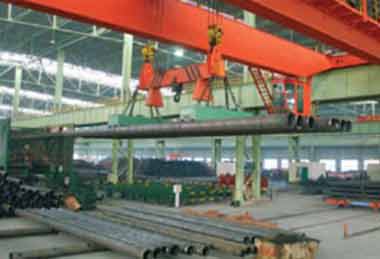

Steel pipe magnetic lifting device

Steel pipe magnetic lifting device

Steel pipe magnetic lifting device

Steel pipe magnetic lifting device

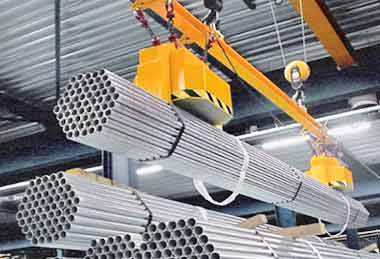

MW85 Series Lifting Electromagnet for Cranes

MW85 series lifting electromagnet is designed with round arc pole, especially used for handling steel tubes, pipes, and other round metal projects, etc. The pipe lifting electromagnets directly touch and hold the tube or pipe tightly right on the top, improving the working efficiency and safety greatly, and very energy-saving.

Lifting electromagnet for steel tube

Lifting electromagnet for steel tube

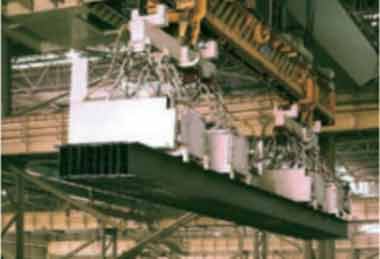

Crane Lifting Electromagnet for Heavy Rail and Profiled Steel

MW17 Series Lifting Electromagnet for Cranes

MW17 series lifting electromagnet is designed especially for handling super-long and super-heavy rail beams used in the railway construction. For adopting special magnetic circuit and double wrapping structure, this series of lifting magnets have good property of heat dispersion and deep penetration, which make the lifting electromagnets very suitable for handling normal and high temperature heavy rail, profiled steel and beam blank,etc. The lifting electromagnet are usually used with multiple units, applied at professional heavy rail manufacturing plants and large railway track beam processing factories.

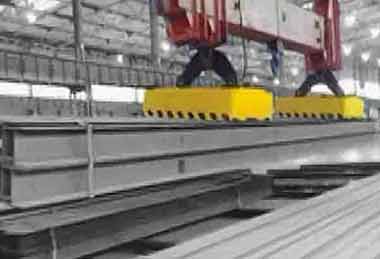

Lifting electromagnet for I-beam steel

Lifting electromagnet for I-beam steel

Lifting electromagnet for I-beam steel

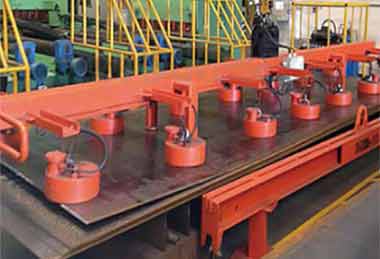

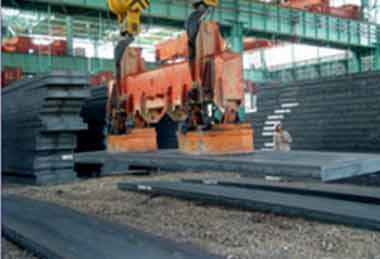

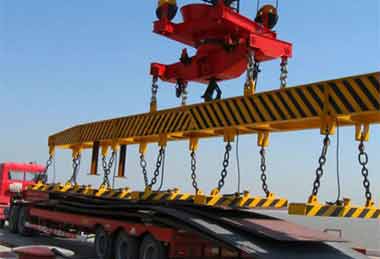

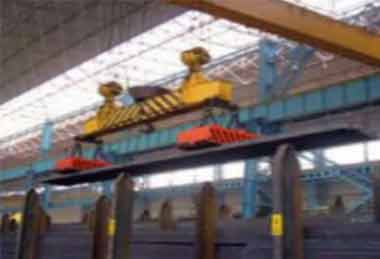

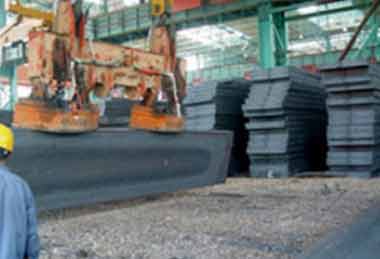

Crane Lifting Electromagnet for lifting and transporting steel plate

This series of lifting electromagnet is designed particularly for handling medium-thick steel plates, featured as safe, exact and quick. For long and large steel plates handling, combination of multiple units are recommanded. The space between 2 magnet units should be carefully placed , for example, for the steel plate with thickness range of 6mm~32MM, space between 2 magnet units should leave an extra 2.5~3.5m, the length at each end is that of one half of space. If you have any problem, please feel free to contact us. Types of lifting electromagnets are available for medium-thick steel plate handling in factory, ship building factory, machinery manufacturing factory.

Lifting electromagnet for steel plate lifting

Lifting electromagnet for steel plate lifting

Lifting electromagnet for steel plate lifting

Lifting electromagnet for steel plate lifting

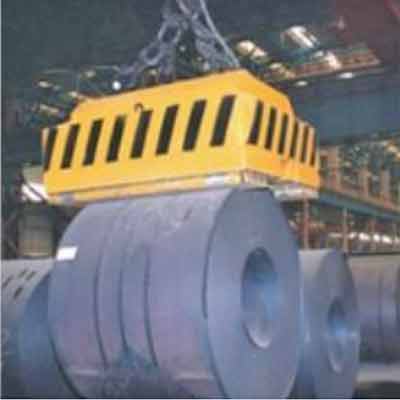

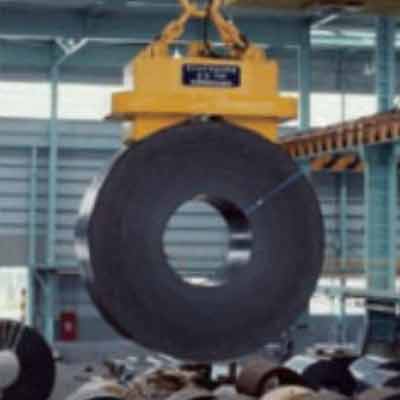

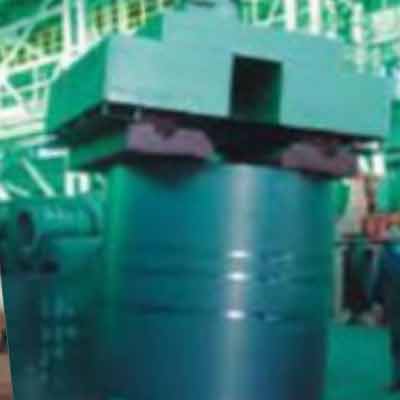

Crane Lifting Electromagnet for Coiled Steel

This series of lifting electromagnet is designed for steel coil handling, which can be grouped into vertical coil lifting magnet, horizontal coil lifting magnet and general use coil lifting magnet which handle steel coils vertically and horizontally flexibly. High temperature coil lifting electromagnet are used for vertical or horizontal coil handling at anneal process with temperature from 100℃ to 600℃.

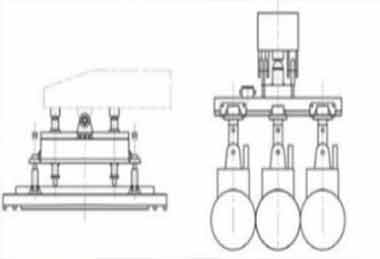

Lifting electromagnet for lifting steel coil vertically and horizontally

Lifting electromagnet for lifting steel coil vertically and horizontally

Lifting electromagnet for lifting steel coil vertically and horizontally

Lifting electromagnet for lifting steel coil vertically and horizontally

Crane Lifting Electromagnet for Turning and Lifting Slab

This series of lifting magnets for cranes are used for handling slab, thick plate and tube blank, etc,, which can turn the loads around 180°degree as required.

Drawing of lifting electromagnet for lifting and turning slab

Drawing of lifting electromagnet for lifting and turning slab

Drawing of lifting electromagnet for lifting and turning slab
