Your Trusted Jib Cantilever Crane Manufacturer & Supplier
Jib Cranes, Overhead Cantilever Cranes for Designated Work Areas
Economical Slewing Jib Crane Systems
Jib cranes for sale.Types of jib cranes for sale with various jib crane designs and wide jib crane specifications to fit your particular jib crane applications, including free standing jib cranes, wall mounted jib crane, wall travelling jib cranes, 90, 180, 270, 360 degree slewing jib cranes, portable jib cranes, i beam jib cranes, tool balancer jibs, process cantilever jib cranes with box beam & I beam, etc.
What is a jib crane? A jib crane is an economical overhead travelling crane system which is designed for light duty material handling in a smaller work cell area. The small and light crane systems are extremely versatile with flexible crane designs which can also be paired with overhead bridge cranes to maximize production.
- BZ Pillar Jib Crane- Lifting capacity: 0.5-16 ton, Lifting height: 1-10m, Working class: A3.
- BX Wall Mounted Jib Crane- Lifting capacity: 0.25-10 ton, Lifting height: 1-10m, Working class: A3.
- BB Wall-travelling Jib Crane- Lifting capacity: 0.5-10 ton, Lifting height: 6-30m, Working class: A3.
- Applications & Uses of jib cranes .
- Projects of jib cranes .
Jib crane processed for steel plate handling - Check our jib crane projects.Your Trusted Jib Cantilever Crane Manufacturer & Supplier
Various Jib Crane Designs for Your Selction
Floor Jib & Wall Jib, Best Fit Jib Crane for Your Applications
We offer types of jib crane designs with wide variety of capacities, heights and spans. For the selection of a jib crane design, various of factors should be considered including the type of operation and usage, available structure, jib crane costs, and the cost of crane installation and future maintenance, etc. Process jib crane designs are the most cost-effective overhead travelling crane solution for your application. Contact us to confirm specific jib crane specifications, get free jib crane design drawing and specific jib crane price.
Floor mounted jib cranes designs
Floor mounted jib crane also named floor jib crane or free standing jib crane is one of the popular types of jib cranes which is usually mounted on the ground floors, grouped into the concrete foundation type jib crane and foundation-less jib cranes,etc.
Floor mounted jib crane is a free standing jib crane with pillar or column mounted on floor, for short & intenstive lifting, capacity up to 16 ton. Get floor mounted jib crane design now!
- Crane Type:Floor mounted jib crane with free standing jib design
- Crane Capacity:0.25 ton to 16 ton
- Arm Length:up to 16 m
- Lifting Height:up to 12 m
- Rotating Degree:180, 270, or 360 degree
- The concrete foundation type jib crane refers to the jib crane with crane pillar mounted on floor with concrete foundations, also called pillar jib crane, which can be grouped in different types such as base-plate mounted pillar jib crane, insert mounted pillar jib crane and sleeve insert mounted pillar jib crane, etc.
- Foundation-less jib cranes is one type of free standing jib crane do not require a concrete foundation but instead, it is a type of slab-mounted and bolted jib cranes. Check more on jib crane mounting types.
Wall jib crane design - Wall mounted type & Wall travelling type
The wall jib cranes can be grouped in wall mounted jib crane & wall travelling jib cranes with the different cantilever designs such as Cantilever jib crane design & Tie-Rod Supported jib crane designs.
Wall mounted jib cranes is a type of small jib crane which is mounted on walls or columns, therefor it is also called column mounted jib crane or column jib cranes.
Wall travelling jib cranes is a types of wall jib cranes which is travelling on rails, installed and attached on the walls of build facilities.
Jib cantilever designs

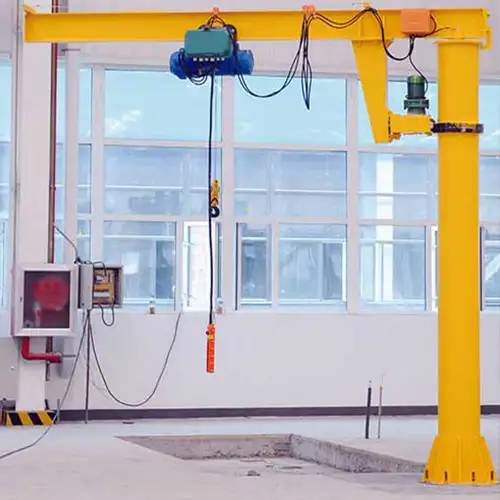

Various slewing jib crane designs and configurations are available, either floor mounted slewing jib or wall mounted slewing jib, with full cantilever or drop cantilever, I beam & H beam cantilever, enclosed track beam cantilever, combined box girder with I beam cantilever, or process cantilever , equipped with hoisting system selected from electric hoist, manual hoist, chain fall hoist or wire rope hoists,and others, etc.
Custom designed swing cranes are ideal for your application. Contact us to send your swing jib crane inquiry now.
Cantilever Jib Crane is a types of wall jib cranes which is travelling on rails, installed and attached on the walls of build facilities.Wall Cantilever Crane Design: Wall mounted cantilever cranes provide the most space above and below the pillar, as well as the option of a full-cantilever design.

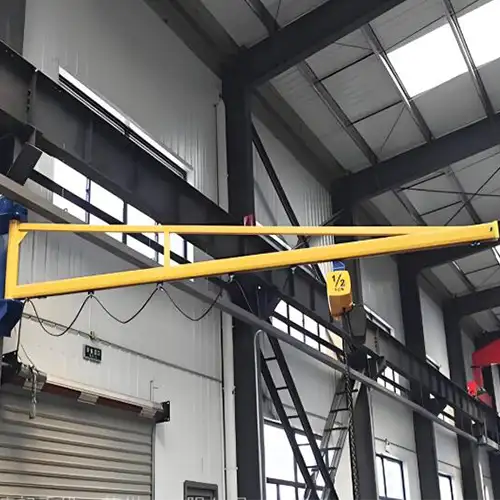

Tie Rod Jib Crane -Tie-Rod The most cost-effective crane design is the jib crane, which provides hoist coverage along walls or building columns. A wall bracket and a single tie-rod support the crane arm, which allows it to hoist the arm or beam.
Rotating systems design
Swing jib crane are optional with manual slewing & electric motor driven rotating with the rotating degree of 90, 180, 270 ,360 degree according to your requirements.
With motor driven design, the rotation of the slewing jib crane can be controlled by a pendant control with all motion buttons which is hard wired in to the electric hoist/ jib crane with a low voltage to ensure safety, and a remote radio control is also an option which enable the crane operator to operate the crane in a safety distance from the loads and crane.

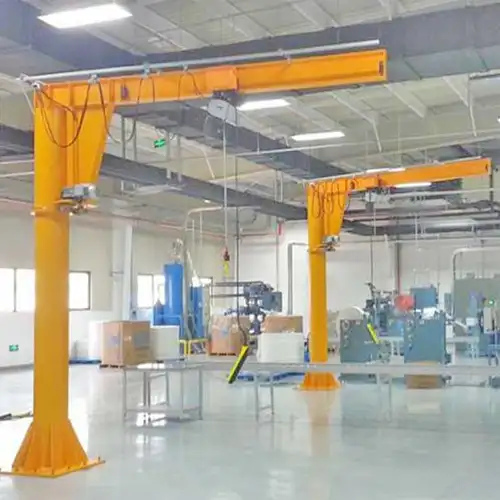

- 360 degree rotation pillar mounted jib crane is a free standing jib crane with pillar jib mounted on floor, for short & crowded lifting, capacity up to 16 ton. Get pillar mounted jib crane design now!
- 180 degree rotating jib crane - Wall mounted jib cranes is a type of small jib crane which is mounted on walls or columns, therefor it is also called column mounted jib crane or column jib cranes.
- Wall travelling jib cranes is a types of wall jib cranes which is travelling on rails, installed and attached on the walls of build facilities.
Portable jib cranes / Movable jib crane designs
Portable jib crane also called movable jib crane, or roller jib crane / rolling jib crane,which is small light duty jib crane for light material handling in workshops or outdoors. The light duty portable jib crane is your portable material handling solution with high cost-effectiveness.
The portable jib crane is a 360°rotation movable jib crane, installed with a manual hoist or electrical hoist,including, electric chain hoist & electric wire rope hoists with capacity of 0.08 ton, 0.125 ton, 0.25 ton, 0.5 ton and 1 ton, 110 volt single phase or 240-480 volts, 3 phase. For hazardous applications, special designed explosion proof hoists & air powered pneumatic spark proof hoists are provided.
- Lifting Capacity: 0.25t / 0.5t / 1t / 2t.
- Lifting Height: 1~3m
- Rotation radius: 1~3m
- Angle of rotation: 180° / 270° / 360°.
Your Trusted Jib Cantilever Crane Manufacturer & Supplier
One Stope Jib Cranes Services
Free Consultation, Economical Slewing Jib Crane Systems
Free jib crane inquiry, valuable consultation crane services. Send a free jib crane inquiry to valuable crane services before crane purchasing to get the best out of our jib crane investment cost.
Our pre- sale jib crane services including :
- Free jib crane consultation to confirm the right type of jib crane & accurate jib crane specifications
- Get tailored crane designs and defined CAD crane drawing for free
- Free jib crane specification pdf brochure & formal jib crane quotation sheet
- Get a chance to save your jib crane cost and a tailored overhead lifting solution at best jib crane price.
How much does a jib crane cost to buy? Send us an inquiry to get an jib crane solution to lift your loads and relief your burden! Send an jib crane inquiry to your latest slewing crane price now!

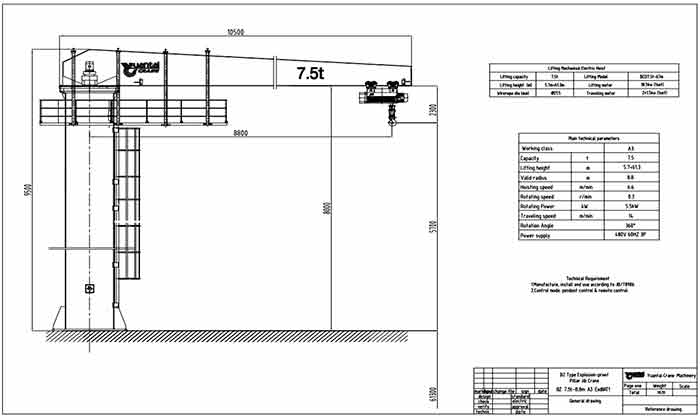

Heavy duty pillar jib crane design drawing 7.5 ton
Confirm jib crane specification, get your jib crane drawing & latest jib crane price
To buy jib crane, the jib crane specifications have to be confirmed which will affect the jib crane price largely. To buy 5 ton jib crane and 10 ton jib crane, you will get the specific 5 ton jib crane price and 10 ton jib crane price with defined specifications on jib crane span, lifting height and track travelling length, etc.
Please confirm the crane type and jib crane specifications to get defined jib crane drawing and latest jib crane price. On buying jib crane, the following main parameters of the jib cranes are needed:
- The type of the jib crane: ___________________________________
- Pillar jib crane- with the pillar itself mounted on ground
- Wall mounted jib crane -mounted on the wall or column
- Wall travelling jib crane- travelling on the crane rails installed and mounted on the walls of the facility
- Portable jib crane - mounted on a crane base with castors
- Lifting capacity of jib crane : Ultimate load lifting capacity= ____tons.
Note: Piller jib crane up to 16 ton, Wall jib crane up to10 ton , Portable jib crane up to 2 ton. Customized jib crane are available.
- Valid Radius /Arm length of jib crane span: ____ meters.
- Lifting height of jib crane : height of lifting from the ground to the lift center (Hook) = ____ meters.
- Crane track length of wall travelling jib crane _______m
- jib crane use/application: ____________________________________
- Control methods of jib crane : Remote control /Panel control
- The rotating angle: 180, 270, 360 or other degree?
- The power voltage: 240V 50Hz 3phase
How much does a jib crane cost to buy? Send us an inquiry via the below form to get an jib crane solution to lift your loads and relief your burden! Send an jib crane inquiry to your free jib crane specification pdf, free CAD jib crane drawing, and latest slewing jib crane price now! WhatsApp/ WeChat: + 86 151 3871 1597.
Pillar jib crane specification drawing
Wall mounted jib crane specification drawing
Wall travelling jib crane specification drawing
Portable jib crane specification drawing
