3 Ton Underhung Crane for Sale Russia, Good Price
FEM Low Headroom Underhung Bridge Crane for Low Ceiling Workshop

Low headroom single girder underhung crane for sale Russia. 3 ton underhung bridge crane, remote control & pendant control for low ceiling workshop. Check the detailed specification and produciton of 3 ton overhead crane to get your customized design for your application. .

Basics of 3 ton underhung bridge crane for Russia

• Crane Type：single girder underhung bridge crane with fem low headroom design
• Date of Placing Oder：2020.6.1
• Date of Delivery ：2020.6.29
• Way of Transportation： By shipping
• Way of Payment：TT
• Destination country： Russia
• Destination port：Qingdao, China
• First Contact：2020.1.20
• Application: Construction industry

3 ton undehrung overhead crane main specifications & general requirements

Main parts and components of 3 ton underhung crane for sale Russia

• 6㎡ complete set of seamless sliding wire + collector, 48m long




• Spare parts: 2 bridge crane running motors, 4 driving wheels, 4 passive wheels, one lifting motor (motor + reducer + brake three-in-one), 2 hooks, 2 disc brakes, aviation plugs 4 pieces,
• Crane control: pendant control and 1 set of remote control for tandem operation of the 2 sets of single girder underrunning overhead crane.

Custom features of 3 ton underhung bridge crane for sale Russia

• Control method: Each underhung bridge crane is equipped with a handle and a set of remote controls, which can operate two bridge cranes synchronously. By the way, the two single girder under running bridge cranes are installed in the same bay.
• Protection level Ip54, configured as SZW motor + Schneider electric components, Italian G.G lifting limit, cross running limit, sound and light alarm, other standard configurations.
• Safety protection: phase protection, anti-collision protection, overload protection, overcurrent protection, lifting limit protection, running limit protection, grounding protection, emergency stop protection.
• Documents: electrical drawings, main girder production drawings, accessories manuals.
• Packaging: Each piece of goods should be marked with a number, and the corresponding name of the number should be listed on the list.The goods are marked with the company names of the buyer and the seller and the contract number.

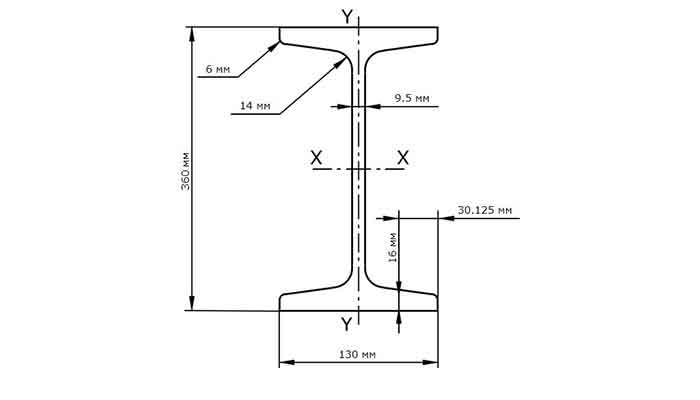

• The ceiling mounted track of the client's underhung bridge crane is an I-beam with a width of 130mm, and the wheel design of the travelling crane should go match with the width. And the detailed specifications of the crane rails are shown as the following：

Crane rail dimensions provided by Russia clients - More about the crane rail sizes and dimensions for your reference.

Production pictures of 3 ton under running overhead crane for sale Russia

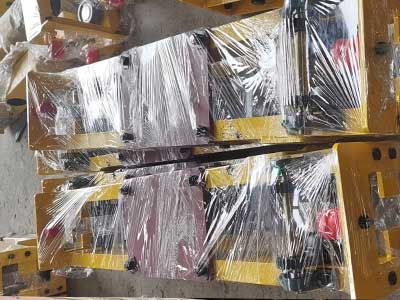

End carriages of 3 ton overhead crane with underhung crane design for sale Russia

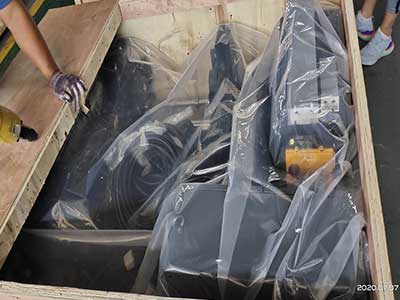

Electric hoist of 3 ton overhead crane for sale

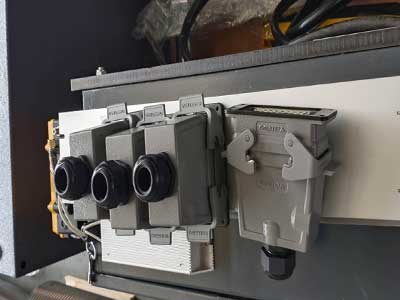

air plug for the single girder undehrung bridge crane

c track of the underhung overhead crane with single girder and low headroom design

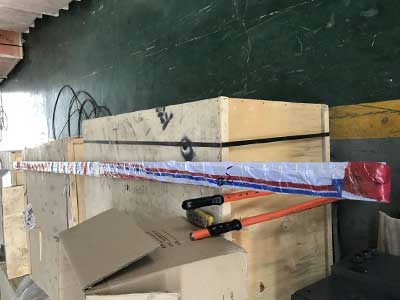

busbar power line for the underhungslung single girder crane

cross limiter of operation safety

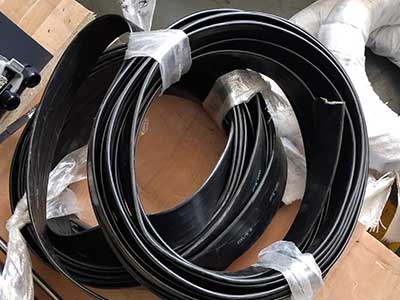

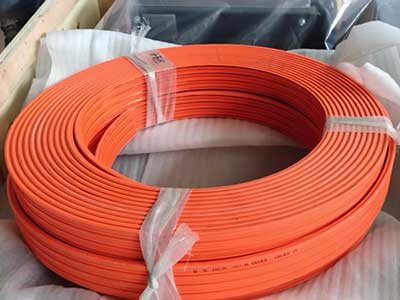

Festoon cable of single girder overhead crane with suspension crane design

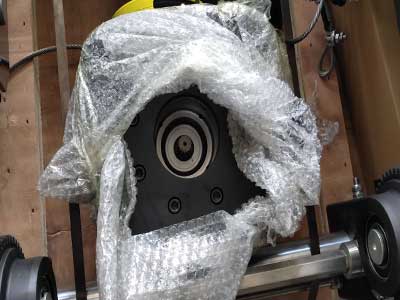

reducer for 3 ton overhead crane kit for sale Russia

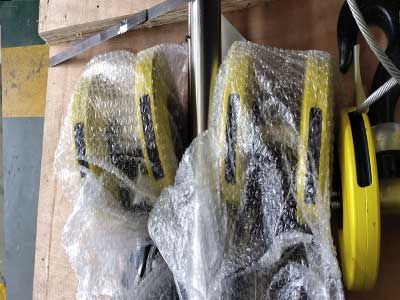

crane hook of low headroom ceiling mounted overhead crane

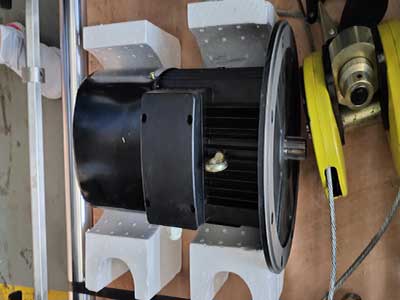

lifting motor of 3 ton underhung overhead crane kit

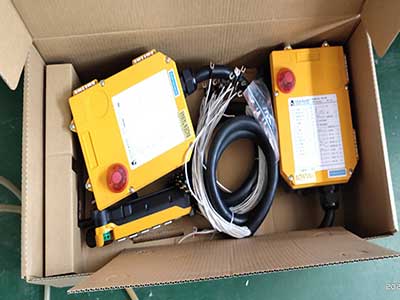

remote control for tandem control of ceiling cranes
