1 Ton & 3 Ton Jib Cranes for Sale UAE, Column Mounted Jib Crane
Column mounted jib crane for sale UAE. 1 ton & 3 ton jib crane, pillar / column jib for indoor use in steel mill, 270 degree rotating jib crane for UAE.
| Crane Type | BZ Column Jib Crane available in 1 Ton and 3 Ton configurations, with 3 m effective arm length, A3 working class, 4 m lifting height for 1 ton and 3 m for 3 ton, pendant control, 415V/50Hz/3Ph power supply, yellow finish, and indoor installation. |
| Crane Capacity | 1 ton and 3 tons, with one crane supplied for each capacity configuration |
| Span Length | 3 m effective arm length for both 1 ton and 3 ton column jib cranes. |
| Lifting Height | 1 Ton: 4 m; 3 Ton: 3 m. |
| Coverage Area Type | Circular or sector-shaped working area around the column, with the lifting coverage determined by the 3 m effective arm length and rotation angle. |
| Application | Indoor material handling, steel mills, workshops, production areas, machinery handling, equipment maintenance, and localized lifting operations. |
| Certifications | CE / ISO / SGS / Other third-party inspection |
| Customization | BZ column jib crane, 1 ton or 3 ton capacity, 3 m effective arm length, 3–4 m lifting height, A3 working class, pendant control, 415V/50Hz/3Ph power supply, indoor installation, customized rotation, hoist type, foundation, and finish. |
Crane Manufacturer: Yuantai Cranes – 30+ Years Professional Crane Manufacturer from China
Category: Custom EOT Crane Manufacturing
Tags: 1tonjibcrane,UAE
Your Trusted Overhead Crane Manufacturer & Supplier
1 Ton & 3 Ton Jib Cranes for Sale UAE,
Column Mounted Jib Crane & 270 Degree Rotating Jib Crane
Column mounted jib crane for sale UAE. 1 ton & 3 ton jib crane, pillar / column jib for indoor use in steel mill, 270 degree rotating jib crane for UAE.
Basics of column jib crane 1 ton & 3 ton for sale UAE
- Crane Type：Pillar / Column jib crane
- Date of Placing Oder： 2020.11.25
- Date of Delivery ： 2020.10.22
- Way of Transportation： Shipping container,By Sea
- Way of Payment： 100% LC
- Destination country： UAE
- Destination port：CIF Jebel Alisea port
- First Contact：2020.10.22
- Application: Steel Mill
General requirements & main specifications of column jib cranes
Crane type | Column jib crane | Column jib crane |
Model | BZ | BZ |
Working Class | A3 | A3 |
Capacity | 1 ton | 3 ton |
Span length (m)/ Effective Arm Length | 3 m | 3m |
Lifting Height（M） | 4 m | 3 m |
Crane control | Pendant control | Pendant control |
Voltage | 415v,50hz,3p | 415v,50hz,3p |
Color | Yellow | Yellow |
Application | Indoor | Indoor |
Quantity | 1 | 1 |
Customized features of column jib cranes UAE
- 1 ton column jib crane is required with travelling speed of 11m/min and lifting speed of 3.6m/min，with rotating of 270 degree.
- 3 ton column jib crane is required with travelling speed of 11m/min and lifting speed of 3.3m/min，with rotating of 270 degree.
Manufacturing of column jib crane UAE

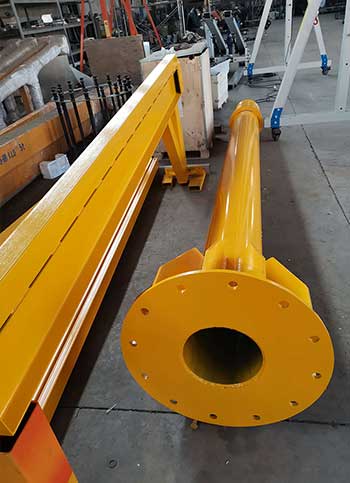

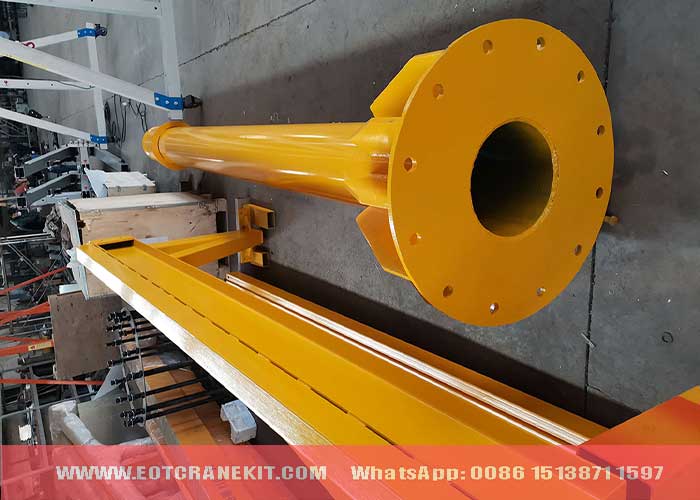

Columns of jib cranes 1 ton and 3 ton for sale UAE

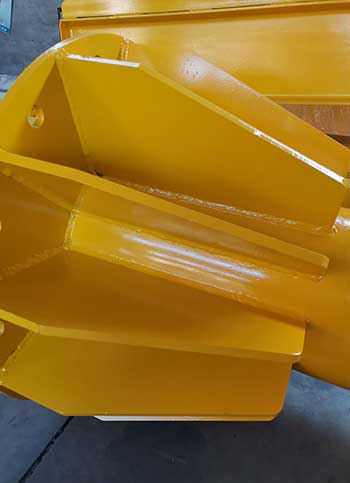

Footing of column jib crane for sale UAE

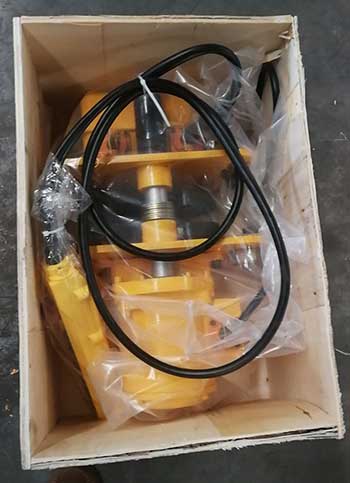

Electric jib hoist

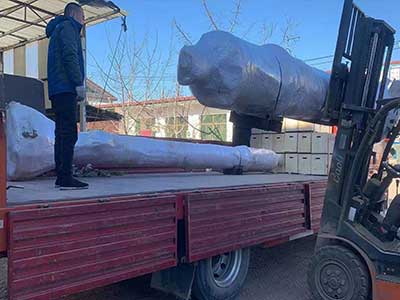

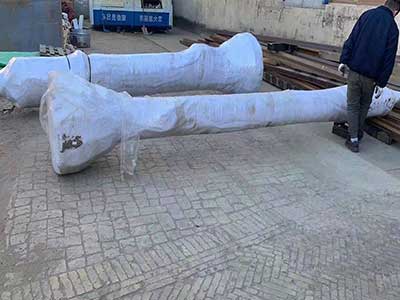

Columns of 1 ton and 3 ton jib crane packaged for delivery to uae

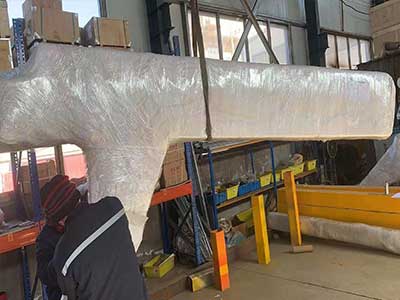

Cantilever of column jib crane for sale UAE
