85 Ton & 40 Ton Overhead Crane for Sale Middle East
Explosion Proof Overhead Crane Double Girder Design
Explosion proof overhead crane 40 ton & 85 ton for sale Middle East. Explosion proof crane, double girder overhead crane design, 40 ton & 85 ton, customized.
Basics of overhead crane for sale Middle East
- Crane Type：Electric wire rope hoist crab trolley
- Date of Placing Oder：2022.7.29
- Date of Delivery ：2022.12.10
- Way of Transportation：Shipping, 40GP containers *9
- Way of Payment：TT50%
- Destination country： Middle East
- Destination port：FOB, Shanghai Port
40 ton & 85 ton explosion proof overhead crane main specifications & general requirements
Crane type | Model | Working class | Tonnage（T） | Span(m) | Lifting Height（M） | Crane control | Voltage | Color | Indoor / Outdoor use | Crane rail | Quality |
Explosion proof overhead crane with hook | QB | A3 | 40 | 22 | 18 | Pendant control | 3/400/50 | Standard | / | QU80 | 1 |
Explosion proof overhead crane with hook | QB | A3 | 85 | 20.7 | 19.7 | Pendant control | 3/400/50 | Standard | / | QU80 | 1 |
QU80 crane track | The running length of the 40 ton double-girder explosion-proof bridge crane is 21M, the QU80 track is equipped with 42M, 140 bolt pressure plates, and 7 pairs of clamping plates; The running length of the 85 ton double-girder explosion-proof bridge crane is 28M, the QU80 track is equipped with 56M, 187 bolt pressure plates, and 9 pairs of clamping plates; The total length of the track is 98M, the total number of bolts is 327, and 16 pairs of clamps ; | ||||||||||
Overhead travelling travelling power supply C-shaped steel + flat cable | The 40 ton double-girder explosion-proof overhead crane has a running length of 21M, and the cable is 16 mm2 cables + C-shaped steel; The 85 ton double-girder explosion-proof overhead crane has a running length of 28M, and the cable is 35 mm2 flat cable + C-shaped steel; | ||||||||||
Processing of explosion proof 40 ton overhead crane trolley and frame

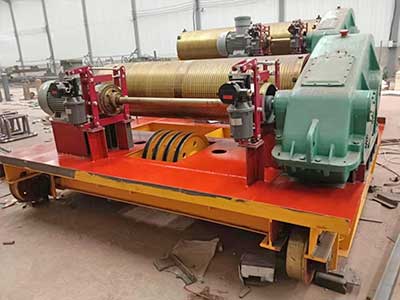

40 ton open winch for explosion proof double girder overhead crane for sale Middle East
40 ton open winch for explosion proof double girder overhead crane for sale Middle East

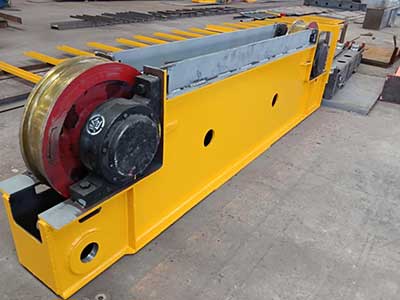

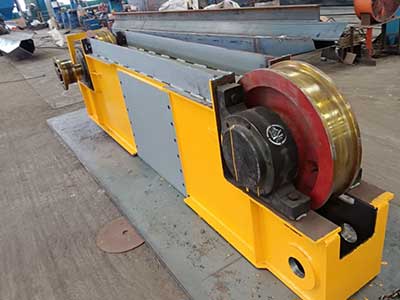

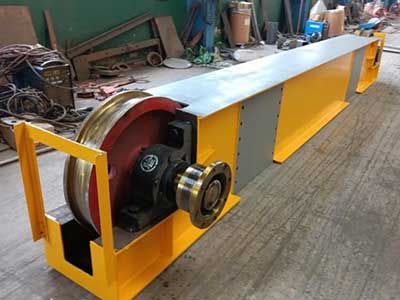

End carriages of explosion proof bridge crane 40 ton for sale Middle East

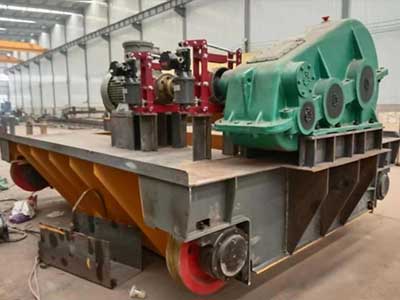

Manufacturing of explosion proof 85 ton overhead crane trolley and frame

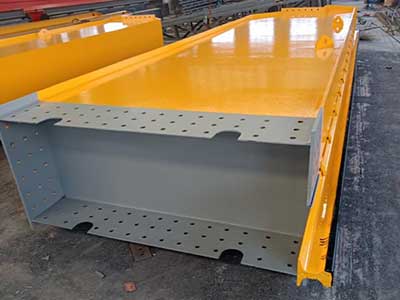

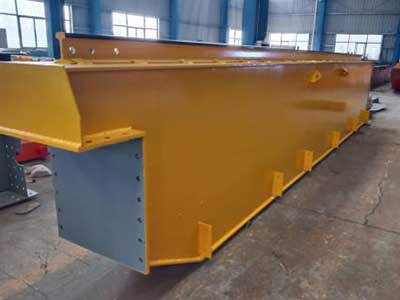

Production of explosion proof 40 ton & 85 ton overhead bridge crane main girder

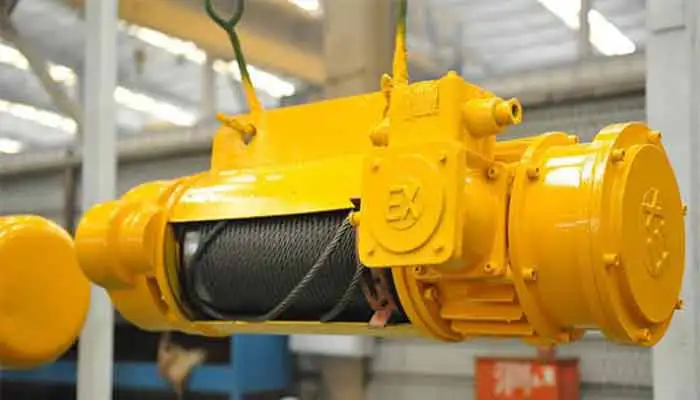

Explosion Proof Overhead Crane
In accordance with European Directive ATEX 2014/34/EU, this product is intended for use in hazardous zones 1 and 2.
In accordance with European directive ATEX 2014/34/EU, our explosion-proof overhead cranes are designed for use in hazardous areas Zone 1 and Zone 2. In addition, our cranes and components meet European explosion standards EN ISO 80079 and EN 60079. We provide tailored solutions for a wide range of applications, with lifting capacities ranging from 500 kg Ex chain hoists to 180 tons double girder cranes, using modular components and advanced computerised design programs to meet standard or special customer requirements.
Our electric overhead cranes have been type tested by an independent ATEX notified body and are CE marked, with test certificates and documentation. All of our overhead cranes are manufactured in accordance with ISO9001, ISO14001, and ISO45001 standards, and they are extremely durable, requiring little maintenance and lasting a long time. This gives our overhead bridge crane the highest level of safety, quality, and dependability required for hazardous environments such as oil refineries, petrochemical plants, paint factories, and gas power plants, etc.
Protection and CE Marking- Ex d (flameproof enclosure) and Ex e (increased safety) explosion-proof cranes with CE marking: II 2G Ex db eb h IIB T4 Gb (standard), II 2G Ex db eb IIC T4 Gb (Special), II 2D Ex h tb IIIC T135°C Db (DUST).
LB Single Girder Explosion Proof Crane
Main parameters of single girder explosion proof crane :
- Load capacity: 1-20t
- Span: 7.5-31.5m
- Lifting height: 6-30m
- Lifting speed: 0.33-8m/min
- Hoist running speed: 20m/min
- Crane running speed: 20m/min
- Explosion-proof grade: ExdⅡBT4、ExdⅡCT4
- Work duty: A3, A4
Features of exploison proof single girder crane
- Crane capability of up to 20 tons.
- For maximum space utilization, a compact design with standard headroom EU or low headroom wire rope hoist is used.
- Electrical enclosures must have an IP55 rating.
- To provide a longer operational life span, all motors are equipped with Insulation Class F and Temperature Rise Class B.
- Lifting and lowering motions are automatically cut off at the upper and lower positions.
- Electronic overload protection with horn warning.
- At full load, the noise level should be less than 85 dB(A).
- For the hoisting motion, two speeds can be controlled by changing the poles.
- Two-speed control for trolley and bridge motion via inverter control for smooth and precise operation.
- Thermal protection and three PTC thermistors for inverter drive.
- Supply Voltage: 380 V-460 V, 3 Phase, 50-60 Hz, Others upon request.
- II 2G Ex db eb h IIC T4 Gb (GAS) and II 2D Ex h tb IIIC T135°C Db provide explosion protection (DUST).
- For protection against combustible dust or severe weather, use an enclosure up to IP66.
QB double girder explosion proof crane
Main parameters of dingle girder explosion proof crane :
- Load capacity: 5-75t
- Span: 10.5-31.5 m
- Lifting height: 6-20m
- Lifting speed: 1.9-5m/min
- Trolley running speed: 10.5-20.5m/min
- Crane running speed: 15.4-22.3m/min
- Explosion-proof grade: ExdⅡBT4、ExdⅡCT4
- Work duty: A3-A4
Features of double girder explosion proof cranes
- Crane capacity up to 75 tons.
- For electrical enclosures, minimum IP55 is required.
- To guarantee a longer operational life, all motors are outfitted with Insulation Class F and Temperature Rise Class B.
- The lifting and lowering operations are automatically stopped at the upper and lower places.
- Electronic overload protection with a warning horn; full load noise level less than 85 dB(A)
- Two speed control for the hoisting process via pole switching.
- Thermal protection for changing poles and three PTC thermistors for inverter driving. Two speed control via inverter control for trolley and bridge motion. Precise operation.
- Asbestos-free brake that automatically engages in the event of a power outage.
- Supply Voltage: 3 Phase, 380 V-460 V, 50-60 Hz, Other Voltages Available Upon Request.
- The II 2G Ex db eb h IIC T4 Gb (GAS) and II 2D Ex h tb IIIC T135°C Db provide explosion protection (DUST).
- For protection against combustible dust or severe weather, use an enclosure up to IP66.
We design and manufacture high-quality, low-cost explosion-proof overhead cranes for reliable and safe lifting operations. The overhead crane is appropriate for hazardous working environments such as chemical plants, coal mines, and factories where explosive or flammable substances are present. Our explosion proof overhead cranes, backed by a professional technical team, can be custom designed and built to meet your specific needs.
