Underhung KBK Rail Crane 2 Ton & Gantry Crane 10 Ton for Kenya
Custom Crane Specificaiton and Design for You

Item

Mold

Working class

Tonnages（T）

Span (m)

Lifting height（M）

Crane control

Voltage

Color

Indoor use/Outdoor use

Crane track

Quality

Single girder gantry crane

MH

M3

10

12

5

Pendent control

415v/50Hz/3p

Yellow

Indoor

Included

1

Double speed electric wire rope hoist

MD

M3

5

0

6

Pendent control

415v/50Hz/3p

Standard

Indoor

NO

4

KBK crane

/

M3

0.5

1.2（3span ）

/

/

415v/50Hz/3p

Yellow

Indoor

Included

2

/

M3

0.1

Travelling length 19m，600+8600+9200+600mm, as per the drawing

Steel Structure

as per the designing drawing

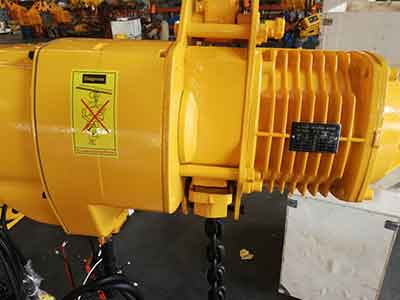

Motorized travelling electric chain hoist with seamless power line

M3

2

19（go with the #30H beam）

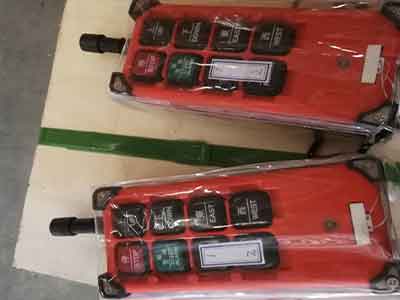

Synchronized operation（one more spare transmitter)

415v/50Hz/3p

Yellow

Indoor

Included

2

Item

Quality

Code

Unit Length m

Unit Width 宽m

Unit Height m

Unit length kgs

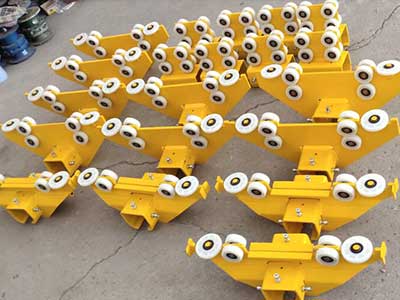

Travelling trolley

2

0.57

0.39

0.35

47/52

Electric hoists

2

0.68

0.42

0.66

110/120

Rigid Underhung KBK Rail Crane

1

WH001

10

0.43

0.36

774

Rigid Underhung KBK Rail Crane

1

WH002

10

0.48

0.4

986

Rigid Underhung KBK Rail Crane

1

WH003

10

0.48

0.4

986

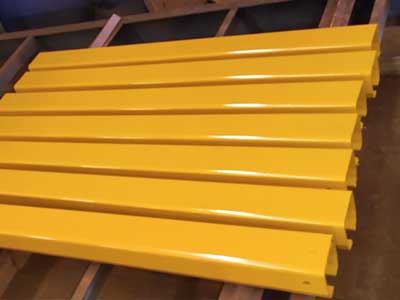

Rigid kbk crane telesopic rail

1

WH004

1.25

0.4

0.4

158

Columns of ceiling mounted workstation KBK crane

1

WH005

4.48

1.06

0.4

628

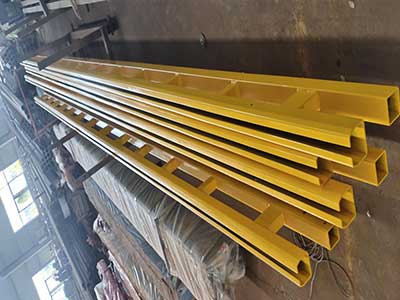

H beam of Ceiling mounted workstation KBK crane

1

WH006

5.35

0.7

0.35

752

H beam of Ceiling mounted workstation KBK crane

1

WH007

10

0.26

0.3

822

Supporting beam of Ceiling mounted workstation KBK crane

1

WH008

0.7

0.8

0.32

140

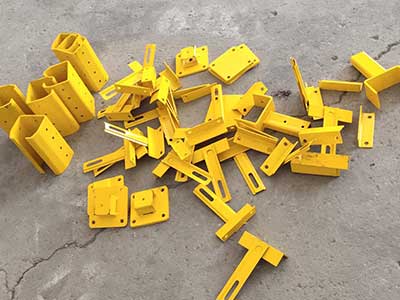

Accessories of ceiling mounted workstation KBK crane

1

WH009

0.85

0.48

0.5

194

Accessories of ceiling mounted workstation KBK crane

1

WH010

0.85

0.48

0.5

130

Accessories of ceiling mounted workstation KBK crane

1

WH011

0.85

0.48

0.5

90

Accessories of ceiling mounted workstation KBK crane

1

WH012

0.61

0.34

0.48

98

Accessories of ceiling mounted workstation KBK crane

1

WH013

0.61

0.34

0.48

90

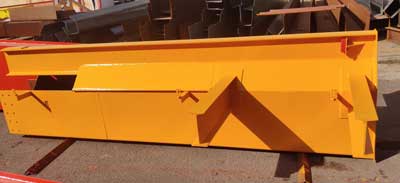

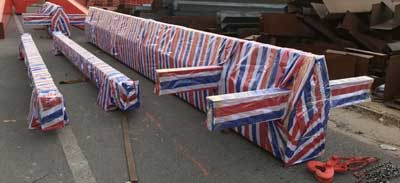

Main girder of single girder gantry crane

1

8.51

2

1.01

1640

Main girder of single girder gantry crane

1

3.91

2

1.01

850

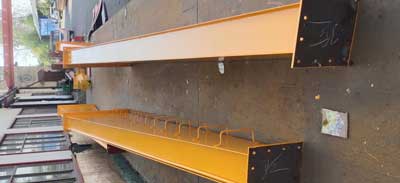

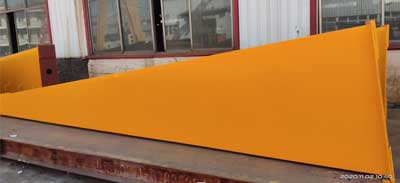

Supporting legs of single girder gantry crane

4

6.5

0.45

1.31

790

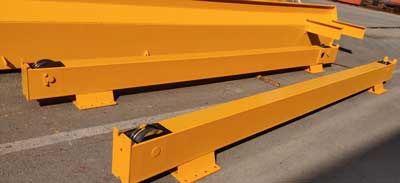

Ground beams of single girder gantry crane

2

5.45

0.41

0.47

380

Electric hoists cases

1

1.74

1.01

0.94

916

Electric hoists cases

4

1.61

0.72

0.7

440

Accessories cases

1

0.76

0.76

0.81

240

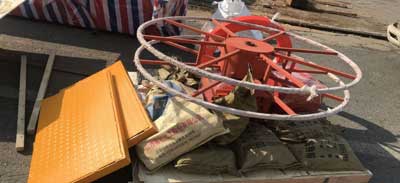

Cable reels,  rail clamp plates, sliding wire boxes

1

1.4

1.4

0.91

576

60MP24 gantry crane rail

7

8

0.09

0.11

186

60MP24 gantry crane rail

1

4

0.09

0.11

93
