500kg -10 ton Movable Gantry Crane
Hand Turbine Adjustable Height Gantry Crane

500kg -10 ton movable gantry crane, adjustable height by hand turbine, A frame gantry with movable castors, light, flexible & affordable gantry price.Non-standard customized movable gantry crane is designed with hand turbine adjustable height which can be used by diversified use sites with more convenience.

Main parameters of hand turbine adjustable movable gantry crane

• Capacity of movable gantry crane: 1 ton - 10 ton,
• Span of movable gantry crane: (m):2-12 (as your requirement)
• Height of movable gantry crane: (m):1-10 (as your requirement)
• Lifting equipment of movable gantry crane:Manual hoist, Electric wire rope hoist, or Electric Chain hoist
• Height adjustment of movable gantry crane: hand turbine
• Gantry moving type: Hand push or motorized

Features of hand turbine movable gantry crane

• Precision parts and welding components of movable gantry cranes are installed in alignment, ensuring easy operation, stable performance and long service life.
• The height adjustment of movable gantry crane adopts sliding sleeve design, worm gear and worm drive, so as to lift the inner core of the column, and then drive the main beam to lift.
• The height of the movable gantry crane can be adjusted slightly which make the small gantry has a wider applications.
• Worm gear height adjustment design is more reasonable and safer to use
• Fully detachable gantry frame design is more convenient for transportation. With 8.8 grade high-strength bolt connection, the movable gantry crane is simple installation.
• The movable gantry crane can reach the maximum lifting height with the lowest body height.

Working principle of hand turbine movable gantry crane

The height adjustment of the movable gantry crane is adjusted by worm gear turbine to realize higher and lower of lifting height.

Specifically, the vertical sector gear is driven by rotating the hand crank, and then the horizontal sector gear is driven by the meshing of the gear. The horizontal sector gear and the lifting screw rotate together to drive the lifting nut fixed under the inner core of the column, so that the lifting nut is The lead screw climbs and descends, which in turn drives the rise and fall of the inner core of the column. Bearings are installed on the side of the lower end of the inner core of the column for the purpose of reducing friction and guiding.

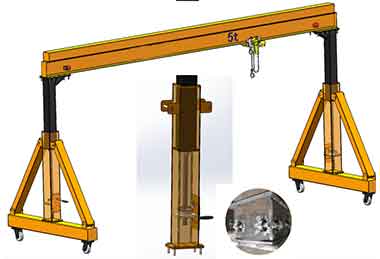

Hand turbine height adjustable movable gantry crane

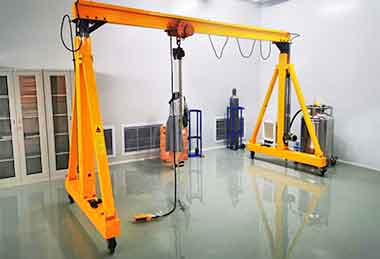

Hand turbine height adjustable movable gantry crane

Hand turbine vs. Hand winch

• Hand winch: Adjust the distance according to the hole position, the spacing is 1m or 200mm, and can be customized according to customer requirements.

• Turbine lift: manual and electric, suitable for the height difference between the left and right outriggers, high requirements for lifting accuracy, and if the lifting height is relatively large, it is recommended to use an electric turbine.The cost of turbine lift will be about 2000-3000 higher, depending on customer requirements.

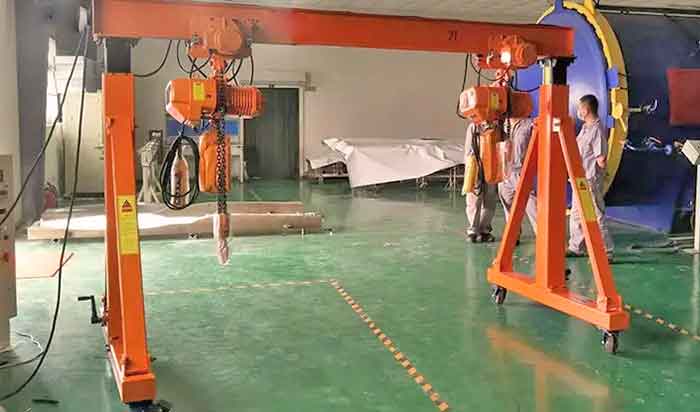

Hand turbine height adjustable movable gantry crane

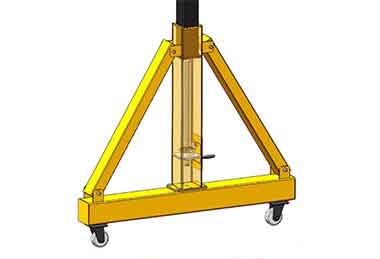

Hand winch movable gantry crane

Applications of Hand turbine movable gantry crane

Hand Turbine Telescopic Gantry Crane is a type of small portable gantry crane . The brackets on both sides of the gantry are combined with a fixed sleeve and a moving sleeve, so that the lifting frame body can move freely in the fixed sleeve, so that the height of the entire gantry can be adjusted. tune. Not only is it convenient to meet various needs, but also the space occupied by the volume can be reduced, which is convenient for transportation.

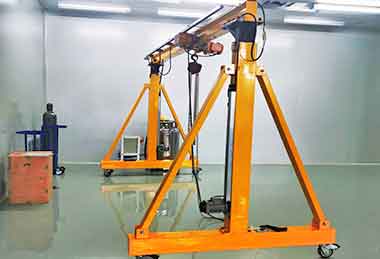

Hand turbine height adjustable movable gantry crane1

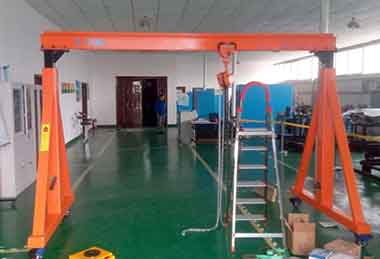

Hand turbine height adjustable movable gantry crane
