Hand winch height adjustable mobile a frame gantry crane 1 ton -10 ton for indoor & open yards material handling, such as, machinery maintenance, mold exchanging, and other loads handling, etc. Non-standard customized mobile a frame gantry crane are designed with adjustable height by hand winch. The adjustable mobile a frame gantry cranes can be designed with various designs and can be used in diversified working applications. According to your requirement, the mobile a frame gantry crane can be equipped with self-locking winch or turbine winch to make the height adjustment more convenient and easily.

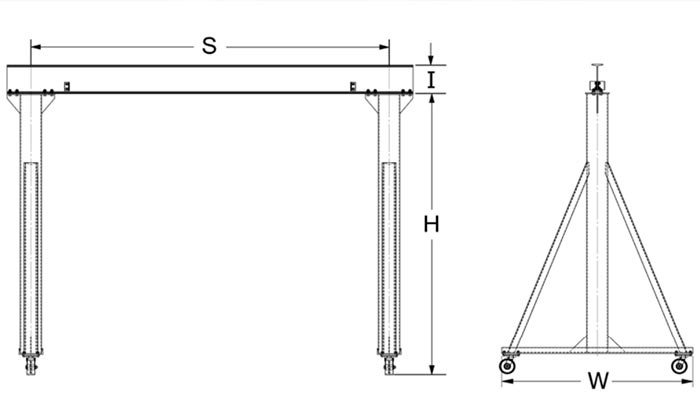

Main parameters of hand winch adjustable a frame mobile gantry crane

• Capacity of mobile a frame gantry crane: 1 ton, 2 ton, 3 ton, 5 ton, 7.5 ton, 10 ton,
• Span of mobile a frame gantry crane (m):2-12 (as your requirement)
• Height of mobile a frame gantry crane(m):1-10 (as your requirement)
• Lifting equipment of mobile a frame gantry crane:Manual hoist, Electric wire rope hoist, or Electric Chain hoist
• Height Adjustment of mobile a frame gantry crane: Hand winch
• Gantry moving type : Hand push or motorized

Features of adjustable mobile a frame gantry crane

• Precision parts and welding components are installed in alignment, easy operation, stable performance and long service life
• The mobile a frame gantry crane adopts national standard steel plates, fabricated by laser cutting with high precision and smooth surface.
• Fully detachable gantry frame design makes the A frame gantry crane convenient for transportation and installation, by flange and 8.8 grade high-strength bolt connection,.
• The lifting of the adjustable gantry crane adopts the sliding sleeve design, and the wire rope is equipped with a guide pulley, so as to lift the inner core of the column, and then drive the main beam to lift.
• The mobile A frame gantry crane can reach the maximum lifting height with the lowest body height

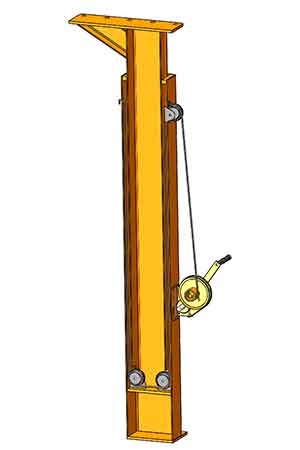

Working principle of hand winch mobile a frame gantry crane

The hand winch adjustable mobile a frame gantry crane mainly realizes the lifting by driving the wire rope through the hand winch and then driving the movable pulley.

Specifically, the wire rope is shortened by turning the hand crank handle of the winch, and the movable pulley of the inner core of the column is driven to lift, that is, the inner core of the column is driven to lift as a whole.

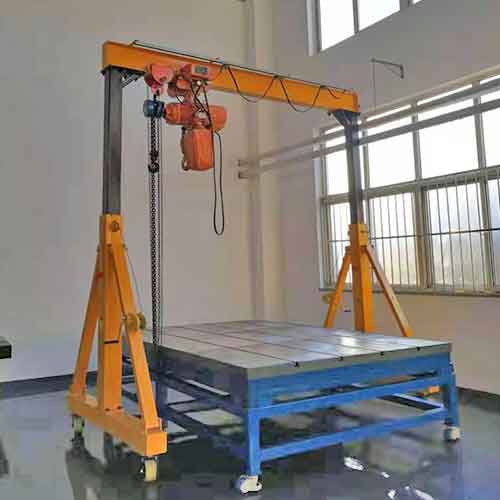

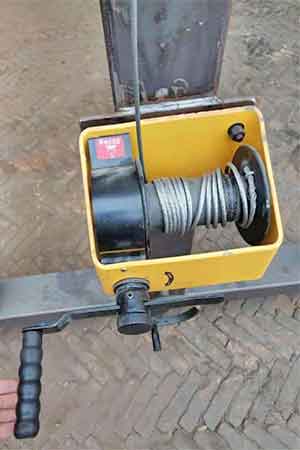

Hand winch mobile a frame gantry crane

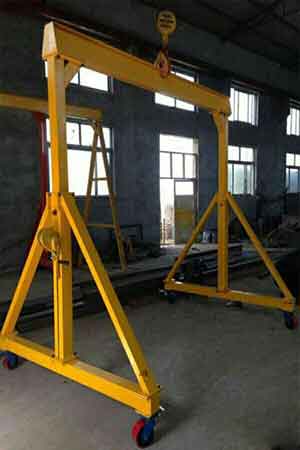

Hand winch mobile a frame gantry crane

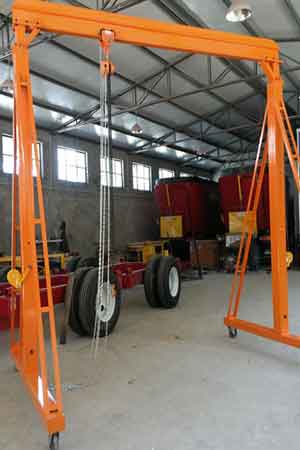

Hand winch mobile a frame gantry crane

Installation of movable gantry crane hoist

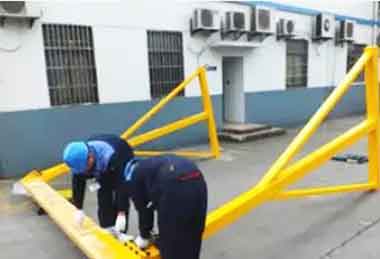

Installation of A frame mobile gantry crane 1： Castor Installation

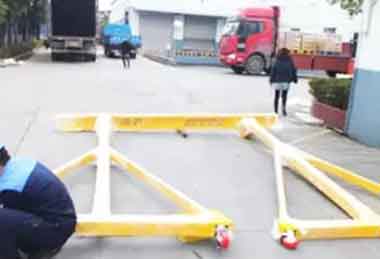

Installation of A frame mobile gantry crane 2： Connect the supporting legs and crane beam

Installation of A frame mobile gantry crane 3：Set up the gantry frame

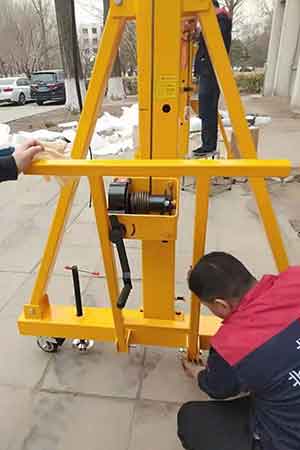

Installation of A frame mobile gantry crane 4： Adjust the distance between wheels

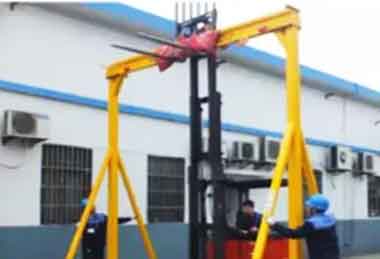

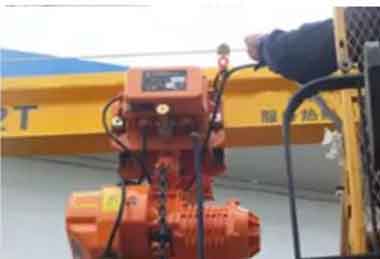

Installation of A frame mobile gantry crane 5： Install gantry hoist and wire

Installation of A frame mobile gantry crane 6： Crane installation completed

Application of mobile A frame gantry crane

Because of their dependable and varied designs, the movable A frame gantry cranes are an outstanding and cost-effective material handling crane option for a wide range of applications. Small A frame moveable gantry cranes are commonly employed in the following situations:

• Load handling is necessary wherever an overhead moving crane is required in a building or facility.
• When a forklift, normal gantry crane, or other overhead traveling crane solution is prohibitively expensive.
• Material handling in a specific location, a small A frame gantry crane will be a better solution.
• The small A frame gantry cranes are widely used over machines and equipment for  machinery maintaining work and other types of material handling, which is a better option than a forklift.
• Anywhere an overhead material handling equipment is required on a sporadic basis.

A frame gantry cranes are excellent choices for applications where you need a portable, movable, and cost-effective way to handle material in your workshops or factories, such as a workshop, warehouse, shipyard, freight yard, workstation, garage, moulding plant, mine, construction site, welding and fabrication factory, and other instances.

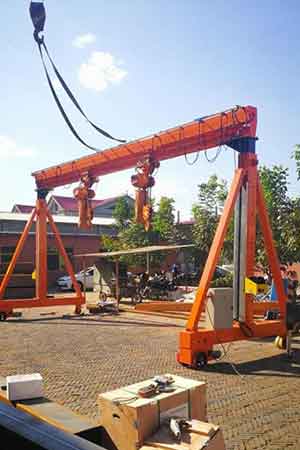

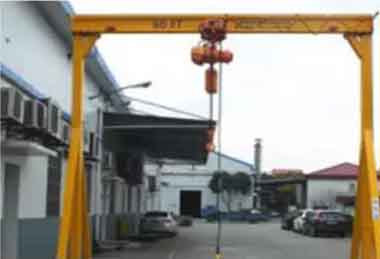

Mobile A frame gantry crane case

Mobile A frame gantry crane case

Mobile A frame gantry crane case

Get your custom designed hand push movable gantry crane hoist

To get your specially designed movable gantry crane, the following parameters are needed；

• Capacity of movable A frame gantry hoist: ___?
• Width of mobile A frame gantry hoist: ___?
• Span of mobile A frame gantry hoist: ___?
• Tread width of mobile A frame gantry hoist: ___?

Movable gantry crane, steel gantry designed with fixed height & span, manual driven wheel & gantry hoist,up to 5 ton. Movable gantry crane hoist for sale, good gantry crane price. Contact us today to get your customized movable gantry crane.
