Rail Portable Gantry Crane 500KG to 20 Ton
Small Rail Gantry Crane & Rail Mounted Crane

Rail travelling portable gantry crane, a small gantry crane, rail travelling design, simple gantry crane structure, for 500kg to 20 ton material handling. Rail-type mobile gantry cranes are commonly used in everyday operation for light duty material handling in various applications such as workshops, warehouse, and open yards for loads, hoisting, machinery maintenance, and various types of loads handling and transportation. Small rail mounted portable gantry crane is well designed and fabricated to meet light loads handling with simple structure gantry crane structure with customized design, the max capacity can be up to 20 ton.

The small rail type portable gantry cranes are widely used for various applications such as mold production, automotive factories, mines, building sites, and other lifting situations. The most significant benefit of a rail type mobile gantry crane is its omni-directional mobility, small footprint, and logical steel structural design, which can support loads ranging from 500kg to 10 ton with standard design and up to 20 ton with processed portable gantry crane design.

Specifically designed rail portable gantry crane is for the installation, handling, and debugging of workplace equipment. Manpower is saved, manufacturing and running costs are reduced, and work efficiency is improved with the rail type mobile gantry crane.

Main parameters of rail type mobile gantry crane

• Load capacity of rail portable gantry crane: 0.5 ton – 20 tons
• Crane span of rail portable gantry crane : 2m – 8m or customized
• Lifting height of rail portable gantry crane: 1m to 15m or customized
• Hoist unit of rail portable gantry crane: Motorized or manual
• Power source of rail portable gantry crane: Based on your power supply

Customized rail mounted mobile gantry cranes or overhead crane are available. Please feel free to contact us to get your rail type mobile gantry crane.

Features of rail mounted mobile gantry crane

• The rail travelling mobile gantry crane adopts national standard steel plates, manufactured by laser cutting, with smooth cutting surface and highly precision position holes.
• The crane track or crane rail is laid on the ground, the mobile gantry crane runs on the track with fixed routine which is more efficient and more stable in use.
• The electric motorized travelling crane kit can be installed on various types of gantry cranes, with more powerful and more functional which will meet diverse needs of customers and providing better customer using experience.
• Rail type mobile gantry cranes are especially suitable for large tonnage and large tonnage gantry cranes which is up to 20 tons.

Advantages of Small Rail Gantry Crane

Similar to the roller type portable gantry crane , the rail type portable gantry crane is specially designed for easy erection and dismantling. With a compact package for carriage or storage, when you do not assemble the rail type portable gantry crane, it is ready for use at any time.

Compared to the traditional gantry cranes, the small rail gantry crane is specially designed for smooth lifting and movement with square tubing uprights, knee braces, and channel and base structure.

High safety performance, the bolted beam design of the gantry crane upgrade the crane parts connection which can increase your operator operation safety performance.

• With proper electric motor driven kit, the portable gantry crane are used to improve your working efficiency and safety. Easy operation ,wireless controller or pendant controller are optional. With the selected gantry crane controller to operate portable gantry crane to move forward and backward, and to control the hoist to hoist up and down, left and right.
• With motorized travelling, the rail mounted gantry crane can travel under load with smooth starting and stopping.
• Every steel tube of the rail portable gantry crane is detachable makes the disassembly and assembly much more easy.
• Portable gantry crane design and simple gantry crane structure allows for easy relocation for use in more than one facility or work area.

Applications of rail mounted mobile gantry crane

Because of their dependable and varied crane designs, small rail gantry cranes are an outstanding and cost-effective crane option for a wide range of applications. Small rail mounted gantry cranes are commonly employed in the following situations:

• Load handling is necessary wherever an overhead travelling crane is required in a building or facility.
• When a forklift, normal gantry crane, or other overhead traveling crane solution is prohibitively expensive.
• Material handling in a specific location, the small rail gantry crane is the option.
• Over machines for maintaining work and material handling a safer portable gantry crane is a better choice than a forklift
• Anywhere an overhead material handling crane equipment is required on a sporadic basis.

Portable Rail Gantry cranes are excellent choices for applications where you need a portable, movable, and cost-effective way to handle material in your workshops or factories, such as a workshop, warehouse, shipyard, freight yard, workstation, garage, moulding plant, mine, construction site, welding and fabrication factory, and other instances.

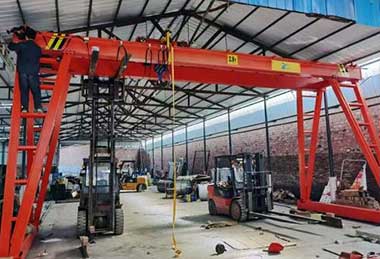

Simple rail mounted gantry crane with electric chain hoist

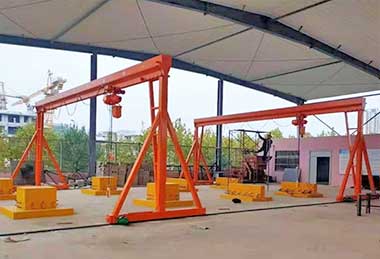

Rail type small portable gantry crane

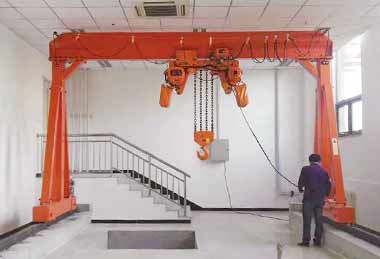

Double girder rail mounted portable gantry crane

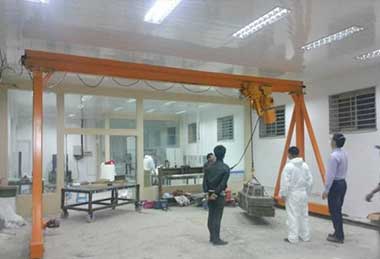

Small portable gantry crane with rail travelling crane design

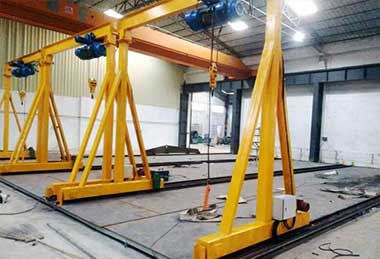

Rail travelling portable gantry crane with electric wire rope hoist

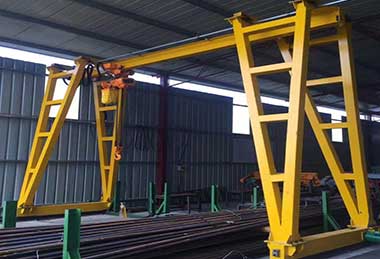

Rail mounted small gantry with electric hoist
