Straddle Carrier Collision Warning System

All sensor data is processed in real time. The system does not just detect objects—it evaluates how close they are and how the machine is moving.

It continuously analyzes:

• Distance between the straddle carrier and nearby objects
• Movement direction and speed of the machine
• Whether the object is static or moving
• Risk level based on closing distance

This helps the system understand not only "what is there," but also "how fast a risk is forming."

When a potential risk is identified, the system immediately informs the operator. The warning is designed to be clear and easy to understand during active operation.

• Visual alerts shown on the cabin display
• Audible alarm for immediate attention
• Graded warnings based on risk level (low, medium, high)

The idea is to avoid confusion. The operator receives a simple signal and can act without delay.

The system supports a clear and practical reaction flow in real operation:

Detection → Warning → Operator action → Collision avoidance

In most cases, the system provides early enough warning so the operator can slow down, stop, or adjust direction smoothly. It does not replace operator control. It supports faster awareness so the operator can make safer decisions in real time.

The system supports several core safety functions that work continuously during operation:

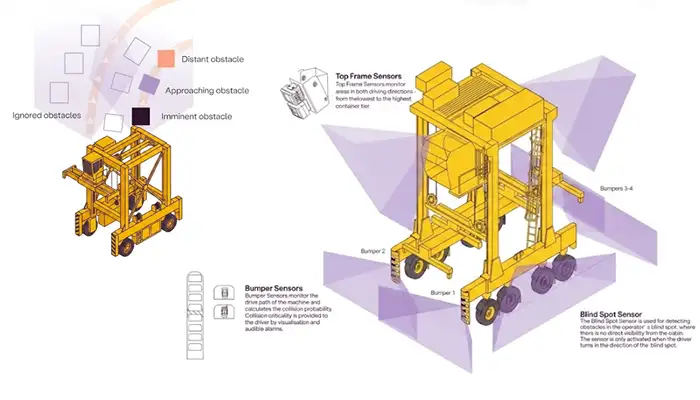

• Multi-directional obstacle detection for surrounding area coverage during movement
• Blind spot monitoring to reduce risk during turning, reversing, and narrow lane operation
• Spreader and load path protection to avoid contact during lifting, lowering, and container handling
• Real-time hazard recognition based on continuous sensor input
• Dynamic risk assessment that adjusts warning level based on speed and direction
• Night and low-visibility operation support for fog, rain, and low-light yard conditions

These functions are not separate tools. They work together as one system during daily operation. When the straddle carrier moves, the system continuously checks distance, direction, and surrounding objects, then calculates whether a risk is forming.

The operator receives simple and clear warnings based on that analysis. This helps reduce reaction delay, especially in busy terminal environments where multiple machines operate close to each other.

In real use, these safety functions help operators maintain better awareness without increasing workload. The system supports safer turning, reversing, and container handling, especially in tight or high-traffic areas.

Over time, this leads to fewer contact incidents, more stable equipment movement, and smoother yard coordination during peak operation hours.

The system provides practical protection across the most common risk areas in straddle carrier work. It helps reduce direct contact and supports safer movement in tight and busy yard conditions.

• Prevents straddle-to-straddle collisions during close traffic operation
• Reduces spreader and container impact damage during lifting and positioning
• Supports safer reversing and turning in narrow lanes and stacked container areas
• Enhances operator situational awareness in blind spots and crowded zones

Each of these functions works together. The goal is not only to detect danger, but to help the operator avoid it in time with clear warnings.

When these protections are applied during daily operation, the effect is usually seen across the whole yard, not just one machine.

Operations become more stable because there are fewer unexpected stops. Equipment stays in service for longer periods. Operators also work with more confidence, especially in dense traffic areas where movement coordination is critical.

• Fewer accidents during routine handling work
• Fewer interruptions in container flow
• More stable and predictable yard performance

In practice, this means the yard keeps moving without frequent disruption, even during peak operation hours.

In daily straddle carrier operations, safety systems are often seen as protection tools. But in real yard performance, they also play a direct role in reducing operating cost and keeping equipment in service for longer periods.

When collisions and near-misses are reduced, the impact is not only safer operation. It also improves how efficiently the entire fleet is used over time.

The system actively reduces operational risks while supporting more stable long-term equipment performance. It helps operators avoid situations that usually lead to damage, downtime, and unexpected maintenance work.

When the system is in continuous use during yard movement, the benefits appear in several practical areas:

• Lower maintenance and repair costs due to fewer collision-related damages
• Reduced unplanned downtime, keeping machines available for scheduled operations
• Higher fleet availability, especially during peak handling periods
• Longer equipment service life by reducing repeated impact stress on key components
• Lower risk of container handling damage during lifting, moving, and positioning

In practice, fewer small incidents make a clear difference over time. Machines stay in working condition longer, maintenance becomes more predictable, and yard operations run with fewer interruptions.

This is where the value is often seen—not in one single event, but in the steady reduction of avoidable damage during everyday work.

The collision warning system provides the most value in working conditions where space is limited and movement is continuous. These scenarios usually carry a higher risk of close contact or delayed reaction.

• High-traffic container stacking areas where multiple straddle carriers operate between closely placed containers
• Shuttle transport operations where machines move repeatedly between fixed loading and unloading points
• Narrow aisle yard movement where turning space and visibility are restricted
• Mixed equipment working environments where straddle carriers share space with trucks, reach stackers, or cranes
• Peak-hour terminal operations when movement density and workload are at the highest level

In these conditions, operators rely heavily on awareness and quick judgment. The system supports this by giving early warning when something enters the working path or gets too close to the machine.

Over time, this helps reduce unexpected stops, improves movement coordination between machines, and supports smoother operation even during busy shifts.

The system can be integrated based on your operational situation and project plan:

• New straddle carrier integration during manufacturing or delivery stage
• Retrofit installation on existing fleet already in daily operation

This makes it suitable for both expansion projects and safety upgrade projects in active terminals.

The installation process is planned in clear stages to match real yard conditions and reduce interruption to operations. Each step focuses on ensuring the system works correctly in the actual working environment.

• Site evaluation and risk mapping based on yard layout and traffic flow
• Sensor layout design according to machine structure and working zones
• System installation on straddle carrier units
• Calibration and functional testing in real operating conditions
• Operator training for warning signals and system response

Each step is carried out with focus on practical operation, not only technical setup.

Installation is planned to avoid long shutdown periods. In most cases, the work can be coordinated with maintenance schedules or planned service windows.

Operational downtime is kept to a minimum during installation and commissioning, so the fleet can return to normal service quickly without major interruption to yard activity.

The system is connected with several important operational and control points of the straddle carrier to ensure clear and fast response during movement.

• Vehicle control systems to support real-time safety interaction during operation
• Operator cabin display systems where warnings and status information are shown clearly
• Alarm and warning interfaces that provide both visual and audible alerts
• Optional automation safety systems for terminals using semi-automated or advanced control setups

Once integrated, the system works in the background during normal movement. The operator does not need to manage it separately. When a risk appears, the warning is shown directly in the cabin and through sound signals, allowing quick and simple reaction.

This helps reduce reaction delay, especially in busy yard conditions where operators are already focused on multiple tasks at the same time.

With proper integration, the system becomes part of normal operation rather than an external add-on. It supports safer movement, clearer decision-making, and more stable control during container handling activities without changing how operators naturally work.

In practical use, the system may show different performance levels depending on the environment and operation style. These points are important for real-world expectations:

• Performance variations in extreme weather such as fog, heavy rain, or dust conditions that may reduce sensor clarity
• Speed-dependent detection accuracy, where reaction distance and warning timing change based on operating speed
• Minimum detection range considerations, meaning very close objects may be detected within limited reaction time
• Required periodic calibration and maintenance to keep sensors aligned and detection performance stable over long-term use

In real yard work, conditions are not always stable. Weather changes, lighting conditions vary, and traffic density can increase during peak hours. The system is designed to support operators in these environments, but it still relies on proper maintenance and correct usage.

Regular checks and calibration help maintain consistent performance, especially in terminals where equipment operates continuously across multiple shifts.

The system is built for real industrial conditions, not ideal environments. When used with proper maintenance and awareness of its working limits, it provides reliable support for reducing collision risk and improving overall operational safety.

In a real container terminal deployment, the system was installed across a fleet of straddle carriers operating in high-density storage and shuttle movement zones. The goal was not to change the operation method, but to support operators with earlier risk awareness during normal working conditions.

The system was used during:

• Continuous container stacking operations
• Shuttle transport between yard blocks
• Peak-hour mixed traffic movement
• Reversing and tight turning operations in storage lanes

Operators received real-time visual and audible warnings when obstacles entered the working path or when safe distance was reduced during movement.

After implementation across multiple units, the improvement was not limited to a single machine. The effect was seen at fleet level, especially in areas with frequent interaction between straddle carriers.

• Fewer minor collisions between straddle carriers during yard movement
• Reduced contact incidents with container stacks during positioning
• Improved awareness in blind spot and reversing operations
• More consistent operator response in high-traffic zones

The system helped operators react earlier, especially in situations where visual judgment alone was not enough.

Over time, the terminal reported a noticeable reduction in small impact incidents. Most improvements were related to low-speed collisions and near-miss situations, which are common in dense yard environments.

These reductions helped lower unplanned maintenance events and reduced interruptions in container handling cycles.

One of the most practical outcomes was improved consistency in daily operations. Even during peak hours, when multiple machines were working in the same area, movement became more controlled and predictable.

• Fewer unexpected stops during container handling
• Smoother coordination between operators
• Reduced disruption in stacking sequences
• More stable workflow during high-density operations

In real yard conditions, this consistency is often more valuable than isolated performance improvements, because it directly affects how smoothly the entire terminal operates across shifts.

The value of the system is usually seen across several practical areas in terminal operation:

• Safety improvement across the entire fleet through consistent risk detection support
• Reduced operational risk exposure in busy and high-density container yards
• Improved terminal efficiency by reducing interruptions and unplanned stops
• Strong return on investment through lower damage repair and downtime costs
• Better operator confidence and reduced fatigue during long and repetitive shifts

In your operation, small collisions and near-misses can affect more than one machine. They can slow down the flow of the whole yard. A collision warning system helps reduce these situations and keeps operations more stable during daily work.

Yes, it is designed for continuous operation during day and night. It supports low visibility situations such as night shifts, fog, rain, and dusty environments. However, performance may vary depending on extreme weather conditions, so proper sensor maintenance is important for stable results.

The system uses multiple sensors installed around the straddle carrier to scan the surrounding area during operation. It detects nearby objects such as vehicles, containers, structures, and personnel, and calculates risk based on distance, direction, and machine movement.

No. Installation is planned to minimize disruption to normal operations. In most cases, it can be completed alongside scheduled maintenance or planned service windows, so the straddle carrier does not need long-term shutdown.

The system requires regular basic maintenance to ensure stable performance. This includes sensor cleaning, system calibration checks, and periodic inspection of wiring and warning interfaces. With proper maintenance, the system can operate reliably in continuous yard conditions.
