Grab Buckets and Crane Buckets: Clamshell Grabs, Orange Peel Buckets & Cactus Grabs

Crane buckets and grab buckets including Mechanical rope grabs, hydraulic grabs & electric motor grabs, with clamshell grab design, cactus grab design and orange peel grab design and other customized crane bucket designs for various types of material handling of powder and fine bulk materials such as chemicals, fertilizer, grain, steel scrap, waste, coal, coke, iron ore, sand, particle construction materials and mashed rock, etc. Crane buckets and grab buckets equipped on grab overhead cranes including  grab bucket single girder overhead cranes 1- 10 tons and double girder overhead cranes with grab bucekt 5 ton -20 ton , and grab grantry cranes , and various types of industrial cranes are widely used in ports, steel plants, scrapyard, power stations, ships and garbage & waste treatment plant,etc.

Clamshell grabub bucket drawing

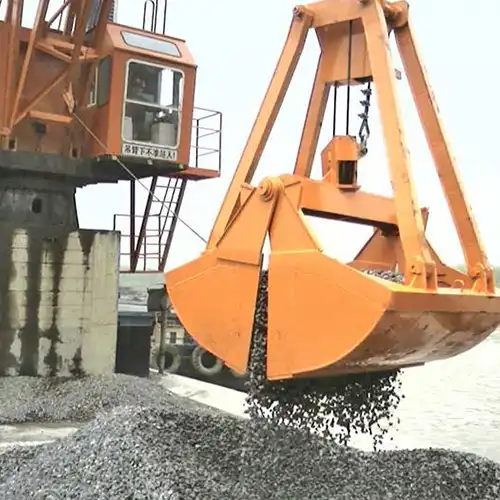

Clamshell grab bucket for sale

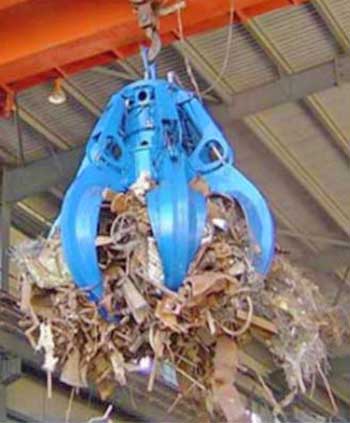

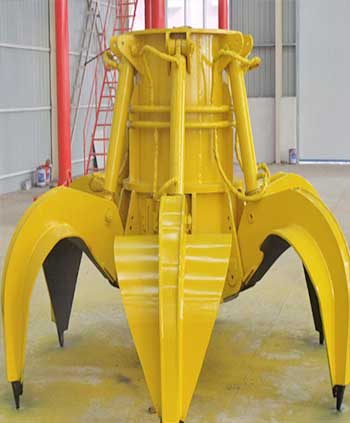

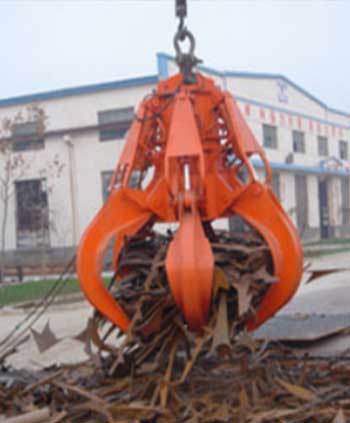

Orange peel grab

Orange peel grab

Cactus grab

Cactus grab

We can offer types of crane grabs with volume of 0.25~30m3 and capacity of 0.5 tons ~70 tons including four rope grab, double rope grab, single rope grab, electric grab, hydraulic grab, motor grab, wood grab, stainless steel grab, and anti-leak grab, steel scrap, wast grab and other processed grab buckets which can be used for various industries, such as, mining , terminal, and metallurgical, construction building materials, , traffic, paper, and chemical, and coal, biomass, power, oil, steel industry, with the features of powerful magnetism , flexible designs,stable,and reliable performance, and long working life, etc.

Various types of crane buckets and crane grabs , diverse of industrial grab crane solutions

Based on different standards, the crane buckets can be classified into different types. And the general classifications of crane buckets are as follow:

Generally speaking, there are various types of grab buckets and crane grabs based on different standards or classifications in terms of grab shape, power supply , and application, etc.

Grab bucket types in terms of grab shapes

Based on the shapes of grab bucket and crane bucket, there are mainly includes clamshell grab orange peel grab, and cactus grab bucket, etc.

• Clamshell grab is the most frequently used grab bucket,with leaking proof design, equipped on types of clamshell cranes, widely applied for grabbing and lifting silty, clayey and sandy loads and objects such as fertilizer and grains etc. ,Processed clamshell crane grab buckets are available.
• The orange peel grabs are designed with multiple jaws designs from 4 from to 8 tines, which can not be completely and are widely used for large irregular pieces loads handling such as of larger and irregular loads such as, steel scrap, big iron, and wastes, garbage, etc.
• Cactus grab buckets are suitable for both the coarse and fine loads or objects handling with 3 or 4 jaws which can be closed very well in the closed position.

Grab buckets classification in terms of bulk density

Based on bulk density of loading materials, crane buckets and grab bucket can be grouped in light, medium, heavy, and extra heavy crane grab basket.

• Light grab bucket is suitable for loads with bulk density of γ< 1.2t / m³, such as dry grain, little bricks, lime, fly ash, aluminum oxide, sodium carbonate, dry slag , etc.
• Medium grab bucket is suitable for loads with bulk density of γ=1.2t/ m³~2.0t/ m³, such as, gypsum, gravel, pebbles, cement, large blocks, etc.
• Heavy grab bucket is suitable for loads with bulk density of γ= 2.0t / m³ ~2.6 t / m³, such as, hard rock, small and medium-sized ore and scrap steel, etc.
• Extra heavy grab bucket suitable for loads with bulk density of γ>2.6t / m³,such as, heavy ore, scrap steel, etc. .

Crane bucket types in terms of mechanical principals

Based on the mechanical principal, the crane buckets, there are mechanical rope grabs, electric motor grab and hydraulic grab, etc.

• Ropes grab. The mechanical rope grabs can be grouped into single rope grab , double rope grab, and four rope grab,etc.
• Power self-supplied grab buckets are the grab bucket with electric motor, which is not allowed for underwater work.
• Non power self-supplied grab. The non-power self-supplied crane buckets are those electric hydraulic grab buckets and pneumatic type crane buckets,

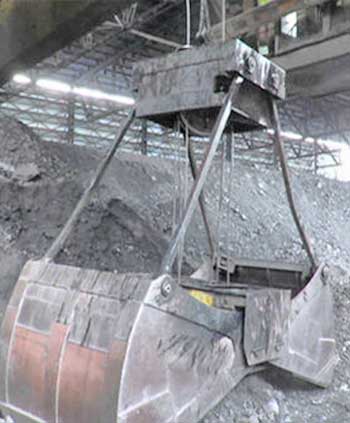

Clamshell grab & clamshell grab bucket

Clamshell grab is mainly consisted of two integral buckets, which are mainly used on clamshell bucket cranes, such as overhead travelling bridge crane for loose deposits for loading, unloading, shifting, charging and other various operation, with advantages of Cost-effective price, Reasonable structure, Compact design, Favorable performance, Easy and precision control and load position high safety and reliability, etc.

clamshell grab bucket used on single girder crane

clamshell grab bucket used on bridge crane

clamshell grab bucket used on gantry crane

Clamshell grabs can be used for handling loads of light duty, middle duty, heave duty and extra-heavy duty. According to the driving type, clamshell crane buckets can be grouped into hydraulic clamshell grab and mechanical clamshell grab.

Clamshell bucket grabs equipped on clamshell bucket cranes are widely for grabbing dry bulk cargo with efficiency and safety. Based on the type of handling loads, it can be divided into such as ore grab, coal grab, grain grab, wood grab,etc.

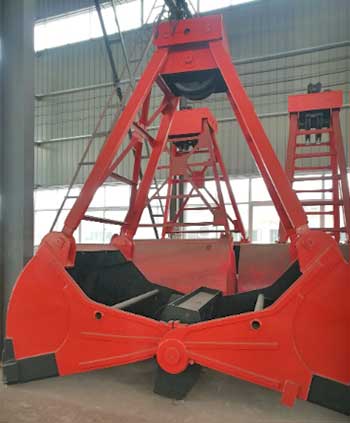

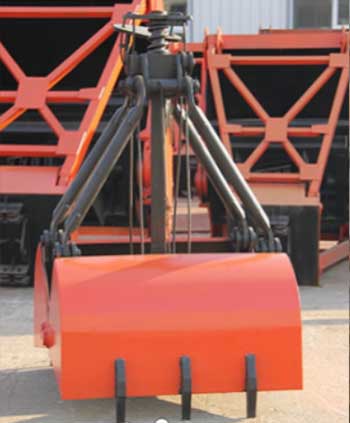

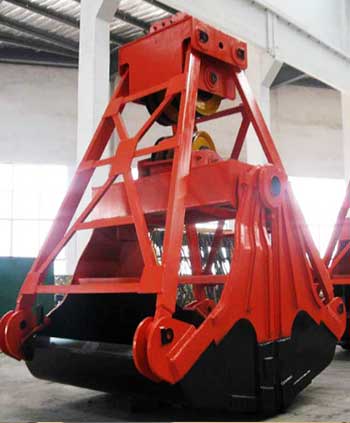

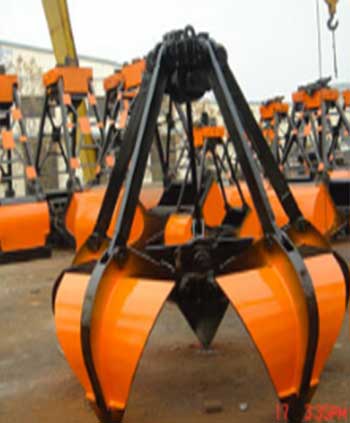

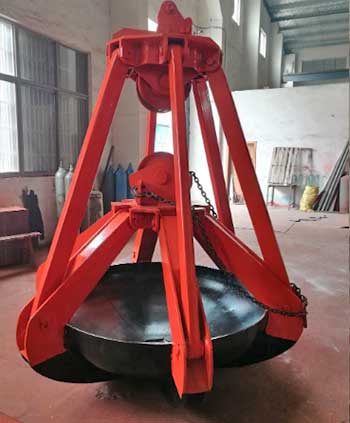

Clamshell grab & clamshell grab bucket for sale

Clamshell grab & clamshell grab bucket  for sale

Clamshell grab & clamshell grab bucket  for sale

Clamshell grab & clamshell grab bucket  for sale

Orange peel crane bucket & Cactus grab buckets

An Orange Peel Grabs also called a Cactus Grabs or Polyp Grabs are consisted of different jaws such as 4 tine peel grab, 5 tine peel grab, 6 tine peel grab, or 8 tine peel grab which can be designed in open, semi and closed tine configurations for material handling with large size or required high penetration which clamshell crane buckets are not suitable.

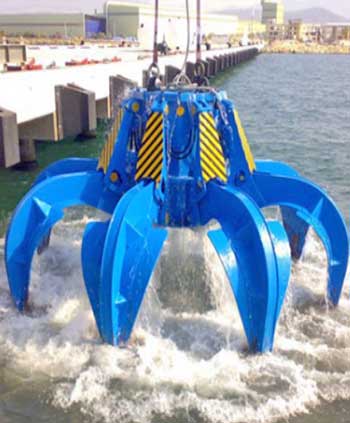

Orange peel grab and peel grab bucket for sale

Equipped on industrial overhead crane and gantry cranes, the orange peal grabs are widely adopted for handling waste, wood chips, mixed scrap , heavy scrap, steel scraps, pig Iron, biomass, large lumps of materials, etc, in ports, shipping, railways, power plants, steel mills, waste incineration power plants and cement plant, etc.

Orange peel grab and peel grab bucket for sale

Orange peel grab and peel grab bucket for sale

Orange peel grab and peel grab bucket for sale

Orange peel grab and peel grab bucket for sale

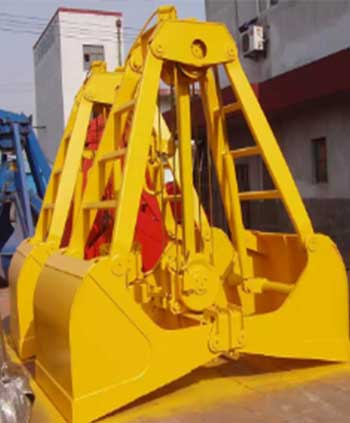

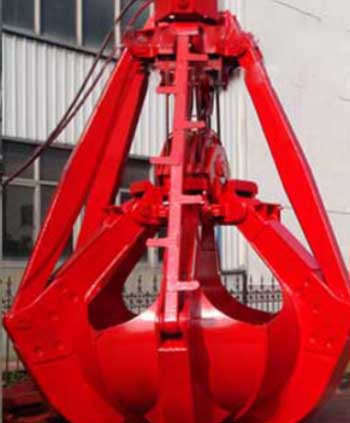

Mechanical grab & Rope grab - single, double and four rope grab

Mechanical Crane Grabs are driven by rope or connecting rod force to open and close, which is mainly used with overhead travelling bridge cranes and gantry cranes with two sets of lifting drums to pick up various types of loose deposits for loading, unloading, turning and feeding. Based on the operation characteristics , the mechanical rope grabs can be divided into four rope grab , double rope grab and single rope grab. The mechanical crane buckets for sale with process designs based on the conditions of loads and objects and lifting requirements of clients.

• Mechanical grab with Single Rope Grab design- The opening and closing of the mechanical crane buckets are using the same rope, that is the single rope grab with simple winding mechanism and relatively low productivity.Single rope grab is unable to open during lifting in the open air, hand and remote control type can be realized to open in the air.The single rope grab is applicable for loads grabbing and moving in underwater and ground operations .
• Mechanical grab with Double Rope Grab design -Double rope grabs, equipped on bridge overhead cranes are widely used in ports ,docks ,power plants,chemical industry ,for lifting and transferring loose deposit ,such as ore ,coal ,slag,cereal,light reactor and other,etc.
• Mechanical grab with Four Rope Grab design- The four rope grab and four cable grab are equipped with two groups of lifting drums for loading and unloading various loose accumulation and irregular shape materials ,such as, scrap, refuse, gravel etc., suitable for steel mills refuse plants, port and railway and other industries, etc.

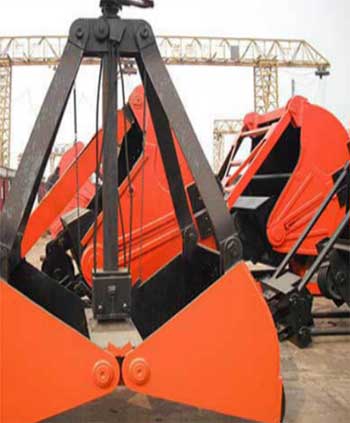

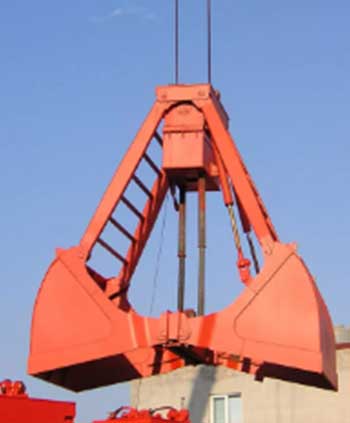

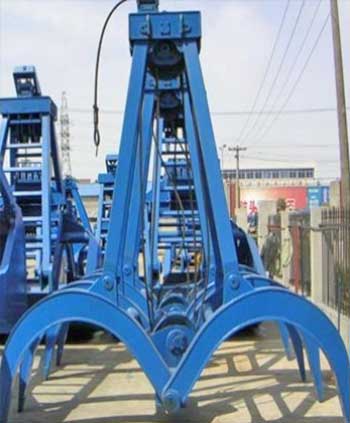

Mechanical grab & rope grab for sale

Mechanical grab & rope grab for sale

Mechanical grab & rope grab for sale

Mechanical grab & rope grab for sale

Mechanical grabs with clamshell grab and orange peel grab designs,-Single rope grab, double rope grab, and four rope grab

According to loads conditions and client lifting requirements, the rope grabs can be designed with light, middle, heavy and over heavy type and with the processed features as toothed, parallel cross beam opened and underwater operations ,etc.

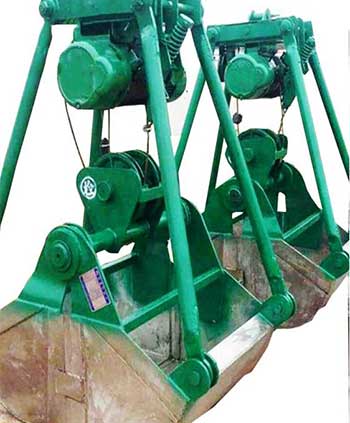

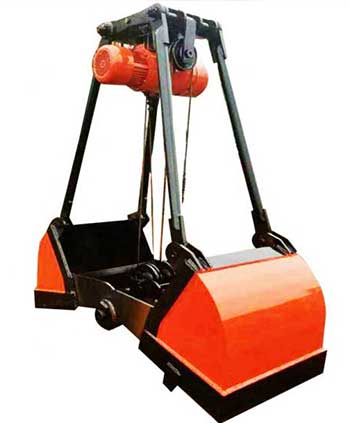

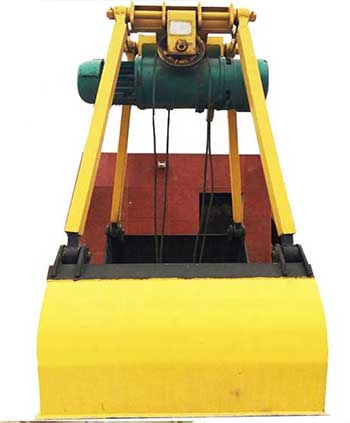

Electric motor driven grab buckets

Electric motor grab buckets are with their own opening and closing mechanism. The electric motor driven crane buckets can be loaded and unloaded at any height, with features of higher productivity, simple structure, good performance, easy to use and disassemble.

Electric motor grab buckets

Electric motor grab buckets

Electric motor grab buckets

Electric motor grab buckets

The electric motor grabs ,equipped on various types of industrial cranes, are used in ship, port, railway station, factory, mine and other transport departments but cannot be operated in underwater Operation. The motor driven crane buckets are for various types of materials loading and unloading such as, grain, fertilizers, cement, coal, barley, wheat, iron ore, sun flower seed, corn, maize, and clay etc.

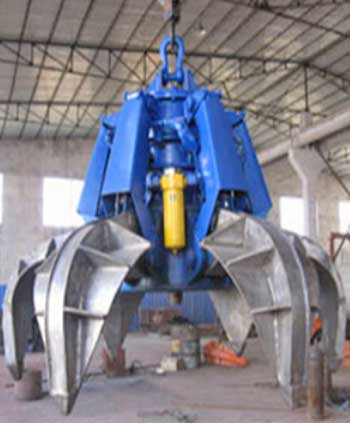

Electric hydraulic grab bucket

The electric hydraulic grab buckets are designed and manufactured according to FEM / DIN standard, consisted of import the main hydraulic components. The electro - hydraulic crane buckets can be divided into hydraulic clamshell buckets and hydraulic orange peel crane buckets.

With features of powerful grasping force, high degree of automation, the hydraulic grab buckets are ideal material handling devices, installed on industrial overhead crane and industrial gantry cranes, used in various industries such as, in iron and steel processing plants, mining, forest farm, coal mining, harbor dock, scrap steel acquisition, garbage disposal, biomass power plants and other industries, for handling large pieces of ore, pig iron, scrap, waste, iron, straw, slag and other,etc.

Electric hydraulic grab buckets for sale

Electric hydraulic grab buckets for sale

Electric hydraulic grab buckets for sale

Electric hydraulic grab buckets for sale

Grab buckets for different industries

• Electric stainless steel grabs are designed for the brewing industry to improve working efficiency and reduce labor intensity in making brewing koji, sauce, and sauce making, etc.,
• Log grabs and wood grabs are for loading and unloading, stacking logs, wood, pipes, drums and other loads of various specifications, applied in log yards,lumber yard, large wood products factory, paper mills, dock ,ports and other industries,etc. The log grabs can be grabbed by a single grab or multiple picks, and can be equipped on industrial cranes such as tower cranes and industrial gantry cranes.
• Coal grabs are usually equipped on industrial cranes especially on double girder overhead crane and gantry cranes for coal handling to improve working efficiency , reduce labor, save your time and energy.
• Steel scrap grab are usually hydraulic grab with multiple jaws designs or orange peel grab designs for heavy and heavy duty steel scraps or metal scraps handling, with powerful gripping force, high efficiency and safety, etc.

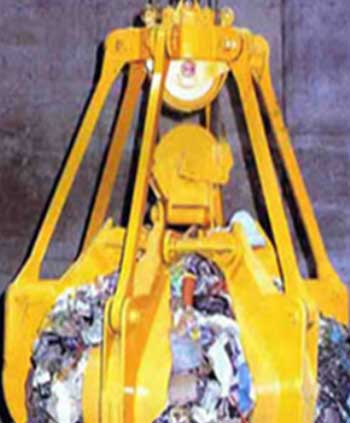

• Wast grab & garbage grab bucket are widely equipped on industrial waste handling cranes in waste incineration plants for wastes and garbage feeding, transferring, mixing , fetching and weighing, etc.

Stainless steel grab

Log grab

Coal mine

Steel scrap grab

Waste grab bucket
