Cleanroom Gantry Cranes: Portable Gantry, Bespoke Cleanroom Crane
Cleanroom gantry crane for sale, Custom portable gantry crane, with Aluminum gantry, Steel gantry, Stainless steel gantry or galvanized design for clean room, lab, or pharmacy to ensure efficiency, clean and dust-free material handling operation.
Gantry cranes are extremely versatile cleanroom cranes that can be used in a wide range of cleanrooms. The cleanroom gantry crane is made up of two frames (left and right) that are connected at the top by a beam. The beam is then equipped with a trolley and a gantry hoist. Gantry cranes can be moved freely around a cleanroom due to their (electrically powered) wheels or rolling casters.
Mobile gantry: an flexible choice for material handling for cleanroom, lab & semiconductor or pharmacy
A portable gantry crane is ideal for situations where a permanent structure is not desired or feasible. It can also be a cost-effective alternative to a permanent overhead crane. One notable disadvantage of this cleanroom gantry crane is that it takes up more floor space than, say, an overhead crane.
Mobile gantry cranes can be used in all markets and are specifically designed for mobile applications.Due to their electric or hovercraft wheels, these portable gantry cranes can be moved around enclosed spaces with ease. It perfectly suits situations were permanent construction are not desired or possible. Depending on the load weight, the gantry crane can move while loaded.
- Portable A frame g antry cranes can be provided in a number of ways, including: 1) Aluminum gantry frame: Because of its light weight, this frame is ideal for solutions with even greater mobility flexibility. Simple to handle and assemble for usage elsewhere. 2) Steel gantry frame: This frame is ideal for higher weights and is stronger overall.
- Different wheel choices include brakes, rotation locks, foot protectors, and so on.
- Options for remote control, electrical packaging, and height adjustment

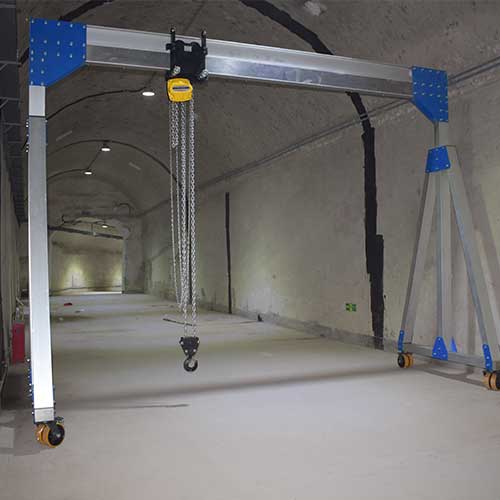

Cleanroom Portable Aluminum Gantry Crane
The portable gantry crane is the type of gantry crane most frequently used in cleanrooms.The lightweight portable cleanroom cranes may be carried to any facility to place supplies because they are made of an aluminum frame and are mounted on rubber wheels or casters.The cleanroom portable gantry crane, on the other hand, comes in a variety of heights and spans and has a lifting capacity of 0.5 ton to 5 ton.We may offer a wide range of optional features, including wheels, a hook, an electrical package, height adjustment, and other features, according on your unique demands.
A lightweight aluminum gantry crane for your cleanrooms
Aluminum gantry cranes are lightweight aluminum structures. The crane's portability and ease of (dis)assembly are influenced by its lightweight aluminum. The light weight of an aluminum gantry crane makes it much easier to move it from one location to another.
- Tonnage: 0.5, 1, 2, 3 tons
- Span: 3m 4m 5m 6m 7m 8m
- Load: 500 1000 2000 2500 3000 kg
- Custom design: Yes
- Scope of application: assembly workshop, clean room, factory building, freight station, auto repair shop, laboratory
- Lifting height: 2 3 4 5 6 7 8 meters
- Structural features: lightweight, small
- Maximum width: 8m
- Structural form: lifting, hoisting, lifting equipment, mold
- Cantilever length: 5 m
- Dimensions: Customized
- Available for sale: the whole country
- Uses: lifting, hoisting, lifting equipment, aviation, mold
- Material: aluminum alloy
- Type: Aluminum alloy gantry crane
Fixed height of cleanroom gantry crane with portable design

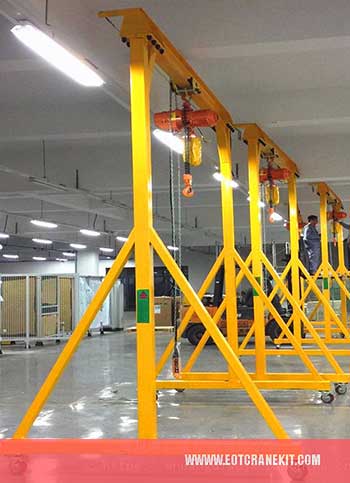

Steel gantry crane for cleanroom
In small and medium factories, portable / mobile steel gantry cranes are made for lifting machinery, loading and unloading of warehouses, maintaining heavy machinery, and moving supplies. The cleanroom gantry crane's best features include its omnidirectional mobility, quick assembly, small volume, and ability to be transported solely by minicar to another area. Brake bearing universal wheel can move on the ground and the gantry crane can be used i with an electric hoist, chain block, or monorail trolley to help load handling efficiency, which can reduce human labor, production costs, and improve work efficiency.
- Tonnage: 1 2 3 4 5 6 8 10 12 15 20 tons
- Span: 3m 4m 5m 6m 7m 8m 10m
- Load: 1 2 3 4 5 6 8 10 12 15 20 T
- Specifications: 2T
- Load: 500 1000 2000 2500 3000 5000 kg
- Custom processing: Yes
- Scope of application: machining, assembly workshop, clean room, workshop, freight station, auto repair shop, laboratory
- Whether to import: No
- Lifting height: 2 3 4 5 6 7 8 10 meters
- Structural features: light, small, simple
- Structural form: detachable assembly
- Adjustable height: 4m, 5m, 6m, 7m, 8m
- Operation form: remote control / manual
- Lifting mechanism: electric chain hoist, stainless steel chain hoist
- Features: Explosion-proof, anti-corrosion, anti-humidity
- Material: steel & stainless steel
- Type: Gantry Crane
Steel gantry cranes vs. stainless steel gantry cranes
A stainless steel gantry crane outlasts a steel gantry crane. As a result, it is especially useful in wet industries that deal with aggressive liquids.
However, stainless steel has some drawbacks. For example, because of its different composition, it is more brittle than steel. It also costs more than painted steel. As a result, we are delighted to assist you in selecting the best material for your cleanroom crane.
Portable gantry cranes are extremely versatile cranes that can be used in a wide range of cleanrooms. Gantry cranes can be moved manually around a cleanroom due to their (electrically powered) wheels.

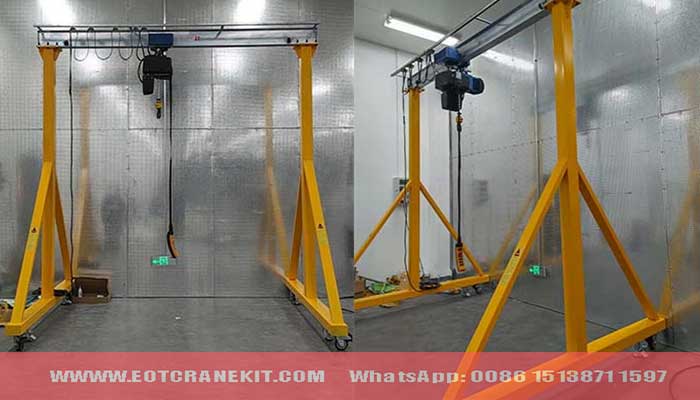

1 ton gantry crane bespoke for clean room - a project for reference
For the cleanroom, the client asked for a portable gantry crane that weighs 1 ton. Owing to the low standard for cleanliness, only the main beam is cold-galvanized, while the remaining components of the light gantry crane are still made of ordinary materials. With european style electric chain hoist, the portable gantry crane can neet client's lifting requirements. The main beam of cleanroom gantry cane can be galvanized, which is an affordable option, or another cleanroom crane construction option is to cover the main beam in a layer of stainless steel, which can also help prevent dust.

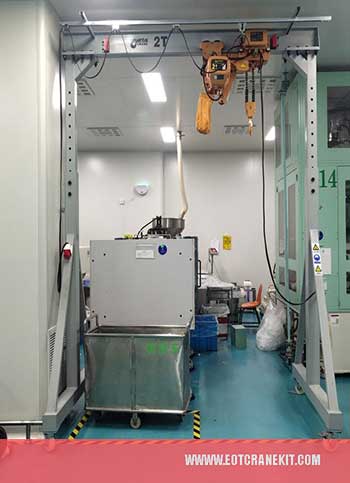

Customized portable gantry optimized for cleanrooms
A mobile gantry crane is a small cleanroom crane that can move around the purification workshop. In laboratories, operating rooms, electronic workshops, assembly workshops, and other purification engineering workshops, clean room mobile gantry cranes are generally light in weight, weighing no more than 5000kg. The cleanroom gantry's main advantage is that it can be moved in all directions, that it can be quickly disassembled and installed, and that it has a small footprint. It is portable and can be installed and used with a miniature car at another location. The width and height can be adjusted in stages, the steel structure is well-designed, aluminum alloy material is borrowed, and a dust-free hoist is installed, which will not pollute the clean room.
We provide an independent manual and electric a-frame gantry crane that can be re-positioned within the clean room facility to suit your application and is simple to disassemble and reassemble as required. A manual or electrically powered chain hoist is also available.
A portable gantry crane is also a more flexible and cost-effective option than a permanent overhead crane and gantry crane. We are honored to help you in selecting the best handling equipment for your cleanroom crane solution.
Article by Bella ，who has been in the hoist and crane field since 2016. Bella provides overhead crane & gantry crane consultation services for clients who need a customized overhead travelling crane solution.Contact her to get free consultation.
