5 Ton Overhead Travelling Crane for Petrol Boat Repair Maldives
5 ton overhead travelling crane for petrol boat maintenance in Maldives gasoline company. European style 5 ton overhead crane fuel up your petrol business.
For the Maldives gasoline company, a 5 ton Overhead travelling crane was installed, a 25 ton double drum electric winch was inspected, and a 3 ton Slewing jib crane was designed. The Overhead travelling crane EOTCRANEKIT assists you in refueling the Maldives. Check out the EOTCRANEKIT Overhead travelling crane project in the Maldives right now.
5 ton single girder Overhead travelling crane installed in Maldives
Mr. Oscar and his team were supposed to stay in Male from the 23rd to the 30th of October to finish the installation work of a 5 ton Overhead travelling crane for one of our customers in Male, but what happened to Mr. Oscar over the next week?
About Maldives overhead travelling crane customer
The crane customer is a gasoline company committed to preserving its position as a leader in supplying high-quality petroleum products and services to businesses, communities, and individuals through a highly trained workforce while adhering to societal obligations. Because the job site is on an island, Mr. Oscar and the overhead travelling crane engineer must travel by boat at least twice a day, which is a thrilling and unforgettable new experience.
Lifting requirements
The 5 ton overhead travelling crane is used to maintain the petrol boats, which are always working in the sea to gather petrols. It will be transported to the maintenance warehouse to maintain the main parts and components after four years working.
Overhead crane solutions
Based on client's lifting requirements and the specialized application, a 5 ton single girder overhead travelling crane are recommended which finally help EOTCRANEKIT to win Mr. Solah's trust and the Maldives petrol company .
Main parameters of overhead travelling crane
- Overhead travelling crane mode: HD European single girder overhead travelling crane
- Overhead travelling crane capacity: 5 ton
- Overhead travelling crane span: 24.38 meters
- Overhead travelling crane lift height: 10.7 meters
- Overhead travelling crane power supply: 400V 50HZ 3P,
5 ton overhead travelling crane drawing for Maldives customer
Advantages of 5 ton single girder overhead travelling crane
The European type single girder overhead crane offers features such as small dimensions, light dead weight, minimum restricting distance from hook to wall, smaller headroom, and higher lifting height, among others, according to the design concepts. When compared to a standard overhead crane with a cd/md wire rope hoist, the European type single gird overhead crane has the following advantages:
- To begin with, a European overhead crane could give more effective working space than a standard crane, as well as a smaller workplace and more functions.
- Owing of its minimal dead weight, the European crane's wheel pressure is substantially lower than that of a standard crane.
- Finally, and most crucially, a European crane might save a significant amount of money on initial building costs, long-term heating costs, air conditioning costs, and other maintenance costs.
The single girder overhead travelling crane in the European type is widely used for material handling in machinery, metallurgy, petroleum, petrochemical, ports, railways, civil aviation, energy, food, paper, building materials, electronics, and other industries. They're also commonly employed for accurate material handling and assembly of large-scale parts, among other things.
All in all, the European style single girder overhead crane is a good choice for material handling because of its features such as optimized European design, light dead weight, small wheel load pressure, and compacted size, good driving capacity, double lifting speed, frequency control of trolley and crane, smooth and stable traveling, and so on.
With same lifting height and load capacity, the European style low headroom crane needs lower building height than that of the traditional type overhead crane. Therefore, the European style overhead crane will lower your building construction cost or provide you a higher hook approach in the given workshop or facility.
Installation of 5 ton overhead travelling crane
The installation of the 5 ton overhead travelling crane goes smoothly with appropriate preparation, and electrical installation is the major effort.
First, Mr. Oscar and the engineers were unable to trace the drawings on site, forcing them to rely only on their technical abilities to complete the installation. They finally address the problem with the help of the Maldive customer.
Mr. Oscar was told by the project manager, Mr. Solah, that he was very pleased with the entire installation process of the 5 Tons single girder overhead travelling crane. Here are some photos of the 5 ton overhead travelling crane being installed.

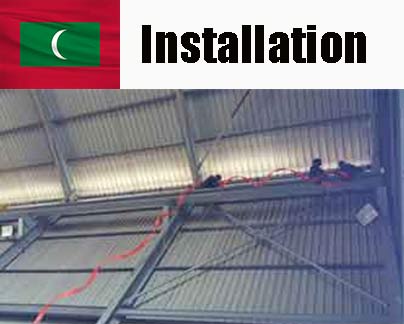

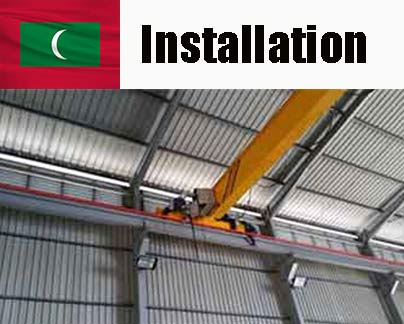

5 ton overhead travelling crane installation in Maldives for petrol ship maintenance
5 ton overhead travelling crane installation in Maldives for petrol ship maintenance
25 Tons double drum electric winch
Mr Solah asked Mr. Oscar to provide a remedy for the existing damaged electric winch, which was used to draw working boats from the sea to the maintenance warehouse, after the construction of a 5 ton single girder overhead travelling crane was completed.
Electric winch
Electric winch

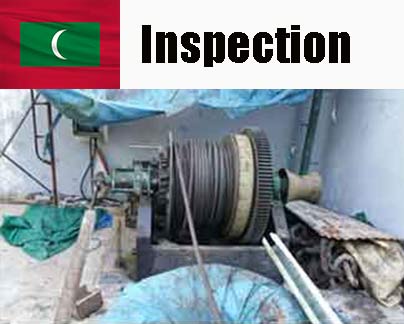

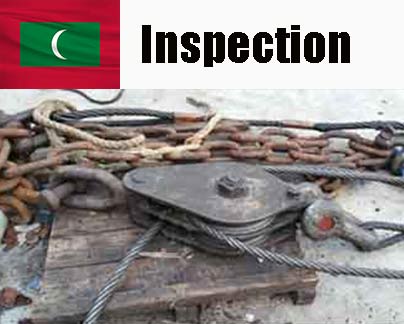

Inspection of electric winch
After consulting with technical specialists, Mr. Oscar proposed a 25-ton double-drum electric winch with a wire rope length of 600 meters and a 6-sleave pulley block with a capacity of 150 tons. If this is the case, Mr Solah must remove the old foundation and replace it with the new foundation shown in our technical picture.
Electric winch drawing
3 tons slewing jib crane with free standing crane design
Mr Solah also needs a design for a 3 ton pillar fixed jib crane that will be positioned near the seashore and used to load and unload cargo from boats, in addition to the 25 ton double drum electric winch.
Jib crane main parameters:
- The 3 tons pillar fixed jib crane parameters are as follow:
- Slewing jib crane capacity: 3 tons
- Slewing jib crane lift height: 8 meters
- Slewing jib crane total arm length: 10 meters
- Slewing jib crane rotation : 360 degree .
The technical drawing of the jib crane is as below:
Slewing jib crane design drawing
Mr Solah offered us to visit one of the islands to relax, as well as take us to their fish, vegetable, and fruit markets, which are all fantastic.
If you have any questions about overhead traveling cranes, gantry cranes, jib cranes, electric hoists, or electric winches, please contact us and we will provide you with the best answer. We can also send our crane engineers to install and commission your crane.
