10 Ton A Frame Crane, Small 10 Ton Portable A frame crane for Mold Hoisting
10 ton portable A frame crane for mold handling in Coffee Capsules factory Canada. Portable a frame crane 10 ton for easy & efficient mold & die handling for sale, good price.
Project info of 10 ton A frame crane
- Types of Cranes:Portable A Frame Gantry Crane 10 Ton
- Date of Placing Order： 2021-09-22
- Date of delivery ：30 Days after payment
- Transportation ：By sea , container.
- Payment: TT
- Destination port：DDU, delviery to the workshop of the client, the designated address
- Destination country：Canada
- Backgroud of 10 ton A frame cranes for injection die handling
The 10-ton A-frame crane will be used for injection mold handling in a coffee capsule manufacturing facility in Canada. In terms of multi-cavity mold design and production for the making of coffee capsules made of biodegradable plastic, Mold & dies at the forefront of the industry. The 10 ton A frame crane is required to improve injection mold exchanging efficiency and safety.
10 ton A frame crane design for coffee capsule inject die handling
The 10 ton portable A frame crane is developed using a roller travelling A frame crane based on the application conditions and lifting needs. The portable gantry may easily be transported away with motorized traveling while meeting the requirement for a lifting capability of 10 tons.
sketch of the 10 ton A frame crane for parameter confirmation
Main specifications of A frame crane for injection mold handling
- Product Name: Portable A Frame Gantry Crane
- Crane Model : Non rail travelling electric motorized gantry crane
- Lifting capacity : 10 ton
- Crane span : 10.4 m
- Lifting height : 4.6 m
- Working class : A3
- Power supply : 480V,60HZ,3P

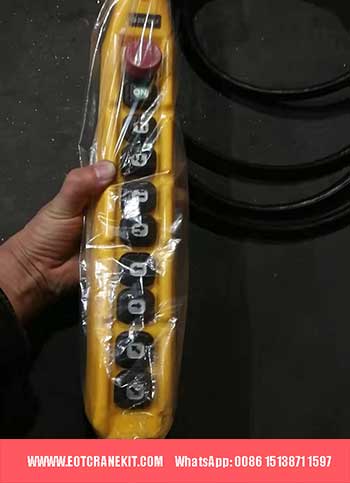

- Crane control : Ground control / Pendent control
- Color : Standards
- Indoor / Outdoor use : Indoor use
- Crane rail : None
- Quality: 1
On portable A frame crane parameter and drawing confirmation
The 10 ton non-rail moving portable A frame crane is originally designed based on the needs of the client. The 8 feet by 7 feet-sized injection molder will be covered by a movable A-frame crane. Moreover, the injection mold needs to be raised 4 feet above the injection molder. Moreover, the below sketch shows the general lifting needs.
The 10 ton gantry crane's technical drawing is designed based on the comprehensive information given and submitted to the client for approval.

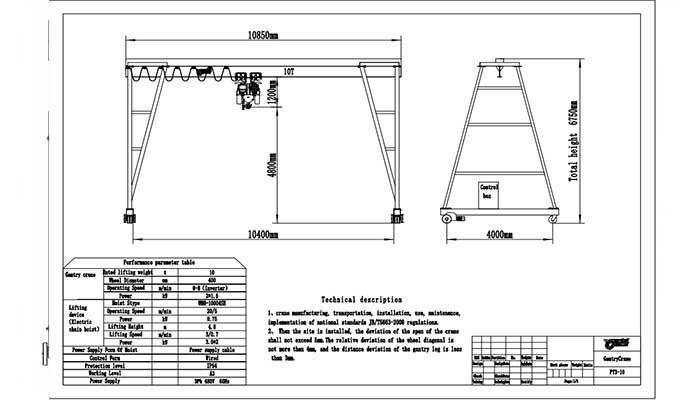

Technical drawing of 10 ton A frame crane for mold handling
The client approves the 10 ton portable A frame crane's detailed drawing before the factory schedules production.
Production of rail travelling 10 ton A frame crane

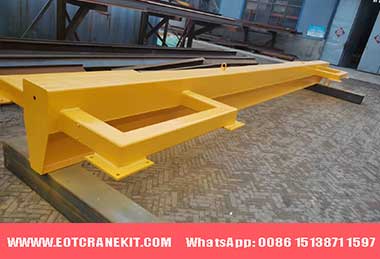

Main girder of A frame crane 10 ton for coffee capsule injection mold handling

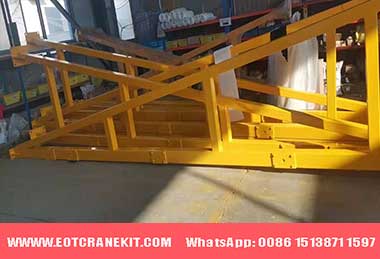

Truss supporting leg for portable a frame gantry for sale Canada

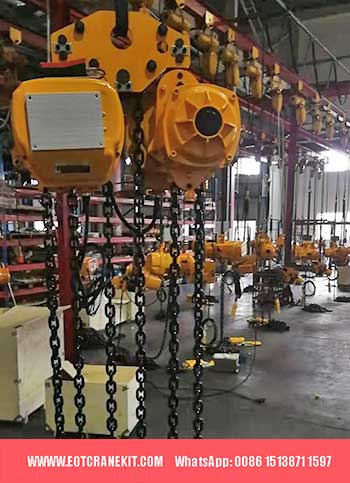

10 ton electric chain hoist for 10 ton gantry crane

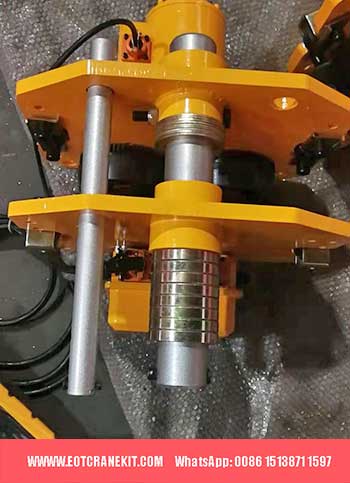

Electric chain hoist travelling trolley for portable a frame crane 10 ton

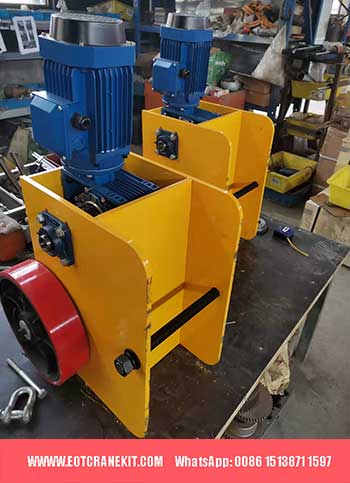

Electric motorized travelling of castor small gantry crane
Advantages of A frame crane
Mobile portable or portable A frame cranes are free-standing gantries with wheels or casters that can be moved quickly and easily from one location to another. Any of our gantries can be outfitted with wheels and/or casters. These cranes are also known as a-frame hoists, rolling cranes, or gantries due to the triangle ("A") shape of their legs.
- There is no foundation limitation.
- It is simple to move in any flat, hardened ground.
- The walking wheels are covered in rubber and can move smoothly.
- The steering wheel is a universal wheel, and the driving wheel electric drive allows for a turn via a two-wheel differential.
- The operation can be toggled between manual and automatic.
- Cost-effective, with lower maintenance costs than large crane equipment and a lower purchase price.
- Simple installation can cut installation time and costs.
- Operating environment that is safe.
- Small size, easy disassembly and transportation.
Since our company's inception, foreign customers have praised the trackless mini portable A frame crane. And our products have been widely distributed throughout the world. You are welcome to consult.
How to get custom A frame crane

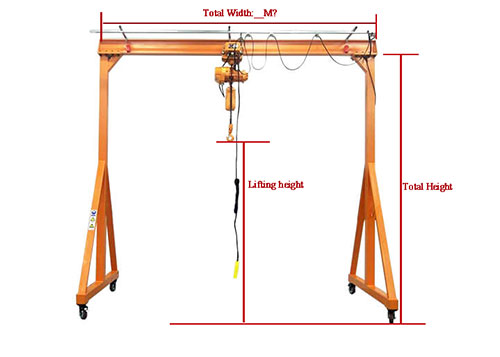

A frame crane drawing for you to confirm specifications
If you have any inquiry about the portable a frame gantry crane, please leave us the following gantry crane parameters to give you more specific quotation；
- Lifting capacity: ___tons,
- Gantry height :___meters, ( Fixed height gantry ___meters_/ Adjustable height: _____meters, Adjustable range ____meters.
- Width/Span: ___meters,
- Gantry travelling mold: Manual travelling or Motorized travelling, Voltage :___, etc.( 380v/ 50hz/ 3 phase)
- Applications or Working conditions： ____ ( What is the load or object the small gantry crane will be handle)
- More types of A frame gantry crane designs are available. Feel free to contact us.
