RMG Crane, RTG Cranes & Straddle Carrier
Designed Container Crane For You, Lower Cost & Best Price

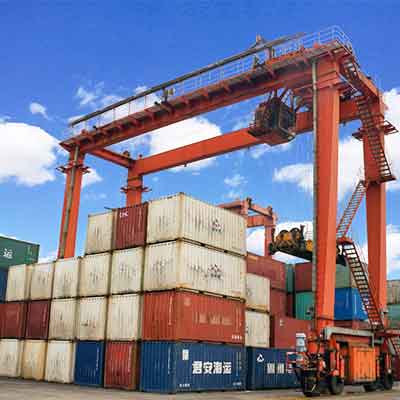

Rubber tyred container gantry crane

Rubber tyred container gantry cranes ,also known as yard bridges are specialist lifting equipment used to load and unload standard containers in large-scale specialized container yards. It can be used not just in port container yards, railway container yards and other outdoor applications for large and heavy load and object handling with efficiency and safety.

Rubber-tired container gantry cranes use digital frequency conversion speed regulation and can travel in both directions in the container yard. A telescopic spreader that can raise 20-foot and 40-foot containers is included. A mechanical anti-sway device is put on the spreader to reduce the swing. The rubber tyred container gantry crane has a conventional span of 23.47 meters, but cranes with non-standard spans are also available. A 40-foot-long 9'6" container can be hoisted over four (or five to six) stacks thanks to the lifting height.

Main specificatiosn of RTG Crane

• Type of container gantry crane : RTG Crane
• Capacity of container lifting crane : 35t, 40t
• Working level of container handling crane : A6, A7, A8
• Span of rubber tyred container crane : 23m, 27m

Need rubber tyred gantry crane for container handling? Contact us to confirm your rubber tyred gantry crane specifications and get your customized container crane design drawing and price.

RTG cranes are rubber tire gantry cranes that are mostly used to handle containers and other materials such as steel pipe in the outdoor yard. Instead of using rails, the RTG crane uses a tire group as its travel mechanism.

Features of rubber tyred gantry crane

• Rubber tyred gantry crane is usually called RTG crane for short, which are widely used to stack containers in container storage yards. For container transshipment, a rubber-tyred container gantry crane moves around on its own rubber tires.
• A rubber-tired container gantry crane with specialized spreaders lifts standard-sized 20GP, 40GP, 45HQ containers and hydraulic storage tanks.
• The trolley and crane traveling mechanisms make it easy to maintain the three-in-one reducer.
• This container gantry crane's tires can rotate 90 degrees and travel obliquely at 20 and 45 degrees.

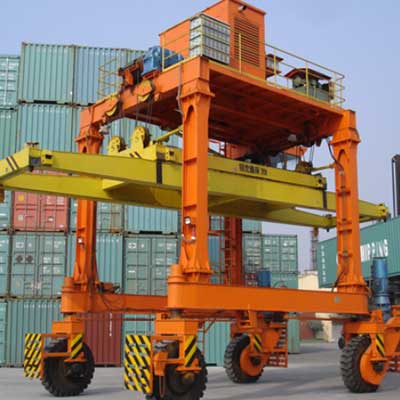

Container straddle carrier

Container handling in port terminals and container yards is the most prevalent use for straddle carriers. Stacking and transferring containers is done with container straddle carriers. These straddle carriers can stack containers up to four layers high. With full load, the running speed can reach 30 km/h. Workers can sit at the top to see situations from the front and back.

Main specifications fo container straddle carrier

• Types of container cranes: Straddle Carrier
• Capacity of straddle carrier : 35t, 60t
• Container Layers of straddle carrier : Max. 4

Need straddle carriers for container handling? Contact us to confirm your container straddle carrier specifications and get your customized container crane design drawing and price.

The portable straddle carriers are used for stacking and moving containers efficiently, flexibly and safely. The container straddle carriers can stack containers up to four layers high. Need straddle carriers for container handling? Contact us to confirm your container straddle carrier specifications and get your customized container crane design drawing and price.

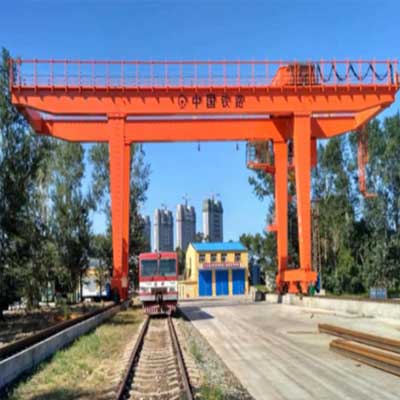

Railway container crane

The railway container crane is a type of u frame gantry crane with container spreader, which are widely used for railway container logistics transport, for container handling.

The U-type frame, double cantilever with rod, sturdy structure, and light weight are prominent features of the railway container gantry crane. Container loading and unloading are possible due to the gantry span and breadth space. The spreader rotates 360 degrees and is extremely adaptable and efficient.

Railway container crane specifications

• Container crane type: U frame gantry crane for railway application
• Lifting capacity of railway container crane : 400t, 100t, 130t, 100+100t
• Span of railway container crane: 18～36m
• Container dimensions of railway container crane: 20', 40', 45'

Need railway container crane for container handling? Contact us to confirm your railway container crane specifications and get your customized container crane design drawing and price.

Container crane is customized for each individual use for our customers. There are different types of container handling crane with different specifications for various container handling conditions and lifting requirements. All of our components are sourced from respected manufacturers across the world, ensuring that the container crane is of high quality and has a long service life. The double beam lifting mechanism is also designed in a modular manner to maximize versatility. Anti-swaying systems, remote operating systems, emergency braking systems, positioning systems, and other gantry crane types are among the options we provide. You may determine the specific gantry crane design that will best suit your needs based on the information you have about the gantry crane. We appreciate the opportunity to assist our customers in selecting the appropriate container gantry crane.

How much does a container gantry crane cost? How much does your specific gantry crane cost? To get customized container gantry crane, please feel free to contact us to get your container crane design and price.
