Complete Semi Gantry Crane Kit for Sale vs. Semi Gantry Crane Kit Without Main Girder

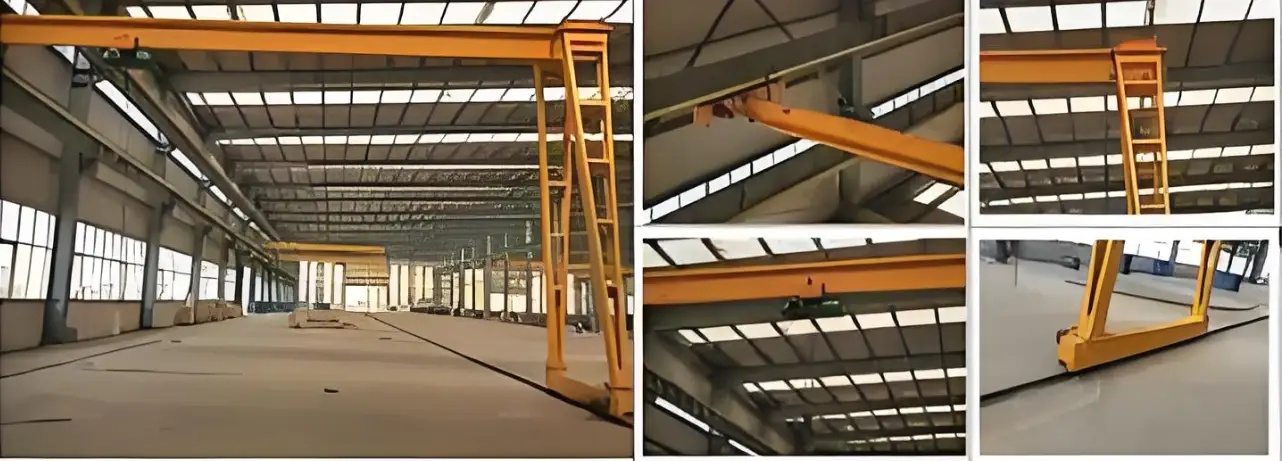

Overvivew of Semi Gantry Cranes

A semi gantry crane is a type of lifting equipment that features a unique design where one end is supported by legs fixed to the ground, while the other end operates on a rail system that is affixed to an existing building structure. This design effectively combines elements of both overhead cranes and traditional gantry cranes. Semi gantry cranes are capable of navigating along a defined path, which enhances their efficiency in transporting materials. They are particularly useful in environments where maximizing vertical space is essential, making them suitable for both indoor and outdoor applications, such as factories, warehouses, and construction sites.

Key Advantages

• Space-Saving Design:
  The semi gantry crane's configuration allows it to utilize existing building supports, which minimizes the need for additional floor space. This is particularly advantageous in facilities where operational space is at a premium. The crane's ability to operate along a rail attached to a building also ensures that floor space remains available for other uses, improving overall workflow.
• Cost-Effective Solution:
  When compared to full gantry cranes, semi gantry cranes often come with lower costs due to reduced material requirements and simpler installation processes. By leveraging existing infrastructure, businesses can avoid expenses related to constructing new support systems. This cost efficiency is a critical factor for many organizations looking to optimize their budgets without compromising on operational capabilities.
• Versatility:
  Semi gantry cranes are highly adaptable and can be utilized in a variety of settings. In manufacturing plants, they can facilitate the movement of raw materials and finished products, enhancing productivity. In warehouses, they assist in loading and unloading goods, while in construction environments, they can aid in lifting and placing heavy materials. This versatility allows businesses to tailor the crane's use to their specific operational needs, making it an effective solution for different industries.

A complete semi gantry crane kit consists of several essential components that work together to ensure the crane operates efficiently and safely. Each component is engineered to provide the necessary support and functionality required for various lifting tasks. Below is a detailed breakdown of these components.

Main Parts of Semi Gantry Crane Kit

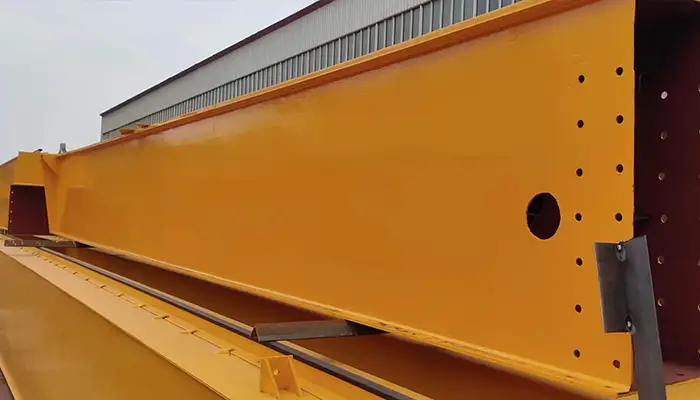

Main Girder

The main girder serves as the backbone of the semi gantry crane, playing a crucial role in supporting the hoisting mechanism and the loads being transported. This component is available in both single girder and double girder configurations, allowing users to choose the design that best fits their operational needs.

In terms of material and design, the main girder is typically constructed from heavy-duty steel, ensuring durability and resilience under heavy loads. It may feature either a box beam design or an I-beam structure, both engineered for maximum strength while minimizing weight. The load capacity of the main girder can range from 1 ton to 100 tons, with customizable options available based on specific application requirements.

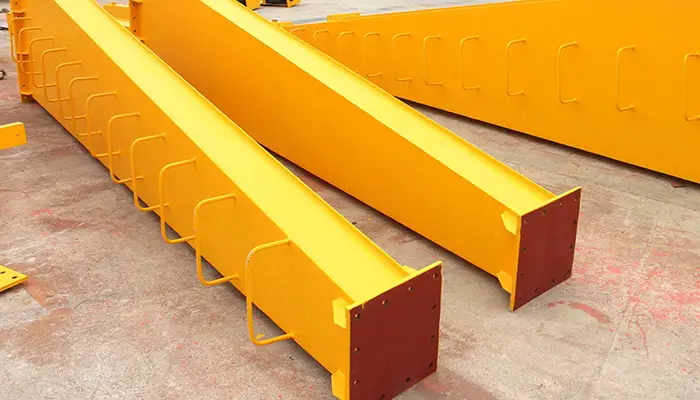

Support Legs

Support legs are vital for maintaining the structural integrity and stability of the semi gantry crane. These legs are usually designed in an A-shaped or triangular configuration, enhancing the stability and rigidity of the gantry frame, which provides a solid base for lifting operations.

Constructed from high-strength steel, these support legs are designed to withstand the stresses associated with lifting heavy loads, ensuring the crane's long-term performance and safety. Each leg features flanges that allow for easy and secure bolted connections to the ground, simplifying the installation process and ensuring that the crane remains firmly anchored during operation.

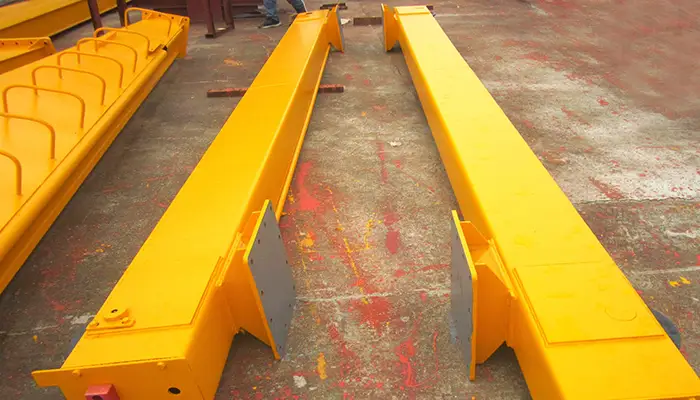

Ground Beam

The ground beam is another critical component that supports the entire crane structure and facilitates smooth operation. Typically designed as a box-shaped structure, the ground beam provides a stable foundation for the support legs while ensuring effective load distribution. This design helps prevent excessive wear or deformation over time.

The ground beam includes flange connections that securely attach to the support legs, which is essential for maintaining the overall integrity of the crane during lifting operations. Additionally, the design of the ground beam allows for smooth movement of the crane along its designated path, enabling efficient loading and unloading tasks.

In summary, the components of a complete semi gantry crane kit are thoughtfully designed and constructed to create a reliable and efficient lifting solution. Each element works together to ensure safety, stability, and operational efficiency, making semi gantry cranes suitable for a wide range of applications.

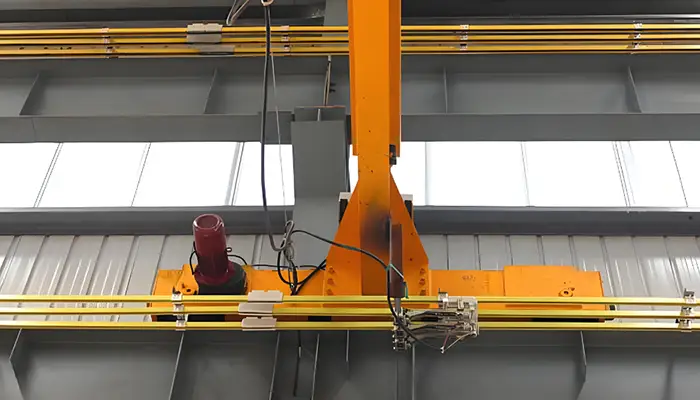

End Carriages and Wheels

The end carriages play a crucial role in supporting the movement of the semi gantry crane along the rail system. These carriages are designed to facilitate the crane's travel, ensuring stability and efficiency during operation.

Equipped with durable LDA-type wheels, the end carriages feature double-wheel edges that help prevent derailing or climbing, enhancing safety during movement. This design is essential for maintaining the crane's alignment on the rail, especially when carrying heavy loads. Additionally, the end carriages come with an integrated motor drive, providing smooth and reliable travel along the designated path. This motorization enhances operational efficiency, allowing for precise control of the crane's movement.

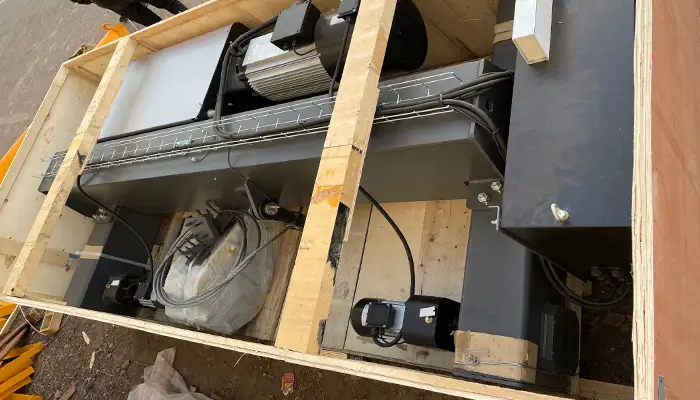

Lifting Mechanism

The lifting mechanism of a semi gantry crane is typically equipped with a hoisting system that can vary based on operational requirements. Common options include wire rope hoists, chain hoists, and European-style hoists. Each type of hoist offers specific advantages, allowing users to select the most suitable option for their lifting tasks.

The lifting capacity and hoist type are determined by the specific operational needs, whether standard, low headroom, or European. For instance, low headroom hoists are ideal for environments with limited vertical space, while European-style hoists provide high efficiency and precision. Electric hoist options are particularly favored for their precision control and smooth lifting capabilities, enabling operators to handle loads safely and effectively.

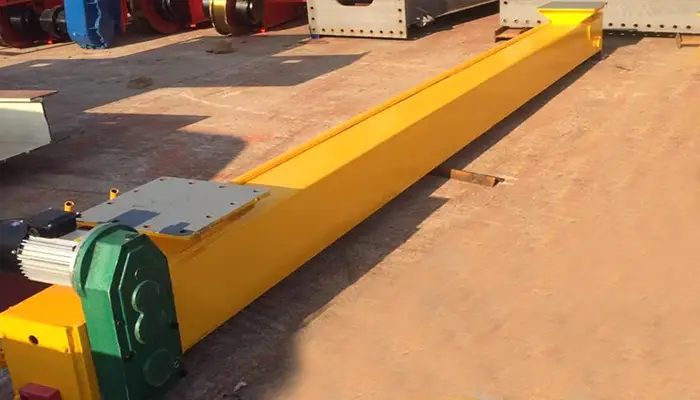

Traveling Mechanism

The traveling mechanism of the semi gantry crane is motor-driven, ensuring efficient horizontal movement across the working area. This mechanism is critical for the crane's overall performance, allowing it to cover the required distances quickly and safely.

It features soft-start motors that reduce the initial impact when the crane begins to move, contributing to the longevity of the system by minimizing wear and tear on mechanical components. The traveling mechanism also includes robust gearboxes and a durable wheel set designed for long-term use, ensuring reliability and efficiency during operation. This combination of features allows the crane to operate smoothly over extended periods, enhancing productivity in various lifting applications.

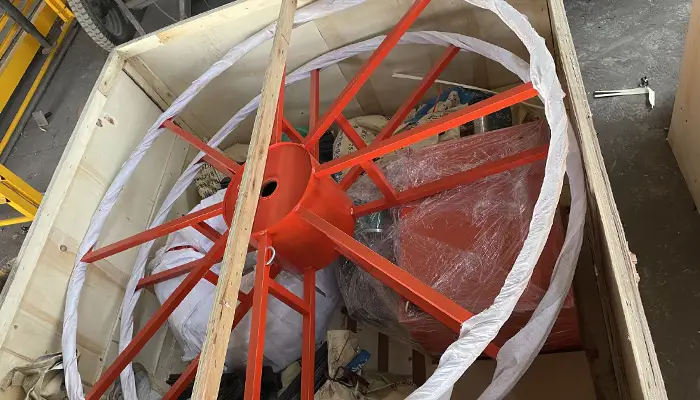

Power Supply System

The power supply system of a semi gantry crane is vital for its operation, providing the necessary electrical energy to all components. This system can utilize either a cable drum or a busbar system to deliver power efficiently to the crane.

For the trolley power supply, options include cable slideways and steel slideways, which ensure smooth and reliable operation. Cable slideways offer flexibility and are often preferred for their ability to accommodate various movements of the crane, while steel slideways provide durability and strength, suitable for heavy-duty applications. Both systems are designed to minimize friction and wear, ensuring that the crane operates smoothly and efficiently throughout its service life.

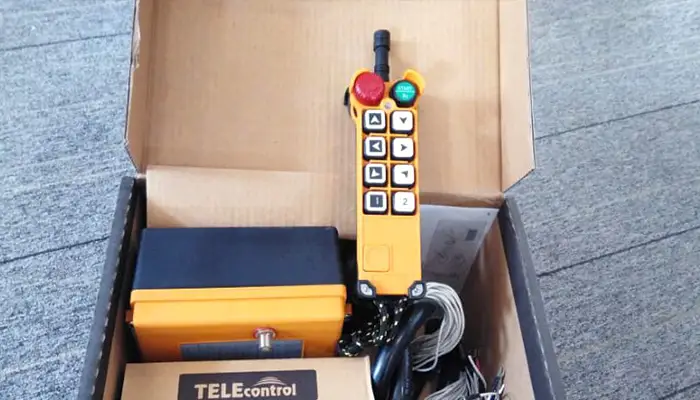

Control System

The control system of a semi gantry crane is designed to provide operators with multiple control options, enhancing user experience and operational safety. Available control methods include pendant control, which allows for precise maneuvering from a distance; wireless remote control, offering flexibility and freedom of movement; and cabin control, where operators can manage the crane's operations from an enclosed space for added safety and comfort.

In addition to these control options, the system is equipped with built-in safety devices to protect both the equipment and personnel. These safety features include overload protection, which prevents the crane from lifting loads that exceed its capacity; phase failure protection, ensuring the crane continues to operate safely in the event of power supply issues; travel limits to prevent the crane from moving beyond its designated path; and emergency stop systems that allow for immediate halting of operations in case of an emergency. Collectively, these safety measures are essential for maintaining a safe working environment while maximizing the crane's operational efficiency.

Semi Gantry Crane Kit Without Main Girder

The semi gantry crane kit without the main girder is specifically designed for customers who wish to build a custom gantry crane. This kit includes all the core components necessary for a functional crane system while excluding the main girder, allowing for greater flexibility and personalization in the design.

Components Included

End Carriages and Wheels:
The end carriages in this kit come fully equipped with motors and wheel systems, essential for supporting the crane's movement along the rail. These components are engineered for stability and durability, ensuring smooth travel during lifting operations.

Support Legs and Ground Beam:
This kit includes pre-fabricated support legs and a ground beam designed for easy assembly. The structural components are built to be fully compatible with most standard or custom-designed girders, allowing for quick integration into existing setups or new projects.

Traveling Mechanism:
The traveling mechanism features a pre-installed motor equipped with soft-start functionality to minimize initial load impact and enhance overall operational safety. Additionally, the brake systems ensure smooth and reliable stopping capabilities, allowing for precise control during movement.

Power Supply System:
Included in the kit are cable drums and slideways that provide continuous power to the crane. This power supply system is designed to ensure reliable electrical distribution, enabling efficient operation throughout the crane's range of motion.

Lifting Mechanism:
The lifting mechanism comprises hoisting equipment such as electric wire rope or chain hoists, along with essential safety features like travel limit switches and overload protection. These components work together to ensure safe and effective lifting operations, minimizing the risk of equipment failure or accidents.

Control System:
This kit offers flexible operation options, including pendant, remote, or cabin control systems. These control options allow operators to manage the crane's movements effectively, adapting to various operational requirements and preferences.

Customization Options

The semi gantry crane kit without the main girder provides significant customization options, allowing users to utilize existing main girders or design custom-built girders to meet specific project requirements. This flexibility enables the crane to be tailored to various lifting capacities, spans, and heights, accommodating diverse operational needs.

The modular design of the kit means that users can easily adapt the crane as their needs change, making it a practical choice for industries that require versatile lifting solutions. Whether for a new installation or upgrading an existing system, this kit offers a comprehensive solution for building a semi gantry crane tailored to individual specifications.

Key Benefits of Semi Gantry Crane Kits

Understanding the advantages of semi gantry crane kits is essential for businesses considering this type of lifting equipment. These kits provide various benefits depending on whether one opts for a complete semi gantry crane kit or a kit without the main girder.

Complete Semi Gantry Crane Kit

Turnkey Solution:
The complete semi gantry crane kit offers a comprehensive turnkey solution that includes all necessary components for operation. This means users receive everything they need in one package, simplifying the procurement process and ensuring compatibility among parts.

Customizable:
These kits are designed to be customizable, allowing businesses to tailor the crane to their specific operational needs. Whether adjustments are required for load capacity, span, or hoist type, users have the flexibility to create a solution that meets their precise requirements.

Easy Installation:
The pre-engineered components of the complete kit facilitate quick assembly and installation. This ease of installation minimizes downtime, allowing businesses to put their new crane into operation rapidly and efficiently, thus enhancing productivity.

Semi Gantry Crane Kit Without Main Girder

Cost-effective:
The semi gantry crane kit without the main girder is a cost-effective solution, particularly suitable for projects where the main girder is already available or where custom fabrication is preferred. This approach allows users to save on costs while still acquiring essential crane components.

Flexible Integration:
This kit enables flexible integration with pre-existing infrastructure, providing options for users who wish to incorporate custom-built main girders. This adaptability ensures that the crane can be configured to work seamlessly within existing setups, enhancing overall operational efficiency.

Scalable:
The semi gantry crane kit without the main girder is designed to be scalable, allowing for easy expansion or modification in response to future load demands or operational changes. This scalability ensures that businesses can adapt their lifting solutions as their needs evolve, making it a long-term investment in operational flexibility.

In summary, whether opting for a complete semi gantry crane kit or a kit without the main girder, users benefit from a range of practical advantages that enhance both functionality and efficiency in various lifting applications.

Applications of Semi Gantry Crane Kits

Semi gantry crane kits offer versatile solutions for various industrial environments, proving to be an efficient choice in several applications. Here are some of the primary uses of semi gantry cranes across different sectors:

Warehouses and Manufacturing Plants

In warehouses and manufacturing plants, semi gantry cranes play a crucial role in material handling operations. They facilitate the efficient movement of raw materials and finished goods, optimizing workflow and productivity. Their ability to operate in confined spaces makes them particularly valuable in areas where traditional overhead cranes may not fit. With customizable configurations, these cranes can accommodate different load capacities and spans, ensuring they meet the specific demands of the operation.

Shipyards and Ports

Semi gantry cranes are highly suitable for use in shipyards and ports, where they assist in loading and unloading cargo in limited space environments. Their design allows them to navigate tight areas, making them ideal for managing heavy and bulky items, such as shipping containers and heavy machinery. The versatility of these cranes ensures that they can handle various cargo types, enhancing the efficiency of port operations and supporting timely ship logistics.

Workshops

In workshops, semi gantry cranes are invaluable for material handling, especially in assembly lines or machine shops with constrained overhead space. Their compact design enables them to operate in areas where headroom is limited, making them an excellent choice for lifting and moving components or tools without hindering other processes. This capability not only improves productivity but also contributes to a safer working environment by reducing the need for manual lifting.

In summary, semi gantry crane kits offer practical solutions for a wide range of applications, from warehouses and manufacturing plants to shipyards, ports, and workshops. Their adaptability to various environments and operational needs makes them an essential asset for industries seeking efficient material handling solutions.

Conclusion

In conclusion, the Complete Semi Gantry Crane Kit presents a comprehensive and ready-to-use solution, encompassing all essential components required for seamless installation and efficient operation. This kit is particularly beneficial for businesses looking to implement a straightforward lifting solution without the hassle of assembling disparate parts.

On the other hand, the Semi Gantry Crane Kit Without Main Girder offers a cost-effective and highly customizable alternative. This option caters to businesses that prefer flexibility in their crane design, allowing them to integrate existing infrastructure or create bespoke solutions tailored to specific operational requirements.

Both kits feature modular designs and various control options, ensuring that users can adapt the crane system to meet their unique lifting needs. By choosing either of these kits, businesses can enhance their operational safety and productivity, making a significant investment in their material handling capabilities.
