5 Ton - 400 Ton Double Trolleys Double Girder Overhead Crane

Double girder overhead crane with double trolleys is a heavy duty double girder overhead crane, equipped with two crane trolleys of equal capacity from 2.5 ton + 2.5 ton up to 200 ton + 200 ton , both of which can be operated separately and simultaneously. The double trolley double girder overhead crane is especially used for handling long, heavy objects or sets of objects with two lifting points of long distance, featured as stable performance with high safety and efficiency.

Parameters of double trolley double girder overhead cranes

Double girder overhead crane with double trolleys is a heavy duty double girder overhead crane, equipped with two crane trolleys of equal capacity from 2.5 ton + 2.5 ton up to 200 ton + 200 ton , both of which can be operated separately and simultaneously. And the main parameters of the Double girder overhead crane with double trolleyss are for your reference to get your custom designed double trolley crane solution。

Main parameters of overhead double trolley double girder overhead cranes

• Crane Type: QE type Double girder overhead crane with two crane trolleys
• Lifting Capacity of double trolley double girder overhead crane:(2.5+2.5)~(200+200)ton, 5+5t, 7.5+7.5t, 10+10t, 16+16/3,2t, 20+ 20/5t, 32+32/5t, 50+50/10t, 63+63/10t, 80+80/20t, 100+100/20t, 125+125/30t, 160+160/30t, 200+200/50t.
• Span Length of double trolley double girder overhead crane:10.5~35.5m
• Working class of double trolley double girder overhead crane: A5, A6
• Ambient temperature of Double girder overhead crane with double trolleys: -25C to +40C
• Control method of Double girder overhead crane with double trolleys: cabin/ pendent/ remote.
• The special and non-standard design for the double trolley double girder overhead cranes are available.

Main structure and components

Double girder overhead crane with double trolleys is mainly consisted of crane bridge beam, driver's cab, trolley travelling mechanism and electric equipment. The driver's cabin has three open directions: side, top and end.

Double trolley, double hook, double girder overhead cranes

Double Trolley Crane Design Options

• Crane runway of double trolley crane : elevated runway beam
• Long travelling operation & trolley cross travelling operation: electric
• Hoisting trolley of double trolley crane: electric wire rope hoist or electric chain hoist or open winch
• Crane control: crane pendant, wireless remote control / wireless radio control or / and crane cabin control.
• Safety device of trolley crane: overload limiter, travel limit switch, anti-collision device, etc.

Features of double girder overhead crane with double trolleyss

And the features of the double trolley double girder overhead cranes are as following:

• Crane girder : Due to the box welded structure design, the crane bridge girder is with high degree of rigidity vertically and horizontally.
• Crane travelling mechanism： Separate driving is adopted with high flexibility. Strong beam and stable travelling mechanism ensures the good performance of the trolley cranes.
• Soft starter motor is used in the travelling mechanisms of bridge crane and travelling trolleys.
• The emergency switch can stop any movement at once by pressing on the single button to prevent danger effectively.
• The overhead trolley crane is rely on the crane bridge frame to move logitudinally along the rail direction of the workshop and the hoist trolley are moving along the main beam direction transversely while the lifting hook of the hoist trolley are used to lift up and down of the loads.

Hoist trolley for double girder overhead cranes

Crane hoist trolleys are designed for double girder overhead crane and are widely used for heavy duty lifting operations with higher safety and stability. The hoist trolley are runs on along the top of edge of two girders and the wire rope with hook will descend between the two girders to handle the load, which enables the maximum possible height of lift under the beam girder, however, on the hand more roof space will be required above the crane beams or girder, due to it sits on the top of crane beam girders.

Double girder hoist trolley

Double girder hoist trolley for double girder overhead crane and gantry cranes

Double girder hoist trolley

Double girder hoist trolley for double girder overhead cranes and gantry cranes with double hoists for hoisting and lifting .

Electric chain hoist trolley

Electric chain hoist trolley for double girder overhead cranes and gantry cranes

Electric wire rope hosist trolley

Electric wire rope hosist trolley for double girder overhead cranes and double girder gantry cranes

Open winches for double girder overhead cranes

Build up open winch and electric winch trolleys are adopted on double girder overhead cranes as the lifting system for handling heavy loads with capacity from 5 ton 500 ton. According to different design style and features, the overhead open winch crane can be grouped in the following types:

Open winch with European style design

European style open winch for double girder overhead cranes with capacity up to 500 tons.

Open winch with European style design

European style open winch for FEM / DIN standard double girder overhead crane

Open winch with Chinese traditional design with CE certificate

Chinese style open winch trolley for double girder overhead cranes system

Open winch with Chinese traditional design with CE certificate

Chinese style double girder overhead crane with open winch hoisting system

Advantages of double trolley double girder overhead crane

High flexibility is provided for long items handling:Great flexibility is provided by the double trolley overhead cranes for long objects handling. There are two hoist trolleys used as the lifting mechanism of the double girder overhead crane which can handle items horizontally and vertically at same time or separately.

Up / down, Left/ Right:The overhead crane trolley mechanism which is consisted of an electric hoist and a top running trolley, offers two directions of load motion, up or down, left or right.

Separately or simultaneously: The Double girder overhead crane with double trolleys is combined of a main hoist trolley and a secondary hoist trolley, which can be operated together for complex conditions such as installation process and also can be used separately with the same functions as a common double girder overhead crane with a hoist trolley.

Economical solution for complex lifting situations

• Reliable double girder overhead crane with double trolleys is efficient and stable in working performance at cost-effective crane price.For actual engineering projects, there are often complex lifting conditions such as the handling of long items or items with long lifting points which need the cooperation of two overhead cranes which increases the investment for the workshop. Comparatively, a Double girder overhead crane with double trolleys is able to solve such problems perfectly but with low crane cost and investment in plant construction.
• And also with advantages of compact structure and light dead weight, Double girder overhead crane with double trolleys is easy to storage, transport, and also easy to install and maintain, which also makes the double trolley double girder overhead crane competitive in terms of crane price and crane cost.
• Lastly, the Double girder overhead crane with double trolleys is available in cut-to-tail crane designs, which is able to at the largest extent to satisfy your needs of lifting requirements without spending extra-money Due to the unique features and advantages, the double trolley double girder overhead cranes has a wide application range.

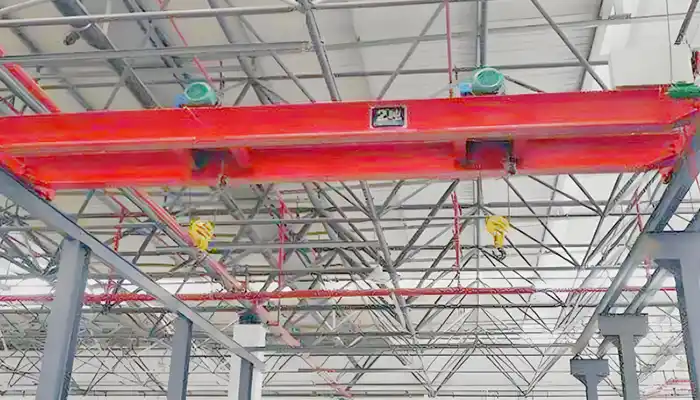

Double trolley overhead crane

Double girder overhead crane with double trolleys

Double girder bridge crane with two hoisting trolleys

Double girder overhead crane with two lifting trolleys

Applications of double girder overhead crane with double trolleys

Double girder overhead crane with double trolleys is an excellent solution where high speeds and heavy duty service are required.

• The overhead dual-trolley and hook crane is extensively used for long pieces of objects handling such as steel pipe, paper pipe, and wood, etc., in mining and industrial workshops, warehouses and storage, etc.
• And also the Double girder overhead crane with double trolleys also can be used outdoors such as a freight yard when equipped with rainproof devices.
• Designed for general material handling, the QE series of Double girder overhead crane with double trolleys is not supposed to be used in hazardous environments, with atmosphere or substance of explosive flammable & corrosive or in high heat environment.
