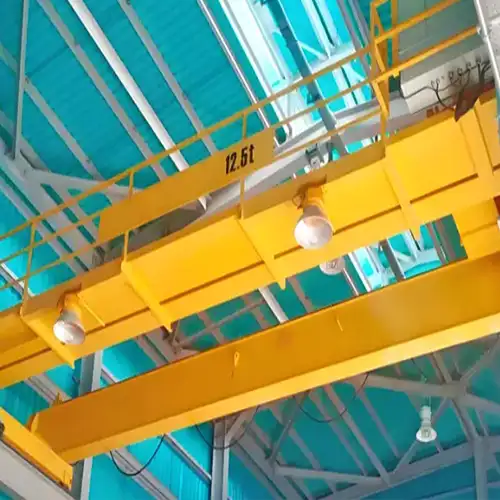

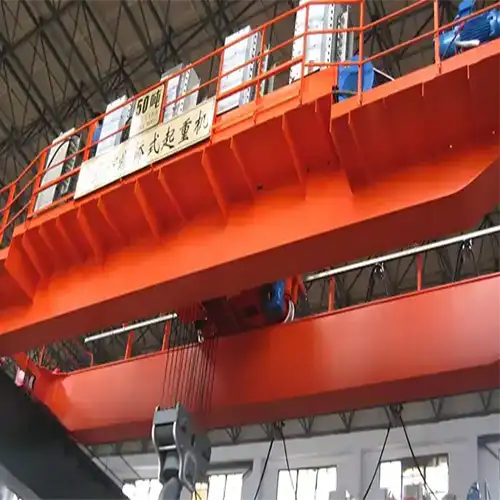

5 Ton - 75 Ton Explosion Proof Double Girder Overhead Crane

QB series of Explosion proof double girder overhead crane is a double girder overhead crane designed for workshops or factories with flammable gas or explosive gas mixture of which detonating ability is not higher than IIB or IIC. The double girder overhead crane is designed for heavy duty martial handling and all the motors and electrical components of the overhead crane conforms to the standard of GB3836.2-2000 with features of anti -explosion and the whole crane system is designed in compliance with the crane standard of JB/T5897-2006. The explosion proof grades of the explosion proof double girder overhead crane s are ExdⅡBT4 and ExdⅡCT4.

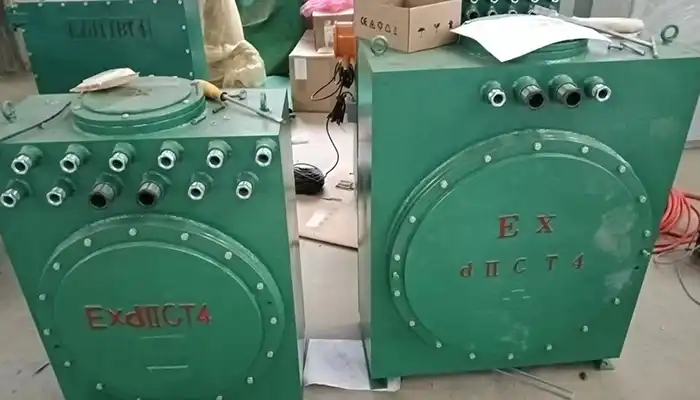

The main parts and components of the QB series explosion proof double girder overhead crane includes the crane bridge structure, trolley winch lifting mechanism, crane traveling mechanism, explosion proof electrical equipment and so on. The drawing of the double girder explosion proof crane is presented for your reference.

Optionally, specialized features can be added by equipping custom designed devices, such as rain proof device when the explosion proof crane is applied in the open air. Leave your requirements below to get your individualized explosion proof double girder double girder overhead crane.

Main specifications of explosion proof double girder overhead crane

The lifting capacity of the explosion-proof double girder overhead crane is 5-75 tons, and crane working class is A4 and A5.The specific parameters of the explosion proof cranes are presented for your reference. The customized explosion proof double girder overhead crane is available.

Main specifications of double girder explosion proof cranes:

• Lifting capacity of explosion proof double girder overhead crane : 5~75t
• Span length of explosion proof double girder overhead crane : 10.5~31.5m
• Lifting height of explosion proof double girder overhead crane : 6~18m
• Lifting speed of explosion proof double girder overhead crane : 3~5m/min
• Crane travelling speed of explosion proof double girder overhead crane : 20m/min
• Explosion proof grade of overhead crane: ExdⅡBT4、ExdⅡCT4
• Working class: A4

Being proven under the demanding application environment, the Explosion proof double girder overhead cranes and explosion protected hoists are trusted with popularity.

With rich experience and flexible designs, our Explosion proof double girder overhead crane systems is winning partners around world for the quality of the supplied overhead lifting equipment, personalized crane design, and on time delivery to meet the manufacturing plan of valuable clients at competitive prices.

Any need of Explosion proof double girder overhead crane and hoist systems, please feel free to contact us.

Parts & components of explosion proof double girder overhead crane

Explosion proof double girder overhead crane is a type of particularly designed double girder overhead crane, mainly used to handle materials in workshop, warehouse and factory with hazardous explosive gas or dust with high safety and reliability. The explosion proof crane is equipped with explosion proof measures to ensure highest level of safety in motors, electrical crane parts, metal contact surface and even crane wheels to avoid flame by friction, conforming to national and international standards, which is a good selection for hazardous application environments such as oil refineries, gas power plants, petrochemical, paint processing plant, etc.

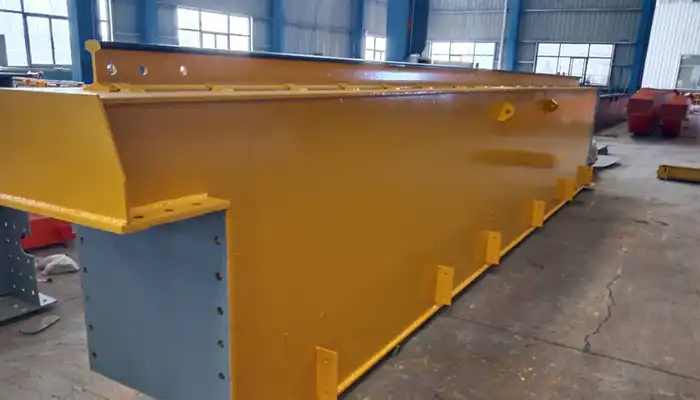

Main girder of explosion proof crane are fabricated with quality steels and covered with specified paints including 3 layers1) Dimer coat 9 primer( 75 microns drt),2) Amercoat 385 ( 150 microns drf),3)Amercoat 450S( RAI 1004 OR 1018) (75 microns drt), etc. Tailored explosion proof hoists & cranes are available.

Double girder hoist trolley

Double girder hoist trolley for double girder overhead crane and gantry cranes, which can be customized with explosion proof features.

Double girder hoist trolley

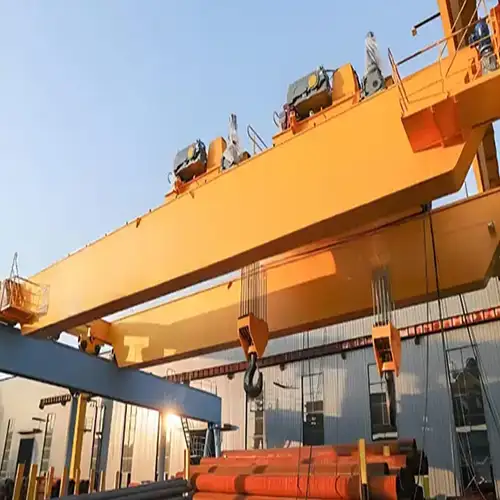

Double girder hoist trolley for double girder overhead cranes and gantry cranes with double hoists for hoisting and lifting , which can be customized with explosion proof features. .

Electric chain hoist trolley

Electric chain hoist trolley for double girder overhead cranes and gantry cranes, which can be customized with explosion proof features.

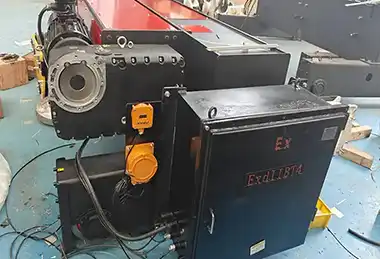

Electric wire rope hosist trolley

Electric wire rope hosist trolley for double girder overhead cranes and double girder gantry cranes, which can be customized with explosion proof features.

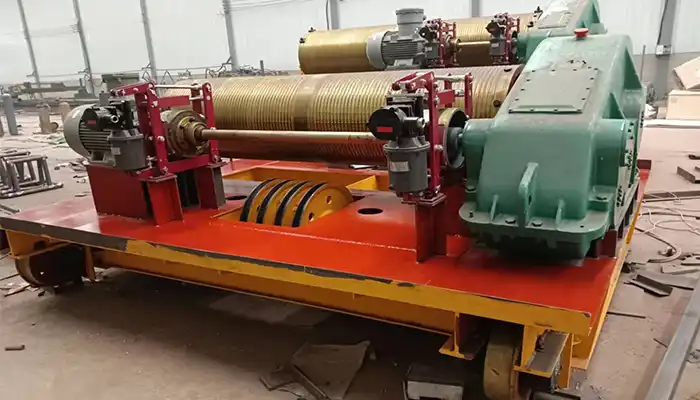

Open winch with European style design

European style open winch for double girder overhead cranes with capacity up to 500 tons, which can be customized with explosion proof features.

Open winch with Chinese traditional design with CE certificate

Chinese style open winch trolley for double girder overhead cranes system, which can be customized with explosion proof features.

The explosion proof hoists and cranes offers a wide range of lifting height or hook height and lifting speeds incorporating with the standards of FEM, ISO, AS, ATEX, and IECEX, with the features of reliability, durability and easy maintenance. All components of the explosion proof hoists are carefully designed to suit the particularly targeted hazardous zones to make the explosion proof crane hoists manufactured to suit the specifications of application to further improve the reliability, safety and performance.

Advantages of explosion proof double girder overhead crane

Why to select Explosion proof double girder overhead crane system? Explosion proof double girder overhead cranes systems are required in the hazardous environment to ensure in the safety of crane operation and working staff. Generally, they are widely used in chemical plants, gas power plants, paint shops, mining, oil refineries, and waste water treatment plants and other applications due to the following advantages and features :

• Reasonable design and strong explosion-proof capability.
• Good structure and good rigidity, reliable operation, excellent performance.
• Installation of adjusting speed converter, stable operation
• High safety and reliability, long services life.

If you neglect some of the potentially dangerous issues, you may lose a large number of people and money. There are also a lot of radioactive materials in the coal mines, which could cause harm to the workers. As a result, we can design an explosion-proof overhead crane exclusively for your coal mine.

There are two main types of explosion-proof cranes: single girder and double girder explosion proof cranes. To satisfy your specific requirements, a variety of capacities and sizes are available.

As the crane designers and manufacturers, the explosion proof overhead cane we provided can meet your lifting requirement at very reasonably price. If you need an explosion proof crane at economical price, please feel free to contact us to check what we can do for you to save your budget.

Application of explosion proof double girder overhead cranes

The Explosion proof double girder overhead cranes or explosion proof bridge cranes have a wide applications:

We designs and manufactures the explosion proof and anti -explosion proof hoist and crane equipment for the harsh and hazardous application environments, such as, chemical plants, gas power plants, paint shops, mining, oil refineries, and waste water treatment plants, etc.

• The proof marks are Exd Ⅱ BT4 and Exd Ⅱ CT4.
• Explosion proof double girder overhead crane are applied to sites, where is not higher than the II B or II C-class, and the sites with explosive air mixture formed with inflammable gas (or steam) and air whose factory ignition temperature groups of not less than the T4 group.

Any question on explosion proof hoist crane zoning or applications, please feel free to contact us. Free consultation are available on Explosion proof double girder overhead crane systems, anti-explosion proof hoists, and other spark resistant crane parts and components, etc. Send us an inquiry on explosion proof crane and hoist now.

Process explosion proof double girder overhead crane, cost-effective overhead crane solutions

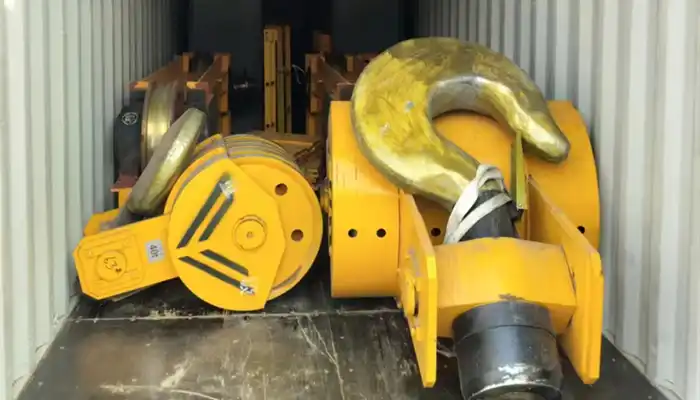

As explosion proof hoists and crane manufacturer, we can offer you complete explosion proof double girder overhead crane systems of various overhead crane designs including single girder overhead cranes, double girder overhead cranes, top running overhead cranes & under hung overhead cranes, etc., and all the related spare parts for explosion proof hoists and cranes including motor, wire rope drums, explosion proof crane wheels, hooks, rails, travel beams, crane bus bar etc.

Tailored explosion proof double girder overhead cranes with process crane designs is the optimal overhead crane solutions for your specific industrial setup. Free consultation on Explosion proof double girder overhead crane system and explosion proof hoists are available.

How to select the hazardous application hoist & crane ? Contact us to get your customized explosion proof double girder overhead crane design and explosion proof crane drawing now.
