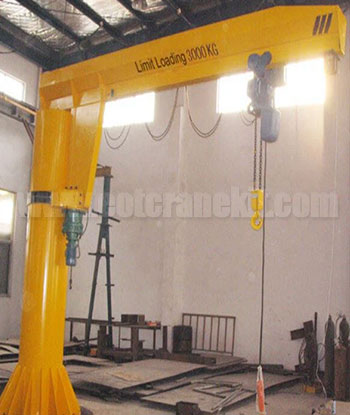

Overview of 3 Ton Pillar Mounted Electric Swing Crane for sale UK

• Jib crane type: Floor mounted electric swing  crane
• Crane capacity: 3 ton
• Crane cantilever : 5m meters
• Crane lifting height: 4m
• Power supply: 380v50HZ 3p.

3 Ton Electric Swing Crane to Improve Industrial Efficiency- A UK Case Study

This case study examines the implementation of a 3-ton pillar-mounted electric swing crane in a UK-based industrial facility. The crane's versatility, robust lifting capacity, and efficient design have significantly improved material handling processes, leading to enhanced productivity and safety.

Background and requirments of swing crane project in UK

The industrial facility, based in the United Kingdom, required a reliable lifting solution to handle heavy loads efficiently. They opted for a 3-ton electric swing crane due to its suitability for their space constraints and ability to handle a variety of tasks with ease.

The client's key requirements were a 3-ton lifting capacity, a floor-mounted pillar design, and the ability to swivel and swing the crane. The crane was intended to facilitate material handling within a 5-meter cantilever radius and reach a lifting height of 4 meters. Moreover, they sought an electric-powered solution with a power supply of 380v, 50HZ, 3-phase for energy efficiency.

Electric Swing Crane Solution

The selected solution was a 3-ton floor-mounted electric swing crane with a swivel feature. The crane's compact design allowed it to fit within their limited space while providing the necessary lifting capacity. The electric swing feature enabled 360-degree rotation, allowing operators to move loads effortlessly within the designated radius. The crane's electric-powered mechanism ensured smooth and precise movements, minimizing operator fatigue and enhancing safety.

• Electric jib crane type: Pillar mounted electric jib crane
• Lifting capacity: 3 tons
• Span: 5 meters
• Total arm length: 5.60 meters
• Lifting height: 4.00 meters
• Total crane height: 5.50 meters
• Rotation angle: 360°
• Rotation type: motorized
• Rotating speed: 0.6 r/min
• Working duty: A3
• Jib hoist type: electric chain hoist with motorized trolley
• Jib hoist motor power: 3.0Kw
• Traveling motor power: 0.75 Kw
• Lifting speed: 5.4 m/min
• Traveling speed: 11 m/min
• Power supply: 380VAC 50Hz 3Phase
• Control mode: pendent control
• Control voltage: 36V

Ask for 3 ton jib crane price

Main parts and componets of 3 ton electric swing crane project

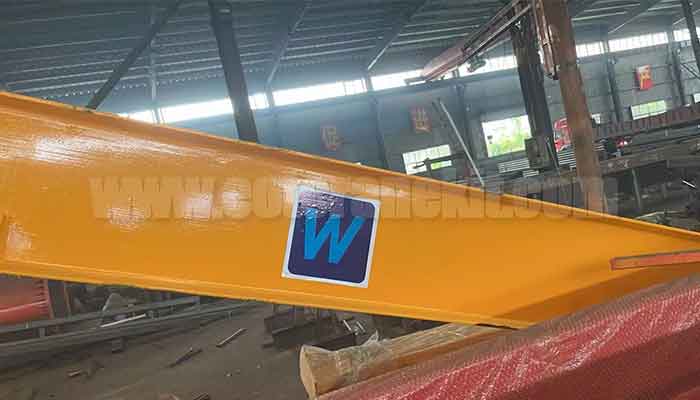

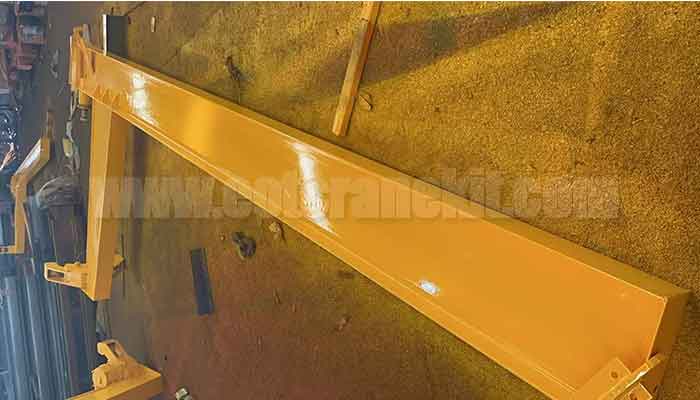

I beam cantilever of 3 ton jib crane with electric swing arm

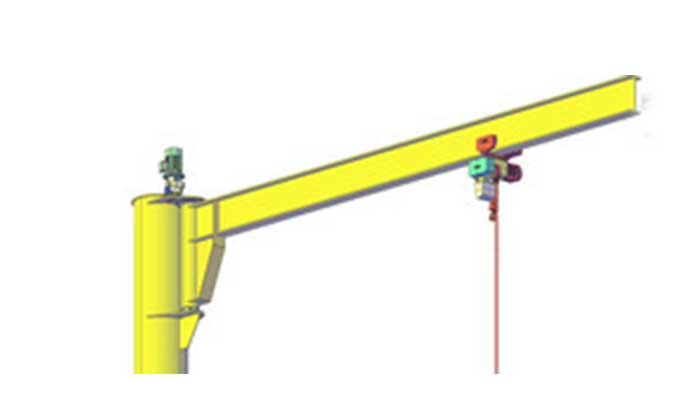

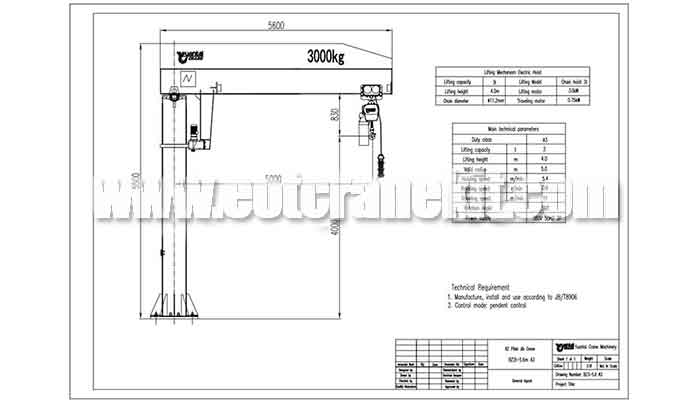

Custom electric swing crane designed based on your lifting requirments

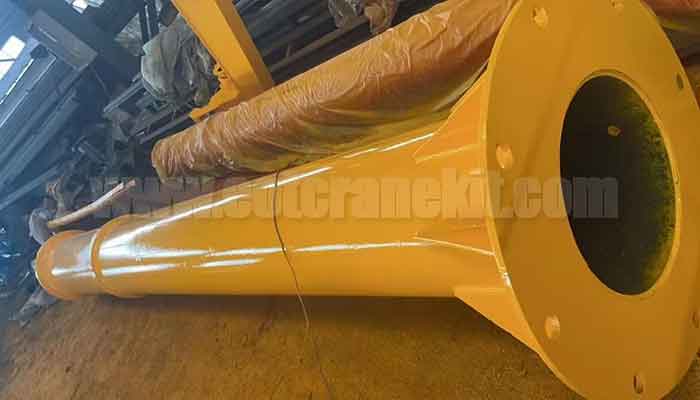

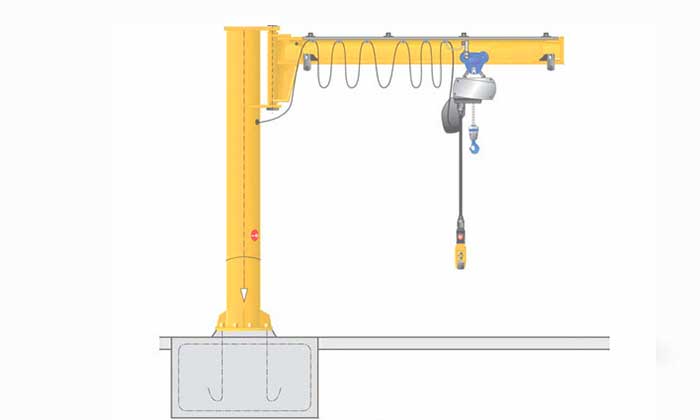

Floor mounted column of the 3 ton jib crane

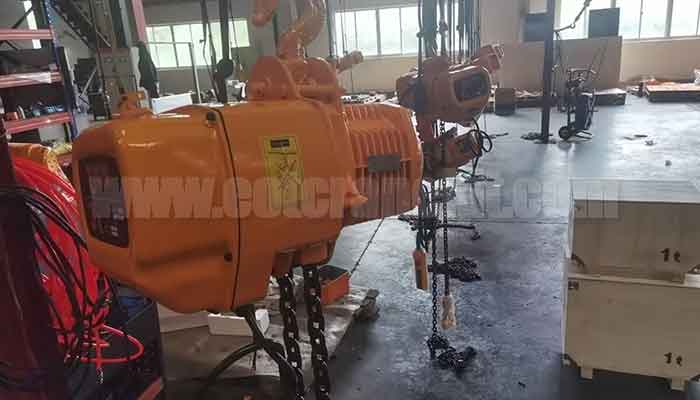

3 ton electric jib crane hoist, electric chain hoist

Benifits of using electric swing crane 3 ton

The installation of the 3-ton electric swing crane brought several positive outcomes for the industrial facility:

• Increased Efficiency: The crane's maneuverability and lifting capacity significantly improved material handling processes, reducing loading and unloading times.
• Enhanced Safety: With the electric swing feature, operators could precisely control load movements, minimizing the risk of accidents and damage to goods.
• Space Optimization: The floor-mounted pillar design allowed for the optimal use of available space, making the facility more organized and conducive to efficient operations.
• Cost-effectiveness: The 230v electric swivel crane consumed less power compared to traditional fuel-powered cranes, resulting in cost savings over time.

Upon receipt of the 3 ton jib crane, the installation process was carried out by a team of certified technicians. The 3 ton crane was mounted securely to the factory floor, and the electrical connections were set up according to safety standards. Thorough testing and inspections were conducted to ensure the crane's functionality and adherence to safety regulations.

The successful installation of the 3 ton floor moutned electric swing crane in the UK-based industrial facility showcases its potential to enhance productivity, safety, and cost-effectiveness. The floor jib crane's ability to meet the client's specific requirements while providing smooth and efficient material handling solutions solidifies its position as a valuable asset for a wide range of industrial applications.

Overview of types of electric swing cranes

An electric swing crane, also known as an electric slewing crane or electric jib crane, is a type of lifting equipment used to move heavy loads horizontally and vertically within a limited working area. It's designed to have a rotating boom (jib) that allows the crane operator to swing the load in a circular motion. The crane is typically mounted on a fixed pillar or wall, providing it with stability and a range of motion.

Key features of an electric swing crane include:

• Electric-powered: These cranes are driven by electric motors, making them more environmentally friendly and easy to operate compared to cranes powered by diesel engines or other types of fuel.
• Swing radius: The swing crane's boom allows for a wide radius of motion, making it suitable for handling loads in a circular area around its base.
• Compact design: Electric swing cranes are often used in places with limited space where larger cranes cannot fit. Their compact size makes them ideal for use in workshops, factories, and construction sites.
• Lifting capacity: The lifting capacity of electric swing cranes can vary significantly, ranging from a few hundred kilograms to several tons, depending on the specific model.
• Safety features: Modern electric swing cranes are equipped with various safety features, such as overload protection, emergency stop buttons, and limit switches to prevent the crane from operating outside its safe working range.
• Remote control: Many electric swing cranes come with remote control options, allowing the operator to control the crane's movements from a distance, enhancing safety and efficiency.

Electric swing cranes are commonly used for tasks such as material handling, loading and unloading, and positioning heavy items in industrial settings. They offer versatility and ease of use, making them a valuable asset for various applications that require precise and controlled lifting and swinging motions.

Types of electric swing cranes for sale for your selections

Electric Swing Cranes come in various types, each designed to cater to specific needs and applications. Some common types include Wall-Mounted Jib Cranes, Pillar-Mounted Jib Cranes, Articulating Jib Cranes, Portable Jib Cranes, Floor-Mounted Jib Cranes, Under-Braced Jib Cranes, and Over-Braced Jib Cranes.

Wall-Mounted Jib Crane:

Features:

• Mounted on a wall or vertical structure, saving floor space.
• Rotation is typically limited to 180 degrees.
• Suitable for applications with restricted floor space and low headroom.
• Available in both manual and electric rotation options.

Typical Applications:

• Material handling in workshops and small manufacturing units.
• Loading and unloading of materials in tight spaces.
• Assembly and production lines.

Ask for jib crane price

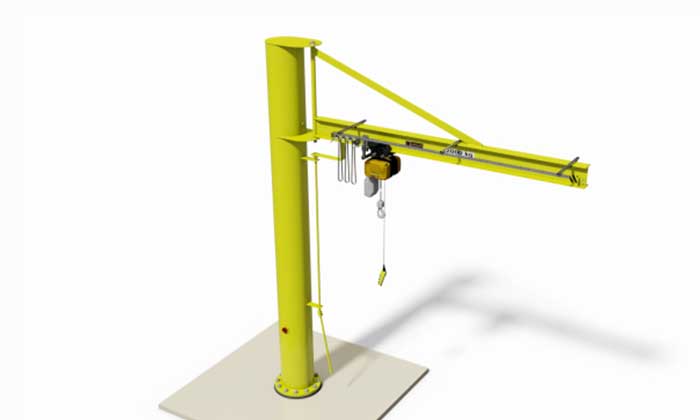

Pillar-Mounted Jib Crane:

Features:

• Mounted on a freestanding pillar or column.
• Offers a full 360-degree rotation.
• Suitable for larger lifting capacities and longer reach.
• Can be designed with electric or manual rotation.

Typical Applications:

• Material handling in warehouses and outdoor areas.
• Heavy machinery maintenance and installation.
• Loading and unloading of trucks and containers.

Ask for jib crane price

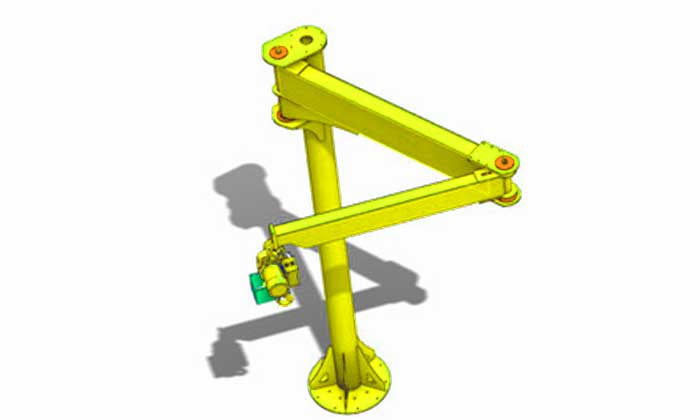

Articulating Jib Crane:

Features:

• Consists of two or more boom segments connected with joints.
• Offers flexibility in reaching around obstacles or obstructions.
• Can be electrically or manually operated.

Typical Applications:

• Workstations with limited space and complex layouts.
• Loading and unloading in irregularly shaped areas.
• Precise positioning of materials or components.

Ask for jib crane price

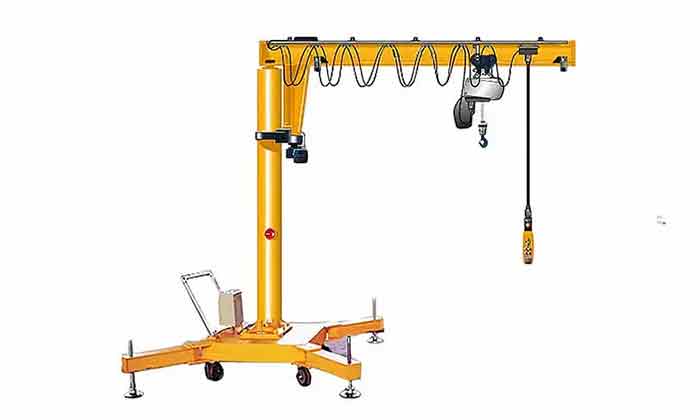

Portable Jib Crane:

Features:

• Lightweight and easily transportable.
• Often equipped with casters or wheels for mobility.
• Can be disassembled and relocated as needed.

Typical Applications:

• On-site construction projects.
• Temporary material handling requirements.
• Maintenance tasks in different areas of a facility.

Ask for jib crane price

Floor-Mounted Jib Crane:

Features:

• Mounted directly on the factory or warehouse floor.
• Offers 360-degree rotation.
• Suitable for heavier loads and high lifting heights.

Typical Applications:

• Heavy-duty material handling in industrial settings.
• Loading and unloading of large or bulky items.
• Frequent and versatile lifting operations.

Ask for jib crane price

Under-Braced Jib Crane:

Features:

• The jib arm is supported from underneath by a brace structure.
• Allows for high lifting capacities and long reach.

Typical Applications:

• Heavy machinery manufacturing and assembly.
• Handling large equipment and components.
• Material handling in steel yards and shipping ports.

Ask for jib crane price

Over-Braced Jib Crane:

Features:

• The jib arm is supported from above by a brace structure.
• Suitable for applications with low ceilings and limited headroom.
• Offers 360-degree rotation.

Typical Applications:

• Workshops with low ceiling height.
• Material handling in confined spaces.
• Machine shops and fabrication areas.

Ask for jib crane price

The choice of an Electric Swing Crane type depends on the specific requirements of the application, such as the lifting capacity, reach, available space, and the nature of the materials being handled. Each type of Electric Swing Crane brings its unique set of features and advantages, allowing businesses to select the most suitable crane for their operational needs.
