L Leg Gantry Crane Single Girder Design vs A Frame Gantry Crane Double Girder Design
L Leg Gantry Crane, Cost-effective 20 Ton, 32 Ton, 50 Ton Gantry Crane Solution for Outdoor Use

Overview of Load Handling Needs for Industrial Applications Ranging from 20 Tons to 50 Tons

In various industries such as construction, manufacturing, and port operations, there is a growing need to lift and transport heavy loads between 20 tons and 50 tons. These loads often include large equipment, building materials, machinery, containers, and other bulky items that must be handled safely and efficiently. As industries continue to expand and demand for handling such heavy loads increases, choosing the right crane becomes more crucial.

The challenge lies in finding cranes that can provide the necessary lifting capacity while remaining efficient, cost-effective, and safe. Load handling requirements are diverse, with some applications requiring frequent lifts in tight spaces, while others need cranes capable of operating in harsh outdoor environments. This makes selecting the right crane even more important to ensure optimal productivity and minimal downtime.

Importance of Selecting the Right Crane Design for Efficiency and Cost-Effectiveness

Selecting the appropriate crane design is a key factor in achieving operational efficiency and cost savings. The crane you choose must meet the load capacity requirements while also being adaptable to the work environment and project scope. Cranes that are overbuilt can lead to unnecessarily high costs, both in terms of initial investment and ongoing maintenance. On the other hand, cranes that are underpowered may struggle to lift heavy loads or may require more frequent repairs and maintenance, leading to delays and higher operating costs.

For industrial applications handling loads between 20 tons and 50 tons, efficiency and cost-effectiveness are especially important. This is where crane designs like the L Leg Gantry Crane offer distinct advantages, providing an optimal solution for handling moderate to heavy loads without the high upfront costs of more complex systems.

Brief Introduction to L Leg Gantry Cranes and A Frame Gantry Cranes

When it comes to cranes for loads ranging from 20 tons to 50 tons, two popular designs are commonly used: the L Leg Gantry Crane and the A Frame Gantry Crane.

• L Leg Gantry Crane: This crane features a single girder design with an L-shaped frame. It is known for its cost-effectiveness, space-saving design, and ability to handle medium to heavy loads. The L Leg Gantry Crane can be used for outdoor applications, providing a versatile and efficient solution for a wide range of industrial needs. It is particularly valued for its lower initial cost and ease of maintenance, making it an ideal choice for projects that need both flexibility and budget control.
• A Frame Gantry Crane: This is a more traditional design that uses a double girder system, offering greater lifting capacity and stability for heavier loads. A Frame Gantry Cranes are typically used in more demanding applications, where heavy and oversized loads need to be lifted with maximum precision and strength. While they offer excellent performance, they tend to be more expensive, both in terms of initial investment and ongoing maintenance, making them less ideal for cost-conscious operations.

Both crane types have their place in industrial settings, but for applications requiring the handling of loads from 20 tons to 50 tons, the L Leg Gantry Crane provides a cost-effective, space-efficient alternative without sacrificing the lifting power needed for most industrial tasks.

The L Leg Gantry Crane Design

Single Girder Design Overview

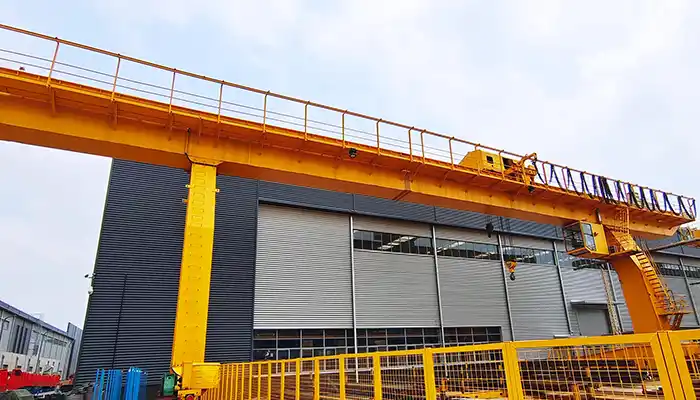

The L Leg Gantry Crane is built around a streamlined, single girder design, offering a more efficient and cost-effective solution for lifting medium to heavy loads. Unlike traditional gantry cranes that use a double girder system, the L Leg design simplifies the crane's structure without compromising its ability to handle substantial loads. The crane consists of a single horizontal girder supported by L-shaped legs, which helps minimize both material costs and maintenance expenses.

The simplicity of the single girder structure makes the L Leg Gantry Crane an ideal choice for a range of industrial applications, particularly where cost efficiency and space constraints are critical. This design allows the crane to offer lifting capacities from 20 tons to 50 tons, providing a practical solution for outdoor and industrial environments that require versatile lifting without the need for larger, more complex equipment.

Key Features That Distinguish It from Traditional Double Girder Gantry Cranes

The L Leg Gantry Crane stands out for several reasons when compared to traditional double girder gantry cranes:

• Single Girder Design: The key differentiator is the use of a single girder, which reduces the crane's overall weight and material costs. Double girder cranes, while capable of higher lifting capacities, require more steel and additional support structures, making them more expensive to manufacture and maintain.
• Lower Operational Costs: With fewer components and a simpler structure, the L Leg Gantry Crane typically requires less maintenance. The design is easier to maintain and repair, leading to lower downtime and maintenance costs over the lifespan of the crane.
• Space Efficiency: The reduced size of the L Leg Gantry Crane’s frame compared to a double girder system means it takes up less space on the worksite, which is particularly valuable in areas where space is at a premium. The compact design enables easier maneuverability in confined spaces, which is often an issue with bulkier double girder cranes.
• Cost-Effective Performance: The ability to handle loads up to 50 tons while being more affordable makes the L Leg Gantry Crane a highly attractive choice for projects where budget constraints are an important consideration. It delivers substantial lifting capacity without the higher cost typically associated with double girder systems.

Ability to Handle Loads from 20 Tons to 50 Tons, Optimizing Both Space and Cost-Efficiency

Despite using a single girder system, the L Leg Gantry Crane is still capable of handling loads ranging from 20 tons to 50 tons, making it a versatile solution for many industrial operations. The crane is engineered to maintain robust load capacity through a carefully designed structure that optimizes both strength and weight distribution.

This design provides several advantages:

• Optimized Lifting Capability: The L Leg Gantry Crane's ability to lift up to 50 tons makes it a powerful yet compact solution for many industrial settings. Its lifting capacity is sufficient for handling heavy loads such as construction materials, machinery, and containers, without the need for a bulkier double girder design.
• Space Efficiency: The crane’s smaller footprint allows for better utilization of space in areas where every square meter counts, such as in warehouses or tight outdoor spaces. This makes it a perfect fit for sites that need heavy lifting capabilities but have limited room for larger equipment.
• Cost-Effective Solution: The reduced materials required for the single girder design and the lower maintenance costs make the L Leg Gantry Crane a highly cost-effective option for medium to heavy lifting tasks. Companies can achieve high performance without the higher costs associated with double girder gantry cranes, making this design an excellent choice for businesses seeking value for money.

Structural and Design Characteristics

Compact Footprint: Ideal for Sites with Space Constraints

One of the standout features of the L Leg Gantry Crane is its compact footprint. The crane’s design is especially suited for environments where space is limited, whether in outdoor construction sites, small manufacturing plants, or busy ports. The L Leg structure allows for better maneuverability, making it easier to move the crane in tight or crowded work areas. Its reduced size ensures that it can operate efficiently without overwhelming the available space, which is a common concern with larger, more complex double girder cranes.

Robust Frame and Lower Structural Demands Compared to Double Girder Systems

The L Leg Gantry Crane is designed with a robust frame that offers excellent strength despite the simpler single girder design. This allows the crane to perform at full capacity while requiring fewer materials compared to double girder systems. The frame’s structure is designed for stability and durability, ensuring that the crane can handle heavy loads safely, while also reducing the overall structural demands. This results in a lighter and more cost-effective design without sacrificing strength or performance.

Adaptability for Various Environmental Conditions, Particularly in Outdoor Settings

The L Leg Gantry Crane is designed to operate in a variety of environments, especially in outdoor settings where weather, uneven ground, and other factors can present challenges. The crane’s structure is designed to withstand exposure to the elements, including wind, rain, and dust, making it an excellent choice for construction, port, and other outdoor operations. Its adaptability also makes it suitable for locations with varying ground conditions, such as uneven terrain or rugged landscapes, where the stability of more traditional cranes might be compromised.

This versatility ensures that the L Leg Gantry Crane can perform reliably in diverse conditions, offering a dependable lifting solution for many outdoor applications where space, cost, and environmental factors must all be considered.

Advantages of the L Leg Gantry Crane for Loads Over 20 Tons

Cost-Effectiveness

One of the key benefits of the L Leg Gantry Crane is its cost-effectiveness. Compared to traditional A Frame or double girder gantry cranes, the L Leg design offers a significantly lower initial investment. This is mainly due to the use of a simpler single girder gantry crane structure, which requires fewer materials and less engineering complexity.

• Lower Initial Investment: The streamlined design of the L Leg crane reduces material and manufacturing costs. Companies can invest in a single girder gantry crane that can handle lifting capacities up to 50 tons without the need for expensive, heavy-duty double girder systems. This makes it an affordable solution for outdoor lifting tasks.
• Reduced Operational Costs: The simpler structure of the single girder crane leads to lower operational costs. With fewer components, the crane requires less energy to operate and can be more efficient in daily tasks. This reduces energy consumption and helps lower overall project costs.
• Lower Maintenance Costs: Because the single girder gantry crane has fewer moving parts and a simpler design, it incurs lower maintenance costs. The crane’s design reduces the frequency of repairs, which ultimately lowers downtime and maintenance expenses. This makes the L Leg Gantry Crane a more cost-effective long-term investment.

Enhanced Efficiency for Outdoor Applications

The L Leg Gantry Crane is designed to meet the demands of outdoor gantry crane operations, making it ideal for use in construction, ports, and manufacturing environments where heavy lifting is required in open or rugged conditions.

• Ideal for Outdoor Gantry Crane Applications: The L Leg crane is particularly suited for outdoor gantry crane operations in construction sites, ports, and manufacturing yards. Its robust design ensures efficient performance in demanding environments, making it perfect for lifting heavy loads such as construction materials, large machinery, and containers.
• Flexibility in Handling Different Types of Loads: The L Leg Gantry Crane can handle a wide range of loads, from 20 tons to 50 tons, with no compromise in performance. This flexibility makes it an excellent solution for a variety of lifting tasks, whether it involves heavy machinery, shipping containers, or industrial equipment.
• Greater Maneuverability and Space Utilization: Compared to bulkier double girder cranes, the single girder gantry crane design of the L Leg model provides greater maneuverability. Its compact footprint makes it ideal for tight spaces, allowing it to operate in areas where space is limited. The smaller frame enables better space utilization, especially in areas with confined workspaces.

Superior Stability and Strength

Despite utilizing a single girder crane design, the L Leg Gantry Crane maintains superior stability and strength, making it suitable for handling heavy loads in various outdoor conditions.

• Excellent Load Distribution and Balance: The single girder gantry crane design ensures excellent load distribution and balance, crucial for handling heavy loads safely. Even with the simpler design, the L Leg crane is engineered to maintain optimal stability, ensuring safe operation even under challenging lifting conditions.
• Stronger Lifting Capacity with Single Girder System: While double girder cranes are often favored for extremely heavy loads, the L Leg Gantry Crane offers a strong lifting capacity despite its single girder system. It is capable of efficiently lifting weights from 20 tons to 50 tons without compromising crane performance or structural integrity.
• Ability to Handle Loads in Challenging Outdoor Environments: The L Leg Gantry Crane is designed to perform reliably in outdoor gantry crane settings, where uneven ground, high winds, and other challenging conditions may arise. The crane’s durable design ensures it can handle heavy loads in these conditions, making it an ideal choice for outdoor gantry crane applications in construction, ports, and industrial sites.

In conclusion, the L Leg Gantry Crane combines the benefits of cost-effectiveness, flexibility, and strength, making it a perfect solution for lifting loads up to 50 tons in outdoor settings. Its design offers excellent maneuverability, strong load handling capabilities, and reduced operational and maintenance costs, making it an optimal choice for businesses requiring reliable and efficient lifting solutions.

20 Ton, 32 Ton, 50 Ton Crane Design Variations

Double Girder Gantry Crane Design (A Frame)

Single Girder Gantry Crane Design (L Leg)

Double Girder Gantry Crane Design (A Frame)

The double girder gantry crane (A Frame) is commonly used for handling heavy loads above 20 tons. It is a traditional crane design known for its strength and ability to lift large, heavy objects.

Typical Use for Loads Above 20 Tons: This type of crane is typically used in industries like construction, shipbuilding, and manufacturing, where heavy materials or equipment need to be lifted. It is designed to handle loads ranging from 20 tons to over 100 tons.

Key Features of the A Frame Double Girder Design:

• Two parallel girders: The crane has two large girders running parallel, which support the load.
• High lifting capacity: This design is ideal for lifting heavy loads with stability.
• More height and headroom: It allows for lifting taller or larger items.
• Two hoists: It often uses two hoists to better distribute the weight of heavy loads.

Benefits and Limitations:

• Benefits: The double girder crane is known for its ability to lift very heavy loads safely. It is very durable and stable, making it perfect for high-capacity lifting needs.
• Limitations: These cranes are expensive to build and install, and they require a lot of space. Because of their size, they are not always ideal for smaller work sites or tight spaces.

Single Girder Gantry Crane Design (L Leg)

The single girder gantry crane (L Leg) is a newer, more affordable option that can handle loads from 20 tons to 50 tons. It uses a simpler, more compact design compared to the double girder crane.

Design that Handles Loads Up to 50 Tons: The L Leg crane uses a single horizontal girder, supported by L-shaped legs, to lift loads. This design is strong enough to handle weights ranging from 20 tons to 50 tons.

How L Leg Gantry Cranes Are Different:

• Simpler structure: Unlike double girder cranes, the L Leg crane uses just one girder, making it simpler and lighter.
• Space-saving design: The L Leg crane takes up less space, making it ideal for sites where space is limited.
• Lower cost: Because it uses fewer materials and has a simpler design, the L Leg crane is more affordable than double girder cranes.

Efficiency for Mid-Range Loads (20-50 Tons):

• The L Leg gantry crane is very effective for lifting loads in the 20 to 50 ton range. It is especially useful in construction, manufacturing, and port applications where moderate load capacities are needed, but without the high cost or size of a double girder crane.
• The design is cost-effective and requires less maintenance due to fewer parts and a simpler structure.

The double girder gantry crane (A Frame) is the best choice for very heavy lifting needs, providing strength and stability for loads above 20 tons. However, it requires more space and comes with a higher cost. On the other hand, the single girder gantry crane (L Leg) is a more affordable and compact option that can efficiently handle mid-range loads (20-50 tons), making it ideal for smaller or cost-conscious projects where space and budget are important.

Crane Design Comparison Table: Double Girder vs. Single Girder (L Leg)

Comparing Load Handling Capacities and Design Features

Load Handling: L Leg Gantry Crane Single Girder (3 to 50 Tons)

The L Leg gantry crane with a single girder design is highly versatile for handling medium-range loads ranging from 3 tons to 50 tons. This design is ideal for outdoor applications where space is limited but efficient lifting is still required.

• Versatility for Outdoor Applications: The L Leg gantry crane is well-suited for outdoor environments such as construction sites, ports, and manufacturing facilities. Its compact structure makes it easy to set up in tight spaces and it can be used for a variety of tasks, including lifting machinery, steel beams, and large equipment.
• Ideal for Medium-Range Loads: The L Leg design is capable of handling loads from 3 tons to 50 tons. This makes it perfect for industries that require lifting equipment or materials that are too heavy for smaller cranes but not large enough to require a more complex double girder crane.
• Stability with Variable Load Weights: Despite being a single girder crane, the L Leg design provides excellent stability when handling loads of varying weights. The L-shaped legs help evenly distribute the weight, ensuring safe operation, even when lifting at the upper limit of the crane’s capacity. This design maintains structural integrity and balance, even under heavy loads.

Load Handling: A Frame Gantry Crane Double Girder (5 Ton to 500 Tons)

The A Frame gantry crane with a double girder design is engineered for heavy-duty lifting, capable of handling loads from 5 tons to 500 tons. This crane is particularly effective for industrial applications requiring high lifting capacities and long spans.

• Better Suited for Heavier Loads: The A Frame double girder crane is best for handling much heavier loads than the L Leg design. It is commonly used in industries such as steel manufacturing, shipbuilding, and large-scale construction where large machinery, heavy materials, or bulky components need to be moved with precision.
• Features for Handling Large, Heavy Items: The double girder design allows for superior load distribution and balance. The use of two parallel girders offers additional strength, enabling the crane to lift extremely heavy loads without compromising safety or stability. It is equipped with two hoists to evenly distribute the load and improve lifting efficiency.
• Strengths in Lifting and Long-Span Applications: The A Frame crane excels in applications that require both high lifting capacity and long spans. Whether it’s lifting large containers at a port or heavy steel beams in construction, the A Frame design provides exceptional strength and stability for these challenging tasks. Its structure makes it ideal for tasks that require both vertical and horizontal lifting over significant distances.

Summary

• The L Leg Gantry Crane is ideal for medium-range loads (3 to 50 tons), providing a versatile and cost-effective solution for outdoor applications, with excellent stability for varied weights.
• The A Frame Gantry Crane is better suited for heavier loads (5 to 500 tons), offering superior lifting capacity, long spans, and enhanced strength for large, heavy items. Its double girder design ensures maximum stability and safety for heavy-duty industrial tasks.

Crane Load Handling Capacities and Design Features Comparison

Cost-Effectiveness of the L Leg Gantry Crane Solution

Initial Cost Comparison: L Leg vs. A Frame Designs

The L Leg gantry crane offers a more affordable initial investment compared to the A Frame double girder crane. The key factors contributing to the cost difference are:

L Leg Gantry Crane:

• Made with a simpler single girder design, requiring fewer materials and components.
• More compact and lightweight, leading to lower transportation and installation costs.
• Ideal for mid-range lifting capacities (20 tons to 50 tons), which helps reduce the need for expensive customizations.

A Frame Gantry Crane:

• The double girder design requires more materials and a more complex construction process.
• Typically used for very heavy-duty applications (5 tons to 500 tons), leading to higher manufacturing, transportation, and installation costs.
• Higher overhead for design, engineering, and manufacturing to support larger capacities.

Overall, the L Leg gantry crane is a more budget-friendly option for industries that do not require the extreme lifting capacities offered by the A Frame design.

Maintenance Costs: Long-Term Savings with the L Leg Design for Moderate Loads

The L Leg gantry crane offers significant long-term savings in maintenance costs due to its simpler design:

• Fewer Components: The single girder structure of the L Leg crane has fewer moving parts, which means there are fewer parts to maintain or replace over time.
• Lower Wear and Tear: With fewer load-bearing components, there is less strain on the system, reducing wear and tear. This results in fewer maintenance interventions and a longer service life.
• Lower Operational Costs: The simpler design also means fewer system failures and reduced downtime, contributing to cost savings in terms of repairs and lost productivity.

On the other hand, the A Frame double girder crane requires more extensive maintenance due to its complex system, multiple components, and higher lifting capacity. These cranes also have higher operational costs related to their larger size and power requirements.

Energy Efficiency and Reduced Operational Costs

The L Leg gantry crane is designed to be more energy-efficient compared to the A Frame design. This is due to its lighter weight and more streamlined operation, resulting in:

• Lower Power Consumption: The single girder design requires less energy to operate, reducing electricity and fuel costs, particularly in outdoor applications or areas where cranes are frequently used.
• Efficient Operation: With fewer components, the L Leg crane operates more efficiently, requiring less effort to lift and move loads. This leads to reduced strain on the crane's motor and system, lowering energy usage and overall operating costs.
• Cost Savings Over Time: The reduced energy consumption directly translates to lower electricity costs, making it a more economical choice for industries with moderate lifting needs.

Why the L Leg Gantry Crane is an Ideal Choice for Budget-Conscious Industries

The L Leg gantry crane provides a highly cost-effective solution for industries with moderate lifting requirements, especially in outdoor settings or locations with space limitations. Key reasons for its affordability:

• Lower Initial Investment: It offers a more affordable upfront cost than double girder systems, making it accessible for smaller businesses or those with budget constraints.
• Reduced Maintenance and Operational Costs: The simple design results in less frequent repairs and operational inefficiencies, saving money on both short-term and long-term maintenance.
• Energy Efficiency: The crane's efficiency in operation reduces energy consumption, resulting in lower running costs.
• Ideal for Budget-Conscious Industries: Industries like construction, port operations, and smaller manufacturing plants that require lifting capacities from 20 tons to 50 tons will find the L Leg gantry crane a practical and cost-efficient choice.

In summary, the L Leg gantry crane delivers significant cost savings over time, making it the ideal choice for industries looking to balance performance with budget-consciousness.

Applications for Outdoor Use

Outdoor Conditions That Benefit from the L Leg Gantry Crane Design

The L Leg gantry crane design is particularly well-suited for outdoor environments due to its compact, durable structure and versatility. The following outdoor conditions benefit from the L Leg design:

• Limited Space: The L Leg design has a compact footprint, making it ideal for sites with space constraints. Unlike larger double girder cranes, the L Leg crane can be used in narrower areas or areas where installation space is limited, maximizing the available operational area.
• Uneven Terrain: The robust frame and adjustable height options make the L Leg gantry crane well-equipped for uneven ground conditions. This is particularly useful for construction and manufacturing sites where the terrain is not always level, ensuring that the crane can remain stable while lifting heavy loads.
• Outdoor Exposure: With its durable design, the L Leg gantry crane is engineered to withstand various weather conditions, including high winds, rain, and extreme temperatures. This resilience is key for operations that take place outdoors, such as at ports, construction sites, or outdoor manufacturing facilities.
• High Wind Resistance: The L Leg structure offers superior wind resistance due to its streamlined design, making it more stable in wind-prone environments than bulkier cranes, which might face challenges in such conditions.

Practical Examples of L Leg Gantry Cranes in Construction, Manufacturing, and Transportation Industries

The L Leg gantry crane is widely used across several industries where outdoor lifting is essential. Some practical applications include:

Construction Sites:

• Heavy Material Handling: In construction, the L Leg gantry crane is used to lift heavy materials like concrete beams, steel frames, and pre-fabricated structures. Its compact design allows it to fit in tight spaces on construction sites where cranes with larger footprints may not be feasible.
• Efficient Setup: Because of its easier installation and smaller size, L Leg gantry cranes can be set up and moved quickly, making them ideal for temporary lifting solutions on construction projects that require flexibility.

Manufacturing Facilities:

• Outdoor Manufacturing Operations: The L Leg design is used in outdoor manufacturing setups to move large machinery, factory components, and raw materials. These cranes help increase productivity by offering a reliable lifting solution that doesn't require extensive facility modifications.
• Transporting Goods: In manufacturing plants with outdoor storage yards, L Leg gantry cranes are employed to load and unload materials from transport vehicles or organize large inventory for better management and access.

Transportation & Port Operations:

• Loading and Unloading Cargo: In port and transportation industries, L Leg gantry cranes are used for loading and unloading shipping containers and cargo from ships to trucks or trains. The cranes' high mobility and capacity to operate in confined spaces are especially valuable in busy, tight port areas.
• Rail Yard Operations: The cranes are also used in rail yard settings to lift and transport large components, such as rail tracks or equipment, where the flexibility and space efficiency of L Leg gantry cranes are highly beneficial.

Advantages of the L Leg Design for Operations in Open Spaces

The L Leg gantry crane provides several advantages for operations in open outdoor spaces:

• Space Efficiency: The L Leg gantry crane’s compact structure makes it perfect for open spaces where large equipment needs to be maneuvered but space is limited. Its design reduces the need for vast amounts of space while still offering high lifting capacity.
• Cost-Effective in Open Environments: For outdoor operations, the L Leg crane is a cost-effective solution. It can be easily set up without extensive site preparation, making it an affordable choice for industries that need to operate in wide, open spaces where the use of large, expensive equipment may not be necessary.
• Versatility and Flexibility: The L Leg gantry crane is capable of handling a wide range of medium to heavy loads in open environments. It can be used for diverse tasks such as lifting materials, moving machinery, or even as a mobile workstation for various industrial applications.
• Durability and Long-Term Performance: Built to handle outdoor conditions, the L Leg design offers superior corrosion resistance, especially when built with materials like galvanized steel. This ensures that the crane will continue to perform effectively even in harsh outdoor environments for extended periods.
• Improved Mobility: The L Leg gantry crane can be moved easily across outdoor job sites, providing greater flexibility to reposition the crane as needed without requiring complex adjustments. This is an important advantage in dynamic, outdoor environments where the layout of work areas can change frequently.

The L Leg gantry crane design is highly beneficial for outdoor applications due to its compactness, durability, and flexibility. It excels in space-constrained environments, uneven terrain, and harsh weather conditions. Industries like construction, manufacturing, and transportation rely on this crane to provide a cost-effective, efficient, and reliable solution for handling medium to heavy loads in open spaces.

Conclusion: Get Your Customized Gantry Crane for 20 Ton, 32 Ton, 50 Ton

L Leg Gantry Crane:

• Design: Single girder, compact footprint.
• Capacity: Handles 3 tons to 50 tons.
• Best For: Outdoor operations with limited space, such as construction and port sites.
• Advantages: Cost-effective, low maintenance, and efficient use of space.
• Limitations: Not suitable for loads above 50 tons.

A Frame Gantry Crane:

• Design: Double girder, robust frame.
• Capacity: Designed for 5 tons to 500 tons.
• Best For: Heavy-duty industrial applications and large-scale material handling.
• Advantages: Superior lifting capacity for heavy-duty operations.
• Limitations: Higher costs and space requirements.

Ideal Use Cases for Each Design

• L Leg Gantry Crane:Ideal for outdoor construction, port operations, and manufacturing yards handling moderate loads.
• A Frame Gantry Crane:Suited for heavy-duty operations in large industrial plants, shipping ports, and heavy construction projects.

For 20 to 50-ton loads in outdoor environments, the L Leg Gantry Crane is an affordable, space-efficient choice, offering low operational costs. If your operation requires heavier lifting or long spans, the A Frame Gantry Crane is more suitable, though it comes with higher costs. Choose based on load requirements, space availability, and budget.
