Jib cranes can be classified into several types based on different classification methods. Generally, the can be classed by mounted type, cantilever structure, and jib hoists , etc. In the following, the 1 ton jib crane can be provied in the following jib crane designs.
Jib Mounting Type - Floor Jib Cranes

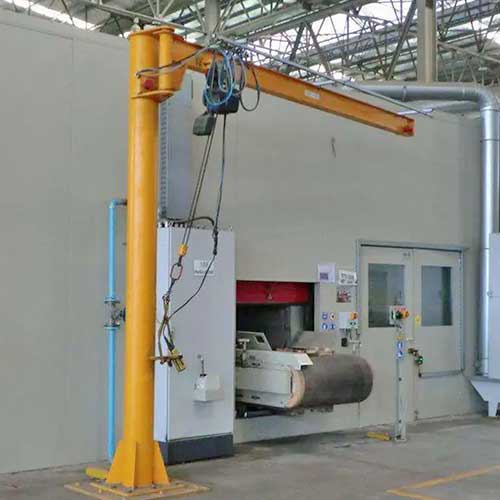

Freestanding Jib Cranes 1 Ton
Floor mounted freestanding jib cranes 1 Ton- Because they can be installed virtually anywhere - indoors or outdoors - freestanding jib cranes are the most common type of jib system. These can be used beneath large bridge crane systems or in open areas where individual work cells can be supported. They can be used outdoors at loading docks or marinas, as well as indoors for assembly operations that require the use of multiple jibs at the same time. In comparison to other systems, freestanding floor jib crane systems provide The larger capacity ,The longest spans, The maximum amount of rotation.
Because of the special foundation required to anchor and secure the crane and support the load during a lift, freestanding jib cranes are among the most expensive and permanent systems.

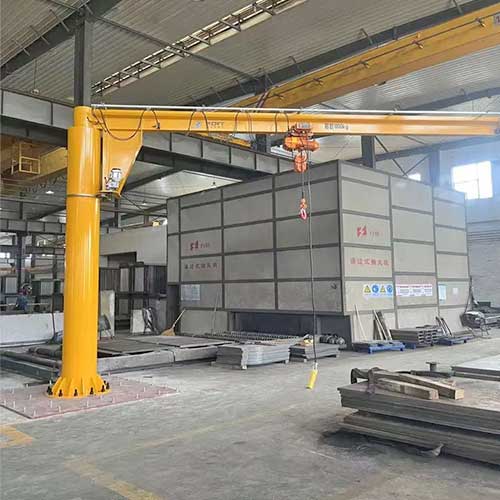

Base Mount Floor Jib Crane 1 Ton
The base mount foor jib crane 1 ton are typically installed on a concrete footing, removing the load from the building columns. These self-supporting jib cranes are ideal for applications that do not require large capacities or spans and are not near building columns. These can also be installed in a sleeve installed on top of the floor or recessed into the floor. Capacities of up to 16 tons are available, as are spans of up to 50 feet and depths of up to 40 feet to the underside of the boom. The rotation is 360 degrees.
Pillar /Column Floor Jib Cranes 1 Ton
When there isn't an adequate building column nearby, 1 ton mast or pillar floor jib cranes come in handy. The jib's mast connects to the floor and the overhead support steel. As a result, they apply forces to the building, but those forces frequently require less reinforcement steel than a tie-rod or cantilever jib crane. Standard sizes range from 5 Tons to 20' span and 20' to the underside of the boom. Larger-scale custom projects are possible. Rotation is 360 degrees.
Foundationless Floor Jib Crane 1 Ton
Foundationless floor jib cranes 1 ton are industrial slab-mounted systems that are bolted to reinforced concrete. They function similarly to a base mount jib but do not necessitate a special foundation. This light floor jib crane can be installed almost anywhere in your facility and is easily relocated if necessary. 0.25 Ton x 13' span and 0.5 Ton x 9' span are typical sizes. Rotation is 360 degrees.
Jib Mounting Type - Wall Jib Cranes
Wall jib crane systems 1 ton can be added to an existing monorail or overhead bridge crane, or they can be employed along walls or building support columns that are structurally sound. The ability to save space is the key benefit of employing this technique. They may be positioned extremely close to the bottom of the smallest ceiling impediment and don't need any kind of floor or foundation support, giving the boom the most space possible both above and below it.
- To prevent production from being halted, these systems can be made to fold out of the way of overhead cranes or swing under obstacles or around them.
- The main drawback of employing a wall-mounted or column-mounted jib crane is that the design does not allow for full 360° of rotation, even though these types of jib systems are among the most cost- and design-effective. They primarily need a support or column that can resist the loads, which almost always necessitates a structural engineering survey and approval prior to installation.

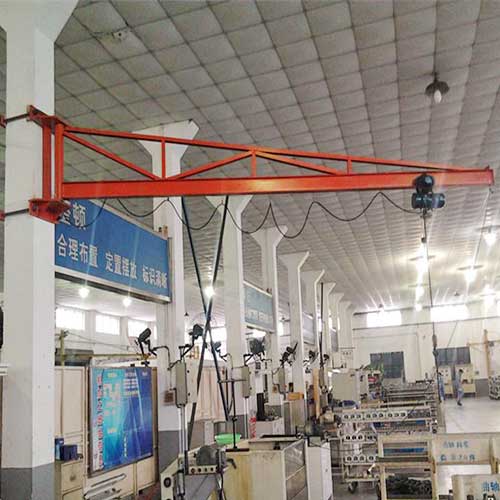

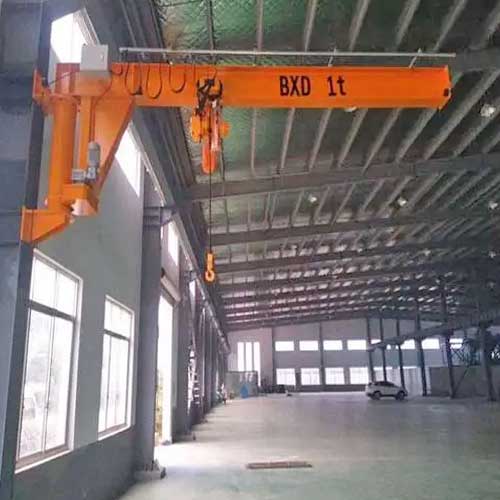

1 Ton Wall Mount Jib Crane
If strength allows, wall mount jib cranes 1 ton can be installed at any height on a vertical wall or building columns. They can easily swing out of the way of overhead cranes, making them perfect for spaces with little floor space.
1 Ton Wall Travelling Jib Crane
In addition, a wall traveling jib crane 1 ton could be added in place of a standard wall mounted jib crane to increase the hook coverage area. Typical sizes range from 5 tons to 30 feet in span. There is a 180° rotation.
Ceiling Mount Jib Crane 1 Ton
When it's vital to maximize the production area below the jib, ceiling mount jib cranes 1 ton are a fantastic choice. They offer a clear workspace devoid of floor obstacles as well as increased headroom and clearance in confined workstations. Commonly, these ceiling jib cranes are joined to a carrier that moves along a bridge or monorail system. They can support almost any type of manipulator, balancer, or hoist, and they are also perfect for an articulating jib crane. There is a 360° rotation.

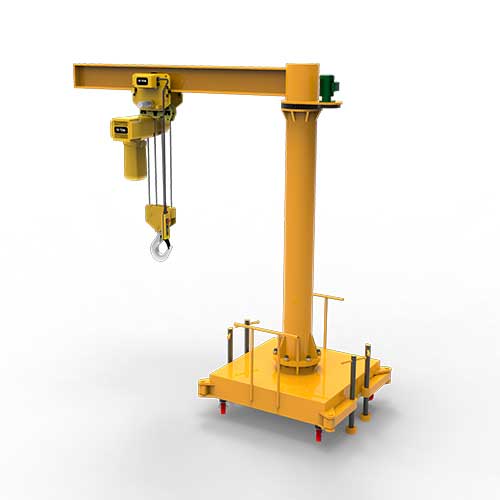

1 Ton Portable jib crane on wheels
Unlike base mounted jib cranes, which are fixed to a large steel base, portable jib cranes 1 ton are mobile. With this design, there is no need for concrete foundation, and it is easily portable for various uses. Movable jib cranes are primarily utilized in assembly workshops and workstation but can also be used to move materials indoors or outdoors. They stand on the floor .Sizes range from 1,000 lbs to 14' span and 12' to the underside of the boom.
Jib Crane Cantilever Type
Tie-Rod Jib Crane 1 Ton
Tie-rod jib cranes 1 ton have a simple design and use less material to construct than other jibs. The main jib beam is attached to a wall mounted pivot in the tie-rod jib design, and a tie-rod is placed above that beam and runs at an angle of about 30 degrees to another wall mounted pivot. These are the smallest and lightest jib crane designs, and they may be found on both pillar and wall mount jib cranes. Sizes range from 3 Ton to 20' in span. There is at least a 180 degree rotation.
Cantilever Jib Crane 1 Ton
Similar to tie-rod style jibs, cantilever jib cranes are "L" shaped weldments attached to wall mounted pivots. They work well in applications with little headroom. Up to 5 tons of capacity and 30 feet of span are possible. There is at least a 180 degree rotation.

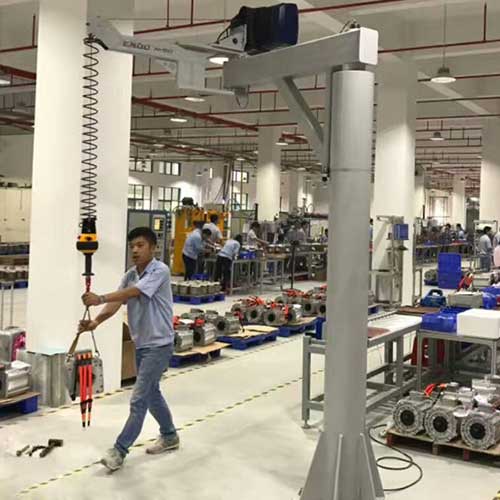

Enclosed track jib cranes /kbk
Light jib crane, kbk crane design, low deadweight, easy position, to improve productivity & safety. Light, easy jib crane 125kg, 250kg, 500kg , 1000kg for sale.
https://www.eotcranekit.com/jib-crane/light-kbk-jib-crane.html
Truss cantilever jib crane for workstations

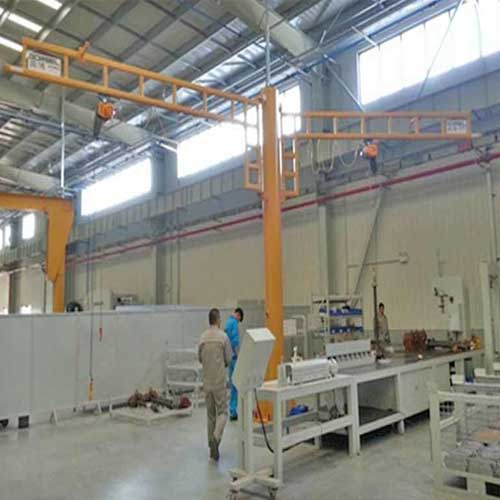

Workstation Jib Crane 1 ton : This workstation jib crane is the most versatile and is ideal for low capacity, high productivity applications. It is the ideal jib crane for use beneath large bridge cranes, in open areas where it can serve multiple work stations, in outdoor applications like loading docks, or in machining and assembly operations where it can be overlapped with other jib cranes to provide staged operation.

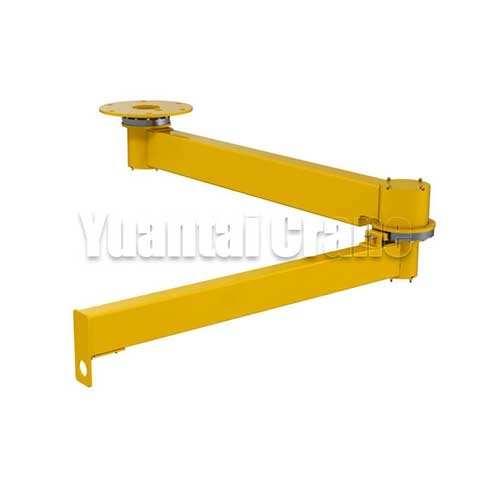

Articulating Jib Crane
Articulating jib cranes 1 ton are beneficial for applications that require frequent use, precise positioning, or reaching around corners or around columns. The jib boom has a secondary pivot, which allows for easy movement of the load, especially when it is close to the main pivot. They work well when attached to an overhead bridge crane system. Capacities of up to 2,000 lbs and spans of up to 16' are available. The inner arm can rotate 200 degrees and the outer arm can rotate 360 degrees.
- Articulating jib cranes can lift loads around corners and columns, reach inside or under machinery and containers, and have two swivel arms as opposed to standard jib cranes' single boom. There is additional coverage and flexibility closer to the mast or column thanks to the primary boom arm's 200° swivel and the outer arm's 360° rotation capabilities.
- Articulating jib systems can be mounted on the floor, a wall, a ceiling, a bridge, or a track system. Its range of configurations enables accurate load positioning and spotting loads around obstacles, such as via open doors or turning near to the mast or building column—areas where standard jibs can be difficult to maneuver.
- For greater duty and more frequent lifts, an articulating jib crane system might not be the ideal option. Its span is fairly constrained, and their design would not permit lifts with bigger capacities.
Floor mounted articulating jib crane
Column mounted articulating jib crane
Jib Rotating Types
Manual rotating jib crane 1 ton
Jib cranes frequently have a hand-powered rotation and traverse motion, whereas a hand- or electric-powered lift motion is typical. Push/pull is used to power the hand-powered rotation and traverse action, while a chain like that of an unpowered garage door is used to power the hand-powered lifting.

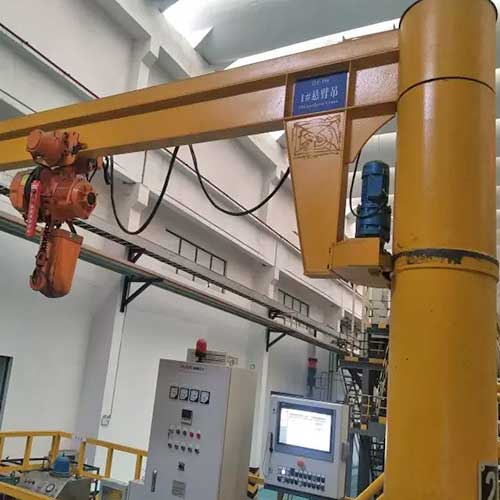

Electric jib cranes 1 ton
A rotating jib crane powered by an electric motor that can handle heavy loads. Designed and built for ELECTRIC load handling at workstations that are difficult to use or reach due to obstructions in the walkway or the size of the load to be handled, making manual rotation of the boom awkward or impossible. In relation to the required range of rotation and capacity, the boom is electric rotated via a gearmotor or slew ring. 270° / 360° rotation range.
Wall mounted rotating jib crane 1 ton
A wall or column mounted rotating jib crane can give a lifting space that is limited to between 180 and 270 degrees of rotation, and it is a low-cost technique of managing weights when repetitive lifts are not necessary.
Pillar mounted rotating jib crane 1 ton
The 360° rotating jib crane, and it can be made in a variety of designs to meet various industrial requirements.
What is Jib Crane?
Jib cranes are light overhead crane systems which can be grouped in floor jib crane and wall jib crane, based on mounting types. The 1 ton jib crane are typically used in factory production lines, industrial settings such as warehouses and docks to load and unload shipping containers, and similar lightweight lifting applications for one-of-a-kind and repetitive lifting tasks. Jib cranes are easily flexible and can be combined with overhead bridge cranes to increase output.
Jib cranes are useful in manufacturing environments because they improve safety, increase worker productivity, and reduce workplace injuries. They are simple to use, have an ergonomic design that works well in a production setting, and typically need little to no maintenance.
Apart from being known as Jib Cranes, they are also known as boom cranes or cantilever crane.
1. How do jib cranes work
Jib cranes are available in a variety of operating configurations. There are options ranging from manual to powered operation. So, depending on the type of jib crane you want, they operate slightly differently but mostly the same.
The rotation, transverse, and lift motions are the three main motions you're likely to use with a jib crane.
- Rotational movement -The boom will rotate around the pillar/mount in a manner similar to this.
- Transverse movement - this is the hoist's horizontal motion along the boom.
- Lift motion -this is referring to the vertical transportation of products or materials (up and down)
2. Designing of jib cranes - Main parts and components of jib cranes
Jib cranes have simple structures and require little maintenance. The jib is a highly mechanical lifting device that enables the repositioning of heavy goods through the use of multiple attachments and fixtures. It contains parts like:
- The reach or the boom -As the name implies, this is the component of lifting jib that comes into contact with transporting material. The boom of a crane can be rotated up to 360 degrees if it is freestanding, but it can only be rotated from 180 to 360 degrees if it is attached to a wall or pillar.
- Mast –A mast is a vertical pillar-like support that holds or holds up the boom of freestanding machinery.
- Jib hoist -The hoist is the component of jib cranes that lifts, positions, and unloads the loads.
- Trolley - A trolley is a jib binding force that can be mechanical or manual. A hoist, wires, wire rope, chains, and the hook on the boom are all carried by it.
- Control buttons -push the button control or remote control is used to control the rotation of the reach and motion of the trolley.
Jib cranes can be classified into several types based on different classification methods. Generally, the can be classed by mounted type, cantilever structure, and jib hoists , etc.
3. Conclusion / Things to consider
If you install a series of jib cranes or just one, you can maximize production while also improving workplace safety and reducing workplace injuries. Jib cranes are designed to handle a large number of lifts while also providing a more convenient way of moving material in conjunction with an existing overhead crane system or a work cell.
Keep the following in mind as you prepare a jib crane that is the most appropriate, economical, and productive for your application: –
- Duty Cycle/Classification - Choosing the correct duty cycle/service classification allows you to determine whether the components are durable enough to withstand the load and usage requirements.
- Area of rotation- Freestanding and Mast Style Jib Cranes have a 360-degree range of motion, whereas Wall-Mounted cranes have a 180-degree range of motion.
- Height under Boom-The height under the boom of a Jib Crane is the distance from the floor to the bottom of the boom. Lifting height and hoist size must also be considered.
- Actual working span needed–The actual working span required is approximately the length of the boom minus 1/2 trolley length at each end.
