Low Headroom Overhead Travelling Cranes
Low Ceiling & Limited Space Workshop Cranes

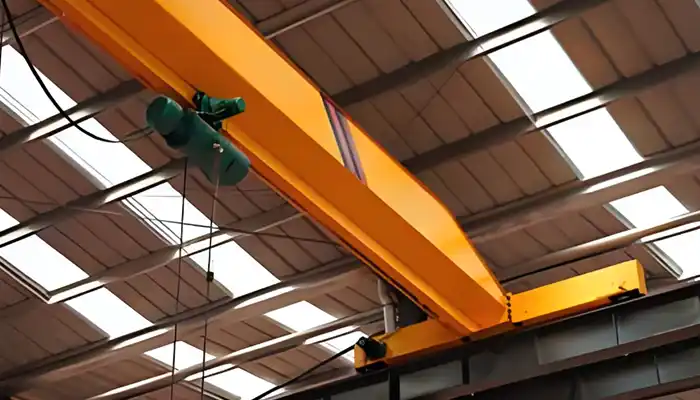

With low headroom crane design, the single girder overhead travelling cranes are equipped with low profile hoists and hoist trolley which is installed and placed on one side of the main bridge girder to increasethehook height,lower the requirement of building height, and reduce production cost.Naturally, the low headroomcrane are ideal overhead crane solutions for low clearance applications and are the best choice for users or clientswho need max lifting height in height limited workshops, warehouses, and other applications, etc.

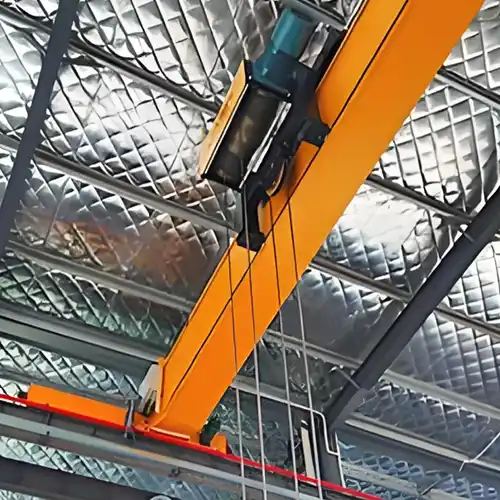

Low headroom overhead crane with European style electric wire rope hoist trolley placed on one side of bridge girder. And the main girder are connected on one side of the end carriage to ensure good balance of crane travelling.

Main parameters of low headroom overhead travelling crane

The LDP low headroom cranes is a type of single girder overhead crane which has the lifting hoists mounted on one side of main bridge girder to increase hook height in workshops with limited overhead clearance which is a very cost-effective overhead travelling crane solution. The maincrane specificationsof low profile craneis shown in the followingfor your reference.

Main specification of overhead travelling low headroom crane

• Product type: LDPlow headroom hoist crane with single girder crane design
• Lifting capacityof low headroom hoist crane: 1ton - 16 ton
• Span lengthof low headroom hoist crane: 7.5~22.5m
• Working classof low headroom hoist crane:A3, A4
• Ambient Temperatureof low headroom overhead crane:-25~40℃
• Control methods: Pendant control or remote control cabin control,

Low headroom overhead travelling cranes with process crane designs are available. Free low headroom crane design and overhead travelling crane drawing are available for honest clients and customer.

Low headroom overhead travelling crane with electric wire rope hoists

Low headroom overhead travelling crane with fem wire rope hoists

Low headroom overhead travelling crane with European wire rope hoists

Low headroom overhead travelling crane with Chinese wire rope hoists

Structure & components of  low headroom bridge crane

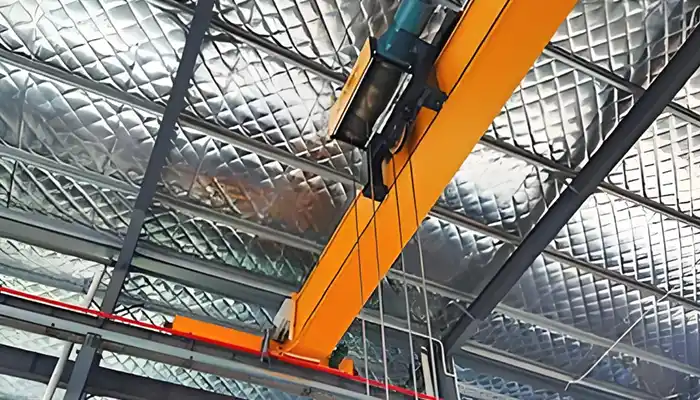

The low headroom overhead travelling crane is developedon the structure of general use single girder overhead crane.With low headroom crane design, the single girder overhead travelling cranes are equipped with low profile hoists and hoist trolley which is installed and placed on one side of the main bridge girder to increasethehook height.

Low headroom overhead travelling crane with wire rope hoists -
features :
1. The electric hoist trolley is placed aside of the main girder of overhead crane.
2. The main girder is bolted on one end of the end carriages to ensure balance.

Geneal use overhead travelling crane with wire rope hoist -the most common type ld series of single girder overhead crane.
Features:
1. The electric hoist is hung on the bottom of the main girder
2. The main girder is bolted in the middle of the end carriages.

Low headroom overhead travelling crane with wire rope hoist drawing

General use overhead travelling crane with wire rope hoist drawing- ld overhead crane

The LDP types low headroom overhead travelling crane is main consisted of the parts and components including the main girder, end carriages, lifting crane hoists and hoist trolley, electrical system, safety devices, crane control and other devices, etc.

End carriage of overhead travelling crane

Crane control of overhead travelling crane

Main girder of overhead travelling crane

Wire rope hoist of overhead travelling crane

Features of LDP low headroom single girder overhead travelling crane

With special low headroom design, the single girder overhead travelling cranes have the following features:

• The crane girder is of welded girder constructionwithlower dead weight, small wheel load, but offering high rigidity verticallyand horizontally,

• Hoisting system of low headroom crane : CD/MD single speed /double speed wire rope hoists, Customization hoisting systems are available.
• Using single speed soft start cage motor for traveling movement.
• Non-standard low clearance crane design or customized overhead crane design is available.
• Crane span length and lifting height can be customized based on your request.

Advantages of low headroom overhead crane

Generally, the single girder low headroom cranes are widely used due to its advantages oftrolley tread, smooth running, tight structure, strong rigidity, convenientoperation, low noise, high safety and reliability and beautiful exterior,and wide application.

The main advantages of the low headroom crane are as the following :

• Low clearance , low profile, larger operative space for crane hook
• Small dimension, & Light deadweight, economical crane system solution , cost-effective overhead crane price.
• With wide tread design and strong rigidity, the headroom cranetrolley can travelsmoothlywith high safety.
• Flexiblecraneoperation, high efficiency with high reliability and safety.

Applications of low headroom overhead cranes

• The single girder low headroom crane is widely used in low headroom workshops or workshops has limited working space but required with larger lifting hook height.
• The low headroom overhead crane can be used for the planning of new workshops to lower the construction cost of the facility.
• The low headroom crane can be used for general loads handling in workshops and factories of production, assembling, transferring& storing in general manufacturing, mines, agriculture, electric power, construction, transportation, dock and warehouse,and others.

Get your custom design low headroom crane

For get the customized low profile hoist and crane, the following is needed for specific design and quotation:

• The dimensions of your workshop. If possible, please send us the drawing or pictures of your workshop if possible.
• The capacity of the crane or the weight of the loads?
• Your special requirements of the lifting overhead crane?
• Power supply?
• What is the voltage your prefered?
