Free Standing Workstation Crane & Freestanding Overhead Crane

The light load free standing or self-supporting crane is a type of lifting system that has a simple structure and can be installed in a variety of environments. Furthermore, the workstationcrane hoistis supported byusing the support frame, beam, and longitudinal beam.

Light-duty free-standing crane systems with steel profiles have altered traditional industrial crane perceptions, making overhead travellingcranes lighter in design, easier to assemble, and more ergonomic to use. Improved working efficiency allows the enterprise to make more cost-effective decisions.

The flexible modular suspension hoisting system for freestanding workstation overhead cranes includes the D monorail, LD single beam, and LS double girder crane. The lifting weight ranges from 0.5-2T. It is primarily used in modern manufacturing transportation lines.

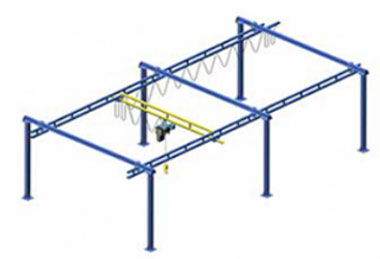

Flexible freestanding workstation bridge crane

A freestanding workstation bridge crane is a floor-mounted overhead workstation crane that is supported by the floor and does not strain the building's overhead structure. Installation is usually straightforward, and these workstation cranes are also simple to shift in the future. For free-standing bridge crane systems, a reinforced concrete floor of at least 6 inches is necessary. Please contact us if you require any other information.WhatsApp/WeChat： +86 151 3871 1597

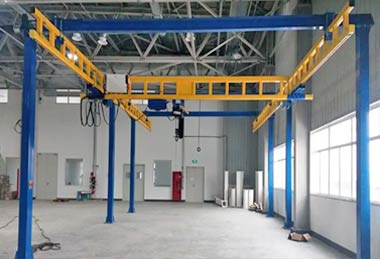

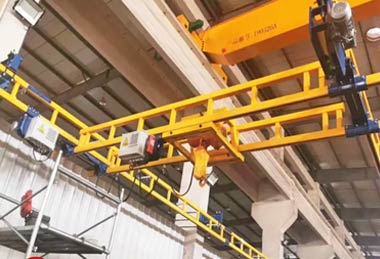

Single girder rigid free standing workstation

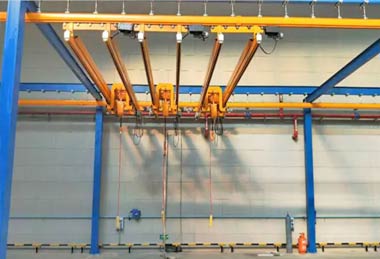

Double girder rigid free standing workstation

Main specifications of free standing workstation crane

• Lifting capacity of overhead free standing workstation crane: 0.5~2.5t
• Span Length of overhead free standing workstation crane: 3~12m
• Lifting Height of overhead free standing workstation crane: 3~6m+
• Working class of overhead free standing workstation crane: A3

Customized overhead free standing workstation cranes are available. More information,please feel free to contact us by leave a message below.

Flexible floor mounted workstation bridge crane features:

• Because they are not permanently attached to your facility and may be relocated as needed, floor mounted freestanding workstation cranes are particularly versatile.
• Freestanding floor-mounted workstation cranes are more easier to install, lowering stress on the roof structure.
• The floor mounted freestanding workstation crane's enclosed tack construction allows it to move considerably more readily than typical bridge cranes.
• Longer spans and more arrangement flexibility are possible with trussed steel track.
• The bridge's weight is reduced by using aluminum track, making movement easier.

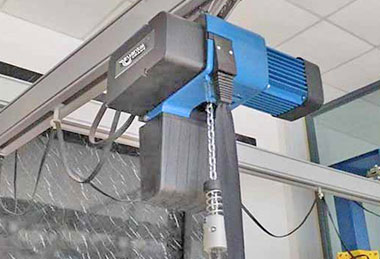

Chain hoist for free standing workstation crane--Chain Hoist -Hoist with two speeds that operate quietly and smoothly. It can also be combined with a European-style electric chain hoist.

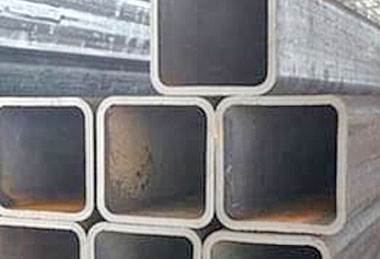

Column -The rectangular tube's bottom flange is secured to the ground with chemical bolts, making installation simple.

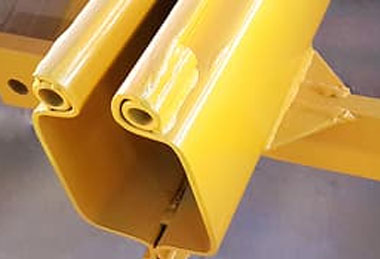

KBK track -High strength, toughness, and light weight cold rolled steel plate

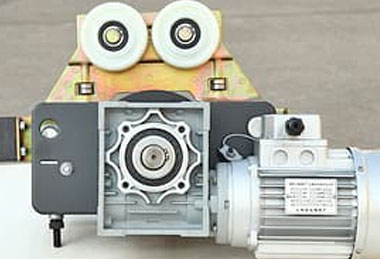

Motor -Small volume, low noise, and stable operation that can be controlled through frequency conversion

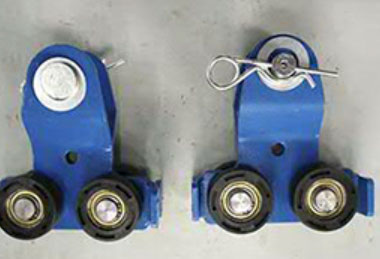

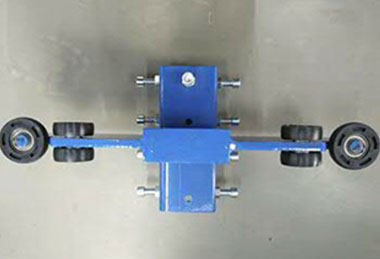

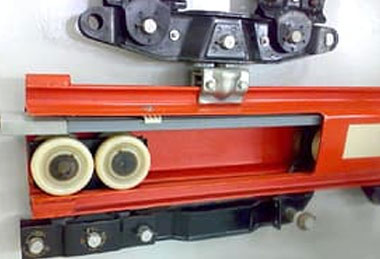

Trolley & slider -Running inside the KBK beam / trackproduces little noise and runs smoothly.You can choose a built-in slider

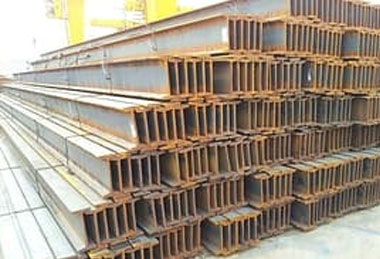

Hot rolled steel has high strength, is not easily deformed, and is simple to install.

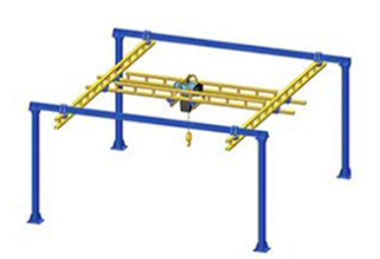

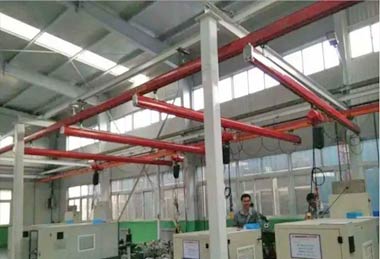

Rigid Free standing workstation cranes

Rigid kbk freestanding workstation cranes are designed for light material handling in a limited working area, but they can also provide simple and unrestricted connections for the working points with moveable supporting pillars and columns. The numerous connections of the free standing workstation crane, for example, can meet a variety of material handling requirements in your workshops and workstations.

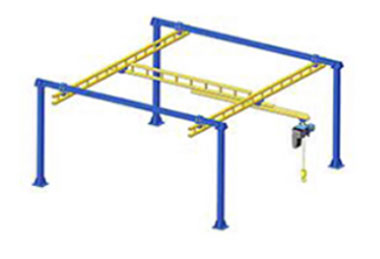

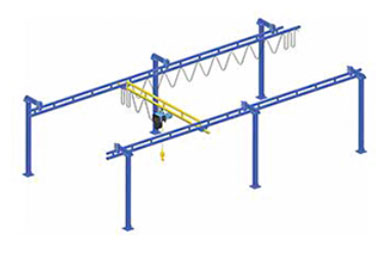

Flexible single girder free standing crane

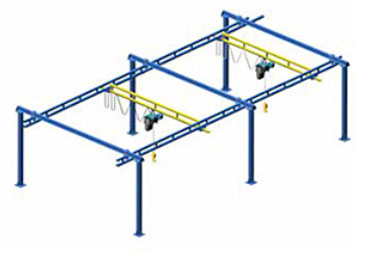

Double girder workstation crane with free standing crane

Main parameters of KBK free standing modular crane

• Lifting capacity of free standing workstation crane : 125Kg-5000Kg
• Lifting height of free standing workstation crane: 2.5m-12m
• Maximum span of free standing workstation crane : 3-10m
• Working class of free standing workstation crane: A3
• Ambient temperature of free standing workstation crane: -20℃-40℃

Details of free standing workstation crane parts

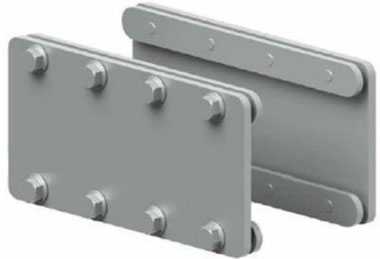

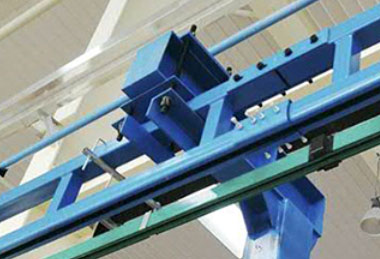

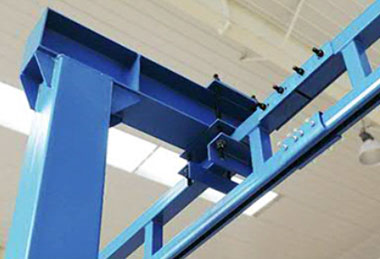

Connections of free standing overhead crane

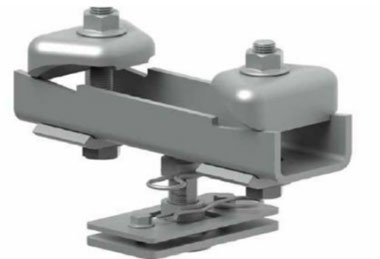

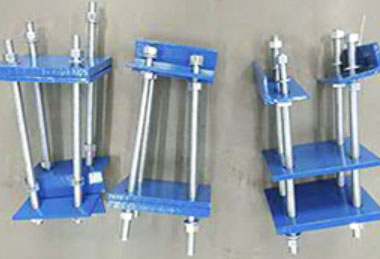

Connection parts  of free standing overhead crane

Rigid free standing workstation crane parts

Rigid floor mounted workstation crane parts

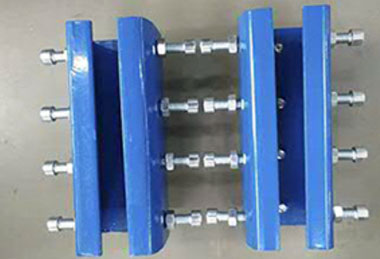

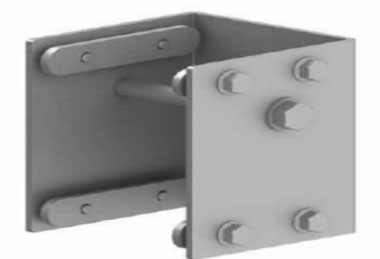

Cionnection parts of workstation crane

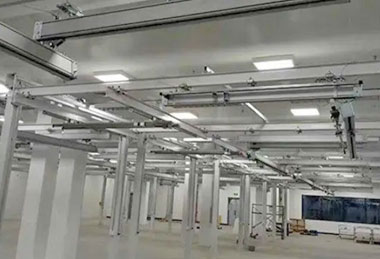

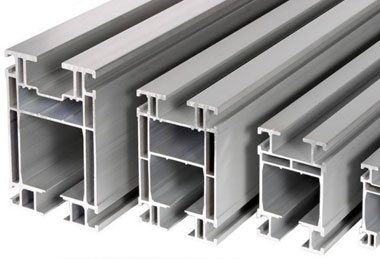

Aluminum free standing workstation bridge crane

2000Kg aluminum freestanding workstation cranesystem for sale. There are two types of aluminum freestanding bridge workstation cranesystems to choose from: double girder workstation cranes and single girder workstation crane systems, as well as curved free standing bridge systems and all types of crane components and parts, kbk rails and kbk track.

Alum freestanding crane single girder design

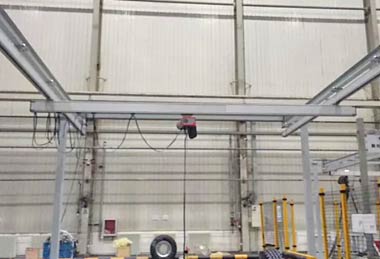

Alumn free standing crane system

Main specifications of aluminium workstation bridge cranes

2000Kg aluminum freestanding workstation crane for sale. aluminum freestanding workstation crane systems,i.e. double & single girder workstation , suspension workstation, telescopic workstation, crane part & kbk rail,etc.

• Type of Crane: Free standing Aluminum workstation crane
• Capacity of Aluminum free standing crane: 2000kg
• Track type of free standing crane : Aluminum

Customized aluminum free standing workstation cranes are available. Please feel free to contact us. WhatsApp/ WeChat: + 86 151 3871 1597.

Parts Details of free standing workstation cranes

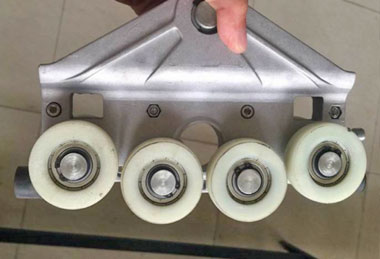

Column -trolley of aluminium free standing workstation crane

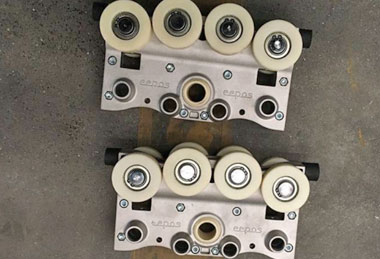

Parts and components of aluminium workstation crane

parts of alum free standing overhead crane

Connection of alum free standing birdge crane

Suspension of Alumninum free standing workstations

Advantages of free standing overhead cranes

• Reduce plant costs: because the equipment does not need to use the plant column, the plant's construction costs can be reduced.
• No foundation: If the floor thickness is greater than 150mm, chemical bolts can be installed directly in existing workshops.
• High efficiency: precise design can be carried out based on the amount of moving space that needs to be covered.
• Modular design: it may be added and removed as needed to meet changing production needs, and installation and removal are simple and quick, allowing the free standingcranes to be used normally in other areas.
• Accurate placement: compact design, simple operation, and precise positioning.
• Energy conservation and environmental protection: low power and energy consumption, lowering electricity and steel costs.
• High total benefit: rail system maintenance, electrical component maintenance convenience, and cheap cost, which can minimize time and labor costs when equipment fails.
• Easy to install: All parts are bolted and installed and maintained effortlessly thanks to the modular architecture.

Overhead free standing workstation crane Applications

Because free standing overhead bridges are ergonomic and have high lifting capacities, they can be used for a variety of activities in manufacturing and material transportation.

• Maintenance facilities and mechanic garages: Overhead bridges are an ideal material handling solution for maintenance garages that are too small to accommodate forklifts. For easy material movement, the bridge crane can support various work zones – even the complete building.
• Manufacturing and storage facilities: As part of the manufacturing process, an overhead traveling crane transports items from one place to another. They can be applied at individual task workstations or across the entire facility.
• Agricultural equipment services: Because agricultural equipment is unwieldy and heavy, manual labor is not an option. Workstation bridge cranes can transfer loads weighing thousands of pounds across the shop and cover the full service area.
• Aviation facilities: Aircraft components are frequently too large to be moved by other material handling technologies. The pieces can be moved across the facility using a bridge crane and the workstation lifting system's bridge and runways.
• Besides the above application, the free standing cranes are widely used in Workstations/ Work cells ,Shipping rooms ,Machine stores/shops ,Assembly procedures ,Pumping stations ,Tool and die areas ,Injection molding areas ,Core management , etc.
• For your specific application, please feel free to contact us to check what we can do to save your free standing worksation crane.

Different freestanding worksation crane configerations and design advantages

• High track strength: cold rolling, high strength steel track, light weight and heavy load.
• Semi-closed design: It efficiently prevents dust, reduces wheel wear, and extends service life.
• Cone-shaped design: keeps the trolley in the middle of the track, lowering sliding resistance.
• Low cost: it reduces the use of steel structures, lowering the cost significantly.

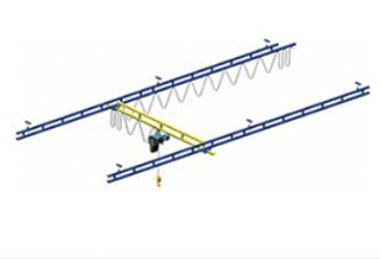

Suspension workstation crane

Free standing workstation cranes

Free standing workstation overhead crane without beam

Free standing workstation crane with multiple beams

Low headroom floor mounted free standing crane

Telescopic worksation crane with free standing crane design

Related free standing workstation jib cranes

Jib cranes for freestanding workstations are designed to accommodate circular tool balancers, air balancers, vacuum lifters, and hoists. When mounted on the floor, this type of freestanding workstation crane may spin 360 degrees.
