5 Ton & 16 Ton Low Headroom Overhead Crane for Sale Philippines
Low headroom Crane, Lower Workshop Construction Cost

Top running single girder overhead crane 5 ton & 16 ton , low headroom design for sale Philippines, good price. Check overhead crane specification & production pictures.

Low headroom overhead crane project overview

• Main types of cranes : 5 ton &  16 ton low head room type  overhead crane with c hook
• Application: Coil handling crane
• Country:Philippines

Back ground of overhead crane project

We received a request for overhead cranes in March 2021 from a new client in the Philippines. These electric overhead cranes will be used to handle steel coils in the upcoming warehouse because the Philippines client is a professional steel manufacturer and distributor.

Because the new warehouse was still in the planning stages. We provided our client with the coil handling crane design drawings for use in constructing the warehouse.

To allow for a little lower warehouse structure while maintaining crane lifting heights sufficient for the purpose of handling coils, we advised using low head room overhead cranes.

Overhead crane parameters confirmation

The warehouse design and crane designs were ultimately completed in August thanks to effective communication between the engineers of the two parties. In response to our client's request, we also provided other accessory designs, including runway beams, corbels, and C hooks.

• Crane capacity: 5 ton, span 19.038m,  Lifting height: 5.1m
• Crane capacity: 16 ton Crane span: 14.323m(16 ton and 5 ton), Lifting height: 5.1m
• Other accessories include runway beams, corbels, 4 ton and 16 ton C hooks for coil lifting, and P24 and P38 crane rails.

Due to their small size and light dead weight, low headroom cranes are well designed. Such a low headroom crane design could reduce the need for warehouse space and improve the operation of the facility. The low clearance overhead crane has less stringent restrictions for the minimum limitation distance from the hook to the wall than the conventional bridge cranes. It features a higher lifting height requirement and a lower headroom requirement. A careful and optimized design in its wheel pressure, so its dead weight is less than standard overhead cranes. Then, it reduces the construction fees by a substantial sum. Therefore, energy and financial savings are the low profile bridge crane's main benefits.

Production of overhead travelling cranes for sale Philippines

Following confirmation of all details, the Philippines client ordered a overhead crane with low headroom crane design from us in October. We promptly began production in order to meet his requirements and his shipping schedule.

Fortunately, everything went smoothly during production, and we completed it in November. All of the cargo has now been packaged and transported to the port of Qingdao for loading.

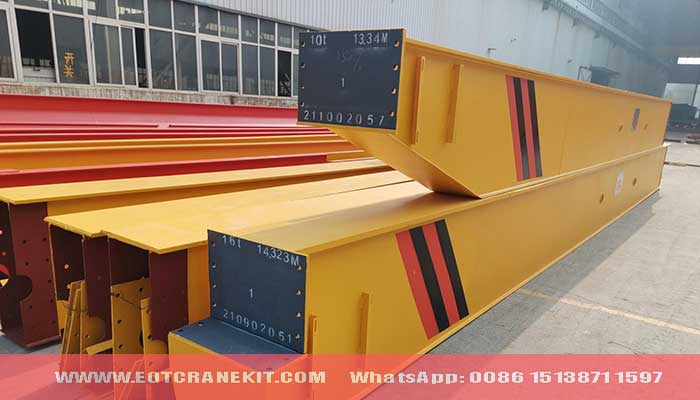

Main girder of  low headroom overhead crane for sale Philippines

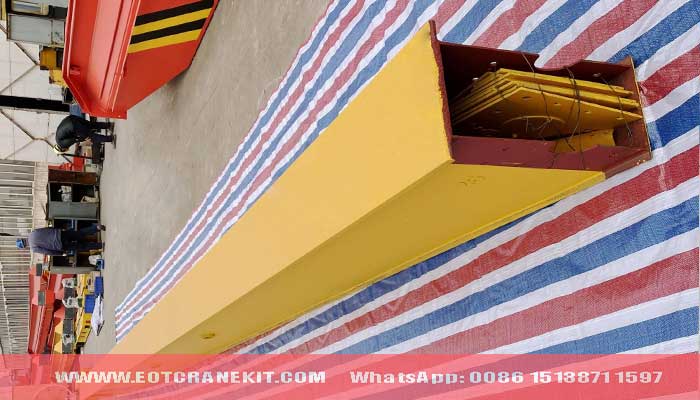

5 ton Single girder overhead crane with low headroom design for sale Philippines

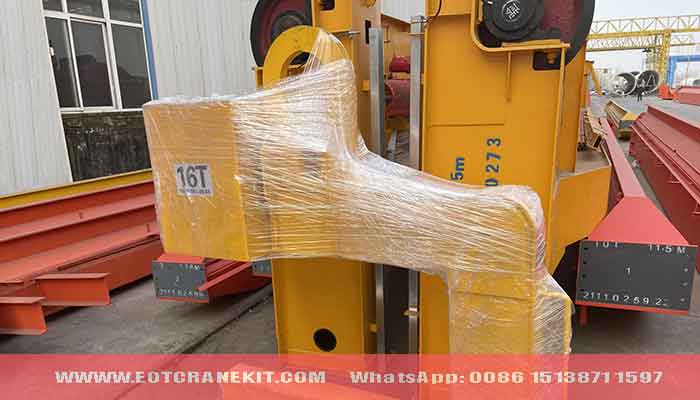

Double girder overhead travelling crane 16 ton for sale Philippines

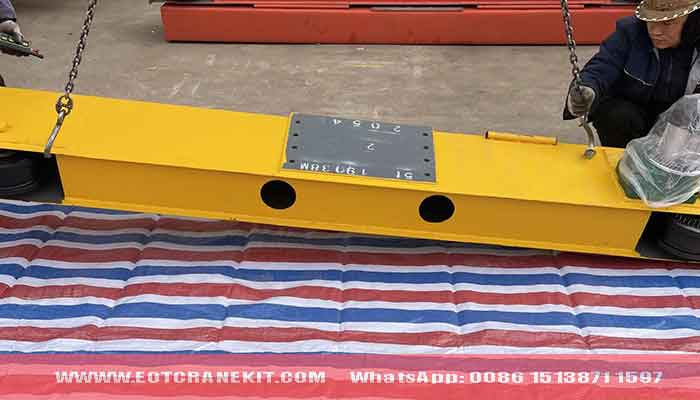

End carriages and end trucks of overhead cranes for sale Philippines

Features of European style low headroom overhead crane

European-style low headroom cranes have a more rationale for steel structures, hoisting systems, and accessories than conventional single beam cranes. Utilizing high-strength materials widely not only reduces the overall weight of the machine while increasing its load capacity. While the limit distance from the hook to both sides is limited, the working arrangement is enlarged. It fully utilizes the space of the manufacturing building due to the lower height above the tracks.

Types of low headroom overhead cranes for sale Philippines

FEM / DIN Top running single girder overhead crane -European single girder overhead cranes, compact FEM hoist crane design, small & light overhead hoist crane.Good price overhead travelling crane 1-stop service. More on European style single girder low headroom hoist crane .

Economical low headroom hoist crane: with low headroom hoist and low profile crane design, the low headroom overhead crane are widely used for factory or workshops with limited application space. Check Seris of low headroom hoists for overhead cranes. More on economical chinese classical type of low headroom electric hoist overhead crane.

LDP Low headroom workshop overhead travelling cranes-2 ton, 3 ton 5ton, 10 ton 16 ton single girder overhead travelling cranes with low headroom crane design, low profile hoist for low clearance workshop lifting. Contact us to get the special designed low headroom overhead crane with hoist trolley placed on the aside of the main girder, economical and higher lifting height.

European style single & double girder low headroom electric wire rope hoist- European style electric wire rope host for sale. FEM single girder hoist 1-32 ton & double girder hoist 1-80 ton. Check electric hoist specifications.

Econimical low headroom wire rope hoist, cost-effective crane hoist design- Electric wire rope hoist- low profile, low clearance, low headroom hoist design- for single girder crane, H beam & I beam, saving electric hoist crane costs.

Low headroom electric chain hoist for low ceiling heights & limited space-Electric chain hoists - hook mounted & hook suspension hoist type - for 0.5 ton -50 ton vertical lifting , Single & 3 phase chain block & chain hoist designs for selection.

Choosing the right overhead crane is critical for increasing work efficiency and safety. You can discuss your bridge crane specifications with one of our experts, who will then recommend the best material handling solution for your application. Your rated lifting capacity, span, lifting height, lifting speed, the type of material to be lifted, the environment in which the crane will operate, and other safety requirements are all required for an overhead crane quotation.

As a reputable overhead crane manufacturer, we continuously emphasize technical innovation and produce state-of-the-art overhead cranes for our clients both domestically and internationally. The brand-new style low headroom crane offers outstanding productivity and material handling performance.

Contact us to get a low headroom overhead crane to lower your workshop construction cost and at same time to meet your lifting height requirement. Contact us today to get your crane design tomorrow.
