European Type Gantry Cranes
FEM, DIN & ISO Standards Gantry Cranes , Advanced Cranes Designs

European style overhead gantry cranes systems isdesigned on EuropeanDIN/FEM standards with the features of compact structure,light weight, modular design, advanced manufacturingand processingtechnology, high security& reliability, free-maintenance ,low-energyconsumption, and environment friendly.

Main parameters of European style gantry cranes

• Crane type： European types gantry cranes
• Gantry designs: Full or semi-gantry crane designs, in single girder & double girder configurations
• Hoisting systems: European fem hoists trolley for single & double girder gantry, European open winchfor double girder gantry
• Lifting capacityof electric gantry cranes: 1~20t, 1~100t, 5~320t
• Spanof electric gantry cranes: can be customized based on working sites
• Working classof electric gantry cranes: A3, A4, A5, A6, A7, A8
• Customized gantry cranes with processcrane designs are available for various industrial applications indoor and outdoors.

With compact structure and light dead weight, the European style overhead gantries have the dead load reduced by 20%~30% and the maximum wheel pressure deduct by 15% ~ 20%, comparing with gantry cranes with China traditional crane designs which can maximize the working space with the minimum of dead weight and effectively cut the construction costs.

Various gantry cranesdesigns , wide gantry crane specifications

From light duty I beam hoist gantry to heavy duty box girder open winch gantry with capacity from 500kg, up to 320 tons are available from Dejun Crane, your honest and trusted gantry crane manufacturerand crane supplier. Gantry crane designs based on FEM, DIN standards for sale with wide gantry crane specifications at good gantry crane price.

Semi gantry cranes

Full gantry cranes double girder design

Single girder hoist gantry crane

Portable gantry crane with rollers

Full gantry Crane Systems- singe girder gantry vs. Double girder gantry

Full gantry crane systems are consisted of two supporting legs move on embedded ground rails, which is the most frequently used crane type. The rail mounted gantry design enables the gantry crane to have large space underneath where thescissor lifts, fork lifts, carts, and truckscan go througheasily and conveniently.

Single girder vs double girder gantry crane

The single girder gantry crane is usually adopted box shaped gantry girder design with the features of simple structure easy manufacturing and installation, and light self-weight. Compared with double-girder gantry cranes, the overall stiffness of single girder gantry crane is weaker and usually used when the loads Q≤50 ton and the span S≤35m.

Double girder gantry cranes is the most frequently used structure design, with the features of strong bearing capacity, large span, good overall stability, andcoming in many varieties, but the self-weight of the double girder gantry crane is larger and their processing cost is higher compared with single-girder gantry cranes . According to gantry girder design, double girder gantry cranescan be grouped into-box shaped girder design gantry crane and truss girder design gantry crane . At present, box-shaped girder design gantry crane is more frequently used.

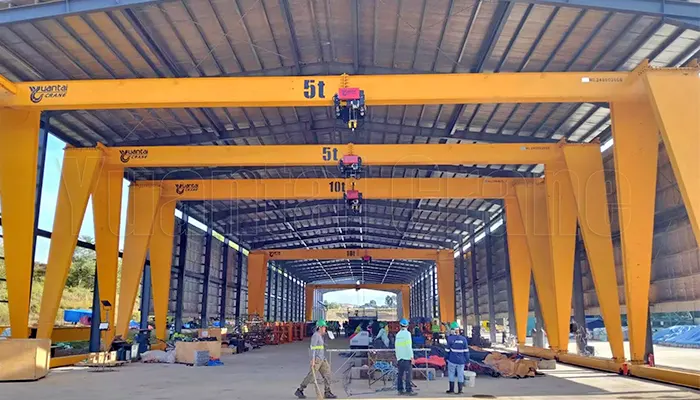

1ton -20 ton FEM standard single girder gantry crane with FEM monorail hoists

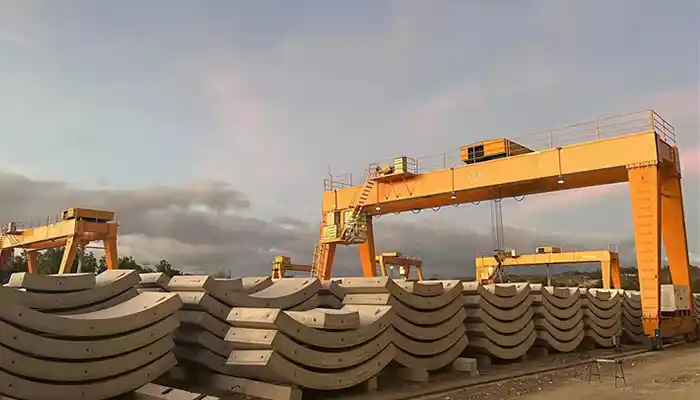

5 ton - 320 ton FEM double girder gantrywith hoist trolley or open winch trolley

• With monorail hoist or single girder hoists, the lifting capacity of European standard hoist gantry cranes can reach up to 20 ton, and lifting height and span can be processed based on your particular andactual lifting conditions and requirements.The single girder hoist gantry crane is more economical, much easier for installation and commissioning, and gantry crane cost for maintenanceis extremely low.More on monorail hoist gantry crane specifications and gantry crane price, please contact us.
• With double girder hoist trolley, the lifting capacityof European style electric hoist trolley double girder gantry crane can be up to 100 tons, crane span and lifting height can be customized according to actual requirements.More on double girder hoist trolley gantry crane specifications and gantry crane price, please contact us.
• With open winch trolley, the lifting capacity of European crane double girder gantry can be used to lift loads up to 320 tons. And process gantry crane design are available for loads handling above 320 tons. Open winch overhead gantry cranes are for more complicated applications, especially for heavy duty and large volume loads handling in harsh working applications. More on the open winch gantry crane specifications and gantry crane price, please contact us.

Semi-gantry crane systems& single leg gantry cranes- single girder vs. double girder

Semi gantry cranes are also called single leg gantry cranes which are designed with one end of the main gantry girder standing on a A frame leg running on wheels or rails on the ground and the other end riding on a runway system mounted to building columns or a side wall of the building structure. The semi gantry designs are very beneficial because they can save your ground space on one hand and also can be very economical on the other hand because they do not need two runways supported by or tied back to building columns.European style semi-gantry cranesalso can be designed into single girder and double girder typefor material handling both indoors and outdoors.

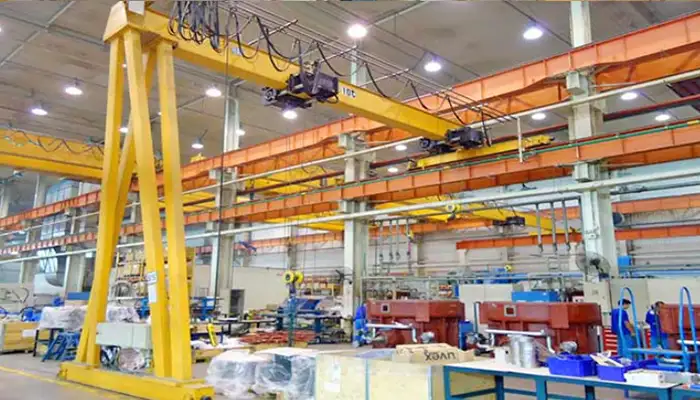

FEM Semi-Gantry Crane with single girderwith capacity up to 20 tons

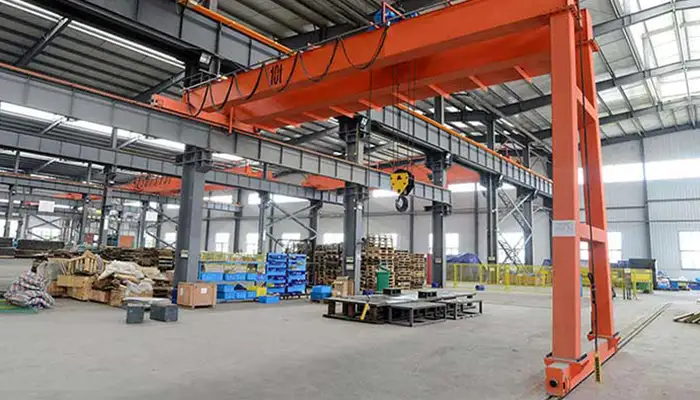

FEM Semi-Gantry Crane with double girder with capacity up to 50 tons, 100 tons

• With European type rope hoist, the single girder semi-gantry cranes can handle loads from 500 kg to max 20 tons, crane span and lifting height can be processed with tailored designs. More on monorail semi gantry crane specifications and gantry crane price, please contact us.
• With FEM standard double girder hoist trolley,the double girder semi-gantry cranes are for material handling with lifting capacity from 5 ton up to 50 tons, crane span and lifting heightcan be processed with tailored designs. More on double girder hoist trolley semi gantry crane specifications and gantry crane price, please contact us.

• With FEM standard double girder open winch trolley,semi-gantry cranes with double girder configurations are with lifting capacity from 5 ton and up to 100 tons,crane span and lifting height can be processed with tailored designs. More on open winch trolley semi gantry crane specifications and gantry crane price, please contact us.

Hoist trolley & open winch trolley

For different overhead gantry designs, there are types of gantry trolley for selections, including monorail gantry hoists, including gantry chain hoists & wire ropes hoists, double girder hoist trolley and open winch trolley, etc. Process gantry hoist crane & winch crane are available at competitive gantry crane price.

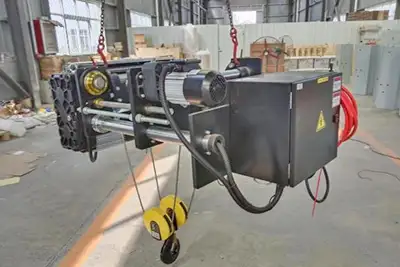

European single girder & monorail hoists

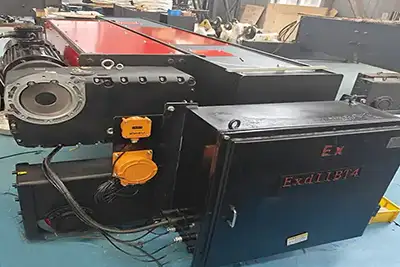

European double girder crane hoists

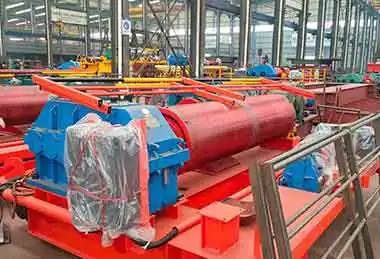

European Open winch for double girder gantry crane

Advantages of European style gantry cranes

From light duty I beam hoist gantry to heavy duty box girder open winch gantry with capacity from 500kg, up to 320 tons offer various gantry crane designs and crane configurations with wide crane specifications which can meet various industrial applications. Process European crane designs, there will be an overhead gantry cranes fit your application optimally.

Maximizing of your working area

With compact design, light deadweight and low profile gantry hoists, the European type FEM & DIN standard gantry crane systems are used in many applications to ensure safety and improve efficiency at same time to make the best utilization of the operating area and build your production in multiple layers.

Cost-effective solution, long-term investment, best return

With advanced crane designs, latest crane tech,regular maintenance and considerate crane service, our European style overhead gantry crane systems, can ensure you optimal crane performance for the long and entire lifetime ofyour crane equipment.

Get your customized FEM, DIN & ISO standards gantry cranes by sending us an inquiry today.
