Mini Electric Wire Rope Hoist,Handy Rope Lift
Fixed Hoist & Electric Trolley Type Mini Hoist

PA mini electric hoist is a handy mini hoist and effective mini rope lift for loading and unloading small loads or objects with capacity of 0.2 ton to 1 ton, widely used for industrial and home applications due to the features of simple structure, small size, easy installation, simple operation and economical hoist price. The single-phase powered mini electric hoists are widely used in mechanical manufacturing, electronics, automotive, shipbuilding, parts assembly and high-tech industrial workshops and processing line, flow waterline, assembly, conveying and other applications,etc.

Lug mounted fixed mini wire rope hoist

Main parameters & specifications of mini electric wire rope hoist

PA type mini hoist or micro electric wire rope hoist is a light duty hoisting equipment for material handling less than 1000kg load. The lifting capacity of small rope lift hoist is 0.2 tons to 1 tons, the working class is M3. And lifting speed of small electric hoist is up to 10 m/ min, wire rope design can reach 12 meters and customized electric hoist are available.

Main parameters of mini electric wire rope hoist

• Wire rope hoist type: PA mini electric hoists with fixed type or trolley type
• Lifting capacity of mini electric wire rope hoists: 0.2 ton -1ton
• Lifting height of mini electric wire rope hoists: 3-24m
• Working class of mini electric wire rope hoists: M3
• Power supply of mini electric hoist: 380V,220V,110V, single phase / three phase customized design
• Ambient temperature of mini electric wire rope hoists: -20℃ to 40℃

Types o f mini hoist

The PA miniature electric hoists have different hoist types, the fixed type mini hoist and trolley type hoists, both of which can be equipped with a single hook or double hooks based on requirements. With lifting height up to 24 meters, the handy mini rope lifts are ideal for loading & unloading materials for high-rise buildings from the floor. The PA mini hoist is simple structure, convenient installation and the power supply is single-phase electricity, which can be used in civil and industrial area.

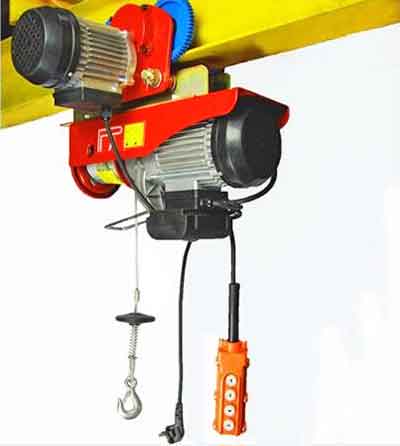

Mini electric winch hoist with trolley on i beam

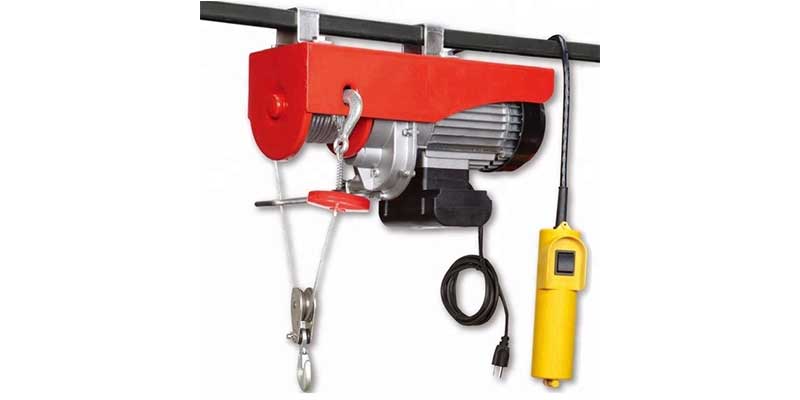

Fixed type mini electric wire rope hoists with single hook

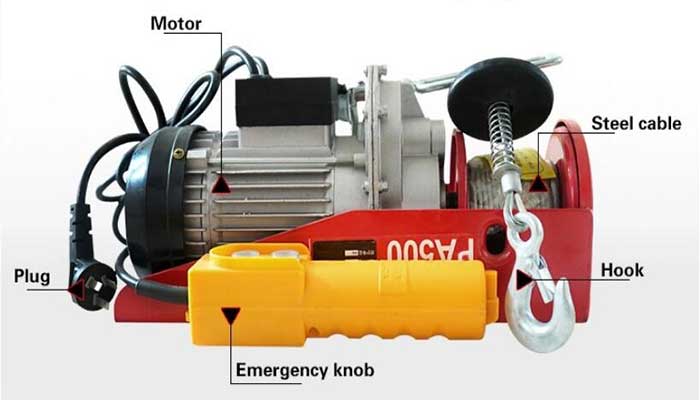

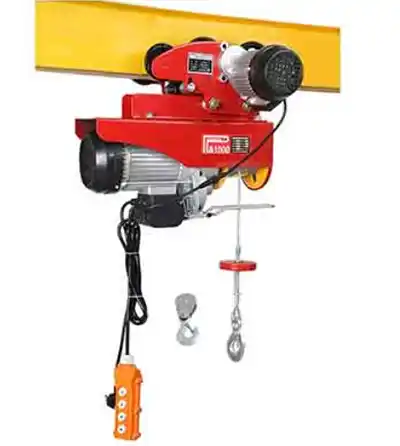

Fixed type mini electric wire rope hoists with double hooks

0.2 ton to 1 ton electric wire rope hoist and 1100 lb load capacity crane with wireless remote control system overhead garage ceiling winch 120V plug and play 2 remote controls, sling and pulley included.Contact us to get more information.

Main Specifications of PA Series of Mini Wire Rope Hoists

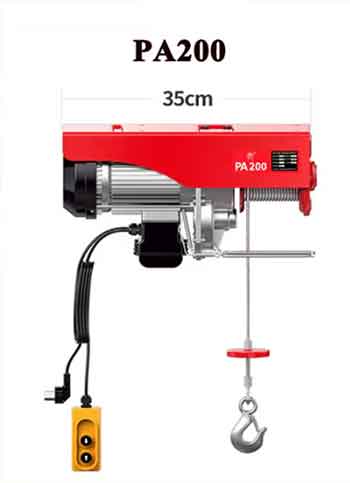

PA 200 mini wire rope hoist

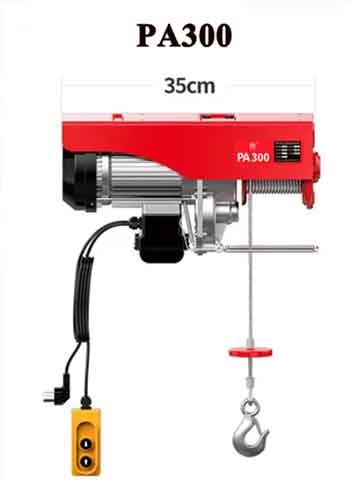

PA 300 mini wire rope hoist

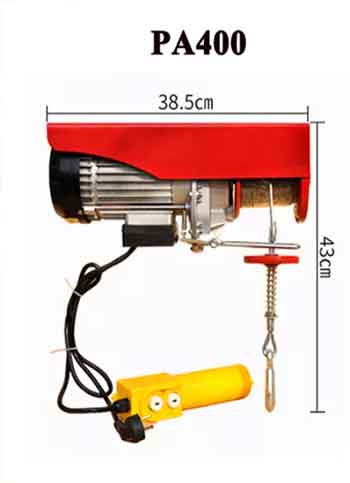

PA 400 mini wire rope hoist

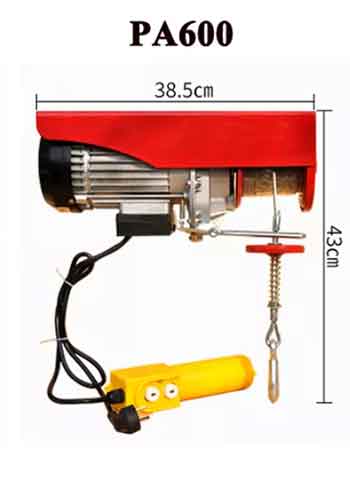

PA 600 mini wire rope hoist

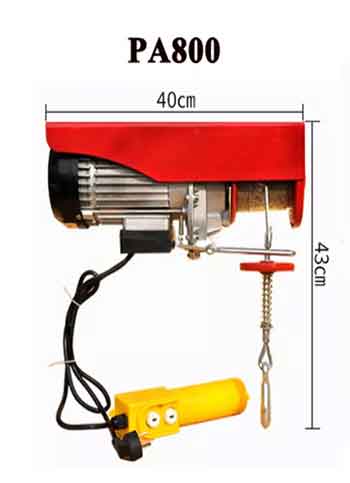

PA 800 mini wire rope hoist

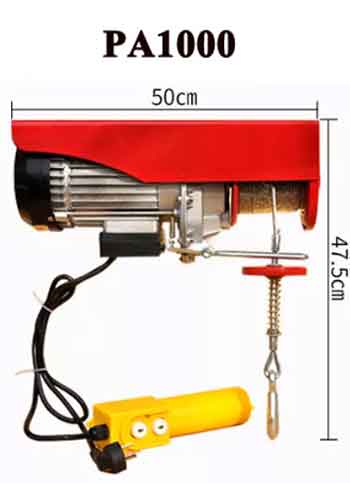

PA 1000 mini wire rope hoist

Advantages of Mini Electric Wire Rope Hoist

• Small hoist, wide application- The handy mini electric wire rope has a various applications in civil and industrial area.
• Ease use, handy mini hoist - The small and light mini electric hoists can be installed very simply and saves your overhead space.With simple handle control, the operation of the small electric hoist is very handy .
• Advanced hoist design, economical small hoist solution - Reasonable rope hoist design, compact structure, light weight,high safety, in accordance with international standards.
• High quality and safety- High quality raw materials & durable hoist parts and components makes the mini electric hoist with high quality and safety.
• Cost-effective mini rope lift, durable mini electric hoist solution for you. Send a mini electric wire rope hoist inquiry now!

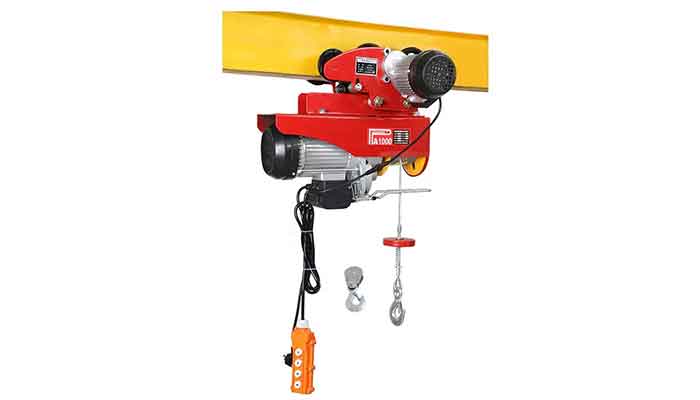

Trolley travelling mini electric hoists - PA 200, PA400 and PA 600 mini electric hoists are quipped with 0.5 ton electric trolley, double T-steel model 10-12PA 800 and PA 1000 mini electric hoists are equipped with 1 ton electric travelling trolley, double T-steel model 12-14.

Features of Mine electric wire rope hoists

Designed and manufactured according to international standard, the PA type mini wire rope hoist is guaranteed to have high quality and safety. The standard electric mini rope lifts has the capacity of 200kg to 2000kg and the lifting speed of mini electric hoist can reach 10 m / min, the initial design wire rope length of small hoist is 12 meters and customized hoist design can be up to 24 meters or more. The general features of the standard min wire rope hoist are as following for your reference. More information on the mini electric hoists, please feel free to contact us.

Features of mini electric wire rope hoists

• Small hoist, wide application - The handy mini electric wire rope has a various applications in civil and industrial area with compact structure, simple installation, small size, single-phase power supply, and cheap hoist price.
• Handy hoist control - One-handed operation design makes the mini wire rope hoists very easy to operated, minimal setting force are required.
• Hoist hook - Being mounted on swivel steel balls, the forged hoist hook can rotate 360 degree with safety latches to ensure safety. For the. double hook design , the lifting weight of the mini rope lift is increased.
• Motor - Motor insulation is B, magnetic single-phase.
• Reducer - Hoist reducer and gear consist a whole organically making the structure of mini electric wire rope hoist compact, durable and beautiful.
• Safety- Equipped with urgent stop switch and reinforced breaking switch with position limit . Protection class up to IP54, with thermal protection device..

Fast air circulation, improved cooling. Aluminum shell fast heat conduction

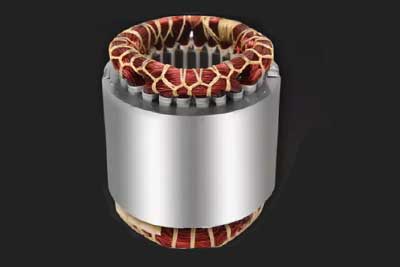

Pure copper motor high temperature resistant

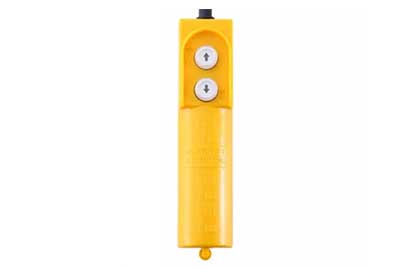

Water proof handle switch make mini hoist operation easy and simple

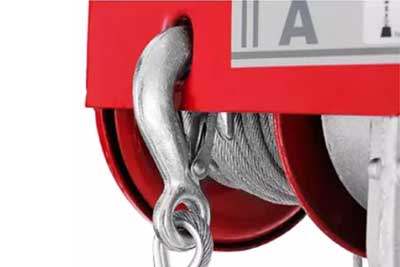

Alloy steel hook, forged high strength, double bearing capacity

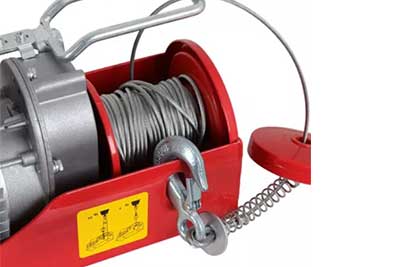

Anti-rotary wire rope with strong bearing capacity and high reliability

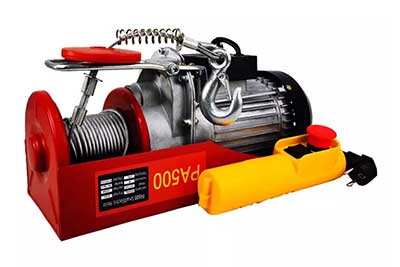

High quality mini electric wire rope hoist for your needs.

Applications

The handy PA mini electric wire rope hoists have a very wide applications , which can be mounted on electric or manual single girder overhead cranes, H beam, and other monorails for material handling for industrial crane use and civil hoisting use.

Specifically, the PA mini electric hoists are usually used in factory workshops, ,mines, agriculture, power stations, ,construction building site,dock, ingredients, and warehouse,for installation or repairing or in basket narrow space and small work space for material handling.
