Overview of Jib Cranes

Jib cranes are versatile lifting devices commonly used in various industries to handle materials efficiently. These cranes are characterized by a horizontal arm, or "jib," that extends from a vertical mast or pillar. The jib supports a hoist or lifting mechanism that moves loads horizontally and vertically. Jib cranes are valued for their ability to provide precise control and reach in confined spaces, making them ideal for tasks where space is limited or specific positioning is required.

Understanding the capacity of a jib crane is crucial for ensuring safe and efficient operation. Capacity refers to the maximum weight the crane can lift without risking structural failure or safety hazards. Knowing the crane's capacity helps in selecting the right model for your needs, ensuring it can handle the expected loads without compromising safety or performance. Proper capacity planning also helps prevent overloading, which can lead to accidents, equipment damage, and increased maintenance costs.

This guide aims to provide a comprehensive overview of jib crane capacities ranging from 1 ton to 16 tons. It will cover the different types of jib cranes, their load limits, and factors to consider when selecting a crane. Whether you're looking to understand which crane best suits your operational needs or seeking to ensure compliance with safety standards, this guide will offer valuable insights and practical advice. Our goal is to help you make informed decisions about jib cranes to enhance efficiency and safety in your operations.

Jib Crane Capacity: From Rated Loads to Load Testing and Operational Impact

Jib Crane Capacity and Related Terms

Jib cranes are essential tools in many industrial environments, providing flexibility and efficiency in material handling. Whether you're lifting heavy equipment, moving components, or organizing inventory, understanding jib crane capacity is fundamental to achieving effective and safe operations. This guide covers the key concepts related to jib crane capacity, helping you make informed decisions about the right crane for your needs.

• Jib Crane Capacity: Jib crane capacity refers to the maximum weight the crane is designed to lift safely. This capacity is determined by the crane's design, including its structure, motor, and lifting mechanisms. Knowing the crane's capacity ensures that you do not exceed its limits, which could lead to equipment failure or safety hazards.
• Rated Capacity: Rated capacity is the maximum load a jib crane can handle under normal operating conditions, as specified by the manufacturer. This rating reflects the crane's strength and design, ensuring it can lift loads safely and efficiently within its operational limits. It provides a reliable benchmark for assessing the crane's performance and suitability for different tasks.
• Maximum Load Capacity: Maximum load capacity is the highest weight the crane can lift at any given time, considering various factors such as load distribution and environmental conditions. While closely related to rated capacity, the maximum load capacity may be influenced by the crane's reach and lifting height. This figure is crucial for determining if the crane can handle specific materials or tasks.

Other Related Terms

• Lifting Height: This is the vertical distance a jib crane can raise a load. A higher lifting height allows the crane to handle materials at greater elevations, enhancing its versatility. However, increased height may affect stability and safety.
• Reach or Span: This term describes the horizontal distance the crane's jib extends from its base. The reach determines the area the crane can cover and impacts how materials are managed within a workspace.
• Load Distribution: Proper load distribution ensures that the weight of the load is evenly spread across the crane's structure. This is vital for maintaining stability and preventing potential accidents or damage.
• Rotational Range: The angle through which the crane can rotate, typically up to 360 degrees. A full rotational range enhances the crane's flexibility and ability to handle loads from various angles.
• Speed Specifications: Includes lifting speed (how quickly the crane can raise or lower a load), trolley speed (how fast the trolley moves along the jib), and crane speed (the overall movement speed of the crane). These speeds impact the efficiency and productivity of the crane's operation.
• Work Duty: This classification indicates how frequently and intensely the crane is used. It affects the crane's durability and suitability for different operational environments.

These terms and how they interrelate helps in selecting the right jib crane for your specific needs, ensuring both operational efficiency and safety. By knowing the crane's rated capacity and maximum load capacity, along with factors like lifting height and reach, you can make informed decisions that enhance your material handling processes.

Jib Crane Capacity

Jib crane capacity refers to the maximum weight that a jib crane is engineered to lift and handle safely. This capacity is a critical parameter that defines the crane's operational limits and determines the range of tasks it can perform effectively.

Factors Influencing Capacity:

• Crane Design: The overall design of the jib crane, including the material and dimensions of its components (e.g., jib arm, mast, base), plays a significant role in determining its lifting capacity. The design influences the crane's strength, stability, and range of movement.
• Structural Strength: The strength of the crane's structural elements, such as the column and jib arm, affects its ability to handle heavy loads. High-quality materials and robust construction ensure that the crane can support its rated capacity safely.
• Operational Environment: Environmental factors, such as temperature extremes, humidity, and exposure to chemicals or corrosive elements, can impact the crane's capacity. For instance, cranes operating in harsh conditions may require additional considerations to maintain their performance.
• Safety Margins: Safety margins are built into the crane's design to account for unexpected stresses and ensure reliable operation. These margins help prevent overloading and reduce the risk of equipment failure.

Importance: Understanding jib crane capacity is essential for selecting a crane that meets your specific lifting needs. Properly matching the crane's capacity to the tasks at hand ensures that it operates safely and efficiently. Overloading a crane can lead to equipment damage, increased maintenance costs, and safety hazards. Therefore, knowing and adhering to the crane's rated capacity helps in preventing accidents and extending the lifespan of the equipment.

Rated Capacity

Rated capacity is the maximum load that a jib crane is designed to lift safely under standard operating conditions. This rating is established by the manufacturer and represents the crane's optimal performance capability.

Considerations: Rated capacity reflects the crane's structural integrity and the effectiveness of its safety features. It takes into account the crane's design specifications, including the strength of its materials and the quality of its construction. By adhering to the rated capacity, the crane operates within safe limits, ensuring that it can handle loads efficiently without risking damage or failure.

Purpose: The rated capacity serves as a crucial benchmark for safe operation. It helps operators select appropriate loads and ensures that the crane performs efficiently during its normal use. Following the rated capacity helps prevent overloading, which can lead to equipment breakdowns, increased maintenance costs, and safety hazards.

Maximum Load Capacity

Maximum load capacity refers to the highest load that a jib crane can lift at any given time, considering factors like load distribution and environmental conditions. It represents the crane's peak performance under various operational scenarios.

Factors Affecting Maximum Load Capacity:

• Reach: The horizontal distance from the crane's base to the load's center of gravity affects its capacity. Longer reaches typically reduce the crane's maximum load capacity due to increased leverage on the crane's structure.
• Lifting Height: The vertical distance a crane can lift a load impacts its capacity. Greater lifting heights may decrease the crane's ability to handle maximum loads, as higher lifts impose additional stress on the crane's components.
• Load Distribution: How the load is spread across the crane's structure influences its maximum capacity. Even distribution is crucial for maintaining stability and avoiding excessive stress on any part of the crane.

Purpose: Maximum load capacity determines whether a jib crane is suitable for handling specific tasks and materials. Understanding this capacity helps in selecting the right crane for different lifting operations, ensuring that it can handle the required loads efficiently while maintaining safety and operational effectiveness.

Other Related Terms and How They Affect the Selection of Jib Crane Capacity

Lifting Height: The vertical distance a jib crane can lift a load.Impact on Capacity: Higher lifting heights can reduce the crane's stability, especially if the load is not evenly distributed or if the crane's design is not optimized for such heights. Cranes with greater lifting heights need to be robustly designed to ensure they can handle the increased stress without compromising safety or performance.

Reach or Span: The horizontal distance from the crane's base to the farthest point the jib can extend.Impact on Capacity: The reach of the jib crane affects its load capacity. As the reach increases, the load capacity typically decreases due to the greater leverage exerted on the crane's structure. Selecting the appropriate reach is essential for balancing the crane's ability to cover the desired work area with its load-handling capabilities.

Load Distribution: How the load is spread across the crane's structure.Impact on Capacity: Proper load distribution is crucial for maintaining crane stability. Uneven load distribution can lead to overloading one side of the crane, which can cause structural damage or safety hazards. Ensuring that loads are evenly distributed helps maintain the crane's rated and maximum load capacities and extends its operational lifespan.

Rotational Range: The angle through which the jib crane can rotate.Impact on Capacity: A greater rotational range increases the crane's operational flexibility and coverage area. However, it can also impact the effective load capacity, as the crane may need to support additional stresses while rotating. The ability to rotate 360 degrees enhances the crane's versatility but requires careful consideration of its load handling capabilities at different angles.

Speed Specifications: Includes the lifting speed, trolley speed, and crane speed.Impact on Capacity: Speed specifications affect how efficiently the crane performs its tasks. Higher lifting speeds can improve productivity but may impact the crane's stability and load handling if not properly managed. Trolley speed influences the speed at which loads are moved horizontally, while crane speed affects the overall operation efficiency. Ensuring that these speeds are appropriate for the load and operational requirements is crucial for optimal performance.

Work Duty: The operational classification indicating the frequency and intensity of crane use.Impact on Capacity: Work duty ratings reflect how often and intensively the crane is used. Cranes with higher work duty ratings are built to endure more frequent and intense use without compromising their structural integrity. Understanding the work duty classification helps in selecting a crane that matches the operational demands, ensuring durability and reliability over time.

By understanding these related terms and their impacts, you can better assess the appropriate jib crane capacity for your specific needs, ensuring both effective operation and safety.

Load Testing Terms

• Proof Load Test : A proof load test is conducted to verify that a crane can safely handle loads above its rated capacity. This test is essential for confirming that the crane's structure and safety mechanisms are robust enough to manage extreme conditions.Purpose: To ensure the crane's safety and reliability by simulating maximum load conditions and checking for any potential weaknesses in the crane's design or construction.
• Test Load : The test load is the specific weight used during a proof load test, typically set above the crane's rated capacity. This load simulates conditions beyond normal operation.Purpose: To evaluate the crane's performance under stress and confirm its ability to operate safely under high-load conditions.
• Load Capacity Rating : This is the maximum load a crane is designed to lift, as specified by the manufacturer. It includes safety margins to account for variations in operating conditions.Purpose: To guide operators in selecting appropriate loads and ensure the crane operates within safe limits, thereby preventing overloading.
• Overload : Overloading occurs when a crane is subjected to loads that exceed its rated capacity. This can happen due to miscalculation or improper use.Purpose: Avoiding overload is critical to prevent damage, reduce wear, and maintain the crane's operational integrity and safety.
• Load Distribution : Load distribution refers to how the load is spread across the crane's structure. Proper distribution ensures that the load is evenly spread and does not concentrate stress on a single point.Purpose: To maintain the crane's stability and prevent structural failures, which can occur if the load is not distributed properly.
• Dynamic Load : Dynamic loads vary over time due to factors such as movement or acceleration. These loads fluctuate and can impact the crane's performance differently compared to static loads.Purpose: To assess the crane's ability to handle fluctuating loads and ensure it performs reliably under varying operational conditions.
• Static Load : Static loads are constant and unchanging. They are used for baseline capacity ratings and testing.Purpose: To establish the crane's baseline capacity and performance under stable conditions, providing a reference for its rated capabilities.
• Safety Factor : The safety factor is a ratio that measures the crane's capacity relative to the maximum expected load. For instance, a safety factor of 2 means the crane can handle twice the rated load.Purpose: To ensure there is a margin of safety beyond the rated capacity, accommodating unexpected stresses and enhancing reliability.
• Inspection and Maintenance : Regular inspections and maintenance checks are performed to ensure that the crane remains in good working condition and complies with safety standards.Purpose: To identify wear, defects, or potential issues that could affect the crane's performance and safety, ensuring ongoing reliability.
• Load Charts : Load charts are diagrams provided by the manufacturer that detail the crane's lifting capacities at various configurations, including different radii and lifting heights.Purpose: To help operators determine the appropriate load limits based on the crane's specific setup and operational conditions, ensuring safe and effective use.

Interrelation and Impact

Rated Capacity vs. Maximum Load Capacity

• Rated Capacity: This is the specified maximum load a jib crane is designed to lift under ideal conditions. It reflects the crane's structural strength, design, and safety margins.
• Maximum Load Capacity: This represents the highest load the crane can safely lift at any given time, considering various operational factors such as load distribution and environmental conditions.
• Interrelation: Rated capacity provides a benchmark for the crane's load-handling capabilities, while the maximum load capacity takes into account real-world variables. The maximum load capacity might be influenced by factors like reach and lifting height, which can impact how much weight the crane can handle safely at any given moment.

Lifting Height and Reach

• Lifting Height: This is the vertical distance a crane can lift a load. Higher lifting heights offer greater versatility in handling materials but may increase stress on the crane's structure.
• Reach or Span: This refers to the horizontal distance the crane's jib extends from its base. Greater reaches allow the crane to cover more area but can also reduce the maximum load capacity due to increased structural stress and potential stability issues.
• Interrelation: Increasing either lifting height or reach can affect the crane's maximum load capacity. Higher lifting heights and extended reaches may lead to reduced load capacities because of the additional strain placed on the crane's components. It's essential to balance these factors to maintain safe and efficient operation.

Load Distribution and Stability

• Load Distribution: Proper load distribution involves spreading the load evenly across the crane's structure. This is crucial for maintaining stability and ensuring that the crane operates within its rated and maximum load capacities.
• Stability: Uneven load distribution can lead to instability, which might compromise the crane's performance and safety. Properly distributing the load helps in maintaining balance and avoiding structural failures or accidents.
• Interrelation: Ensuring proper load distribution is fundamental for achieving the rated and maximum load capacities. Without adequate load distribution, the crane might not be able to handle its rated capacity safely, leading to potential overloading and stability issues.

Rotational Range and Reach

• Rotational Range: This is the angle through which the crane can rotate, typically up to 360 degrees. A full rotational range enhances the crane's flexibility, allowing it to handle loads over a wider area.
• Reach or Span: The horizontal reach determines the area the crane can cover and affects its load handling capabilities.
• Interrelation: While a full rotational range improves operational flexibility, it can impact the effective reach and load handling capabilities. When the crane rotates, the effective reach might be reduced, which can affect the load capacity and the area within which the crane can operate efficiently. Balancing rotational range with reach is essential for optimizing the crane's performance and coverage.

Jib Crane Types and Typical Capacities

Importance of Comparing Jib Crane Models Based on Capacity

When selecting a jib crane, capacity is a crucial factor to consider. Comparing jib crane models based on their rated load capacities helps ensure that the chosen crane meets the specific lifting needs of your operation. Rated load capacity indicates the maximum weight the crane can safely handle, which directly impacts operational efficiency and safety.

Comparing different models allows you to identify the most suitable crane for your requirements, whether you need a crane for light or heavy-duty tasks. Understanding the differences in capacity among models helps in making informed decisions, optimizing workflow, and preventing potential overload situations that could lead to equipment failure or safety hazards.

By analyzing the rated load capacities and other key features of top jib crane models, you can choose a crane that aligns with your operational demands and enhances overall productivity. This comparison is essential for ensuring that the equipment you invest in can handle the expected loads effectively while maintaining safety and reliability in your workplace.

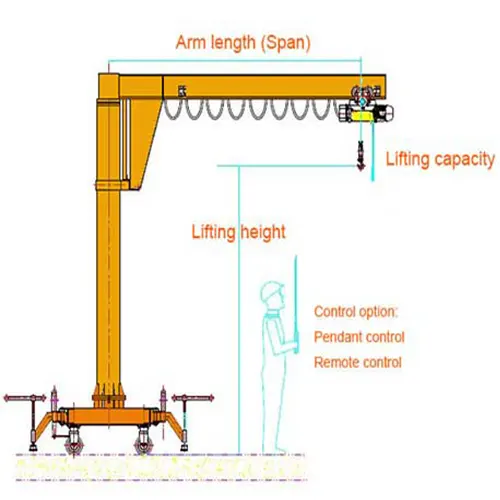

Portable Jib Cranes

Capacity Range: Up to 2 tons

Design Features:

• Movable Base: Allows for easy relocation within a workspace.
• Adjustable Height: Often includes adjustable lifting heights to suit different tasks.
• Flexibility: Ideal for small to medium-sized operations requiring mobility and versatility.

Typical Capacities:

• 500 kg Portable Jib Crane: Suitable for light loads and compact work areas.
• 1 Ton Portable Jib Crane: Handles moderate loads, useful in various workshop settings.
• 2 Ton Portable Jib Crane: Suitable for heavier materials, offering increased lifting capabilities while maintaining mobility.

Pillar Jib Cranes

Capacity Range: 1 ton to 16 tons

Design Features:

• Fixed Column: Provides stable support and can handle heavier loads.
• 360-Degree Rotation: Allows for full rotation, enhancing flexibility and coverage.
• Heavy-Duty Construction: Designed to handle substantial weights and provide reliable performance.

Typical Capacities:

• 1 Ton Pillar Jib Crane: Ideal for small to medium-sized tasks, providing stable and reliable lifting.
• 4 Ton Pillar Jib Crane: Suitable for moderate to heavy loads, offering robust performance for various industrial applications.
• 10 Ton Pillar Jib Crane: Handles large, heavy loads with ease, often used in manufacturing and heavy-duty environments.
• 16 Ton Pillar Jib Crane: Designed for very heavy lifting, suitable for large industrial facilities requiring high load capacities.

Wall-Mounted Jib Cranes

Capacity Range: Up to 5 tons

Design Features:

• Mounts to Wall: Space-saving design ideal for confined areas or existing structures.
• Limited Reach: Capacity and reach are affected by the wall mount's limitations.
• Cost-Effective: Generally more affordable compared to free-standing designs.

Typical Capacities:

• 500 kg Wall-Mounted Jib Crane: Suitable for light lifting tasks in confined spaces.
• 1 Ton Wall-Mounted Jib Crane: Handles moderate loads, ideal for smaller work areas with limited space.
• 3 Ton Wall-Mounted Jib Crane: Provides heavier lifting capabilities within constrained environments.
• 5 Ton Wall-Mounted Jib Crane: Suitable for heavier tasks while utilizing wall space efficiently.

Wall-Traveling Jib Cranes

Capacity Range: Up to 3 tons

Design Features:

• Track System: Moves along a track mounted on the wall, offering increased flexibility.
• Efficient Use of Space: Ideal for covering larger work areas while minimizing floor space usage.
• Adjustable Coverage: Can extend the range of the crane's movement within the track's length.

Typical Capacities:

• 500 kg Wall-Traveling Jib Crane: Suitable for lighter loads, offering flexible movement along the wall.
• 1 Ton Wall-Traveling Jib Crane: Handles moderate loads, enhancing operational flexibility and coverage.
• 3 Ton Wall-Traveling Jib Crane: Capable of lifting heavier materials, providing efficient use of space and increased range of motion.

Criteria for Comparison

• Rated Load Capacity:Rated load capacity refers to the maximum weight a jib crane is designed to lift safely. It is a critical metric that determines how much load the crane can handle under normal operating conditions without compromising safety. Understanding rated load capacity is essential for ensuring that the crane can manage the required weights efficiently and safely.
• How Rated Load Affects Operational Efficiency:The rated load capacity directly impacts operational efficiency. A crane with an appropriate rated load capacity ensures that materials and equipment are handled smoothly, reducing the need for additional lifting equipment or manual handling. Selecting a crane with a capacity that matches or exceeds your lifting needs helps in maintaining a streamlined workflow, minimizing downtime, and enhancing productivity. Conversely, using a crane that is undersized for the task can lead to overloading, which might cause equipment failure and safety risks.

Design and Construction

• Impact of Design on Capacity:The design of a jib crane plays a significant role in determining its load capacity. Key design elements include the length and strength of the jib, the type of mounting (floor-mounted, wall-mounted, or mast-type), and the overall configuration. A well-designed crane incorporates structural features that distribute loads evenly, reduce stress on critical components, and enhance stability. Advanced designs often include features like reinforced jibs and robust support structures to handle higher loads.
• Materials and Structural Integrity:The materials used in the construction of a jib crane are crucial for its load-bearing capacity. High-strength steel or other durable materials are commonly used to ensure that the crane can withstand heavy loads and resist wear and tear. Structural integrity is maintained through precise engineering and high-quality manufacturing practices. Cranes built with superior materials and construction techniques are more reliable and have a longer lifespan, which contributes to consistent performance and safety.

Operational Range

• Maximum Lifting Height and Reach:The operational range of a jib crane includes its maximum lifting height and reach, which are essential for determining how effectively the crane can perform tasks within a specific area. Maximum lifting height refers to the highest point the crane can lift a load, while reach indicates the distance the crane can extend horizontally. These factors influence the crane's ability to access various parts of a work area, making it crucial to select a crane with an operational range that meets your specific needs.
• Versatility in Different Work Environments:A crane's versatility is also an important consideration. Jib cranes are used in diverse work environments, from tight spaces in workshops to open areas in warehouses. The ability to adjust the crane's range and positioning to fit different operational setups enhances its functionality and adaptability. Features such as adjustable jibs, swiveling arms, and modular designs can increase the crane's versatility, allowing it to perform efficiently in various settings and tasks.

Detailed Capacity of Each Types of Jib Cranes

Pillar Jib Cranes

Capacity Range: 1 Ton to 16 Tons

Features and Benefits
Pillar jib cranes, also known as column-mounted jib cranes, are anchored to a fixed column, providing a stable base for lifting operations. Their main features include:

• High Capacity Range: With capacities from 1 ton to 16 tons, pillar jib cranes are suitable for handling heavier loads. This makes them ideal for industrial environments where heavy machinery or materials need to be lifted and moved.
• 360-Degree Rotation: These cranes typically offer full rotational movement around the column, allowing for a wide range of motion and efficient coverage of the working area.
• Durability and Stability: The fixed column design provides robust support, ensuring stability even with maximum load capacities. This design also minimizes the risk of tipping or instability.
• Space Efficiency: Pillar jib cranes are effective in maximizing space utilization by serving specific zones without obstructing other areas, making them ideal for confined spaces or areas with limited overhead clearance.

Pillar Jib Crane Capacities and Applications

Pillar jib cranes are versatile and commonly used for various industrial tasks. Their capacity, reach, and features make them suitable for different applications. Here's a summary of typical capacities and their corresponding applications:

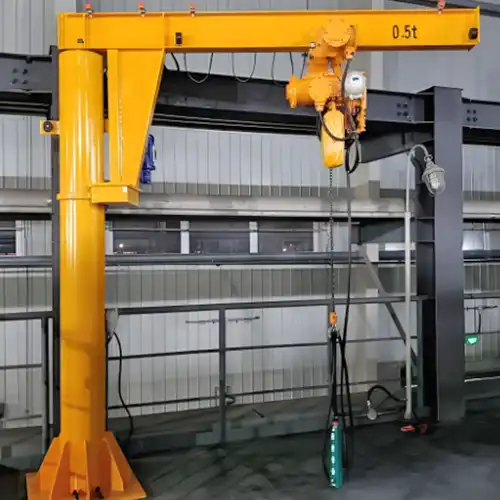

0.5 Ton Pillar Jib Crane

• Valid Radius: 3 to 12 meters
• Lifting Height: 3 to 8 meters
• Lifting Speed: 8 m/min
• Trolley Speed: 10 m/min
• Slewing Speed: 0.5 to 1 r/min
• Slewing Angle: 0° to 360°

Typical Applications and Objects Handled:

• Lightweight Materials: Ideal for handling smaller, lighter components or tools.
• Assembly Lines: Useful in small assembly operations where space is limited.
• Workshops: Facilitates movement of light parts or materials within confined areas.

1 Ton Pillar Jib Crane

• Valid Radius: 3 to 12 meters
• Lifting Height: 3 to 8 meters
• Lifting Speed: 8 m/min
• Trolley Speed: 10 m/min
• Slewing Speed: 0.5 to 1 r/min
• Slewing Angle: 0° to 360°

Typical Applications and Objects Handled:

• Medium-sized Components: Suitable for lifting and positioning components up to 1 ton.
• Manufacturing: Efficient for small to medium-scale production tasks.
• Repair Shops: Ideal for lifting engine parts or machinery components.

2 Ton Pillar Jib Crane

• Valid Radius: 3 to 12 meters
• Lifting Height: 3 to 8 meters
• Lifting Speed: 8 m/min
• Trolley Speed: 10 m/min
• Slewing Speed: 0.5 to 1 r/min
• Slewing Angle: 0° to 360°

Typical Applications and Objects Handled:

• Heavy Components: Capable of handling moderately heavy components and equipment.
• Manufacturing Plants: Used for heavier production tasks and material handling.
• Maintenance: Useful for lifting and positioning larger parts for maintenance or repairs.

3 Ton Pillar Jib Crane

• Valid Radius: 3 to 12 meters
• Lifting Height: 3 to 8 meters
• Lifting Speed: 8 m/min
• Trolley Speed: 10 m/min
• Slewing Speed: 0.5 to 1 r/min
• Slewing Angle: 0° to 360°

Typical Applications and Objects Handled:

• Larger Equipment: Suitable for lifting and moving larger machinery or parts.
• Industrial Facilities: Effective for general material handling in medium-sized industrial environments.
• Heavy-duty Tasks: Handles tasks requiring more robust lifting capabilities.

5 Ton Pillar Jib Crane

• Valid Radius: 3 to 12 meters
• Lifting Height: 3 to 8 meters
• Lifting Speed: 8 m/min
• Trolley Speed: 10 m/min
• Slewing Speed: 0.5 to 1 r/min
• Slewing Angle: 0° to 360°

Typical Applications and Objects Handled:

• Heavy Loads: Ideal for handling heavy materials and equipment.
• Manufacturing and Assembly: Useful for moving larger parts in heavy-duty manufacturing environments.
• Warehouse Operations: Efficient for heavy lifting tasks in warehouses.

10 Ton Pillar Jib Crane

• Valid Radius: 3 to 15 meters
• Lifting Height: 3 to 8 meters
• Lifting Speed: 7 m/min
• Trolley Speed: 10 m/min
• Slewing Speed: 0.5 to 1 r/min
• Slewing Angle: 0° to 360°

Typical Applications and Objects Handled:

• Large Equipment: Handles substantial machinery and heavy components.
• Heavy Industry: Suitable for large-scale manufacturing and industrial operations.
• Maintenance: Effective for lifting and positioning large parts for maintenance and repairs.

16 Ton Pillar Jib Crane

• Valid Radius: 3 to 15 meters
• Lifting Height: 3 to 8 meters
• Lifting Speed: 3.5 m/min
• Trolley Speed: 18 m/min
• Slewing Speed: 0.4 to 0.7 r/min
• Slewing Angle: 0° to 360°

Typical Applications and Objects Handled:

• Very Heavy Loads: Capable of lifting very heavy machinery and large components.
• Large Industrial Settings: Ideal for heavy lifting tasks in large-scale manufacturing plants or industrial facilities.
• Specialized Operations: Suitable for specialized tasks requiring substantial lifting capacity.

20 Ton Pillar Jib Crane

• Valid Radius: 3 to 15 meters
• Lifting Height: 3 to 8 meters
• Lifting Speed: 3.3 m/min
• Trolley Speed: 14 m/min
• Slewing Speed: 0.4 to 0.7 r/min
• Slewing Angle: 0° to 360°

Typical Applications and Objects Handled:

• Extremely Heavy Loads: Ideal for handling the heaviest materials and equipment.
• Heavy-duty Industrial: Suited for large-scale heavy-duty operations in industrial settings.
• Critical Lifting Tasks: Effective for critical lifting applications requiring maximum capacity.

Each tonnage of pillar jib crane is designed to meet specific lifting needs, making them suitable for a wide range of industrial applications based on the required load capacity and operational environment.

Wall-Mounted Jib Cranes

Capacity Range: 1/2 Ton to 5 Tons

Features and Benefits
Wall-mounted jib cranes are attached to a wall or structural column, offering flexible and space-saving solutions. Key features include:

• Compact Design: With a capacity range of 1/2 ton to 5 tons, these cranes are well-suited for lighter loads and are often used in smaller workshops or production areas where space is at a premium.
• Versatility: The arm extends out from the wall, providing a reach that can cover a broad area, depending on the length of the jib. This allows for effective material handling in tight spaces.
• Ease of Installation: These cranes can be mounted directly to existing structures, making installation simpler and often less costly than other crane types.
• Cost-Effective: Generally, wall-mounted jib cranes are more affordable compared to pillar-mounted models, making them a good option for businesses with limited budgets but needing efficient lifting solutions.

Wall-Mounted Jib Crane Capacities and Applications

Wall-mounted jib cranes are versatile and space-efficient, designed to maximize productivity in various settings. Here's a summary of typical capacities and their corresponding applications:

0.5 Ton Wall-Mounted Jib Crane

• Valid Radius: 3 to 8 meters
• Lifting Height: 6 to 30 meters
• Lifting Speed: 8 m/min (0.8/8)
• Trolley Speed: 10 m/min (20)
• Slewing Speed: 0.5 to 1 r/min
• Slewing Angle: 0° to 180°
• Work Duty: A3 to A4

Typical Applications and Objects Handled:

• Lightweight Components: Ideal for handling small parts and tools in confined spaces.
• Workshops: Effective for light assembly tasks and minor maintenance operations.
• Small Production Areas: Perfect for lightweight materials where space is at a premium.

1 Ton Wall-Mounted Jib Crane

• Valid Radius: 3 to 8 meters
• Lifting Height: 6 to 30 meters
• Lifting Speed: 8 m/min (0.8/8)
• Trolley Speed: 10 m/min (20)
• Slewing Speed: 0.5 to 1 r/min
• Slewing Angle: 0° to 180°
• Work Duty: A3 to A4

Typical Applications and Objects Handled:

• Medium-Sized Parts: Suitable for lifting and positioning moderately heavy components.
• Manufacturing: Useful for handling materials in small to medium-scale production.
• Assembly Lines: Ideal for moving parts or materials efficiently within a workspace.

2 Ton Wall-Mounted Jib Crane

• Valid Radius: 3 to 8 meters
• Lifting Height: 6 to 30 meters
• Lifting Speed: 8 m/min (0.8/8)
• Trolley Speed: 10 m/min (20)
• Slewing Speed: 0.5 to 1 r/min
• Slewing Angle: 0° to 180°
• Work Duty: A3 to A4

Typical Applications and Objects Handled:

• Heavier Components: Effective for lifting and moving moderately heavy materials and machinery.
• Industrial Facilities: Suitable for a range of industrial tasks and moderate lifting needs.
• Maintenance Operations: Ideal for handling larger parts in maintenance or repair scenarios.

3 Ton Wall-Mounted Jib Crane

• Valid Radius: 3 to 8 meters
• Lifting Height: 6 to 30 meters
• Lifting Speed: 8 m/min (0.8/8)
• Trolley Speed: 10 m/min (20)
• Slewing Speed: 0.5 to 1 r/min
• Slewing Angle: 0° to 180°
• Work Duty: A3 to A4

Typical Applications and Objects Handled:

• Large Equipment: Suitable for handling and positioning larger machinery and heavier components.
• Heavy-Duty Operations: Ideal for demanding tasks in manufacturing and assembly environments.
• Warehouse Operations: Efficient for moving bulky or heavy items within storage areas.

5 Ton Wall-Mounted Jib Crane

• Valid Radius: 3 to 8 meters
• Lifting Height: 6 to 30 meters
• Lifting Speed: 8 m/min (0.8/8)
• Trolley Speed: 10 m/min (20)
• Slewing Speed: 0.5 to 1 r/min
• Slewing Angle: 0° to 180°
• Work Duty: A3 to A4

Typical Applications and Objects Handled:

• Heavy Loads: Ideal for lifting and moving substantial materials and equipment.
• Manufacturing Plants: Effective for heavy-duty tasks and large-scale production needs.
• Industrial Maintenance: Suitable for handling large parts or machinery during maintenance.

Wall-mounted jib cranes provide a range of capacities tailored to various applications, from light handling to heavy-duty operations. Their flexibility and space-saving design make them ideal for many industrial settings.

Wall-Traveling Jib Cranes

Capacity Range: 1/2 Ton to 3 Tons

Features and Benefits
Wall-traveling jib cranes are mounted on a track or rail system along a wall, providing additional flexibility. Their features include:

• Enhanced Mobility: Unlike fixed jib cranes, wall-traveling cranes can move along the track, allowing them to cover a larger working area without needing to reposition the crane itself.
• Compact and Efficient: With capacities ranging from 1/2 ton to 3 tons, these cranes are ideal for lighter loads and are particularly effective in workshops or warehouses where maximizing floor space is important.
• Improved Flexibility: The ability to travel along the wall provides better access to various parts of the work area, improving operational efficiency and reducing the time required to move materials.
• Reduced Footprint: By utilizing a wall-mounted track system, these cranes maintain a smaller footprint, which is advantageous in environments where space is limited and floor space needs to be optimized.

Each type of jib crane offers unique benefits tailored to different operational needs, from handling heavy loads in larger industrial settings to providing space-efficient solutions for lighter loads in confined areas.

Wall-Traveling Jib Crane Capacities and Applications

Wall-traveling jib cranes are designed for enhanced mobility along a wall-mounted track, making them suitable for various industrial applications. Here's a summary of typical capacities and their uses:

0.5 Ton Wall-Traveling Jib Crane

• Valid Radius: 5 to 12.5 meters
• Lifting Height: 6 to 30 meters
• Lifting Speed: 8 m/min (0.8/8)
• Trolley Speed: 10 m/min (20)
• Crane Speed: 20 m/min (30)
• Work Duty: A3 to A4
• Track Type: P18

Typical Applications and Objects Handled:

• Lightweight Tasks: Ideal for lifting small components and tools.
• Workshops: Effective for light assembly and maintenance tasks.
• Small Production Areas: Suitable for environments where space optimization is crucial.

1 Ton Wall-Traveling Jib Crane

• Valid Radius: 5 to 12.5 meters
• Lifting Height: 6 to 30 meters
• Lifting Speed: 8 m/min (0.8/8)
• Trolley Speed: 10 m/min (20)
• Crane Speed: 20 m/min (30)
• Work Duty: A3 to A4
• Track Type: P18

Typical Applications and Objects Handled:

• Moderate Loads: Suitable for handling and positioning medium-sized components.
• Manufacturing Facilities: Useful for various production tasks and light material handling.
• Assembly Lines: Effective for lifting and moving parts in a production environment.

2 Ton Wall-Traveling Jib Crane

• Valid Radius: 5 to 12.5 meters
• Lifting Height: 6 to 30 meters
• Lifting Speed: 8 m/min (0.8/8)
• Trolley Speed: 10 m/min (20)
• Crane Speed: 20 m/min (30)
• Work Duty: A3 to A4
• Track Type: P18

Typical Applications and Objects Handled:

• Heavy Components: Ideal for lifting and moving larger materials and equipment.
• Industrial Tasks: Suitable for medium-duty operations in manufacturing and maintenance.
• Warehouse Operations: Effective for handling moderately heavy loads in storage areas.

3 Ton Wall-Traveling Jib Crane

• Valid Radius: 5 to 12.5 meters
• Lifting Height: 6 to 30 meters
• Lifting Speed: 8 m/min (0.8/8)
• Trolley Speed: 10 m/min (20)
• Crane Speed: 20 m/min (30)
• Work Duty: A3 to A4
• Track Type: P24

Typical Applications and Objects Handled:

• Large Equipment: Effective for lifting and positioning substantial machinery and components.
• Heavy-Duty Operations: Suitable for demanding tasks in industrial settings.
• Production Facilities: Ideal for moving large parts and materials in various manufacturing processes.

Portable Jib Cranes on Wheels

Capacity Range: 500kg to 2000kg

Features and Benefits

Portable jib cranes on wheels provide a flexible lifting solution suitable for a variety of environments. Their features include:

• Enhanced Mobility: With built-in wheels, these cranes can be easily moved to different locations within a facility, offering versatile positioning for various tasks.
• Compact and Practical: Designed for medium-sized loads, ranging from 500kg to 1000kg, these cranes are ideal for workshops and small production areas where space is limited.
• Adjustable and Adaptable: The cranes often feature adjustable height and reach, allowing for customization based on specific lifting needs and operational requirements.
• Ease of Use: Quick setup and operation make these cranes user-friendly, reducing downtime and increasing overall efficiency in handling materials.

Portable jib cranes on wheels offer a practical and efficient lifting solution, combining mobility with versatility to meet diverse operational needs in confined or dynamic work environments.

Portable Jib Crane Capacities and Configurations

Portable jib cranes offer flexibility and convenience for various lifting tasks. Here's an overview of their standard configurations and typical applications:

500 kg Portable Jib Crane

• Boot Rotation: Up to 360°
• Capacity: 500 kg
• Span: 1 to 3 meters
• Lifting Height: 1 to 3 meters
• Work Duty: A3
• Power Supply: 220-480V, 3-Phase, 50/60Hz

Typical Applications and Objects Handled:

• Lightweight Tasks: Ideal for lifting small components and tools in workshops or small production areas.
• Maintenance: Useful for light maintenance tasks where space is limited.
• Small Equipment: Suitable for handling and positioning light machinery and parts.

1000 kg Portable Jib Crane

• Boot Rotation: Up to 360°
• Capacity: 1000 kg
• Span: 1 to 3 meters
• Lifting Height: 1 to 3 meters
• Work Duty: A3
• Power Supply: 220-480V, 3-Phase, 50/60Hz

Typical Applications and Objects Handled:

• Moderate Loads: Effective for lifting and moving medium-sized components and equipment.
• Workshops and Warehouses: Ideal for tasks that require a portable solution with moderate lifting capacity.
• Assembly Lines: Useful for handling parts and materials in various manufacturing environments.

2000 kg Portable Jib Crane

• Boot Rotation: Up to 360°
• Capacity: 2000 kg
• Span: 1 to 3 meters
• Lifting Height: 1 to 3 meters
• Work Duty: A3
• Power Supply: 220-480V, 3-Phase, 50/60Hz

Typical Applications and Objects Handled:

• Heavy Loads: Ideal for handling larger and heavier items in industrial settings.
• Heavy-Duty Tasks: Suitable for lifting and positioning substantial equipment and materials.
• Construction Sites: Useful for on-site lifting and moving of heavy components where mobility and strength are required.

Portable jib cranes are designed for easy maneuverability and adaptability, making them a practical choice for a variety of lifting applications in different environments.

Jib Crane Capacity Limits

Factors Affecting Capacity

Crane Design and Construction
The design and construction of a jib crane significantly influence its capacity. Key design elements include:

• Structural Integrity: The materials used (e.g., steel or aluminum) and the construction quality determine the crane's strength and durability. Heavier materials and robust construction enable higher load capacities.
• Jib Length and Arm Configuration: Longer jibs generally reduce the crane's lifting capacity due to increased leverage, which can cause greater stress on the crane's structure. The configuration of the arm, whether fixed or adjustable, also affects how much weight the crane can handle.
• Mast and Column Design: The height and thickness of the mast or column play a critical role in stabilizing the crane. A more substantial column can support higher capacities and provide better stability.

Load Distribution
Even distribution of the load across the jib crane is crucial for safe operation:

• Center of Gravity: Loads should be evenly distributed along the jib to prevent tipping or imbalance. Off-center loads can strain the crane and reduce its effective capacity.
• Load Positioning: The position of the load relative to the crane's pivot point affects the leverage and the stress on the crane's structure. Proper load positioning ensures that the crane operates within its designed capacity.

Environmental Conditions
The operating environment can impact a crane's capacity:

• Temperature Extremes: Extreme temperatures can affect the materials and mechanisms of the crane, potentially reducing its capacity. Cold temperatures can make materials more brittle, while high temperatures can cause components to expand and weaken.
• Humidity and Corrosion: High humidity and corrosive environments can lead to rust and degradation of crane components, affecting its strength and capacity. Anti-corrosion treatments and regular maintenance are essential in such conditions.

Calculating Load Limits

Static vs. Dynamic Loads
Understanding the difference between static and dynamic loads is essential for accurate capacity calculations:

• Static Loads: These are constant and unchanging weights. The crane's capacity for static loads is usually higher since it only needs to support a steady weight without additional stress.
• Dynamic Loads: These involve moving or fluctuating weights, such as those caused by lifting and lowering. Dynamic loads create additional stress due to movement and acceleration, often requiring a crane to have a higher capacity to handle these conditions safely.

Safety Factors
Safety factors are critical in determining a crane's effective load capacity:

• Design Safety Margin: Manufacturers often include a safety margin in the crane's design to account for unexpected loads or operational stresses. This margin ensures that the crane remains safe even when operating at or near its maximum capacity.
• Operational Safety Margins: Users should adhere to operational guidelines and safety margins to prevent overloading. This involves following recommended load limits and ensuring regular inspections to maintain safety standards.

Manufacturer Specifications and Custom Options

Manufacturer Specifications
Manufacturers provide detailed specifications outlining the maximum capacities, reach, and other technical aspects of jib cranes. These specifications are crucial for:

• Selecting the Right Crane: Ensuring the crane meets your specific capacity needs based on the manufacturer's guidelines.
• Compliance: Adhering to manufacturer recommendations to maintain warranty and safety standards.

Custom Options
For specialized needs, custom jib cranes can be designed to meet unique requirements:

• Custom Capacities: Manufacturers can design cranes with higher or lower capacities than standard models to fit specific applications.
• Special Features: Customizations may include enhanced materials for extreme environments, extended reach for larger work areas, or additional safety features to address specific operational challenges.

Selecting the Right Jib Crane

Assessing Your Needs

Type of Work and Application
Selecting the right jib crane starts with a clear understanding of your specific requirements:

• Nature of Tasks: Determine the type of work the crane will perform, such as lifting, moving, or positioning materials. For instance, if you need to handle heavy, bulky items, a pillar jib crane with a higher capacity might be necessary. Conversely, for lighter, more precise tasks in confined spaces, a wall-mounted jib crane could be more suitable.
• Work Environment: Consider the environment in which the crane will operate. For example, an outdoor environment or one with extreme temperatures might require a crane with additional weatherproofing or corrosion-resistant features.

Frequency and Duration of Use
The frequency and duration of crane use impact the type and design you should choose:

• High Frequency: If the crane will be used frequently throughout the day, such as in a busy manufacturing plant, you may need a more robust and durable model. Frequent use may also require enhanced maintenance protocols to ensure longevity and reliability.
• Intermittent Use: For less frequent use, such as occasional lifting tasks in a warehouse, a less heavy-duty model might suffice. Consider models that offer efficiency without the need for extensive maintenance if they are not used continuously.

Comparing Different Crane Types

Strengths and Limitations
Each type of jib crane has distinct advantages and potential drawbacks:

Strengths and Limitations of Jib Crane Types

Pillar Jib Cranes

Strengths:

• High Load Capacities: Capable of handling loads from 1 ton to 16 tons, making them suitable for heavy-duty applications.
• Full 360-Degree Rotation: Provides complete rotational movement around the column, offering maximum flexibility in material handling.
• Stability: The fixed column base ensures stability and robust support, ideal for larger spaces where heavy lifting is required.
• Durability: Designed for long-term use in industrial environments, offering reliability and strong performance.

Limitations:

• Floor Space Requirements: Requires significant floor space for installation and operation, which may be challenging in smaller areas.
• Installation Complexity: Installation can be more complex due to the need for a sturdy foundation and careful alignment of the column.
• Movement Obstruction: The column may obstruct movement in tight or congested areas, potentially limiting workspace efficiency.

Wall-Mounted Jib Cranes

Strengths:

• Space-Saving Design: Mounts directly to the wall, optimizing floor space and providing an efficient solution for smaller work areas.
• Ease of Installation: Relatively straightforward to install on existing structures, making it a cost-effective choice for retrofitting.
• Cost-Effectiveness: Generally less expensive than pillar jib cranes, offering a budget-friendly option for lighter loads.
• Ideal for Smaller Loads: Suitable for handling loads from 1/2 ton to 5 tons, making it ideal for lighter material handling tasks.

Limitations:

• Limited Reach: The reach is constrained by the wall mount, which may limit the crane's operational range and flexibility.
• Lower Capacity: Typically has a lower load capacity compared to pillar jib cranes, making it less suitable for very heavy or large items.
• Restricted Mobility: Movement is limited to the reach provided by the wall, which can restrict handling in larger or more variable work areas.

Wall-Traveling Jib Cranes

Strengths:

• Flexibility: Moves along a track system mounted on the wall, allowing for efficient coverage of a larger working area and flexibility in positioning.
• Space Efficiency: Effective use of floor space by traveling along the wall, making it suitable for environments where space is a premium.
• Versatility: Handles loads ranging from 1/2 ton to 3 tons, offering a versatile solution for various applications within a workshop or warehouse.
• Enhanced Coverage: Can cover multiple locations within a facility, improving operational efficiency.

Limitations:

• Track System Requirement: Requires installation of a track system along the wall, which may involve additional costs and maintenance.
• Lower Capacity: Generally has a lower load capacity compared to pillar jib cranes, which may limit its use in high-capacity applications.
• Installation and Maintenance: The track system can complicate installation and maintenance, requiring careful alignment and periodic checks.

Each type of jib crane offers specific benefits and drawbacks tailored to different operational needs, from high-capacity, stationary solutions to flexible, space-efficient designs. Understanding these strengths and limitations helps in selecting the most appropriate jib crane for your application.

Case Studies and Examples

Industrial Applications
Analyzing case studies and examples from various industries can provide insights into how different jib cranes perform in real-world applications:

Manufacturing Plants: In a large automotive manufacturing plant, pillar jib cranes are often used to handle heavy engine components. Their high capacity and 360-degree rotation make them suitable for moving and positioning large parts efficiently.Warehouses: Wall-mounted jib cranes are frequently used in warehouses for lighter loads, such as handling packages or smaller items. Their space-saving design and ease of installation make them ideal for improving efficiency in confined storage areas.Construction Sites: Wall-traveling jib cranes can be found on construction sites where materials need to be moved along walls or support structures. Their flexibility and ability to cover a wide area make them valuable for handling construction materials and tools.

Selecting the right jib crane involves evaluating your specific needs, comparing the strengths and limitations of different types, and considering real-world examples to ensure the crane fits your operational requirements.

Evaluating Safety and Compliance

Importance of Capacity in Safety
The capacity of a jib crane is crucial for maintaining safe operation:

• Preventing Overloading: Adhering to the crane's specified capacity prevents overloading, which can cause structural failure, equipment damage, and safety hazards. Each crane is designed with a maximum load capacity to ensure safe handling of materials.
• Ensuring Stability: Properly utilizing the crane within its capacity ensures stability during operation. Overloading can lead to tipping, instability, and accidents, potentially harming operators and damaging surrounding equipment.

Signs of Overloading and Risks
Recognizing signs of overloading is essential for preventing accidents:

• Unusual Sounds: Grinding or creaking noises during operation may indicate that the crane is under excessive strain. This can signal potential overloading or mechanical issues.
• Structural Deformation: Bent or deformed structural components, such as the jib arm or column, suggest that the crane is experiencing more stress than it was designed to handle.
• Inconsistent Movement: Jerky or uneven movement of the crane can indicate that the load is too heavy or unevenly distributed, increasing the risk of malfunction or failure.

Safety Features and Compliance

Limit Switches
Limit switches are crucial safety components designed to prevent over-travel:

• Functionality: These switches automatically stop the crane from moving beyond its designated range, preventing collisions or damage. They ensure that the crane operates within safe boundaries and reduces the risk of accidents.
• Maintenance: Regular inspection and maintenance of limit switches are essential to ensure they function correctly. Malfunctioning switches can lead to unsafe operation and potential accidents.

Overload Protection
Overload protection systems are designed to safeguard the crane from excessive loads:

• Overload Indicators: Many jib cranes are equipped with load cells or sensors that monitor the weight being lifted. If the load exceeds the crane's capacity, an alarm or indicator alerts the operator to take corrective action.
• Automatic Shutdown: In some systems, if an overload condition is detected, the crane may automatically stop or reduce power to prevent damage. This feature enhances safety by providing an immediate response to overloading.

Industry Standards and Regulations
Compliance with industry standards and regulations is essential for safe crane operation:

• Standards Compliance: Adhering to standards such as those set by the American National Standards Institute (ANSI) or the European Union's Machinery Directive ensures that the crane meets safety and performance criteria. These standards cover aspects like design, construction, and operation.
• Regular Inspections: Routine inspections and maintenance in accordance with industry regulations help ensure that the crane remains in safe working condition. This includes checking safety features, load limits, and structural integrity.
• Operator Training: Proper training for crane operators is required to ensure they understand safety protocols, load limits, and emergency procedures. Training helps reduce the risk of human error and enhances overall safety.

Evaluating safety and compliance involves understanding the importance of capacity in maintaining safe operation, recognizing signs of overloading, and ensuring that safety features and industry regulations are adhered to. Proper attention to these aspects helps prevent accidents, extend the crane's lifespan, and ensure a safe working environment.

Design Considerations for Jib Cranes

Key Technical Specifications

Load Capacity Ratings
The load capacity rating is a fundamental design specification for jib cranes:

• Capacity Determination: The maximum load capacity is determined by the crane's design, materials, and structural integrity. It is essential to choose a crane with a capacity rating that matches or exceeds the heaviest load you anticipate handling.
• Rated Load vs. Working Load: Understand the difference between the rated load (maximum capacity the crane can handle under ideal conditions) and the working load (typical loads encountered during operations). Ensure that the crane's rated load provides a sufficient safety margin above the working load.

Reach and Height Adjustments
Reach and height adjustments are critical for adapting the crane to different tasks:

• Jib Reach: The length of the jib determines how far the crane can extend horizontally. Longer jibs allow for greater reach but may reduce the crane's overall capacity. Ensure the reach is sufficient for your operational needs without compromising safety.
• Height Adjustments: The height at which the jib is mounted affects the crane's ability to lift loads to different elevations. Adjustable height settings allow for versatility in handling various tasks and accommodating different working environments.

Design Choices Based on Application

Space Constraints
Design choices must consider the available space:

• Indoor vs. Outdoor Use: Indoor cranes may have different design considerations compared to outdoor cranes, such as weatherproofing and space optimization. Ensure the crane fits within the available space without obstructing other operations or pathways.
• Clearance Requirements: Assess the clearance needed for the crane's operation, including the height of the jib and the area required for load movement. Proper clearance is necessary to avoid collisions with structures or other equipment.

Facility Layout
The facility layout significantly impacts crane design:

• Workflow Integration: Design the crane to complement the existing workflow and facility layout. Consider how the crane will interact with other equipment, storage areas, and workstations to optimize material handling and efficiency.
• Footprint and Installation: The crane's footprint should fit within the designated installation area without causing disruptions to facility operations. Ensure that the installation process is straightforward and doesn't interfere with other facility functions.

Design Considerations Based on Application

Operational Needs
Tailor the crane design to meet specific operational needs:

• Type of Loads: Consider the nature of the loads to be handled, including weight, size, and shape. Custom designs may be required for specialized applications, such as handling large or irregularly shaped items.
• Frequency of Use: Design the crane for the frequency of use. For high-frequency operations, choose a more robust design with higher durability and enhanced safety features.

Future Expansion
Plan for potential future needs:

• Scalability: Consider whether the crane can be adapted or upgraded in the future if operational demands change. Design choices that allow for scalability or modular upgrades can provide flexibility as your needs evolve.
• Maintenance Accessibility: Ensure that the design allows for easy access to components for maintenance and inspections. Proper maintenance access helps in extending the crane's operational life and ensuring safety.

Design considerations for jib cranes involve understanding key technical specifications, such as load capacity ratings and reach adjustments, and making design choices based on application needs, space constraints, and facility layout. Careful planning and customization ensure that the crane will effectively meet operational requirements while optimizing safety and efficiency.

Applications and Uses

Industry-Specific Requirements

Construction Sites
Jib cranes are widely used in construction sites for their versatility and efficiency:

• Material Handling: Jib cranes are ideal for lifting and moving construction materials such as steel beams, concrete blocks, and tools. Their ability to rotate and extend allows for effective placement of materials at various heights and locations.
• Space Optimization: In congested construction sites, jib cranes help optimize space by providing lifting capabilities in tight or confined areas. Wall-mounted or pillar jib cranes can be positioned to maximize the use of available space.

Manufacturing Facilities
In manufacturing settings, jib cranes play a critical role in streamlining operations:

• Assembly Lines: Jib cranes are used to lift and position components along assembly lines, improving workflow efficiency. Their precise control and flexibility make them suitable for handling parts in various stages of production.
• Heavy Equipment Handling: For heavy or bulky equipment, pillar jib cranes with higher load capacities are often employed. Their robust design and stability are essential for safely lifting and moving large parts or machinery.

Warehouses
Jib cranes in warehouses are used to enhance material handling and storage processes:

• Loading and Unloading: Wall-mounted and wall-traveling jib cranes are commonly used for loading and unloading goods from trucks or shelves. Their ability to move along walls or tracks facilitates easy access to different storage areas.
• Inventory Management: Jib cranes help with organizing and retrieving inventory, especially in high-density storage environments. Their flexibility allows for efficient handling of various items within the warehouse.

Adapting Cranes for Different Uses

Special Attachments
To enhance the functionality of jib cranes, special attachments can be used:

• Hooks and Slings: Standard attachments like hooks and slings are used for lifting and securing different types of loads. They can be easily swapped to accommodate various materials and sizes.
• Clamps and Grabs: Specialized attachments such as clamps and grabs are used for handling irregularly shaped or delicate items. These attachments improve handling efficiency and reduce the risk of damage.

Custom Modifications
Custom modifications allow jib cranes to be adapted for specific applications:

• Extended Reach: For applications requiring greater reach, jib cranes can be customized with longer jibs. This modification is useful in facilities where additional horizontal distance is needed.
• Enhanced Safety Features: Customizations can include additional safety features, such as improved load sensors or advanced control systems, to address specific safety concerns in different environments.
• Specialized Load Handling: Modifications can be made to handle specialized loads, such as adding custom lifting devices or adjusting the crane's design to fit unique operational requirements.

Adapting jib cranes for various applications involves understanding industry-specific requirements and implementing special attachments or custom modifications to enhance their functionality. Whether in construction sites, manufacturing facilities, or warehouses, jib cranes can be tailored to meet diverse operational needs and improve overall efficiency.

Custom and Specialized Solutions

When to Consider Custom Cranes

High Capacity Requirements
Custom cranes become essential when standard models cannot meet the load demands:

• Exceptional Load Capacities: For operations involving extremely heavy loads that exceed the capacity of off-the-shelf jib cranes, custom designs are required. Custom cranes can be engineered to handle specific weights safely and efficiently, ensuring that the load handling is precise and secure.
• Specialized Load Handling: When the nature of the load requires unique handling solutions, such as oversized or irregularly shaped items, custom cranes can be tailored with specific attachments or modifications to meet these needs.

Unique Environmental Conditions
Certain environments necessitate custom crane solutions to ensure optimal performance:

• Harsh Environments: Cranes operating in extreme temperatures, corrosive environments, or high humidity may need customizations such as enhanced weatherproofing or anti-corrosion treatments. Custom solutions help protect the crane from environmental damage and extend its operational life.
• Confined Spaces: In environments with limited space or complex layouts, custom cranes can be designed to fit within specific spatial constraints. This includes modifications to reduce the crane's footprint or to integrate it seamlessly into existing infrastructure.

Examples of Custom Jib Cranes

High Capacity Requirements
Examples of custom jib cranes for high capacity applications include:

• Heavy-Duty Pillar Jib Cranes: Custom-designed to handle capacities beyond standard models, these cranes often feature reinforced structures and enhanced stability to manage exceptionally heavy loads, such as in heavy manufacturing or large-scale construction projects.
• Industrial Crane Systems: For industries requiring very high load capacities, such as steel mills or large assembly plants, custom cranes are built with specialized components and structural reinforcements to meet rigorous demands.

Unique Environmental Conditions
Examples of custom jib cranes designed for unique environments:

• Marine Cranes: Custom jib cranes for marine environments are designed with enhanced corrosion resistance and weatherproofing to withstand harsh sea conditions. These cranes often feature specialized coatings and materials to prevent damage from saltwater and extreme weather.
• Cleanroom Cranes: In cleanroom environments where contamination control is critical, custom cranes are designed with smooth surfaces and minimal exposed components to ensure they meet cleanliness standards and do not compromise the controlled environment.

Working with Manufacturers

Collaborative Design Process
Collaborating with manufacturers is crucial for developing custom and specialized jib cranes:

• Initial Consultation: Discuss your specific needs and requirements with the manufacturer. This includes detailing the load capacities, environmental conditions, and any special features needed for your application.
• Design and Prototyping: Manufacturers often provide design and prototyping services to create a tailored solution. This process includes developing detailed plans, creating prototypes, and testing to ensure the crane meets all operational and safety standards.
• Customization Options: Explore various customization options with the manufacturer, such as modifications for load handling, environmental protection, and space constraints. Manufacturers can offer advice on the most effective solutions based on their expertise and previous projects.

Implementation and Support
Once the design is finalized, the manufacturer will assist with:

• Installation: Proper installation is essential for ensuring the crane functions as intended. Manufacturers often provide installation services or guidance to ensure that the crane is set up correctly and operates safely.
• Maintenance and Support: Ongoing maintenance and support are crucial for custom cranes. Manufacturers typically offer maintenance services or support plans to ensure the crane remains in optimal condition and continues to meet operational needs.

Custom and specialized jib cranes are essential for meeting unique operational requirements and challenging environments. By working closely with manufacturers and considering specific needs such as high capacity and environmental conditions, you can develop effective solutions that enhance efficiency and safety in your operations.

Maintenance and Longevity

Maintenance Best Practices

Regular Inspections and Testing
Routine inspections and testing are critical for maintaining crane safety and performance:

• Daily Checks: Conduct daily visual inspections to identify any immediate issues such as unusual wear, loose components, or signs of damage. Ensure that all controls and safety features are functioning correctly before use.
• Scheduled Maintenance: Follow a scheduled maintenance plan based on manufacturer recommendations and operational needs. This includes checking key components such as the hoist, jib arm, and base for wear and tear, lubrication, and alignment.
• Load Testing: Periodically perform load testing to ensure the crane can handle its rated capacity safely. This involves testing the crane with loads up to its maximum rated capacity to confirm its performance and identify any potential issues.

Extending Crane Life and Performance

Lubrication and Cleaning
Proper lubrication and cleaning help to maintain crane functionality and prevent premature wear:

• Lubrication: Regularly lubricate moving parts such as bearings, gears, and joints to reduce friction and prevent mechanical failure. Use the recommended lubricants and follow the manufacturer's guidelines for application intervals.
• Cleaning: Keep the crane clean and free from debris, dust, and contaminants. Clean surfaces and components regularly to prevent buildup that could affect performance or lead to corrosion.

Component Replacement and Repairs
Addressing worn or damaged components promptly helps to avoid more significant issues:

• Timely Replacement: Replace components that show signs of excessive wear or damage, such as cables, hooks, or bearings. Using genuine parts ensures compatibility and maintains the crane's safety and performance standards.
• Repairs: Perform necessary repairs as soon as problems are identified. Engage qualified technicians to handle repairs and ensure that they follow proper procedures to restore the crane to safe operating conditions.

Training and Usage Practices
Proper training and usage practices contribute to crane longevity:

• Operator Training: Ensure that operators are well-trained in crane operation, load handling, and safety procedures. Proper training reduces the risk of misuse and minimizes the likelihood of accidents or damage.
• Load Handling: Follow recommended load handling practices to avoid overloading and strain on the crane. Use appropriate lifting techniques and avoid sudden movements that could stress the crane's components.

Monitoring and Upgrades
Implementing monitoring systems and considering upgrades can enhance crane longevity:

• Monitoring Systems: Install monitoring systems to track the crane's performance and detect any anomalies. These systems can provide real-time data on load weights, operational hours, and maintenance needs.
• Upgrades: Consider upgrading components or systems if needed to improve performance or address new operational requirements. Upgrades can enhance safety features, increase efficiency, and extend the crane's service life.

Maintaining and extending the life of a jib crane involves adhering to best practices for regular inspections, lubrication, component replacement, and operator training. By following these guidelines, you can ensure that the crane remains in optimal condition, providing reliable performance and safety over its lifespan.

Conclusion

Summary of Key Points

In summary, jib cranes are versatile lifting solutions with varying capacities tailored to meet specific operational needs. We've explored:

• Types and Capacities: Jib cranes come in different types, including pillar, wall-mounted, and wall-traveling, each with its own capacity range and benefits.
• Capacity Limits: Understanding the factors affecting crane capacity, such as design, load distribution, and environmental conditions, is crucial for safe and effective operation.
• Selection Criteria: Selecting the right jib crane involves assessing your needs based on application type, frequency of use, and comparing different crane types for their strengths and limitations.
• Safety and Compliance: Ensuring safety involves recognizing the importance of capacity limits, signs of overloading, and adhering to safety features and industry regulations.
• Design Considerations: Key factors include load capacity ratings, reach and height adjustments, space constraints, and facility layout.
• Applications and Uses: Jib cranes are used across various industries, with custom solutions available for specific requirements such as high capacities or unique environmental conditions.
• Maintenance and Longevity: Regular maintenance, including inspections, lubrication, and timely repairs, is essential for extending the crane's life and performance.

Recommendations for Selecting a Jib Crane

• Assess Your Needs: Clearly define your operational requirements, including load capacities, reach, and environmental conditions. Match these needs with the appropriate crane type and capacity.
• Consult with Experts: Work with crane manufacturers or suppliers to get expert advice and recommendations based on your specific application and operational environment.
• Consider Custom Solutions: If standard models do not meet your requirements, consider custom or specialized jib cranes designed to handle unique conditions or high capacities.
• Plan for Maintenance: Choose a crane with manageable maintenance requirements and ensure that you have a plan in place for regular inspections and upkeep to maximize the crane's lifespan.

Resources for Further Information

• Manufacturer Websites: Visit the websites of leading jib crane manufacturers for detailed product specifications, case studies, and technical resources.
• Industry Associations: Refer to industry associations and organizations such as the Crane Manufacturers Association of America (CMAA) for guidelines, standards, and best practices.
• Technical Publications: Look for technical publications and guides on crane design, operation, and maintenance for in-depth knowledge and insights.
• Consulting Experts: Engage with crane consultants or industry experts for personalized advice and solutions tailored to your specific needs and applications.

By following these recommendations and utilizing available resources, you can make informed decisions about selecting and maintaining a jib crane that best suits your operational requirements.

Frequently Asked Questions (FAQs)

Common Queries About Jib Crane Capacity

What factors determine the capacity of a jib crane?
The capacity of a jib crane is determined by several factors, including the design of the crane, the materials used in its construction, the load distribution, and the environmental conditions in which it operates. Load capacity ratings provided by manufacturers indicate the maximum weight the crane can safely handle under ideal conditions.

How do I choose the right jib crane capacity for my needs?
To select the right jib crane capacity, assess your specific requirements, including the maximum load you need to lift, the reach of the crane, and the operational environment. Consider the type of work, frequency of use, and any space constraints. Consulting with a crane manufacturer or expert can help you determine the most appropriate capacity and crane type.

What is the difference between static and dynamic loads?

• Static Loads: These are loads that are not moving and are applied steadily, such as a stationary item on the crane.
• Dynamic Loads: These involve moving or fluctuating weights, such as items being lifted or transported. Cranes must be designed to handle both static and dynamic loads, with appropriate safety margins.

How often should I inspect and maintain my jib crane?
Jib cranes should undergo regular inspections and maintenance according to the manufacturer's recommendations and operational guidelines. Daily visual checks should be performed by operators, while more thorough inspections and maintenance tasks should be carried out on a scheduled basis, such as monthly or annually.

What are common signs of overloading in a jib crane?
Signs of overloading may include unusual noises, vibrations, or difficulty in operation. Components such as cables, hooks, and the jib arm may show signs of excessive wear or deformation. It is crucial to address these issues immediately to avoid damage or safety hazards.

Can jib cranes be customized for specific applications?
Yes, jib cranes can be customized to meet specific needs, such as handling unusually heavy loads, operating in harsh environments, or fitting within constrained spaces. Customizations may include modifications to capacity, reach, environmental protection features, and specialized attachments.

What safety features should I look for in a jib crane?
Key safety features to consider include overload protection systems, limit switches to prevent excessive movement, emergency stop controls, and safety interlocks. Ensure that the crane meets industry standards and regulations to ensure safe operation.

How does the crane's design affect its performance?
The crane's design, including its load capacity ratings, reach, and height adjustments, directly affects its performance. Proper design ensures that the crane can handle loads effectively and operate within the intended space constraints while maintaining safety and efficiency.

What are the benefits of regular maintenance for a jib crane?
Regular maintenance helps to ensure the crane operates safely and efficiently, extending its lifespan and reducing the risk of unexpected breakdowns. Proper maintenance includes lubrication, inspections, and timely repairs, which contribute to overall performance and safety.

Where can I find more information about jib cranes?
For more information, refer to manufacturer websites, industry associations, and technical publications. Consulting with crane experts or engineers can also provide valuable insights and help address specific questions or concerns.

These FAQs address common queries about jib crane capacity, helping to clarify key aspects of selection, operation, and maintenance. For more detailed or specific questions, consulting with manufacturers or industry experts is recommended.
