5 Ton- 20 Ton Box Girder Single Beam Goliath Crane & Gantry Crane

The single beam goliath crane is a small and middle duty goliath crane, equipped with CD1/MD1 type electric hoists, widely used in open space and warehouse for general material handling or grabbing, i.e, goliath crane equipped with grabs. Generally, single beam goliath crane is mainly consisted of overhead gantry frame, i.e. single beam main girder, either box type or truss type, supporting legs, bottom end beams, hoist lifting mechanism, travelling mechanism, and electrical control, and others, etc. The single girder gantry can be designed with two cantilever, one cantilever or no-cantilever based on lifting requirements and working conditions

Main parameters of box girder single beam goliath crane

Single girder goliath crane is a type of light small goliath crane with a single girder and rail travelling. The single beam goliath crane is designed for generally material handling, with the lifting capacity around 1 to 50 tons, and working class A3, or A4. The specification of the single beam goliath crane is as follow:

• goliath crane Type: single beam goliath crane with electric hoists
• Lifting Capacity of single beam goliath crane : 1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 16 ton, 20 ton, 32 ton, 50 ton
• Span Length of Single Girder Gantry :7 m, 7.5 m, 8 m, 9 m, 13.5 m, 19 m, 20 m, 22 m, 23 m ,30m
• Lifting height of single beam goliath crane: 6 m, 9 m, 12 m, 30 m
• Working Class of Single Girder Gantry : A3, A4
• Ambient Temperature of Single Girder Hoist Gantry : -25~40℃
• Applications of goliath crane: Iron and steel metallurgy, electricity, water, aerospace, shipbuilding, automobiles, coal, petrochemicals

The MH series of single beam goliath cranes with electric hoists are widely welcomed at home and abroad due to the advantages of simple structure, easy installation, easy operation, good performance, high efficiency, low and easy maintenance, long working life, and cost-affective crane price. If you need a good and economical goliath crane solution, please feel free to contact us by leaving a message below or send us an email.

Design features of box girder single beam goliath crane

The single beam goliath crane with electric hoist is designed and manufactured in accordance with JB566.3.2-91 standard.The hoist goliath crane moves on and along crane rails mounted on the ground. Adopting several mechanisms and units, the single beam goliath crane offers economical material handling crane solution efficiently and safely.

• Components and parts- The single beam goliath crane consists of metal gantry frame,and electric hoist trolley, crane travelling mechanism, , electrical device, and safety devices, etc
• Overhead gantry frame- The gantry frame of the electric single beam goliath crane is designed with reasonable structure and solid construction, which is consisted of the main beam girder, end beam, supporting legs, end carriages, walkway and railings,etc. The main beam girder and end beams are connected by high tensile bolts
• Hoisting mechanism- The hoisting mechanism is consist of electric hoisting system and a hoist trolley. Regarding the load condition, duty cycle and ease of use, one or more hoisting system can be equipped to move along the main bridge girder.The MH type single beam goliath crane is usually equipped standard CD / MD wire rope hoists, other types of hoists also can be used, such as European standard FEM electric hoist, Explosion Proof Hoist, and Electric Chain Hoist, etc.etc. The hoist trolley is normally laterally suspended to the goliath crane and customized suspension methods can be designed based on your requirements.
• Crane travelling mechanism- The crane travelling mechanism uses separate drive system for the sake of convenience for installation and maintenance.The goliath crane adopts three-in-one transmission, and vertical axis reducer to form compact structure and offer convenience for assembly.
• Electrical devices- The electric devices of our hoist goliath crane are all high quality, supplied by reputable manufacturers from home and abroad.
• Crane control system -The pendant crane control, wireless remote crane control and driver's cabin control are available for your hoist goliath crane to select. And a manually reset emergency stop button will be equipped on your crane control system to ensure the security of your goliath crane operation.
• Safety devices - Options forsafety devices include overload limiter, high limit switches, and travelling limit switch, anti-swaying device, .anti-collision device, etc.
• Individualized goliath crane designs - Customized single beam goliath cranes are available, based on whatever your requirements, we will work out an economical single beam goliath crane solution that works well with your application. Leave us your requirements on the electric single beam goliath crane below now.

Main Beam Girder of Single Girder Goliath Crane

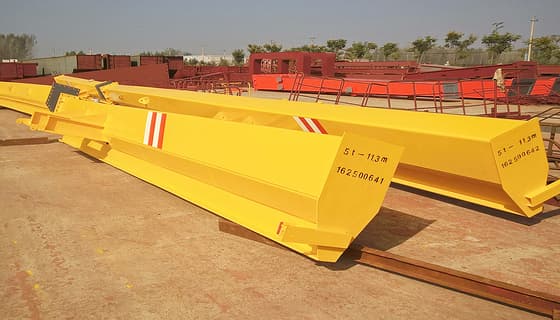

Q235/Q345 carbon structural steel. Strong box type with standard deflection

Supporting Leg of Single Girder Goliath Crane

Q235/Q345 carbon structural steel. Strong box type with two coats of paint

Ground Beam for Single Girder Goliath Crane

Q235/Q345 carbon structural steel. With Nanjing brand motor

Electric Wire Rope Hoist for Single Girder Goliath Crane

CD1/MD1 Electric made by our own group, insulation class IP44 /IP55

Crane Wheel for Single Girder Goliath Crane

Vacuum casting , intermedium quenching by top technique machinery

Crane Motor for Single Girder Goliath Crane

Special for crane use-made by Nanjing/Nanjing Special Motor Factory

Safety feature of box girder single beam goliath crane

• Overload protection devices can ensure the safe operation of hoist goliath crane. A sharp warning will be alarmed when overloads happen.
• Limit switches will keep the crane hook in safety during vertical movement, neither too high nor too low.
• High quality polyurethane buffer keeps your hoist crane from collision during horizontal movement to ensure a long working life.
• Crane driver's cabin control and remote radio control are available for safety of your goliath crane operator.
• Low voltage protection can safeguard your wire rope hoist crane in case of the unstable voltage supply.
• Emergency stop button can effectively brake the goliath crane with one manual press when emergency happens.

Monorail hoists for single girder gantry cranes

For the various single girder gantry crane designs, there are diverse types of single girder goliath crane hoists and hoist trolleys available to meet the different lifting requirements and applications such as manual single girder goliath crane hoists and electric single girder goliath crane hoists. For the electric single girder goliath crane hoists, there are various type of electric monorail hoists available, including the following :

European Style Electric Hoist for Single Girder Goliath Crane

The single girder crane hoists are applicable for various types of single girder gantry crane, single beam crane, H beam crane, I beam crane, monorail crane, and other types of single girder Goliath Cranes, etc.

Chinese Style Electric Wire Rope Hoist for Single Girder Goliath Crane

The Chinese type single girder crane hoists are applicable for various types of single girder gantry crane, single beam crane, H beam crane, I beam crane, monorail crane, and other types of single girder Goliath Cranes, etc.

Explosion Proof Electric Wire Rope Hoist for Single Girder Goliath Crane

The explosion proof single girder crane hoists are applicable for various types of single girder gantry crane, single beam crane, H beam crane, I beam crane, monorail crane, and other types of single girder Goliath Cranes, etc.

Low Headroom Electric Wire Rope Hoist for Single Girder Goliath Crane

The low headroom single girder crane hoists are applicable for various types of single girder gantry crane, single beam crane, H beam crane, I beam crane, monorail crane, and other types of single girder Goliath Cranes, etc.

Ladle Handling Electric Wire Rope Hoist for Single Girder Goliath Crane

Single girder overhead hoist crane system for hot metal & ladle handling in steel & metallurgic industries. 2 ton, 3 ton, 5 ton & 10 ton ladle hoist crane for sale.

Electric Trolley Electric Chain Hoist for Single Girder Goliath Crane

Types of process crane hoist designs are available for your single girder gantry crane. Contact us to get your Goliath Crane design and good Goliath Crane price.

Manual Trolley Electric Chain Hoist for Single Girder Goliath Crane

Types of process crane hoist designs are available for your single girder gantry crane. Contact us to get your Goliath Crane design and good Goliath Crane price.

Low Headroom Electric Chain Hoist for Single Girder Goliath Crane

Types of process crane hoist designs are available for your single girder gantry crane. Contact us to get your Goliath Crane design and good Goliath Crane price.

Applications of box girder single girder goliath crane

As a cost-effective single girder gantry crane solution, the single girder gantry crane with electric hoists have an extremely wide application both indoor and outdoor occasions due to the features of simple structure,light weight, low cost and good performance.

As a general overhead travelling crane, the single girder gantry crane is designed for light and moderate duty material handling , which is frequently used at open ground, ports, granite pit, cement pipe yard, open yard, container depots and shipyards, and indoor applications such as any workshop where overhead crane solution is needed but a bridge crane is not practical or a lifting crane is needed to work together with the existing overhead bridge crane, etc.

However,the single girder gantry crane is forbidden to handle melt metal, inflammable, or explosive loads and is not supposed to be used when the heavy duty crane with large tonnages is required.
