Single Girder Goliath Crane with Grab Bucket for Bulk Material Handling

Goliath gantry crane with grab bucket for outdoor bulk material handling with 5-10 tons capacity, 12-30m span, remote control, and reliable grab bucket.

Overview of Single Girder Goliath Crane with Grab Bucket

The Single Girder Goliath Crane with Grab Bucket is a powerful and reliable solution designed for the efficient handling of bulk materials in industries such as ports, construction, and mining. This crane is engineered to perform heavy-duty lifting with ease, offering unmatched versatility in handling large volumes of materials like coal, sand, gravel, and grain. Its single girder design allows for a lightweight yet sturdy structure, providing high lifting capacities without compromising on space or performance. Whether you're loading, unloading, or transferring bulk goods, this crane delivers superior performance in even the most demanding environments.

Key Specifications of Single Girder Goliath Gantry Crane:

The MHZ Single Girder Goliath Gantry Crane with Grab Bucket is a type of outdoor gantry crane designed based on the MH model electric hoist gantry crane. It features twin electric hoists paired with a grab bucket, making it suitable for handling bulk materials in various outdoor environments. Below are the main specifications:

• Crane Type: MHZ Single Girder Goliath Gantry Crane with Grab Bucket
• Lifting Capacity: 5 to 10 tons
• Span: 12 to 30 meters
• Working Environment Temperature: -20°C to +40°C
• Crane Type: Gantry (Rail-running)
• Operation Mode: Remote control (commonly used)
• Hoisting Mechanism: Twin electric hoists paired with a grab bucket
• Design: Typically features an enclosed cabin (box structure) for the hoists
• Application: General-purpose crane, typically used for the lifting and transport of bulk materials in outdoor environments such as ports, warehouses, and construction sites
• Duty Class: A3-A4 (standard for medium to light-duty operations)
• Work Environment: Outdoor use for bulk material handling, such as coal, gravel, sand, and other granular or bulk goods
• Structural Design: Single girder design with a goliath gantry frame for rail-based movement

This crane is built for medium-to-small scale lifting tasks and is designed for environments requiring high flexibility in outdoor material handling.

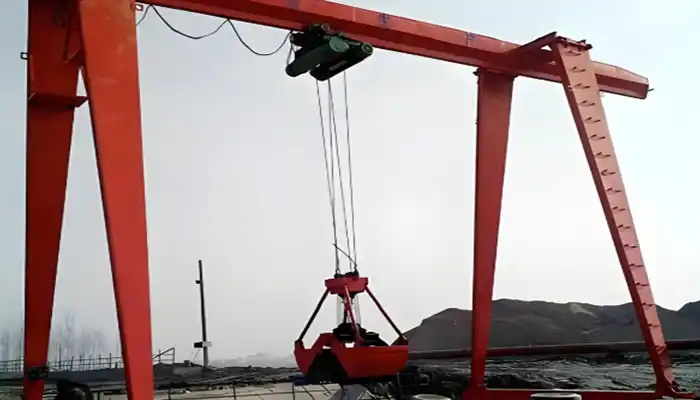

single girder goliath gantry crane with grab bucket for bulk material handling

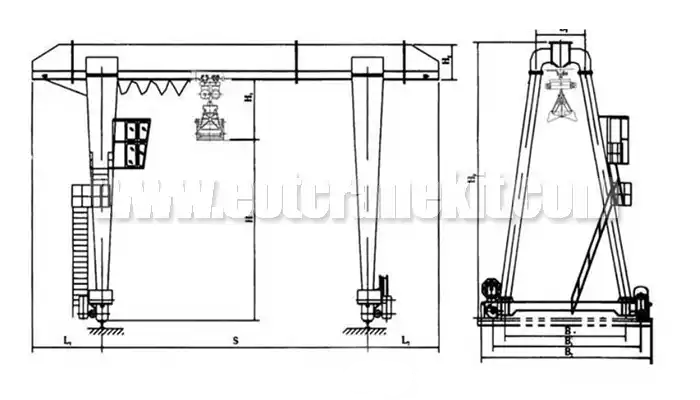

crane drawing of single girder grab bucket gantry crane

Key Features

• Single Girder Design: The single girder structure ensures a compact and space-saving solution, providing flexibility in narrow or crowded work environments. This design not only reduces the overall weight of the crane but also lowers maintenance costs and improves operational efficiency.
• Grab Bucket Attachment: The crane comes equipped with a robust grab bucket, specially designed for efficient handling of bulk materials. The bucket is ideal for scooping up and transporting large amounts of loose materials quickly and safely. Its durable construction ensures it can withstand the rigors of daily use in challenging environments like ports and construction sites.
• Versatility in Bulk Material Handling: This crane excels in a wide range of applications, from moving sand and gravel in construction projects to handling grain at grain terminals. The grab bucket attachment offers flexibility, allowing for precise control over material handling, reducing spillage, and improving overall productivity.
• High Load Capacity: Designed to handle heavy loads, the Single Girder Goliath Crane with Grab Bucket can lift substantial quantities of bulk materials, making it a reliable choice for industries that require constant material movement. Its strength and durability ensure long-term performance, even under heavy-duty conditions.

These features combine to make the Single Girder Goliath Crane with Grab Bucket a highly efficient and cost-effective choice for companies looking to improve their bulk material handling processes. Whether it's for short-term use or long-term operations, this crane offers unmatched reliability and flexibility.

Technical Specifications of 5-Ton Single Girder Grab Bucket Gantry Crane:

Technical Specifications of 10-Ton Single Girder Grab Bucket Gantry Crane:

The weight provided in this sample is the design value, with an additional 15% added for the manufacturing tolerance.

Design & Construction

Single Girder Goliath Crane Design

The Single Girder Goliath Crane is designed with a single girder structure, offering an efficient and lightweight solution for bulk material handling. This configuration delivers several key advantages:

• Space Efficiency: The single girder design maximizes workspace by providing more clearance beneath the crane, making it ideal for confined spaces or areas with height restrictions.
• Cost-Effectiveness: By using fewer materials and a simpler design, the crane is more affordable to construct and maintain without compromising strength.
• Optimal Load Handling: Despite its lighter weight, the single girder crane is still capable of handling substantial loads, providing reliable performance in a range of bulk material applications.

This design makes it a perfect fit for industries where space is limited but heavy-duty lifting is required. Its compact size and efficient design ensure smooth operations and increased productivity.

Grab Bucket Attachment

The grab bucket is a crucial component of the Single Girder Goliath Crane, enabling it to handle a wide variety of bulk materials with precision and efficiency. Key features of the grab bucket include:

• Strong Construction: Made from reinforced steel, the grab bucket is built to withstand the demanding conditions of bulk material handling.
• Versatile Design: The bucket can easily handle different types of materials, from fine grains to large, heavy objects.
• Efficient Operation: Designed to scoop, lift, and transport materials quickly while minimizing spillage, enhancing operational efficiency.

The grab bucket attachment ensures that materials can be moved safely and effectively, providing the crane with the ability to perform tasks such as loading, unloading, and transferring materials without disruption.

Construction Materials & Durability

Both the crane and its grab bucket are constructed from high-quality materials chosen for their durability and resistance to wear. Key aspects of the construction include:

• High-Strength Steel: The crane's frame and the grab bucket are made of steel known for its toughness and ability to endure heavy-duty use.
• Anti-Corrosion Coatings: Advanced coatings are applied to both the crane and grab bucket to protect against rust and corrosion, particularly in environments with high moisture or exposure to chemicals.
• Long-Lasting Durability: The materials used ensure that both the crane and the grab bucket remain reliable even in harsh working conditions, reducing the need for frequent maintenance.

This combination of strong materials and protective coatings ensures that the Single Girder Goliath Crane with Grab Bucket is a durable, long-lasting investment for bulk material handling operations.

Bulk Material Handling Capabilities

The Single Girder Goliath Crane with Grab Bucket excels in handling a wide variety of bulk materials, offering remarkable versatility across industries. Its ability to manage both fine and coarse materials ensures efficient operations in demanding environments such as ports, construction sites, mining facilities, and agricultural operations.

Types of Bulk Materials Handled

The crane's grab bucket attachment makes it ideal for lifting and transporting bulk materials of various types, including:

• Coal: Efficiently handles coal in ports, mining operations, and power plants, reducing transportation delays.
• Grain: Perfect for loading and unloading grains, ensuring fast and safe handling in agricultural facilities.
• Sand: Used on construction sites to transport sand quickly and effectively, contributing to faster project timelines.
• Gravel: Suitable for transferring gravel in construction or mining operations, handling large quantities with ease.
• Cement: Capable of moving cement bags or bulk cement, improving the material flow in construction and manufacturing.
• Iron Ore: Handles iron ore in mining and processing facilities, ensuring smooth transport from one stage of production to another.
• Scrap Metal: Useful for transferring scrap metal in recycling centers, making it a vital part of material handling operations.
• Wood Chips: Ideal for moving wood chips in forestry, paper mills, and other related industries.
• Fertilizer: Efficient in transporting fertilizers in agricultural and chemical facilities, ensuring steady supply to production lines.
• Bulk Liquids in Drum Containers: While primarily for solid materials, the crane is also equipped to handle bulk liquids stored in drum containers, offering flexibility for diverse applications.

By incorporating the grab bucket attachment, the Single Girder Goliath Crane streamlines the process of lifting, moving, and storing a wide variety of bulk materials, making it indispensable for industries requiring efficient material handling solutions. Its versatility ensures a quick return on investment and contributes to smooth operations across multiple sectors.

Operational Efficiency

The operational efficiency of the Single Girder Goliath Crane is a key factor in its ability to handle bulk materials quickly and effectively. Features that enhance this efficiency include:

• Grab Bucket Design: The grab bucket is specifically designed for minimal material spillage and maximum material retention during lifting. Its ability to tightly grip materials means that operators can load and unload faster, reducing downtime and improving overall workflow.
• Quick Loading/Unloading: The crane's high lifting speed, combined with the efficient operation of the grab bucket, allows for rapid material transfer. This significantly reduces the time spent on each lift, improving overall productivity in bulk material handling operations.
• Smooth Operation: With advanced control systems, the crane and grab bucket work together seamlessly, allowing for smooth, controlled lifting and positioning of materials. This ensures that materials are transferred safely, with minimal disruption to the surrounding environment.

The crane's ability to quickly load and unload materials, combined with its strong performance and efficient design, makes it a powerful solution for bulk material handling in a variety of industries.

Applications of the Single Girder Goliath Crane with Grab Bucket for Bulk Material Handling

Industries Using the Crane

The Single Girder Goliath Crane with Grab Bucket is an essential tool for various industries that require efficient bulk material handling. Some key industries where this crane excels include:

Ports & Shipping

• Use: The crane is crucial in ports for the rapid loading and unloading of materials such as coal, grain, and sand.
• Benefit: It improves harbor operations by reducing downtime and increasing throughput, ensuring smooth logistics.

Construction

• Use: On construction sites, the crane moves bulk materials like gravel and sand, essential for foundations, roads, and other infrastructure projects.
• Benefit: The crane boosts project flow and efficiency, reducing delays and ensuring materials are moved swiftly.

Mining

• Use: The crane is ideal for mining facilities, where it handles heavy materials like coal, ores, and minerals.
• Benefit: It ensures a smooth transfer of materials from extraction points to processing areas, improving overall mining operations.

Material Handling

• Use: In warehouses, this crane is used to handle bulk items like cement, scrap metal, and other heavy materials.
• Benefit: It enhances warehouse productivity by facilitating the efficient movement of materials, reducing manual labor and improving inventory management.

Agriculture

• Use: The crane moves agricultural materials such as grain, fertilizer, and other bulk products in farms or storage facilities.
• Benefit: It streamlines the storage and transport of agricultural goods, contributing to more efficient farm operations.

This versatile crane is designed to provide reliable, cost-effective solutions for bulk material handling in these diverse industries.

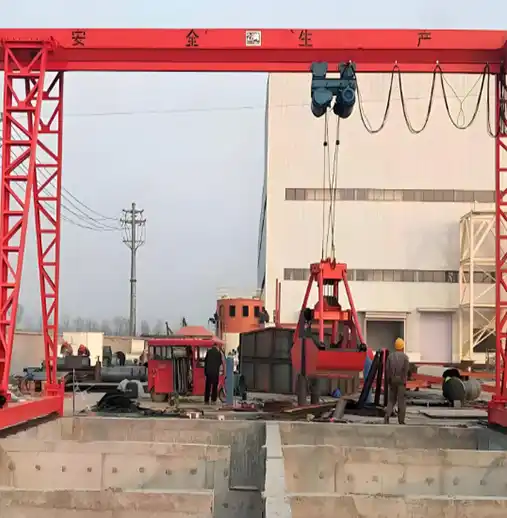

single girder goliath crane with clamshell grab bucket for bulk material handling

Anti-corrosion single girder goliath crane with corrosion resisitance grab bucket for degreding handling

Outdoor gantry crane, single girder goliath crane with grab bucket for sale

Specific Use Cases of the Single Girder Goliath Crane with Grab Bucket

The Single Girder Goliath Crane with Grab Bucket is widely used in various industries due to its efficiency in bulk material handling. Below are detailed real-world examples showcasing its capabilities across different sectors:

Harbor Operations

• Use Case: The crane plays a crucial role in ports and harbors by loading and unloading bulk cargo such as coal, grain, and sand from ships.
• Functionality: The grab bucket allows for quick and efficient handling of large quantities of materials, significantly reducing the time it takes to load or unload vessels. This helps improve the turnaround time of ships, ensuring that port operations remain smooth and efficient.
• Benefit: Increased throughput and faster port operations contribute to reduced shipping delays and greater overall efficiency in harbor logistics.

Construction Sites

• Use Case: On construction sites, the crane is used for moving bulk materials like sand, gravel, and cement between storage areas and construction vehicles.
• Functionality: The grab bucket's large capacity and efficient operation allow for the fast transfer of materials from stockpiles to construction equipment, speeding up the overall material handling process. The crane can move materials directly to locations where they are needed, reducing manual labor and minimizing delays.
• Benefit: It accelerates project timelines by streamlining material transportation, contributing to faster construction progress and a more efficient use of resources.

Mining Facilities

• Use Case: In mining operations, the crane is essential for transferring ore, coal, waste materials, and other bulk substances within the facility.
• Functionality: The crane is designed to handle heavy, abrasive materials that are often difficult to move manually. The grab bucket allows for precise material handling, efficiently moving materials from one part of the mine to another.
• Benefit: It keeps the mining process flowing smoothly, preventing bottlenecks in material transfer, which can otherwise slow down the overall mining operation. This leads to higher productivity and a more effective mining process.

Agricultural Facilities

• Use Case: The crane is also widely used in agricultural facilities to handle bulk materials such as grain, fertilizers, and other farming products.
• Functionality: The grab bucket efficiently loads and unloads materials from trucks, storage bins, or containers, which is especially beneficial during harvest seasons. It can also be used for moving fertilizers from storage to distribution points on farms.
• Benefit: By speeding up the loading and unloading process, the crane minimizes downtime and labor costs, making agricultural operations more productive. It allows farmers and agricultural facilities to quickly move large quantities of goods, ensuring a smooth workflow.

How the Crane Improves Efficiency and Reliability

Across all these industries, the Single Girder Goliath Crane with Grab Bucket ensures that bulk materials are moved with minimal manual labor and maximum efficiency. Its robust design, quick operation, and large capacity make it an invaluable asset, leading to:

• Faster operations: Shorter loading and unloading times improve overall workflow.
• Reduced costs: Fewer workers are needed for material handling, reducing labor costs.
• Higher productivity: Materials are moved efficiently, leading to better project timelines and faster turnarounds.

These use cases demonstrate how the crane not only improves operational efficiency but also enhances reliability, ensuring that businesses can meet deadlines, maintain a smooth operation, and lower overall operational costs.

Customization Options for the Single Girder Goliath Crane with Grab Bucket

The Single Girder Goliath Crane with Grab Bucket is designed with a high degree of flexibility, allowing for customization to meet the specific needs of various operations. This ensures that the crane performs optimally in diverse industrial settings, from ports to construction sites.

Flexible Configurations

Grab Bucket Sizes

• Custom Sizes: The crane can be equipped with a variety of grab bucket sizes to accommodate the nature and volume of materials being handled. For heavy-duty applications, larger buckets can be chosen to lift bulk materials like coal and gravel, while smaller buckets are ideal for handling finer materials such as sand or grain.
• Benefit: Customizing the grab bucket size ensures that the crane performs efficiently and effectively, minimizing wastage and optimizing load handling.

Load Capacity Options

• Custom Load Capacity: The crane's load capacity can be adjusted to suit your specific material handling needs. Whether you're dealing with lightweight items like grain or heavy materials such as coal or cement, the crane can be designed to handle loads within the required range.
• Benefit: Tailoring the load capacity ensures that the crane can safely lift and transport materials without overloading, improving both safety and performance.

These customizable features help ensure that the Single Girder Goliath Crane with Grab Bucket is the perfect match for your operation, making it more efficient and adaptable to varying workloads.

Special Features to Enhance Crane Performance

In addition to the flexible configurations, several advanced features can be added to the crane to further improve its functionality and safety:

Remote Control

• Safe Operation: Installing a remote control system allows crane operators to control the crane from a safe distance. This reduces the risk of accidents and allows operators to monitor the crane's operation without being directly beneath the load.
• Benefit: Increases safety by minimizing the risk of operator injury and enhances operational efficiency by allowing operators to control the crane with precision.

Variable Speed Drives

• Optimized Control: Variable speed drives provide the ability to adjust the crane's lifting and traveling speeds. This is particularly useful when handling different materials that may require slower speeds for finer items or faster movements for bulkier loads.
• Benefit: Offers more precise control over operations, ensuring that the crane's performance is optimized for a variety of tasks, leading to better material handling and reduced operational delays.

Enhanced Safety Systems

• Proximity Sensors and Warning Systems: Additional safety features such as proximity sensors, load limiters, and warning alarms can be installed to prevent accidents and ensure safe crane operation. These sensors detect obstacles or irregularities in the crane's operation, alerting the operator before an issue arises.
• Benefit: Enhances overall safety, reducing the risk of accidents, protecting both operators and equipment, and complying with industry safety standards.

These special features and customization options allow you to tailor the Single Girder Goliath Crane with Grab Bucket to meet the specific needs of your industry, ensuring that it operates efficiently, safely, and cost-effectively.

Safety Features

Safety Systems in Place

The Single Girder Goliath Crane is equipped with several safety features to ensure smooth and secure operations:

• Load Limiters: Prevent overloading by ensuring that the crane does not lift beyond its specified capacity, reducing the risk of mechanical failure.
• Emergency Stop Buttons: Easily accessible emergency stop buttons allow operators to immediately halt the crane's operation in case of any emergency.
• Anti-Collision Systems: Sensors and systems designed to detect and prevent collisions with objects or other cranes in the vicinity.
• Fail-Safe Mechanisms: Built-in fail-safes ensure that in the event of a malfunction, the crane will safely come to a stop, preventing accidents.

These safety systems are critical in reducing risks and ensuring that the crane operates smoothly.

Compliance with Safety Standards

The crane is designed and built to comply with industry safety standards and regulations for bulk material handling:

• International Safety Certifications: Meets international standards like ISO and CE for safety and performance.
• Regulatory Compliance: Adheres to local regulations regarding lifting equipment and bulk material handling, ensuring that operations remain safe and compliant with the law.

These compliance measures ensure that the crane provides not only high performance but also a safe working environment for operators.

Maintenance & Service

Routine Maintenance Requirements

To ensure the longevity and optimal performance of the Single Girder Goliath Crane with Grab Bucket, regular maintenance is essential. Recommended practices include:

• Regular Inspections: Conduct periodic visual inspections of the crane's structure, hooks, and grab bucket for wear and tear.
• Lubrication: Keep moving parts well-lubricated to reduce friction and prevent rust. Regular lubrication of the hoisting mechanism, wheels, and rails is critical.
• Load Testing: Perform load tests periodically to verify the crane's lifting capacity and ensure it's functioning within its rated limits.
• Check Electrical Components: Inspect electrical systems, including wiring and motors, for any signs of damage or malfunction.
• Clean the Crane and Bucket: Keep the crane and grab bucket clean to prevent material build-up, especially in harsh environments like ports or mining areas.

Following these maintenance steps helps prevent costly repairs and ensures the crane operates efficiently for years.

Service Support

To keep the crane in top condition, several service options are available:

• Technical Support: Our team of technicians provides 24/7 support for troubleshooting and answering any operational questions.
• Installation Services: Expert installation is available to ensure the crane is set up correctly and operates at peak performance from day one.
• Warranties & Service Contracts: We offer comprehensive warranties that cover parts and labor, ensuring peace of mind. Long-term service contracts are available for ongoing maintenance and support.

These service options help maintain the crane's performance and reduce downtime, providing reliable support throughout its lifecycle.

Pricing & Ordering

Pricing Structure

The price of the Single Girder Goliath Crane with Grab Bucket varies based on several factors, including:

• Crane Configuration: The size, length, and design of the crane.
• Load Capacity: Prices increase with higher load capacities, typically ranging from 5 tons to 50 tons.
• Customization Options: Additional features like remote control, variable speed drives, and special safety systems will affect the price.

For an exact quote, we recommend contacting our sales team with specific requirements to receive a tailored pricing estimate. WhatsApp： + 86 151 3871 1597.

How to Order

Placing an order for the Single Girder Goliath Crane is easy. Follow these steps:

• Contact Our Sales Team: Reach out to our sales department via email or phone to discuss your specific needs and requirements.
• Select Your Configuration: Choose the crane size, load capacity, grab bucket type, and any additional features like remote control or enhanced safety systems.
• Request a Quote: After discussing your requirements, our team will provide you with a detailed quote, including delivery costs.
• Place Your Order: Once you are satisfied with the quote, confirm your order by signing the purchase agreement.
• Lead Time & Delivery: After the order is confirmed, the typical lead time for manufacturing and delivery is 6-8 weeks, depending on the complexity of customizations. We offer flexible delivery options to ensure the crane reaches your location safely.
• Installation & Support: After delivery, our team will assist with installation and provide ongoing technical support as needed.

Following this process ensures a smooth and efficient ordering experience.

For more information, a detailed quote, or to discuss your specific needs, please don't hesitate to reach out. Our team is ready to assist you in finding the best crane solution for your operations.Phone/ WhatsApp: 0086 151 3871 1597 for immediate assistance.We look forward to helping you enhance your bulk material handling with our reliable and customizable crane solutions.
